Product Overview:

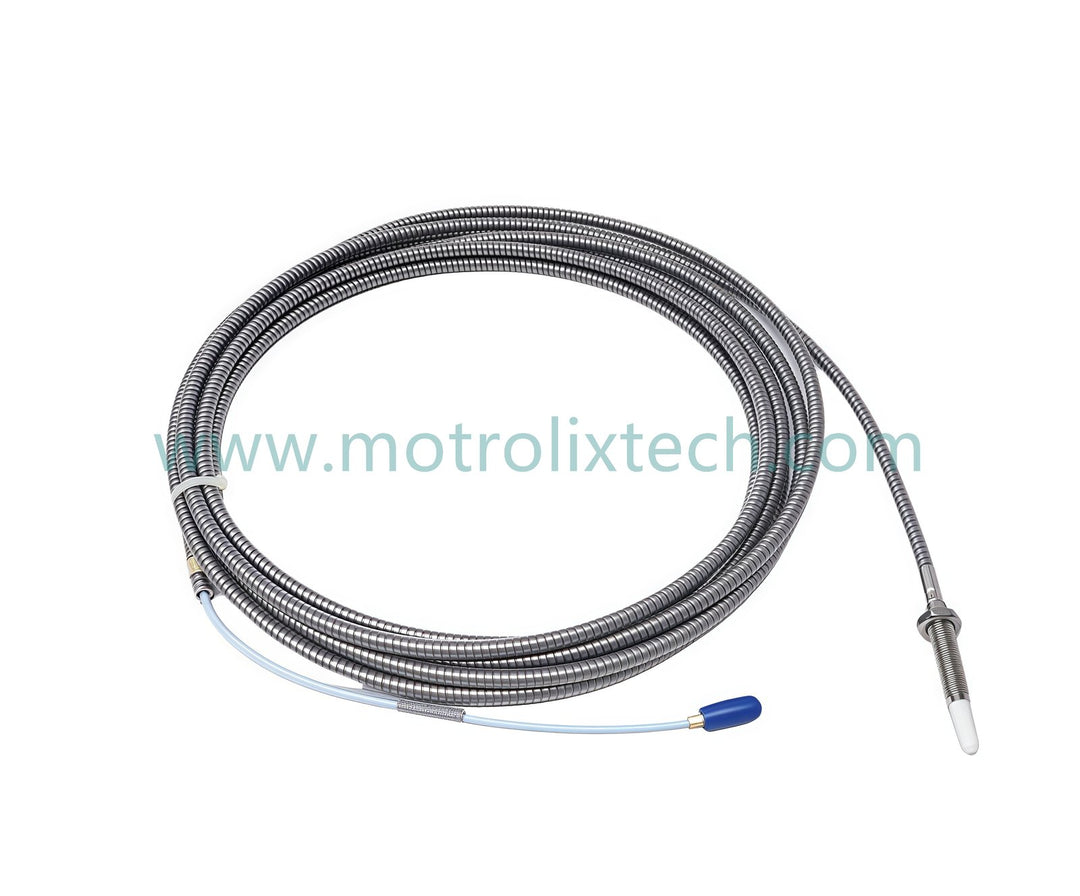

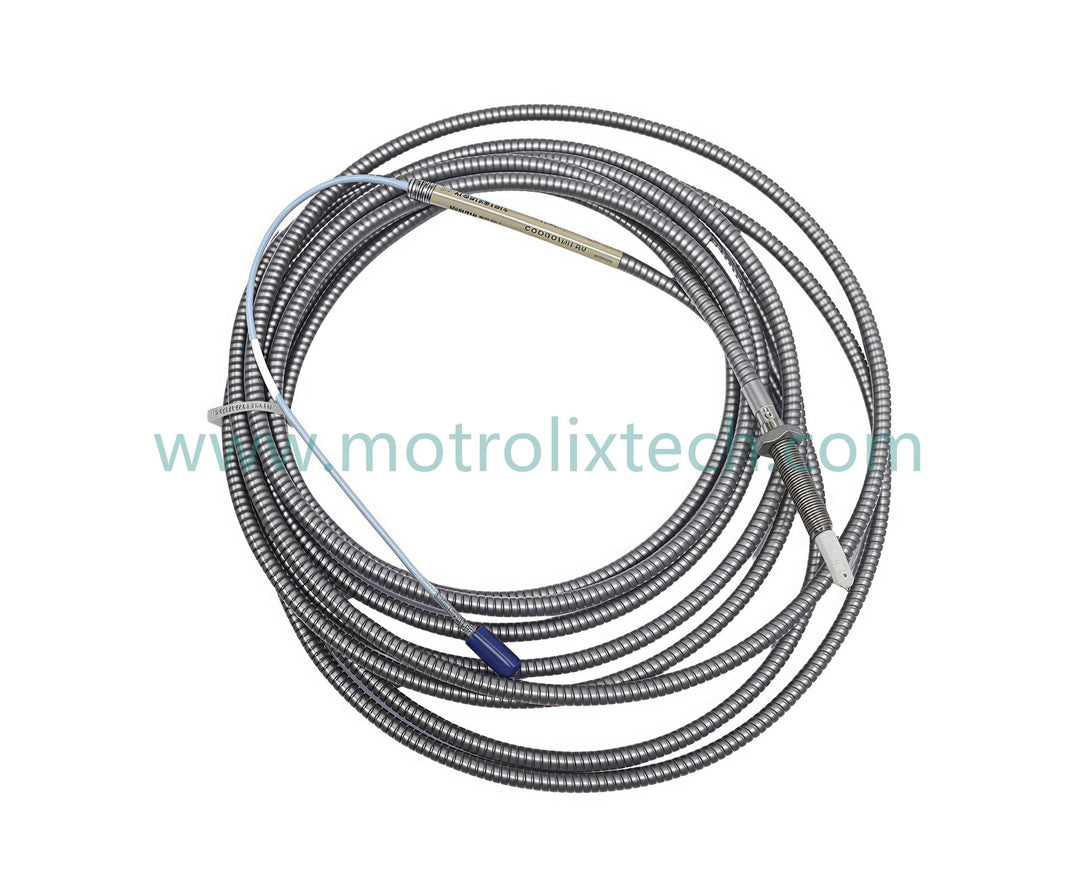

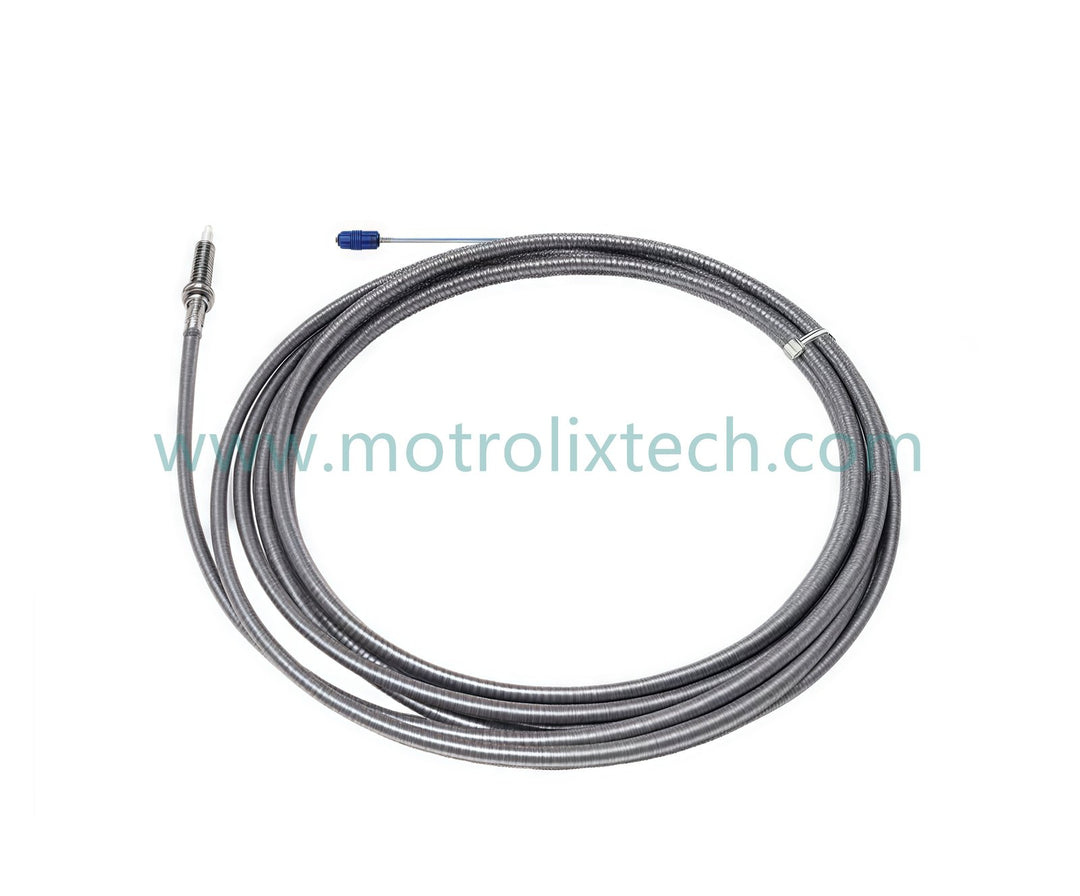

The Bently Nevada 330910-00-03-10-02-00 3300 NSv Proximity Probe is specifically engineered for use in centrifugal compressors, refrigeration compressors, and other machinery with tight installation constraints. This compact solution addresses the challenges posed by limited space where standard 5mm and 8mm transducers cannot fit. With its high-precision capability for measuring radial vibration on shafts or axial position on small targets, this probe is essential for reliable monitoring in critical applications.
Technical Specifications:
Model Number: 330910-00-03-10-02-00
Module Type: 3300 NSv Proximity Probe
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: Bently Nevada
Lead Time: In Stock
Weight: 0.14 kg
Dimensions: 20.3 x 22 x 3.5 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Average Scale Factor: 7.87 V/mm (200 mV/mil)
Linear Range: 1.5 mm
Applicability: Radial/axial position measurements, tachometer signals, Keyphasor applications
Model Code Breakdown:
330910: Denotes the specific product line within the Bently Nevada 3300 series, focusing on NSv technology for small and standard applications.
00: Indicates the hardware revision or base model configuration.
03: Refers to the specific design features or enhancements over previous variants.
10: Specifies additional functionalities or configurations supporting various industrial requirements.
02: Denotes compliance with industry standards for safety and performance.
00: Represents operational enhancements or new capabilities for effective measurements on confined and challenging installations.
Installation Recommendations and Wiring Guide:
Select Installation Location: Identify a mounting point that provides optimal alignment with the monitored machinery while considering space constraints.
Mounting Procedure: Secure the probe using appropriate mounting hardware, ensuring it is stable and properly oriented to allow precise measurements.
Cable Connections: Connect the Proximitor Sensor to the probe and ensure that all connections are securely made, with attention given to ESD protection to prevent damage.
Calibration and Verification: Regularly inspect the installation and perform calibration checks to ensure the ongoing accuracy of measurements.
Frequently Asked Questions (FAQ):
Q: What specific applications can the Bently Nevada 330910-00-03-10-02-00 be used for?
A: This probe is ideal for monitoring radial and axial positional measurements in centrifugal and refrigeration compressors.
Q: How does this probe perform in tight spaces?
A: The compact design enables installation in confined areas where traditional probes might not fit, ensuring accurate monitoring without sacrificing performance.
Q: What is the output signal of the Bently Nevada 330910-00-03-10-02-00?
A: The probe provides an average scale factor of 7.87 V/mm (200 mV/mil), delivering precise measurements suitable for critical applications.
Q: Is this probe compatible with older systems?
A: Yes, the NSv Probe is designed to replace older 3300 RAM or 3000/7000-series systems while maintaining compatibility with existing components.
Q: What is the weight and size of this probe?
A: The probe weighs 0.14 kg and measures 20.3 x 22 x 3.5 cm, making it lightweight and manageable for installation.
