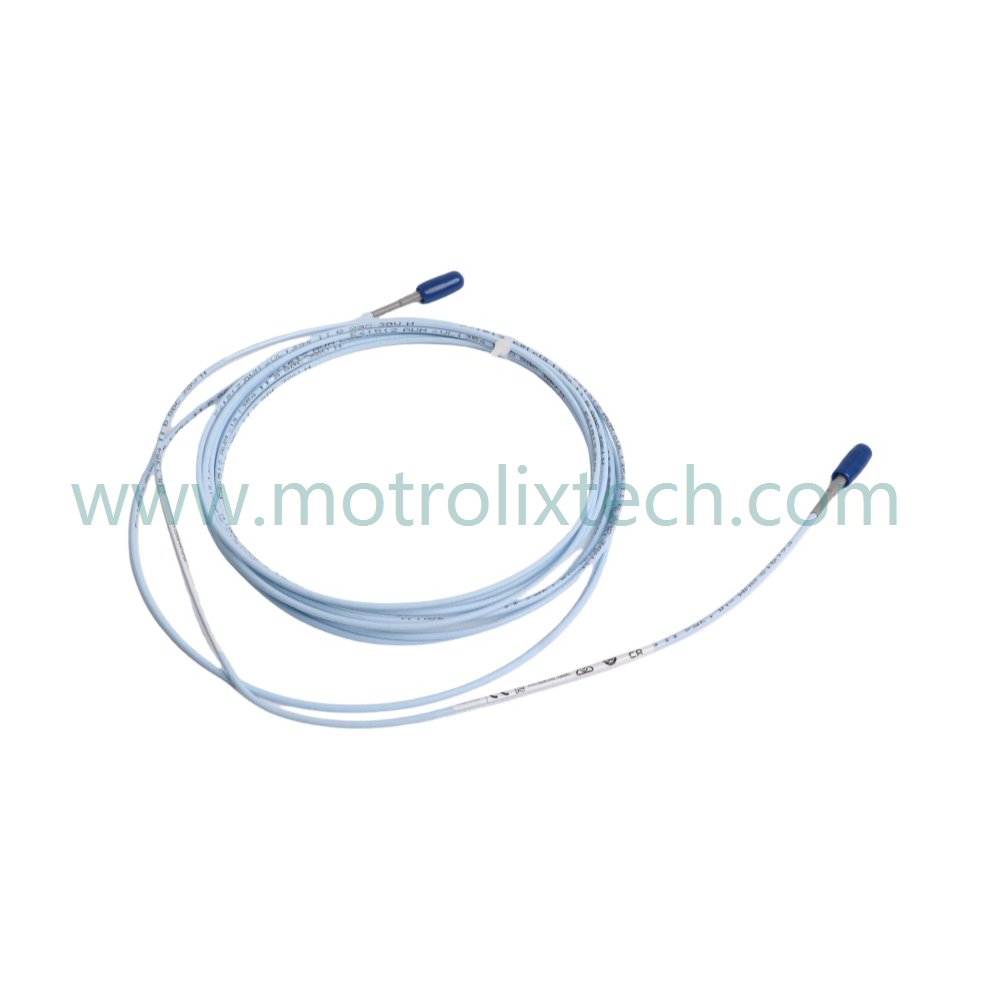

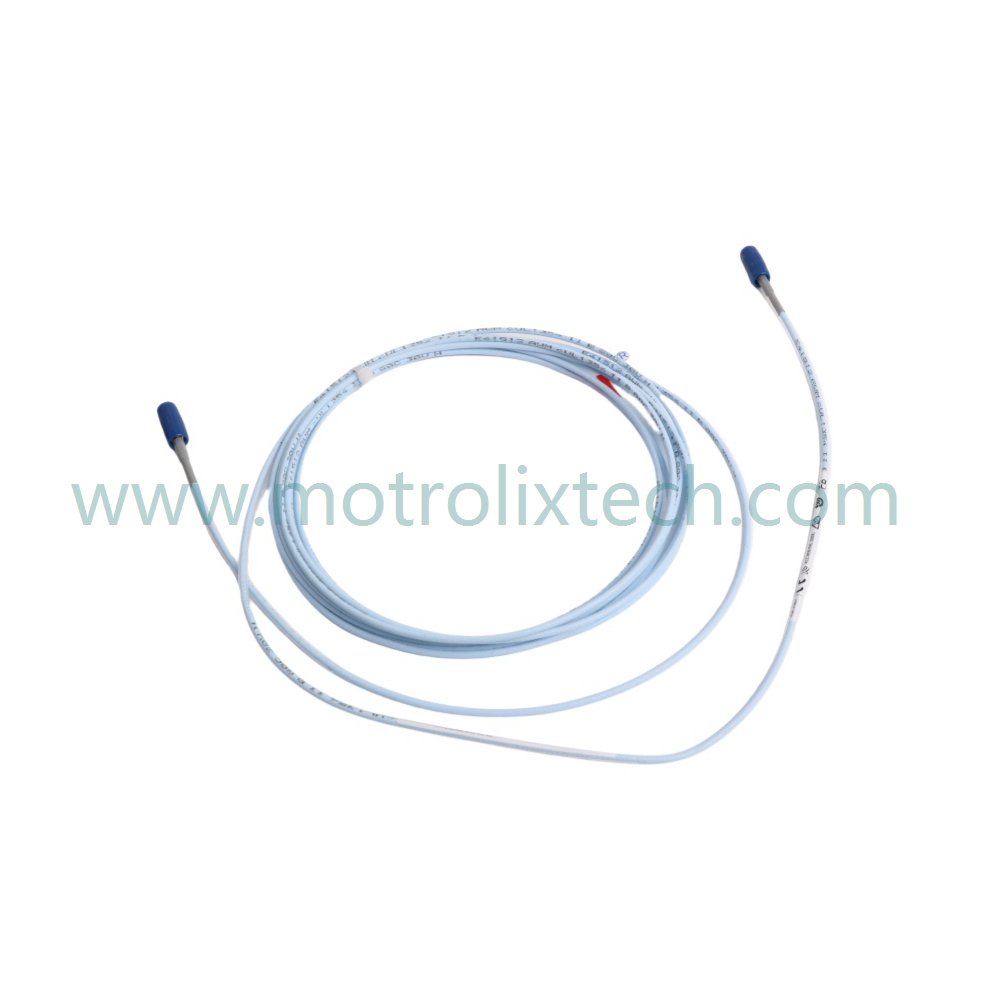

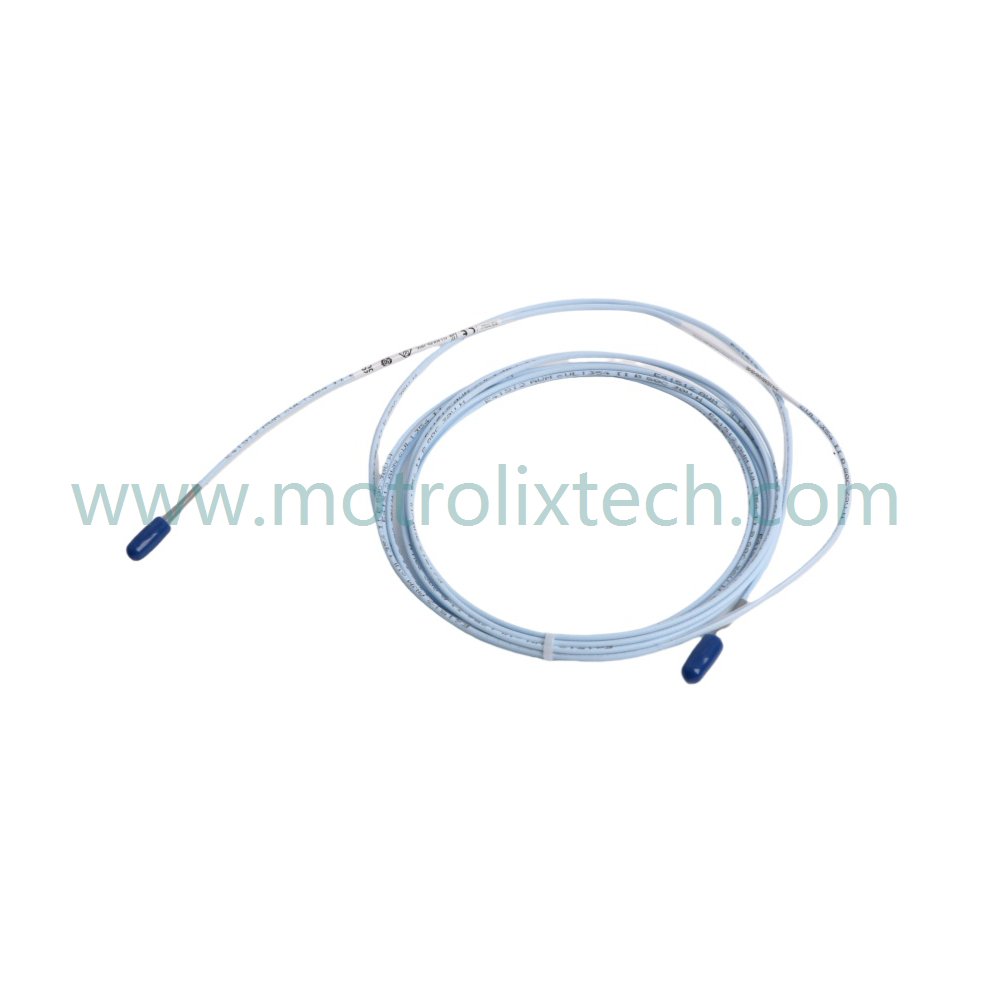

Product Overview:
The Bently Nevada 330930-045-02-00 3300 NSv Extension Cable is designed to enhance vibration monitoring in applications with stringent installation space constraints. This high-performance extension cable is particularly suitable for situations where standard 5mm or 8mm transducer systems cannot be accommodated. With its ability to monitor small shafts under 51mm in diameter and flat targets below 15mm, the cable is ideal for compact compressors and specialized rotating equipment, ensuring reliable measurements in tight environments.
Technical Specifications:
Model Number: 330930-045-02-00
Module Type: 3300 NSv Extension Cable
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 0.55 kg
Dimensions: 20.5 x 22.5 x 3.5 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Model Code Breakdown:The model number 330930-045-02-00 can be analyzed as follows:
330930: Identifies this component as part of the Bently Nevada 3300 Series, specifically within the NSv category.
045: Represents the specific features or length of the extension cable.
02: Indicates a version or design specification relevant to function or compatibility.
00: Signifies standard output options or additional configurations associated with the cable.
Installation Recommendations and Wiring Guide:To optimize the performance of the Bently Nevada 330930-045-02-00 Extension Cable, adhere to the following installation guidelines:
Select Installation Location: Ensure the cable is installed in a location that allows proper monitoring without interference from other equipment.
Secure Connections: Make sure all connections to the monitoring system are tight and properly insulated to avoid signal loss or interference.
Configuration: Utilize the extension cable in counterbore, side-view, or rear-view configurations as needed, depending on the specific installation constraints.
Testing and Verification: After installation, verify all connections and conduct testing to ensure accurate performance and reliable data collection.
Frequently Asked Questions (FAQ):
Q: What is the purpose of the Bently Nevada 330930-045-02-00?
A: This extension cable is designed for precise vibration monitoring in applications with space constraints.
Q: What is the weight of this extension cable?
A: The cable weighs approximately 0.55 kg.
Q: What are the dimensions of the 330930-045-02-00?
A: Its dimensions are 20.5 x 22.5 x 3.5 cm.
Q: How does this cable improve vibration monitoring?
A: It allows for reliable measurements in tight spaces, enabling effective monitoring of compressive systems and other restricted applications.
Q: Is this extension cable compatible with existing Bently Nevada systems?
A: Yes, it is designed to complement the Bently Nevada 3300 series, enhancing the overall monitoring capabilities.
