Product Overview:

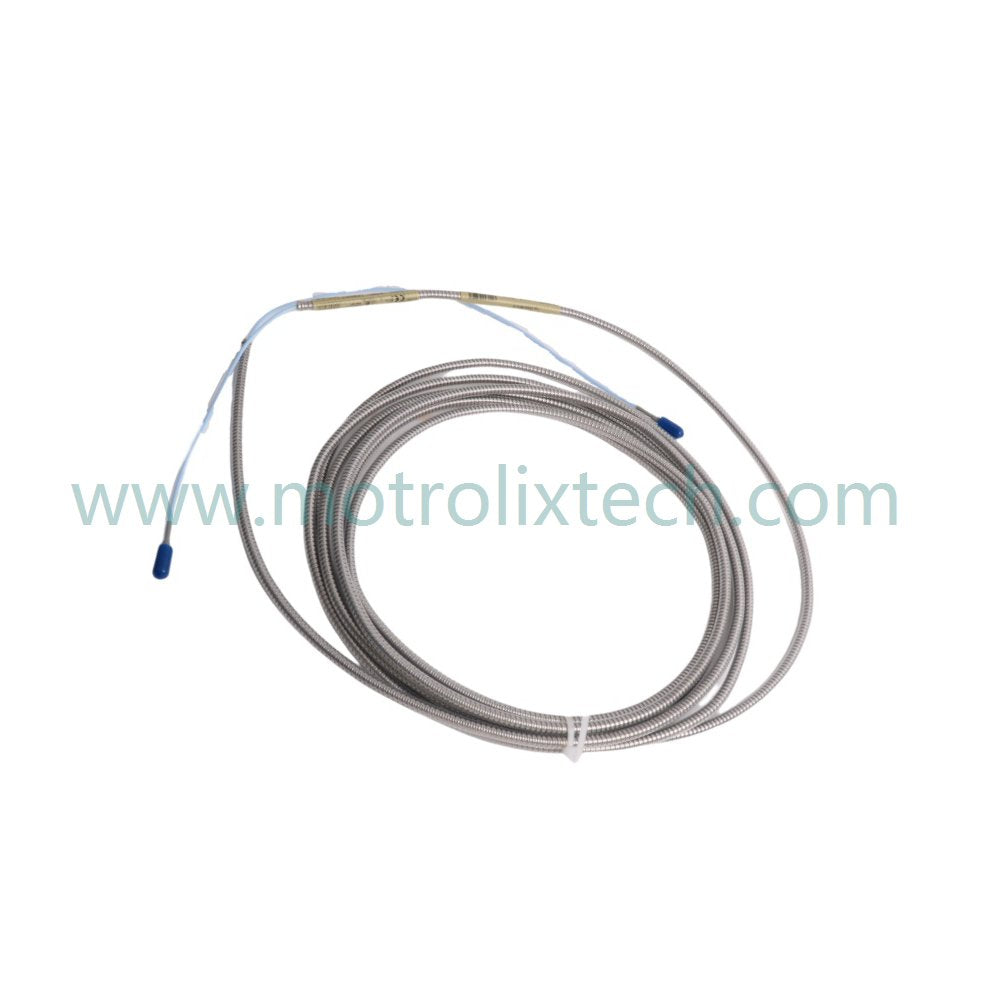

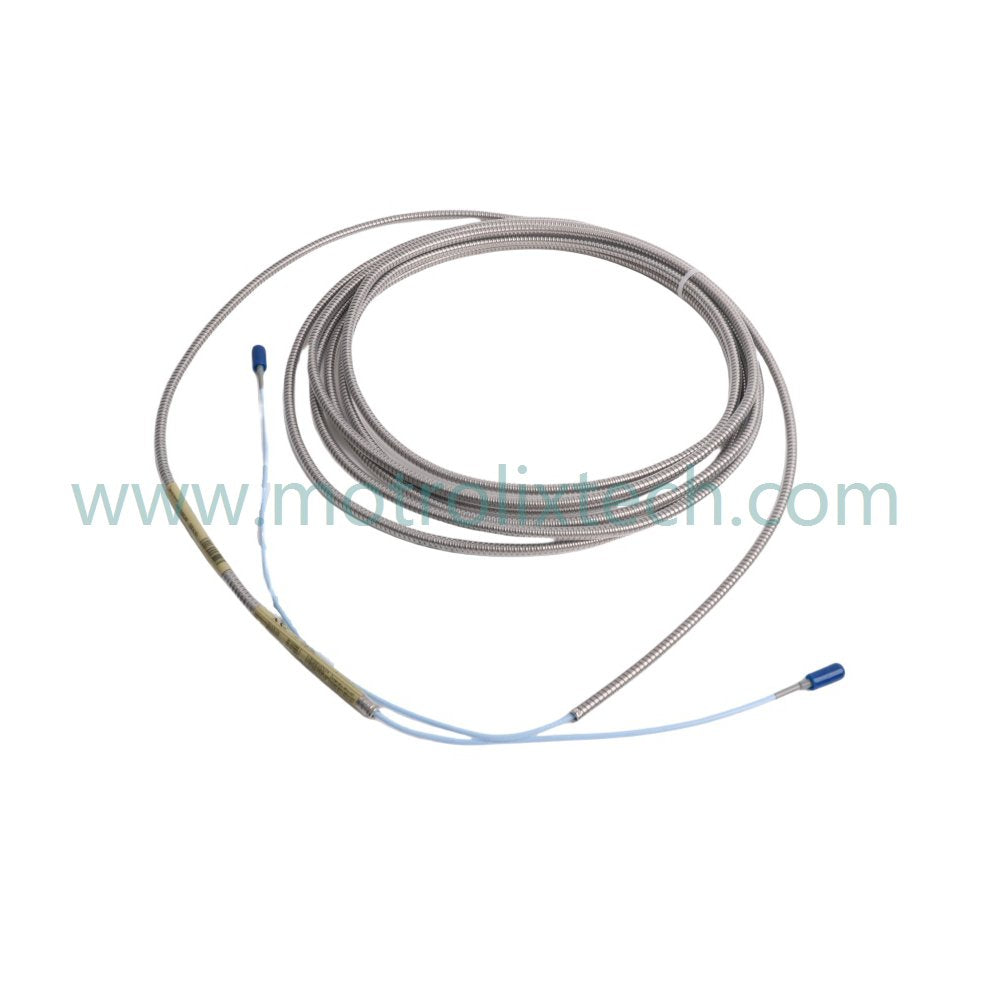

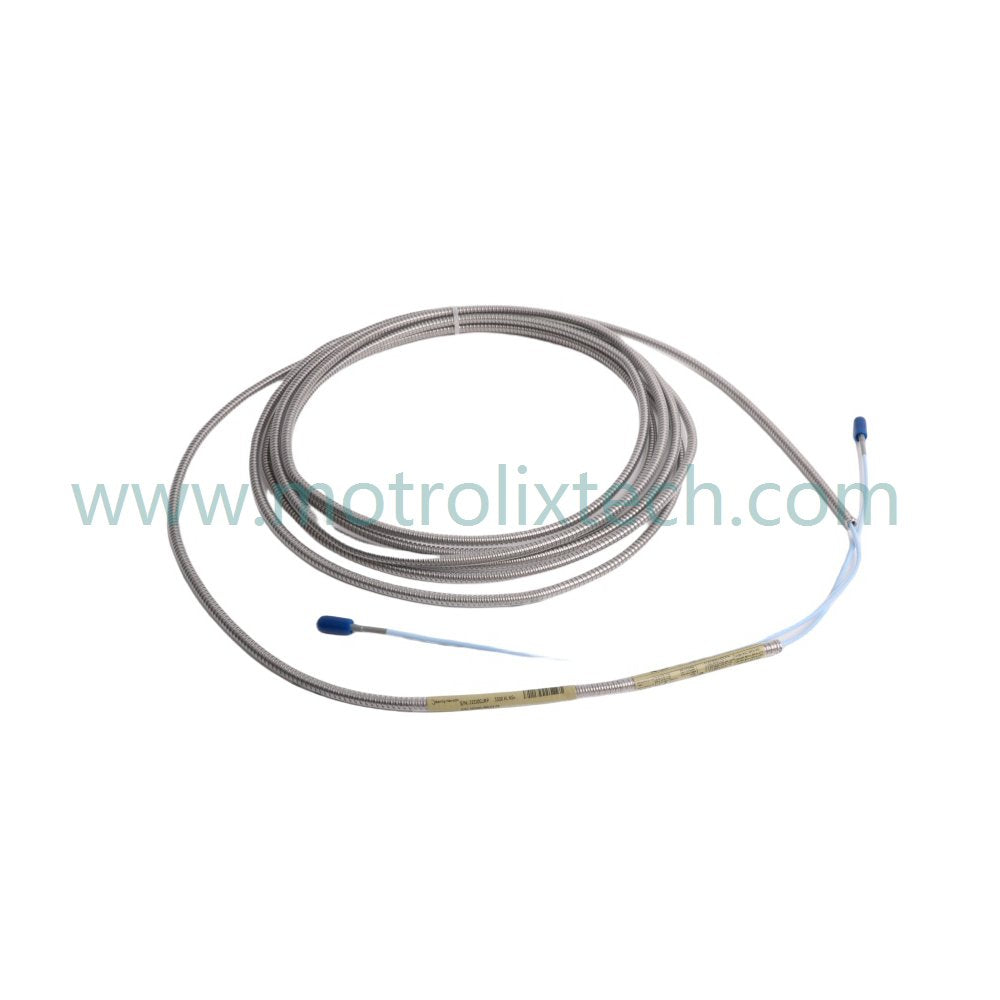

The Bently Nevada 330930-060-01-00 3300 NSv Extension Cable is a high-performance, 6.0-meter (19.7 ft) armored extension cable designed specifically for use with the 3300 NSv Proximity Transducer System. This robust cable features stainless steel armor and an FEP jacket, providing superior protection against physical damage and harsh environmental conditions. It ensures reliable signal transmission between 3300 NSv proximity probes and Proximitor sensors, making it vital for effective monitoring of critical machinery such as centrifugal and refrigeration compressors.

Technical Specifications:

• Model Number: 330930-060-01-00

• Module Type: 3300 NSv Extension Cable

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: 3300 Proximity Transducer System

• Lead Time: In Stock

• Weight: 0.14 kg

• Dimensions: 20.3 x 22 x 3.5 cm

• HS CODE: 8537101190

• Product Origin: USA

• System Compatibility: TSI

• Communication Service: Ethernet Router

• Cable Length: 6.0 meters (19.7 ft)

• Jacket Material: FEP

• Armor Material: Stainless Steel

Model Code Breakdown:

• 330930: Identifies the specific product category within the Bently Nevada 3300 series for extension cables.

• 060: Indicates the cable length in centimeters, confirming its 6.0-meter specification for flexible installation.

• 01: Represents the version number or specific features related to the cable design.

• 00: Denotes the standard operational features and ensures compatibility with existing systems.

Installation Recommendations and Wiring Guide:

1. Select Installation Location: Identify an appropriate area for cable installation that facilitates easy access and maintains safety protocols.

2. Cable Routing: Ensure the extension cable is routed carefully to avoid sharp edges or excessive tension that could damage the armor or jacket.

3. Probe and Proximitor Matching: When connecting the 3300 NSv proximity probes, verify that the combined length of the probe and extension cable meets the requirements of the Proximitor sensor for optimal performance.

4. Secure Connections: Ensure all connections are tightly secured and protected from environmental hazards to maintain signal integrity and reliability.

Frequently Asked Questions (FAQ):

• Q: What applications is the Bently Nevada 330930-060-01-00 suitable for?
  A: This extension cable is ideal for use in centrifugal compressors, refrigeration compressors, and process gas compressors within critical machinery applications.

• Q: How does the armor material benefit the cable?
  A: The stainless steel armor provides exceptional protection against physical damage and includes environmental resistance for durability in harsh conditions.

• Q: What is the significance of the FEP jacket?
  A: The FEP jacket offers excellent chemical resistance and protects the cable from environmental hazards, ensuring long-lasting performance.

• Q: How do I ensure optimal performance with this cable?
  A: When selecting this cable, ensure that the combined length of the probe and extension matches the Proximitor sensor's specifications for reliable operation.

• Q: What is the weight and size of the extension cable?
  A: The extension cable weighs 0.14 kg and measures 20.3 x 22 x 3.5 cm, making it manageable for easy installation.
