Product Overview:

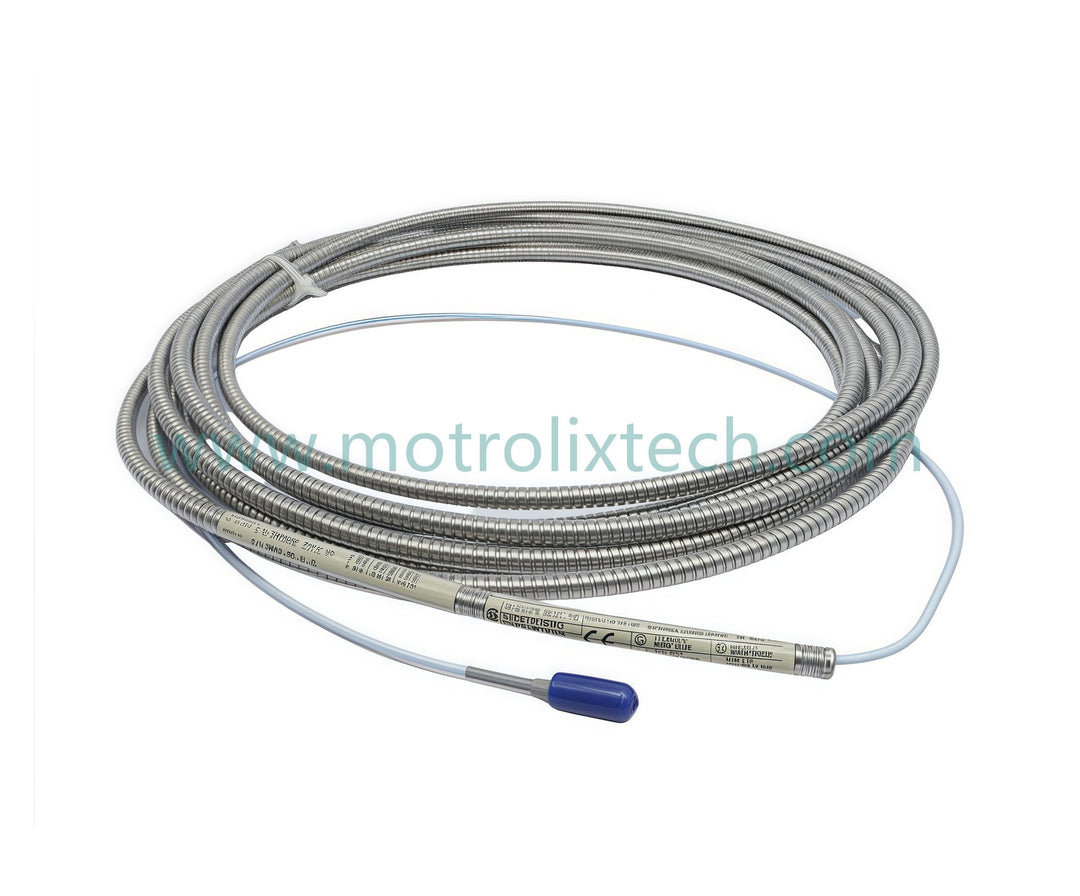

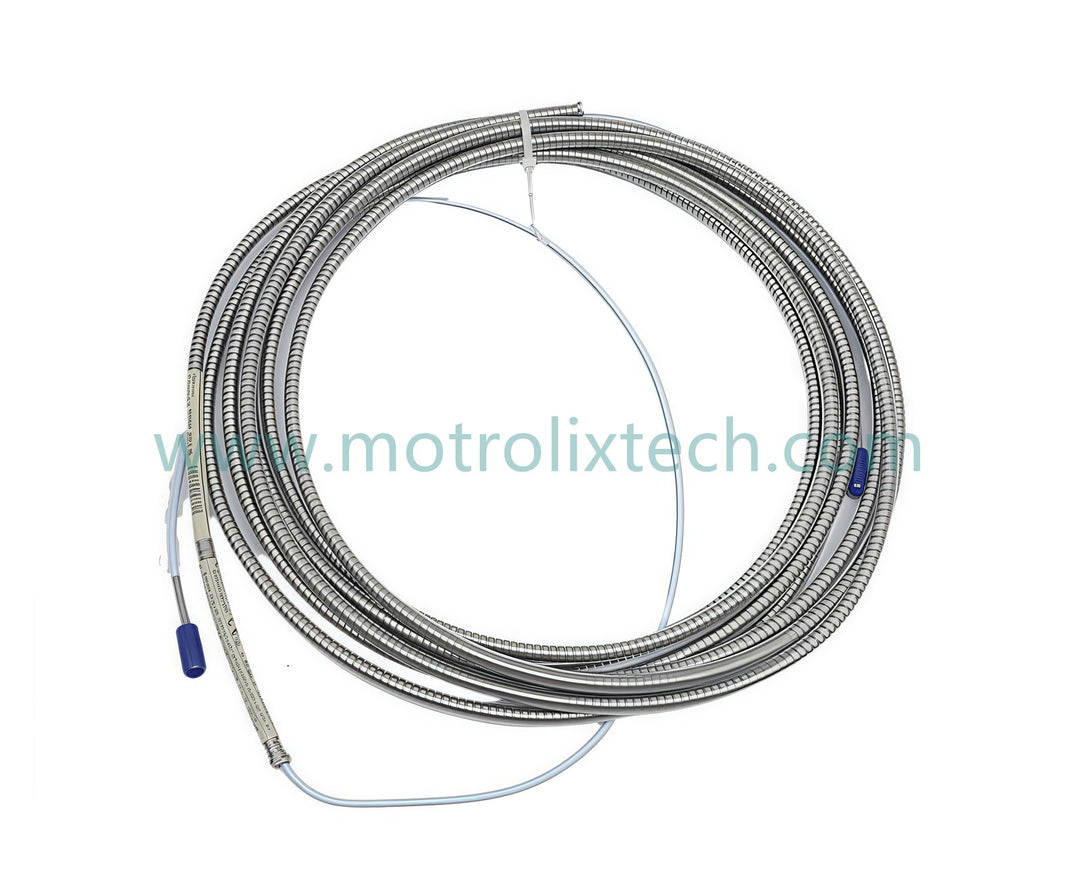

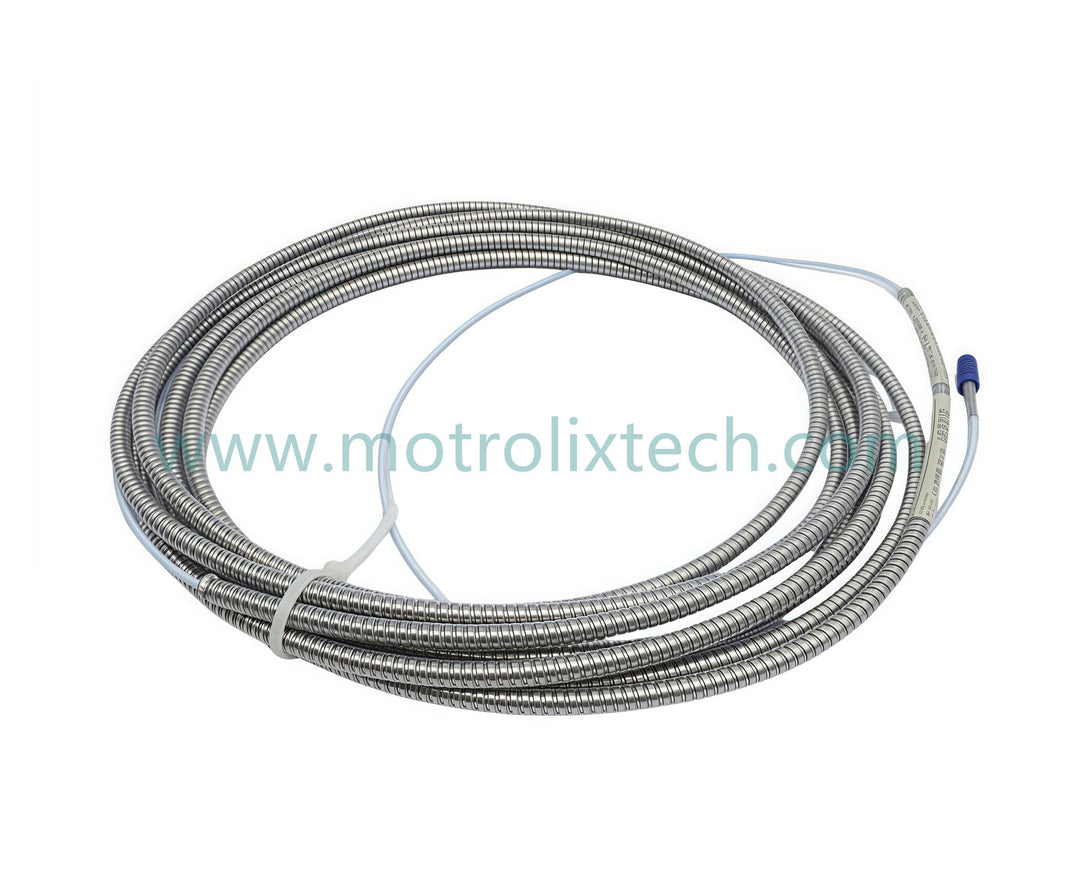

The Bently Nevada 330930-065-02-05 3300 NSv Extension Cable is a specialized 6.5-meter (21.3 ft) solution designed for precise proximity measurements in tight-space machinery monitoring applications. This extension cable is part of the 3300 XL NSv series, making it ideal for environments where conventional probes cannot fit, such as in centrifugal/process compressors and small-shaft assemblies. With its robust stainless steel armor and advanced technology, this extension cable ensures dependable performance in harsh environments while maintaining signal integrity for critical condition monitoring.
Technical Specifications:
Model Number: 330930-065-02-05
Module Type: 3300 NSv Extension Cable
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 XL NSv Transducer System
Lead Time: In Stock
Weight: 0.34 kg
Dimensions: 29 x 28 x 2 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Model Code Breakdown:The model number 330930-065-02-05 is composed of specific identifiers that indicate its features:
330930: This identifies the cable as part of Bently Nevada's 3300 NSv series, emphasizing its advanced capabilities and purpose.
065: Refers to the length of the cable, which is 6.5 meters (21.3 ft).
02: Signifies the cable's design and features, indicating it has a no-FEP jacket for flexibility and performance.
05: Represents additional specifications regarding compatibility and performance enhancements for specific applications.
Installation Recommendations and Wiring Guide:To ensure optimal performance from the Bently Nevada 330930-065-02-05 Extension Cable, consider the following installation guidelines:
Select Installation Location: Identify a mounting site where the cable can be installed without interference and allows easy access for monitoring.
Secure the Cable: Ensure that the stainless steel armored cable is properly secured to withstand mechanical stress and prevent any damage during operation.
Wiring Connections: Connect the extension cable to the proximitor according to the manufacturer’s guidelines, ensuring that connections are tight and secure to maintain signal integrity.
Conduct Performance Testing: After installation, perform functionality tests to verify accurate measurements and ensure that the extension cable operates effectively within the specified parameters.
Frequently Asked Questions (FAQ):
Q: What is the main function of the Bently Nevada 330930-065-02-05 Extension Cable?
A: This extension cable is designed to provide precise proximity measurements for critical machinery operating in tight spaces.
Q: In which applications is this extension cable suitable?
A: It is ideal for centrifugal/process compressors, small-shaft applications, and any situations requiring reliable measurements in space-constrained environments.
Q: What is the weight of this extension cable?
A: The extension cable weighs approximately 0.34 kg.
Q: How does the stainless steel armor benefit the cable?
A: The armor provides excellent protection against mechanical damage, ensuring durability and reliability in harsh industrial conditions.
Q: How does this cable maintain signal integrity?
A: The design and materials used ensure that signal integrity is maintained even while under stress in demanding environments.
