Overview

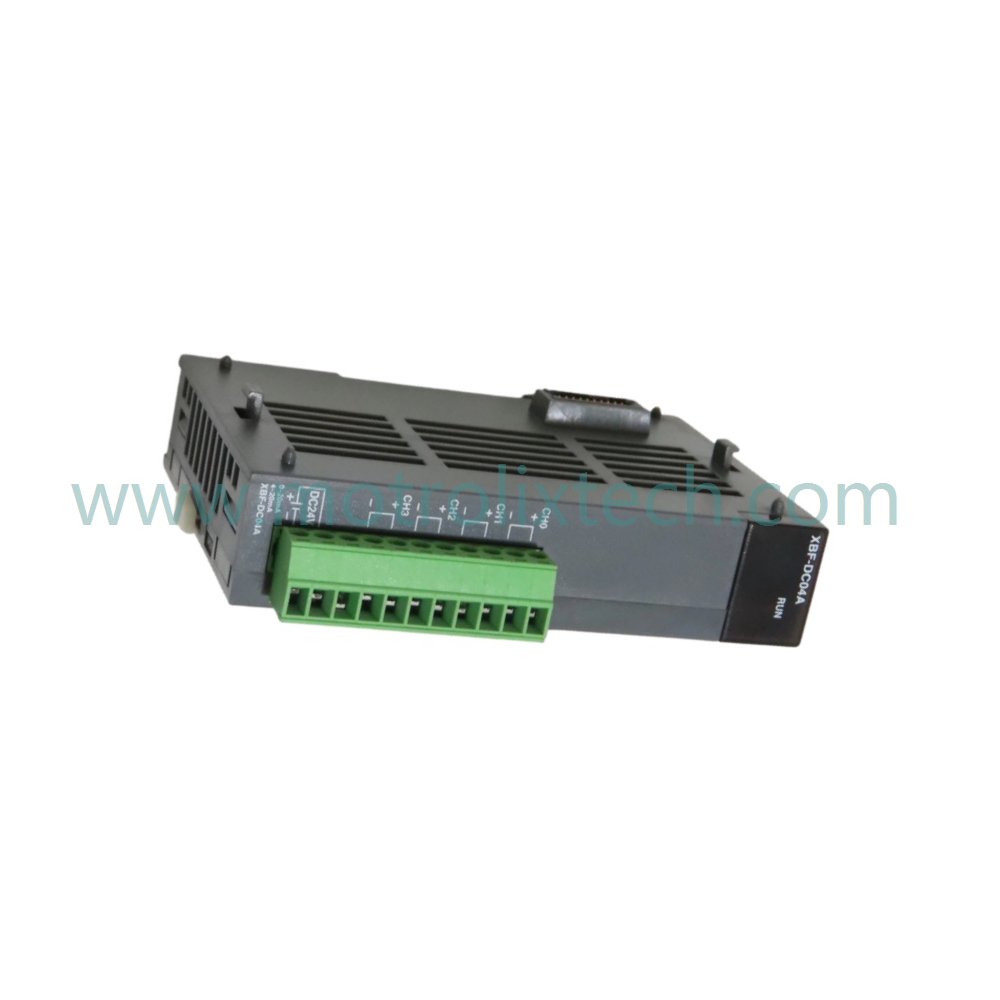

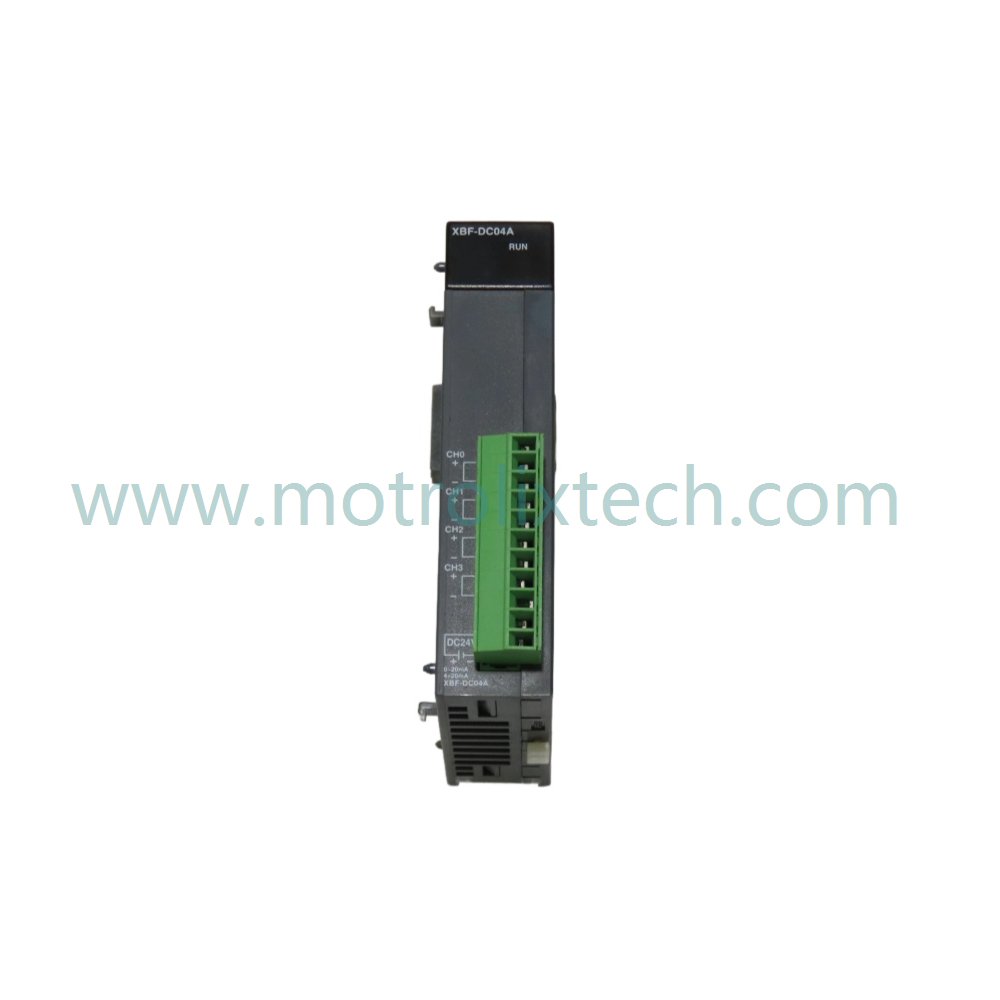

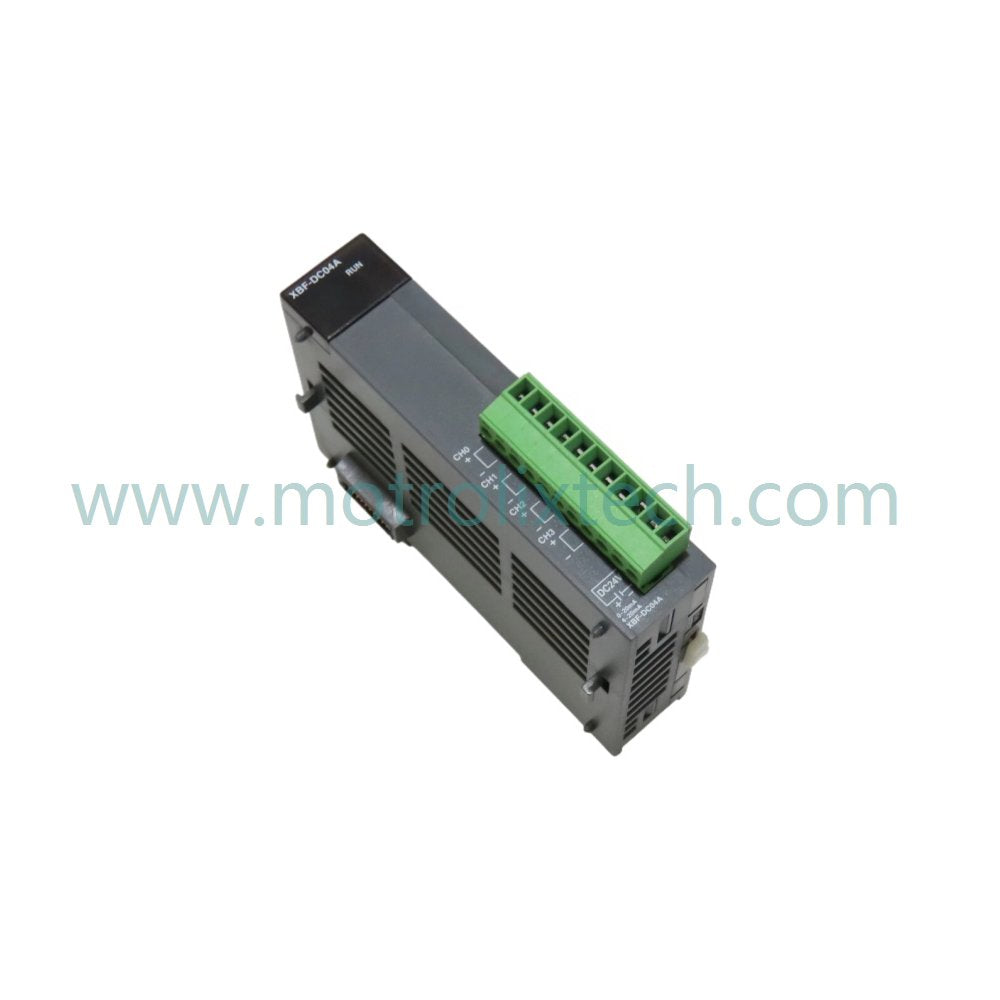

The Honeywell MLF-DC04A Analog Output Module is a 4-channel module designed specifically for MasterLogic-50 PLC systems. This module provides precise and stable current output tailored for various industrial automation applications. With support for both 4-20 mA and 0-20 mA output ranges, it enables flexible integration with sensors, actuators, and other control devices, ensuring reliable process control in demanding environments.
Functional Highlights
Key features and benefits of the Honeywell MLF-DC04A include:
-
Versatile Output Options: Supports multiple output types, including unsigned values (0-4000), signed values (-2000 to 2000), and percentile values (0-1000), enhancing flexibility in application.
-
High Resolution and Accuracy: Features a resolution of 1/4000 (5 µA) with an accuracy of ±0.5% or less, ensuring high precision in sensitive applications.
-
Rapid Response Time: With a maximum conversion speed of 1.0 ms per channel, the module guarantees prompt response to control signals.
-
Robust Design: Can handle a maximum absolute input of DC ±25 mA, offering protection and durability for connected devices.
Key Benefits
-
Enhanced Process Control: Reliable and precise current output enables improved monitoring and control of industrial processes, leading to better operational efficiency.
-
Flexible Configuration: The analog range selection can be configured easily via the Softmaster I/O parameter settings, suitable for diverse system requirements.
-
Compact Integration: Weighing only 0.5 kg, the module is lightweight and designed for simple integration into existing MasterLogic PLC racks.
Technical Data
-
Model Number: MLF-DC04A
-
Module Type: Analog Output Module
-
Manufacturer: Honeywell
-
Condition: Brand New
-
Weight: 0.4 kg
-
Dimensions: 7 cm x 14 cm x 14.5 cm
-
HS CODE: 8537101190
-
Product Origin: USA
-
Lead Time: In Stock
-
Minimum Order Quantity (MOQ): 1
-
Output Ranges: 4–20 mA and 0–20 mA
-
Output Values: Unsigned (0-4000), Signed (-2000 to 2000), Precise (200-2000 or 0-2000), Percentile (0-1000)
-
Max Input Handling: DC ±25 mA
-
Conversion Speed: 1.0 ms per channel
-
Accuracy: ±0.5% or less
-
Resolution: 1/4000 (5 µA)
Typical Applications
The Honeywell MLF-DC04A is ideal for:
- Applications requiring precise control and monitoring of process variables.
- Integration with industrial devices such as sensors and actuators in manufacturing and process industries.
- Automation systems needing reliable data transmission for seamless operations.
Support & Maintenance
Honeywell offers comprehensive support for the MLF-DC04A Analog Output Module. Our experienced team can assist with installation, configuration, and ongoing maintenance, ensuring optimal performance and reliability in your industrial automation systems.
FAQ
-
What does the Honeywell MLF-DC04A module do?
It provides 4-channel analog output for MasterLogic-50 PLC systems, enabling precise control and measurement.
-
What output ranges does this module support?
The module supports both 4-20 mA and 0-20 mA output ranges.
-
What is the maximum conversion speed per channel?
The maximum conversion speed is 1.0 ms per channel.
-
How accurate is the MLF-DC04A module?
It offers an accuracy of ±0.5% or less, providing reliable data for sensitive applications.
-
Can the output configuration be modified?
Yes, the analog range selection can be configured via Softmaster I/O parameter settings.
