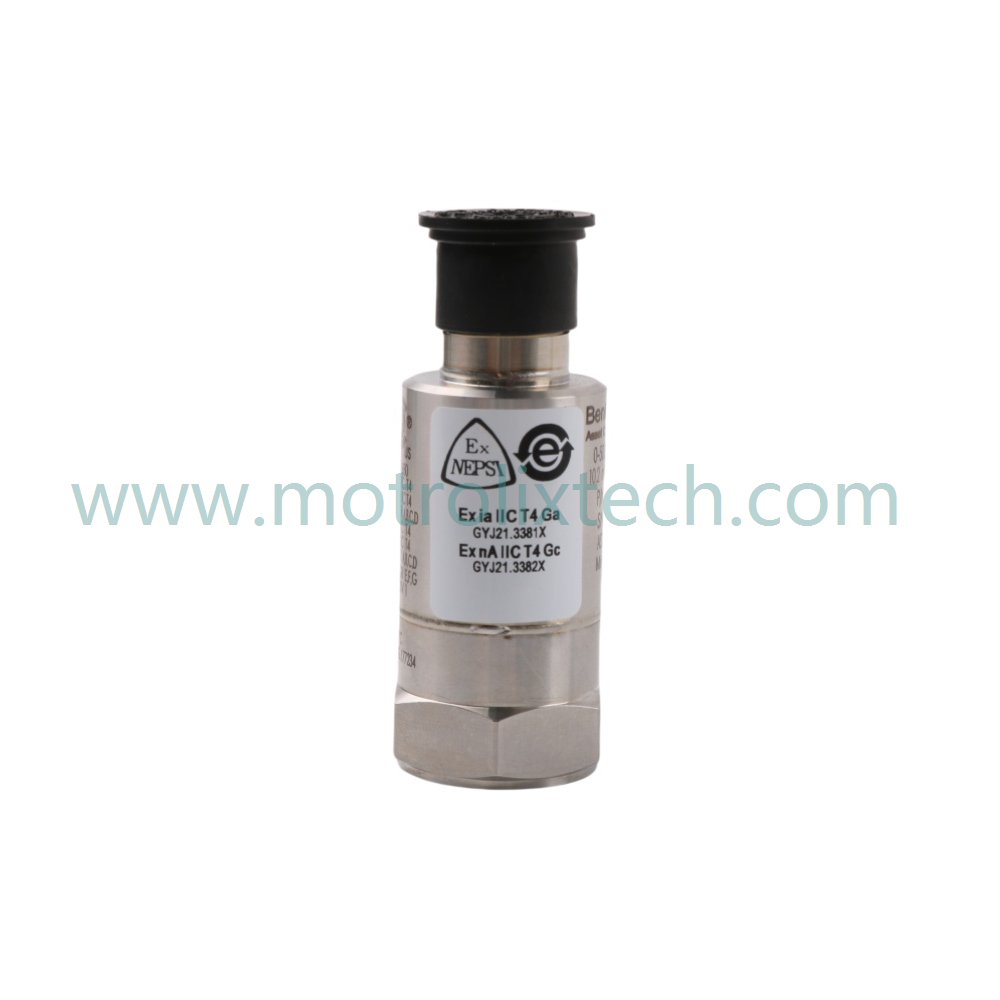

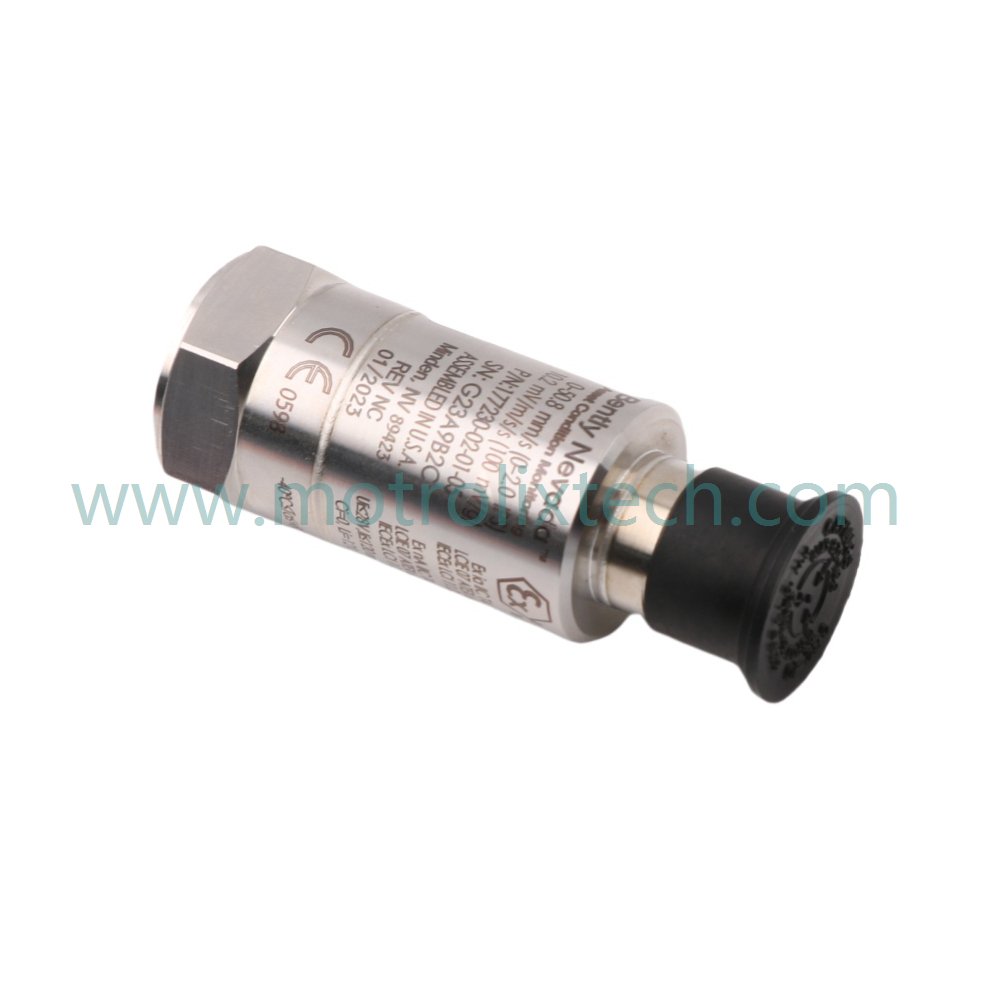

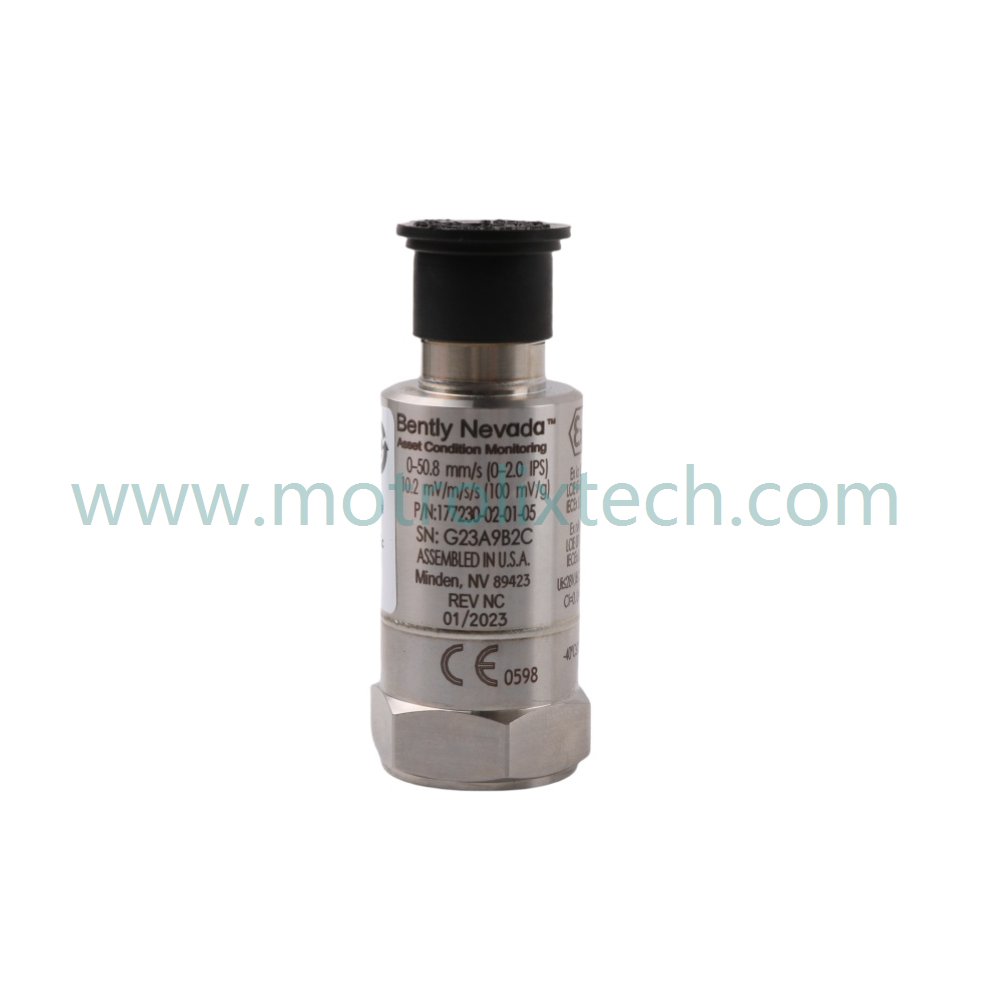

The Bently Nevada 177230-02-01-05 Seismic Transmitter is a high-quality device designed for continuous vibration monitoring of essential rotating machinery. This robust transmitter enables condition-based maintenance strategies, significantly reducing unplanned downtime and protecting valuable assets. Equipped with advanced sensing capabilities, this transmitter provides accurate data that supports early fault detection, leading to improved operational decisions.
The model number 177230-02-01-05 offers essential insights about its configuration:
177230: Identifies the product series within Bently Nevada focused on seismic transmission technology.
02: Indicates the particular version or enhancements of the module, designed to cater to specific industrial requirements.
01: Refers to the configuration settings suitable for both robust performance and straightforward integration.
05: Represents additional specifications or features that optimize compatibility and performance.
| Parameter | Specification |
|---|---|
| Model Number | 177230-02-01-05 |
| Module Type | Seismic Transmitter |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Lead Time | In Stock |
| Weight | 0.3 kg |
| Dimensions | 8.2 x 12.2 x 6 cm |
| Measurement Type | Vibration monitoring |
| Output | 4–20 mA |
| Measurement Range | 50.8 mm/s |
| Frequency Range | 10 Hz to 1 kHz RMS |
| Sensitivity | 10.2 mV/(m/s²) (100 mV/g) |
| Peak Range | 15 g |
| Operating Temperature Range | -40°C to +85°C |
| Electrical Isolation | >10⁸ ohm |
| System Compatibility | TSI (Transducer Signal Interface) |
| HS CODE | 8537101190 |
| Compliance | CSA, ATEX, IECEx approvals |
To ensure optimal performance of the Bently Nevada 177230-02-01-05 Seismic Transmitter, follow these guidelines:
Proper Mounting: Install the transmitter in a position that effectively monitors the intended machinery. Ensure alignment for accurate data capture.
Voltage Configuration: Confirm that the power supply is within the specified range of 12-30V DC for reliable operation.
Cable Management: Use the correct interface cables for installation, ensuring that connections are secure and free from strain.
Environmental Adaptation: Ensure the installation site meets the temperature requirements and is protected from corrosive conditions.
The Bently Nevada 177230-02-01-05 Seismic Transmitter is engineered for superior durability and reliability in challenging environments. Its rugged construction withstands extreme conditions, making it ideal for use in power generation, oil and gas, and manufacturing applications. This device's advanced features enable seamless integration with existing monitoring systems, minimizing the need for complex configurations and reducing training costs. With its reliable data output, the transmitter enhances predictive maintenance programs and helps maintain asset health without introducing significant operational disruptions.
Q1: How can I verify the excitation voltage settings during installation?
A1: Utilize a multimeter to measure the supplied voltage to ensure it aligns with the specified range of 12-30V DC.
Q2: What applications can this seismic transmitter be used for?
A2: This transmitter is designed for monitoring vibrations in rotating machinery, particularly in environments like power plants, oil rig operations, and manufacturing facilities.
Q3: Is the Bently Nevada 177230-02-01-05 compatible with older generation systems?
A3: Yes, it is designed for full compatibility with previously implemented Bently Nevada monitoring systems, allowing for smooth upgrades.
Q4: What kind of certifications does this device possess?
A4: The transmitter is certified for global use and meets CSA, ATEX, and IECEx standards, ensuring safe operation in hazardous industrial environments.
