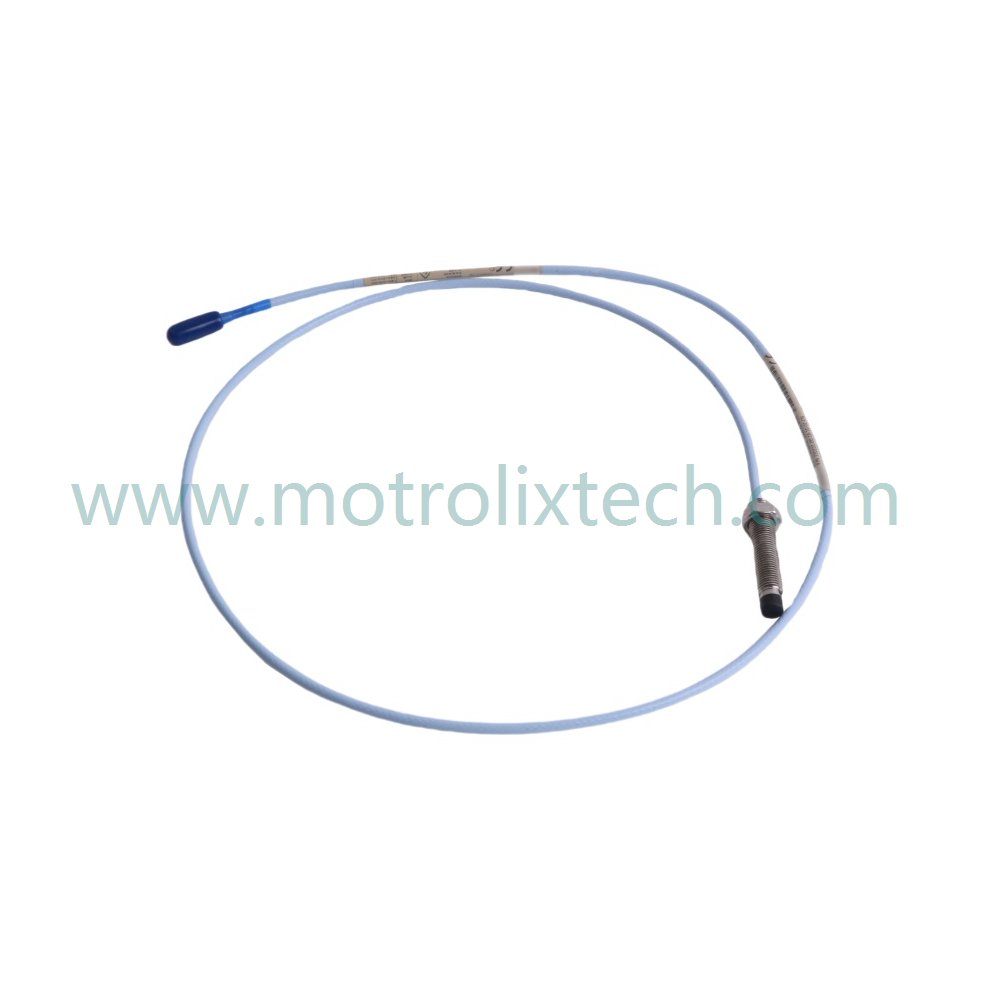

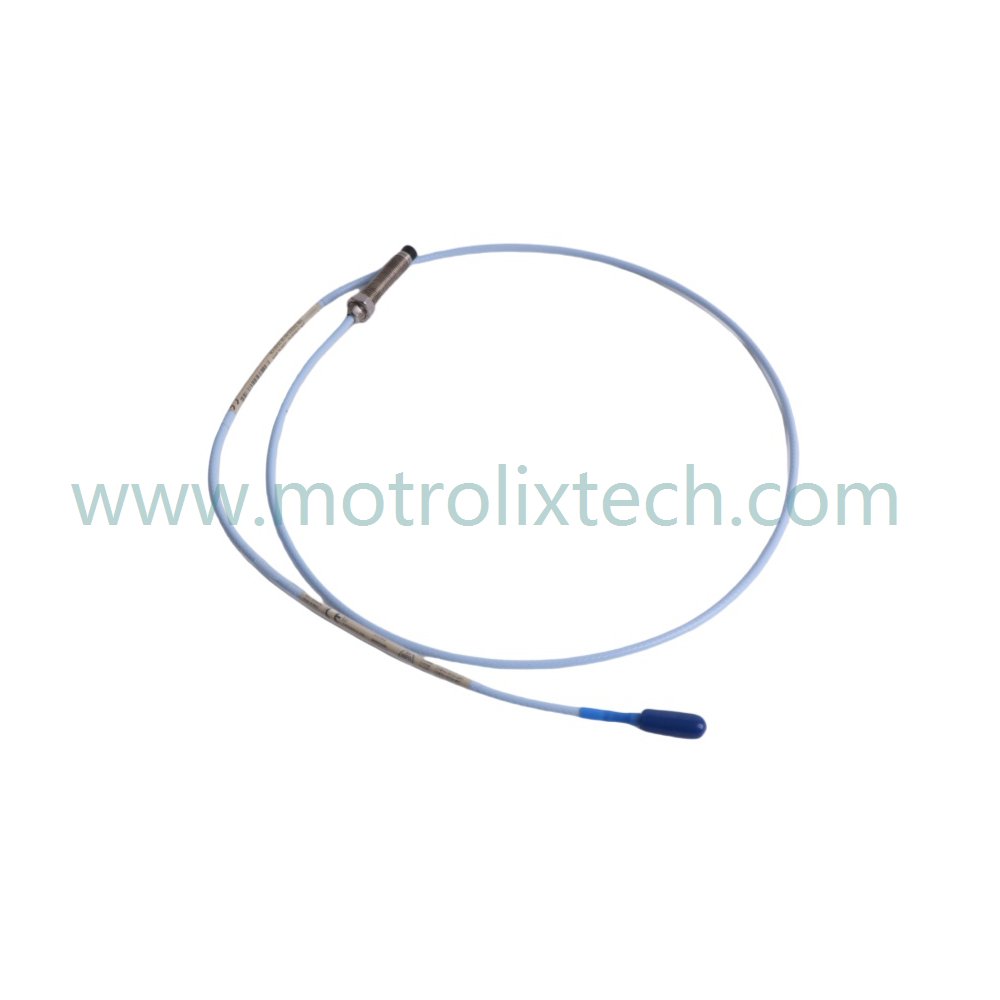

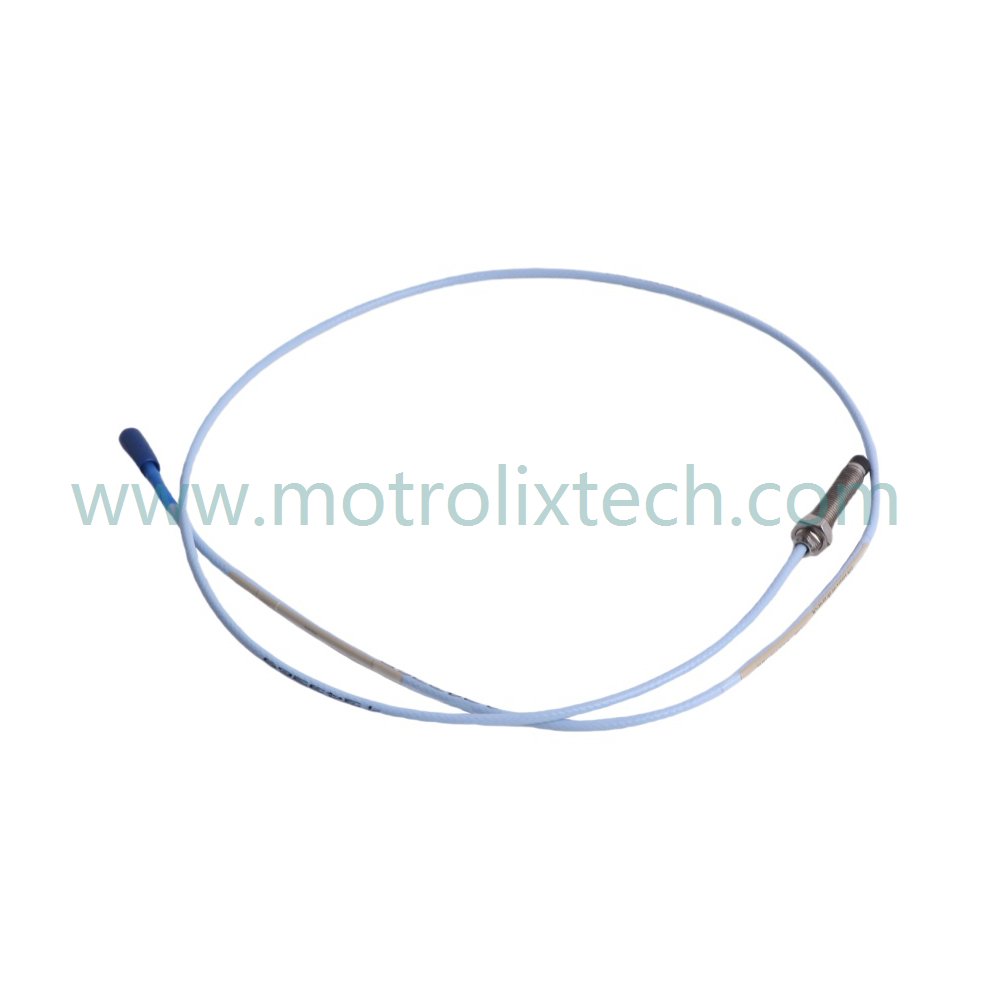

The Bently Nevada 330101-00-18-50-02-05 represents the industry's most trusted solution for non-contact displacement and vibration monitoring. This 3300 XL 8mm proximity probe tracks microscopic shaft movements in high-speed rotating machinery, including steam turbines, centrifugal compressors, and large industrial pumps. By generating a high-frequency electromagnetic field, the sensor detects changes in the gap between the probe tip and the target shaft without physical contact, ensuring zero mechanical wear and long-term signal stability.
This specific model serves as a cornerstone of Turbine Supervisory Instrumentation (TSI). It delivers critical data for axial thrust position, radial vibration, and speed measurements. Engineered for extreme reliability, the 330101 probe allows plant operators to implement advanced predictive maintenance, detecting early-stage imbalances or bearing degradations before they lead to catastrophic equipment failure.
The 330101-00-18-50-02-05 follows a modular coding system that defines its physical dimensions and electrical calibration. Each segment is critical for successful field installation:
The 00 indicates a 0.0-inch unthreaded length. This configuration provides a fully threaded body (M10×1), allowing for maximum flexibility when mounting the probe through thick machine casings or specialized brackets.
The 18 designates an 1.8-inch overall case length. This compact housing ensures the probe fits into standard industrial ports while maintaining the structural rigidity required to resist mechanical resonance.
The 50 specifies a 5.0-meter (approx. 16.4 feet) total system length. This value is mathematically matched to the Proximitor’s calibration; the combined length of the probe lead and any extension cable must equal exactly 5.0 meters to maintain the 200 mV/mil scale factor.
The 02 signifies a miniature coaxial ClickLoc connector with a connector protector, preventing fluid ingress. The 05 confirms Multiple Agency Approvals (including ATEX, IECEx, and CSA), authorizing the sensor's use in Zone 0, 1, and 2 hazardous areas.
| Feature | Specification Details |
| Probe Tip Diameter | 8.0 mm (0.315 in) |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 Hz to 10 kHz (typical) |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +351 °F) |
| Target Material | AISI 4140 Steel (Standard Calibration) |
| Thread Size | M10 × 1 |
| Ingress Protection | IP68 / NEMA 4X (when properly sealed) |
Achieving laboratory-grade accuracy in a field environment requires strict adherence to Bently Nevada's engineering standards:
Installers must calibrate the "Static Gap" using the DC voltage output from the Proximitor. For the 3300 XL 8mm system, the midpoint of the linear range is -10.0 VDC. Rotate the probe within its mounting until the multimeter reads this value at the signal terminals, then secure the locknuts to prevent shifting during operation.
The internal coaxial structure of the probe lead is sensitive to "kinking." Maintain a minimum bend radius of 25.4 mm (1.0 inch). Sharp bends can alter the cable's impedance, leading to "false vibration" signals or signal attenuation that compromises the TSI system's integrity.
Since the -05 option supports ATEX/CSA certifications, engineers must use an approved Intrinsic Safety (IS) barrier if the probe enters a Class I, Div 1 or Zone 0 area. Ensure all signal conduits are sealed to prevent the migration of flammable gases from the machine train to the control room.
ClickLoc Connectivity: Gold-plated ClickLoc connectors provide a secure, low-resistance electrical path while resisting corrosion in high-humidity or salt-mist environments.
TSI System Synergy: This probe is natively compatible with the Bently Nevada 3500/42M Proximitor Monitor, enabling direct integration into the world’s most widely used machinery protection platform.
Exceptional Durability: The probe tip utilizes Polyphenylene Sulfide (PPS), a high-performance thermoplastic that withstands exposure to hot lubricating oils and caustic chemicals without degrading.
Backward Compatibility: While featuring modern RFI/EMI shielding, the 330101-00-18-50-02-05 remains fully compatible with legacy 3300 series proximity systems, allowing for cost-effective hardware refreshes.
Q1: How do I verify the health of the 330101 probe lead?
A1: Use a multimeter to measure the DC resistance between the center pin and the outer shell of the ClickLoc connector. A standard 5.0m probe lead typically shows a resistance between 7.0 Ω and 11.0 Ω. An "infinite" reading indicates an open circuit, requiring probe replacement.
Q2: Does this probe connect directly to an Ethernet router?
A2: No. This is a common database error. The probe is an analog eddy-current sensor. It sends a high-frequency signal to a Bently Nevada Proximitor, which then provides a voltage signal to a 3500 Rack or DCS. It does not possess an RJ45 port or Ethernet capabilities.
Q3: Can I cut the probe cable if it is too long for my installation?
A3: Never cut or splice the probe lead. The electrical length is factory-calibrated to exactly 5.0 meters. Shortening the cable will destroy the calibration, making the vibration and gap readings inaccurate.
Q4: What is the significance of the 200 mV/mil sensitivity?
A4: This is the standard scale factor for 8mm probes. It means for every 0.001 inch (1 mil) of shaft movement, the system output changes by 200 millivolts. This high sensitivity allows the system to detect even the smallest sub-harmonic vibrations.
