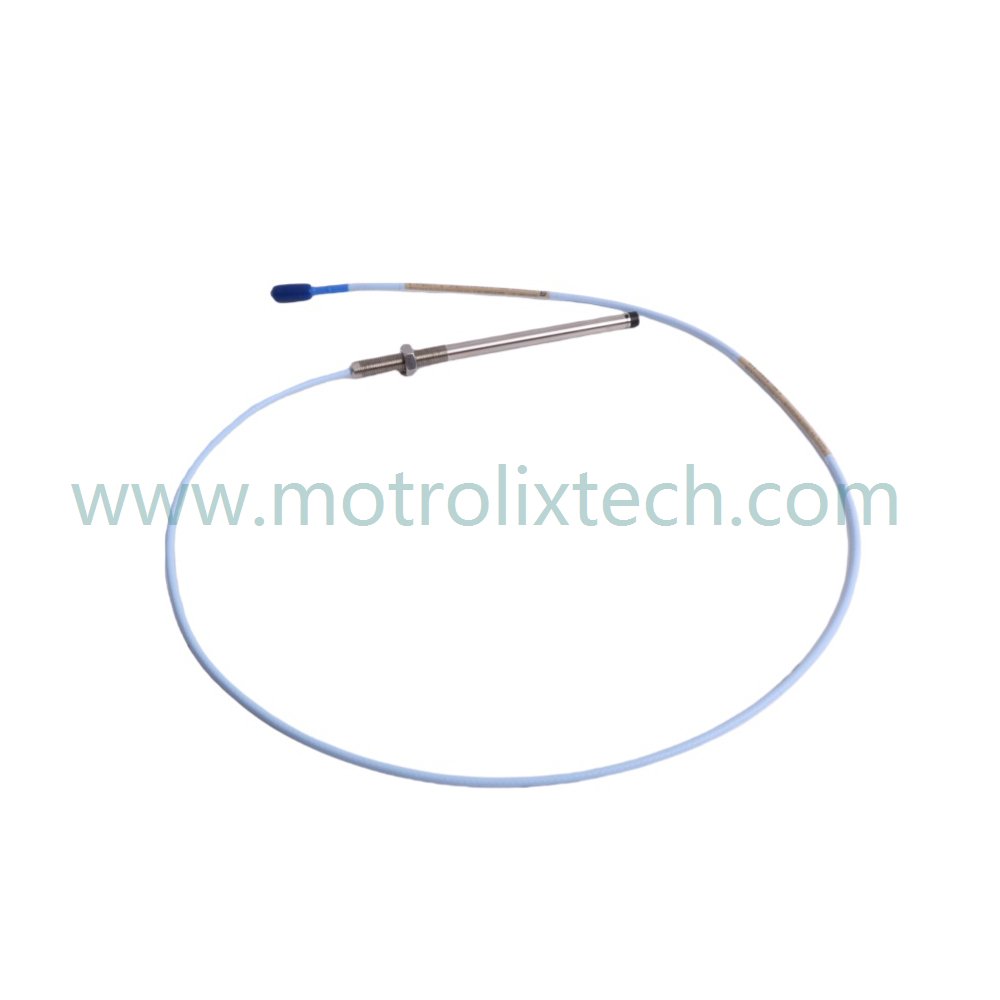

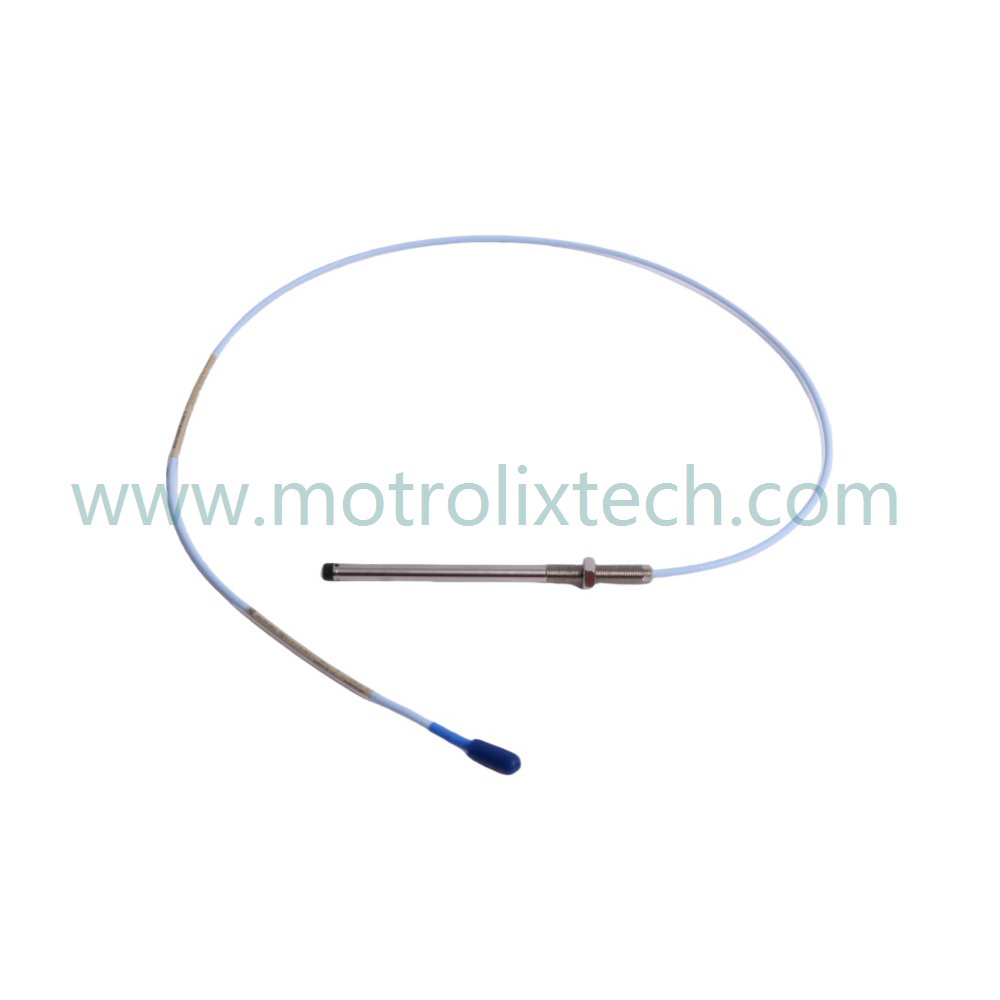

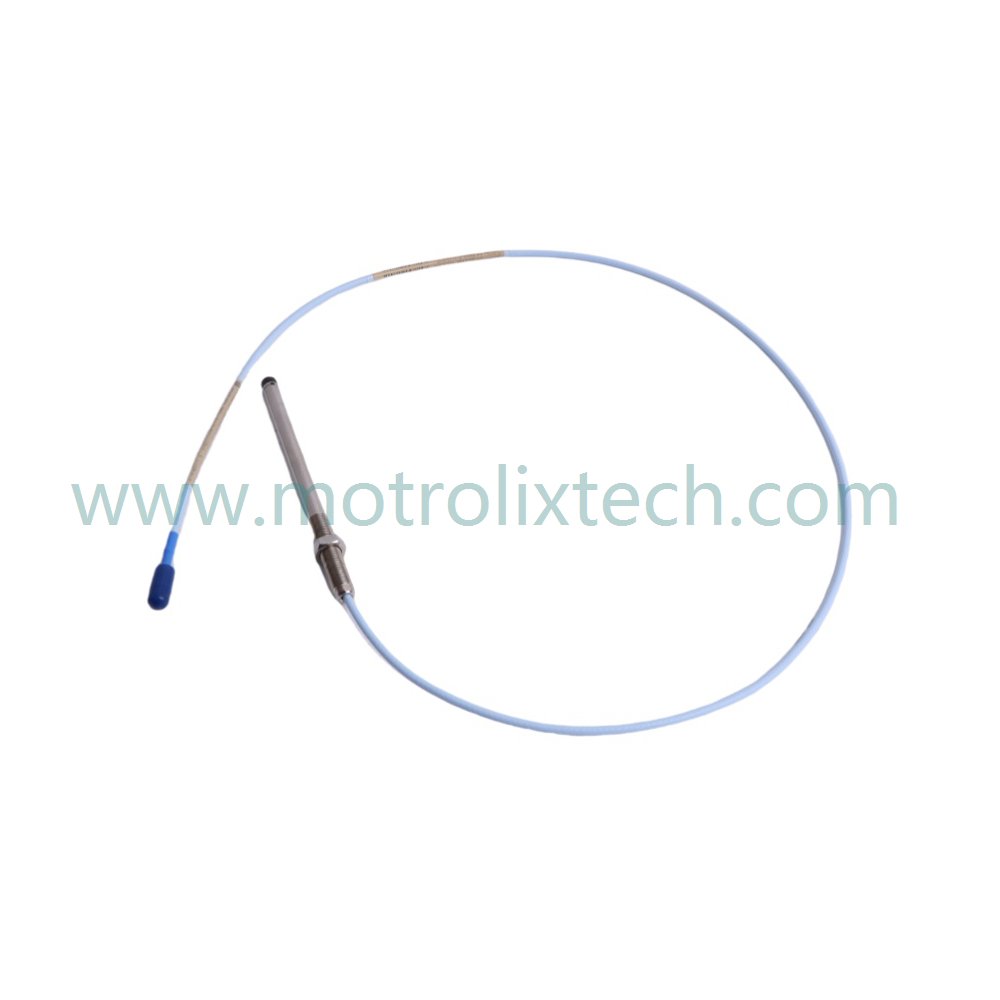

The Bently Nevada 330101-33-53-10-02-05 3300 XL 8 mm Proximity Probe is engineered for high-precision vibration and position monitoring in demanding industrial environments. This unarmored probe, featuring a compact design, delivers reliable non-contact measurements for critical machinery, including steam turbines and reciprocating compressors. Its advanced sensing capabilities ensure accurate data collection, which is essential for predictive maintenance and enhancing equipment reliability.
The model number 330101-33-53-10-02-05 reveals specific characteristics of this proximity probe:
330101: Identifies the specific product line within the Bently Nevada family of products.
33: Indicates the probe's 8 mm diameter, designed for applications requiring non-contact proximity sensing.
53: Refers to the minimum case length of 5.3 inches.
10: Specifies that the probe has a minimum unthreaded length of 3.3 inches.
02-05: Indicates the standard cable length of 1.0 meters (3.3 feet) and compatibility with ClickLoc connectors, ensuring secure connections.
| Parameter | Specification |
|---|---|
| Model Number | 330101-33-53-10-02-05 |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Weight | 0.04 kg |
| Dimensions | 58.5 x 1.5 x 1.5 cm |
| Cable Length | 1.0 meter (3.3 feet) |
| Thread Type | 3/8-24 UNF |
| Application | Vibration and position monitoring |
| System Compatibility | Bently Nevada 3300 Proximity System |
| Protection Rating | CSA, ATEX, IECEx approved |
| Lead Time | In Stock |
| HS CODE | 8537101190 |
To ensure optimal performance of the Bently Nevada 330101-33-53-10-02-05 Proximity Probe, please follow these installation guidelines:
Voltage Gap Settings: Set the voltage gap according to specified values to ensure accurate measurements.
Cable Bend Radius: Maintain a minimum bend radius to prevent cable damage during installation and operation.
Mounting Requirements: Use the 3/8-24 UNF threaded design for secure installation, especially in tight spaces.
Environmental Considerations: Ensure installation in areas protected from harsh conditions, given its unarmored design.
The Bently Nevada 330101-33-53-10-02-05 Proximity Probe is built for exceptional reliability and durability in extreme industrial conditions, including high temperatures and vibrations. Its lightweight construction facilitates seamless integration into existing monitoring systems without adding unnecessary bulk. Providing backward compatibility with other Bently Nevada 3300 series components, this probe ensures versatile installation options and enhances operational flexibility in various applications.
Q1: How can I determine the appropriate voltage gap for installation?
A1: Measure the voltage across the probe terminals using a multimeter to ensure it aligns with specified operating requirements.
Q2: What does the model number signify?
A2: The model number indicates the specific attributes of the probe, including case length, diameter, and cable specifications.
Q3: Is the 330101-33-53-10-02-05 compatible with other probes in the 3300 series?
A3: Yes, it is backward compatible with both 5 mm and 8 mm probes from the non-XL 3300 series, allowing for flexible use.
Q4: What is the expected operational temperature range for this probe?
A4: The probe is designed to operate effectively within industrial environments while maintaining measurement accuracy under varying conditions.
