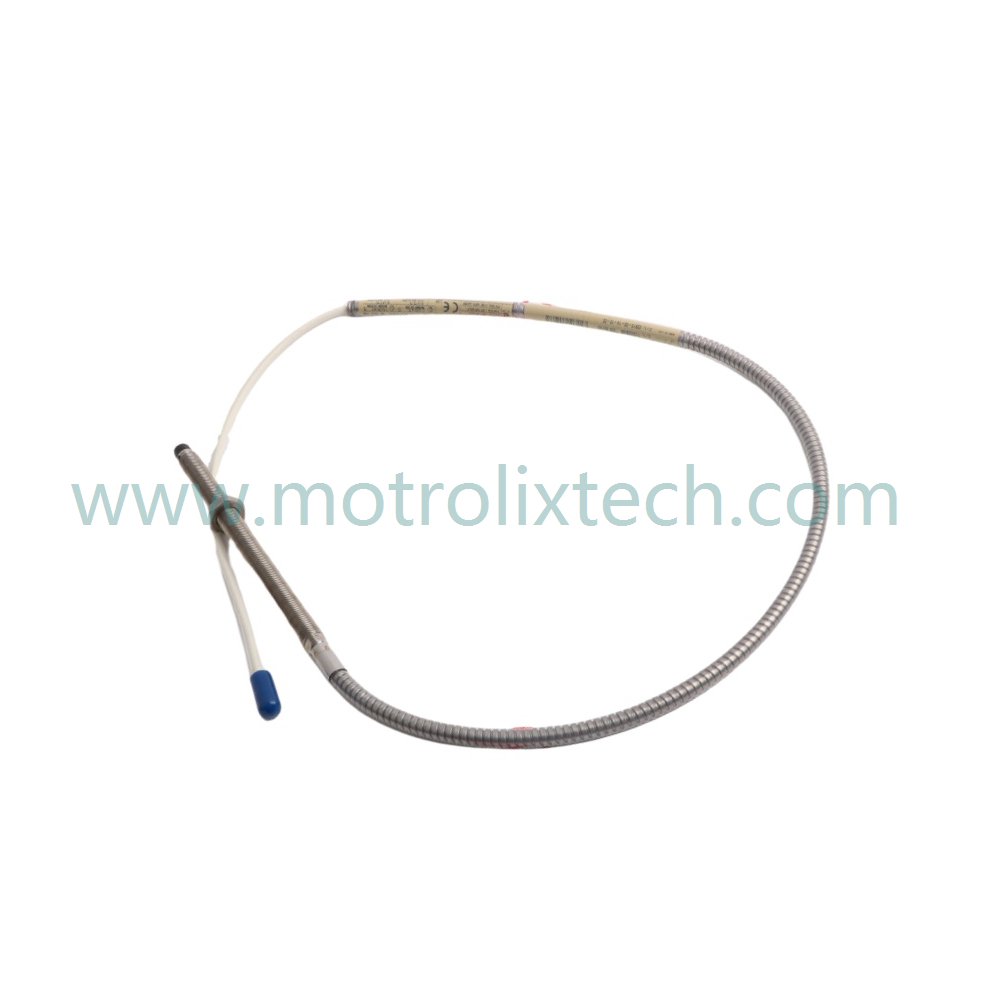

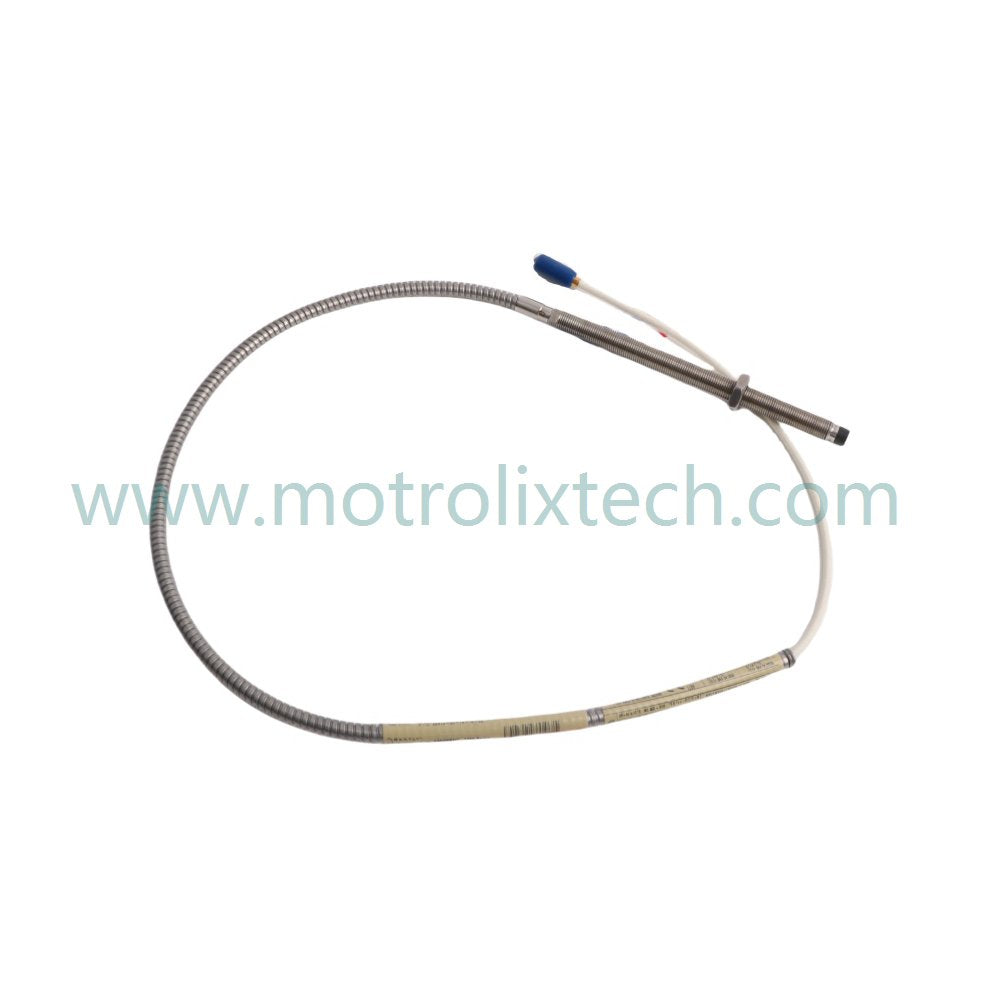

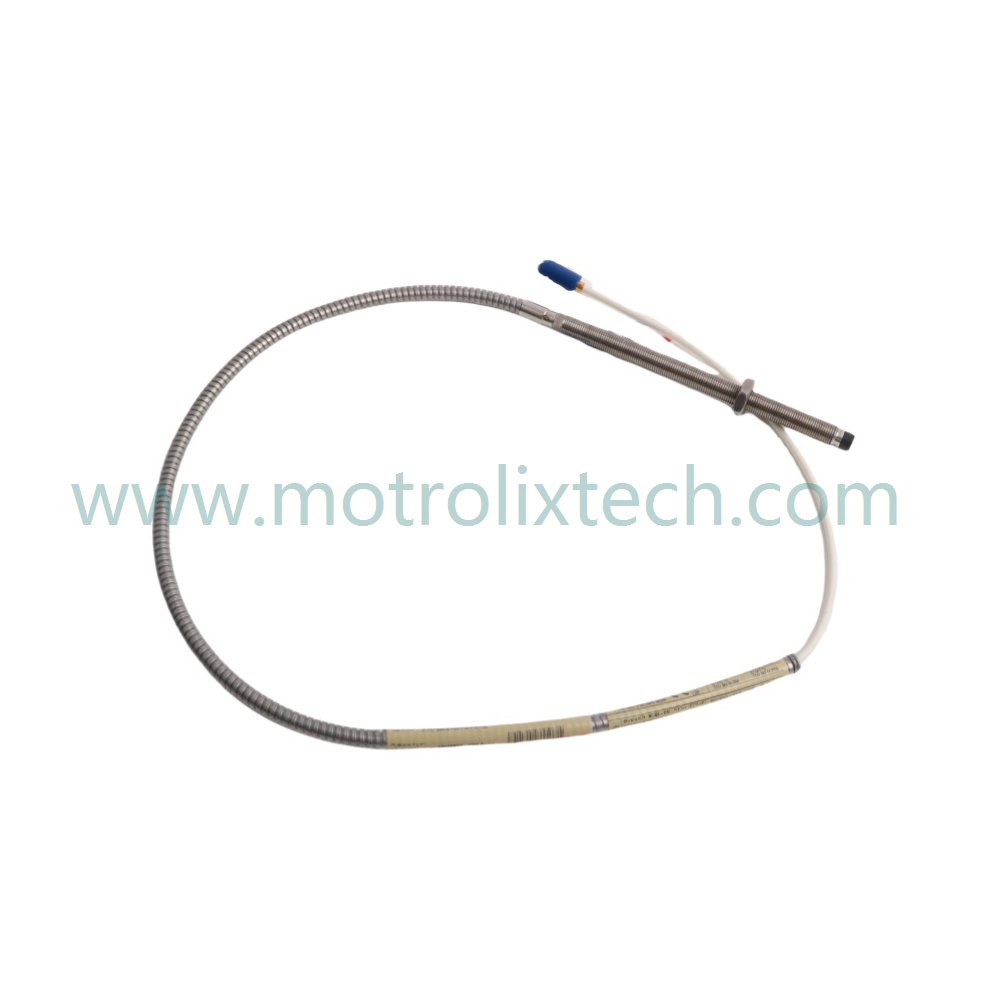

The Bently Nevada 22810-00-06-10-02 3300 XL Proximity Probe is engineered specifically for precise vibration monitoring in demanding industrial machinery applications. This robust 8 mm proximity probe features a durable 316 stainless steel housing, making it ideal for applications where reliability is critical, such as monitoring turbine shafts and reciprocating compressors.
With a cable length of 6.0 meters (19.7 feet), this probe offers flexibility for complex machinery layouts, ensuring effective connection to monitoring systems. The probe captures a broad frequency response range of 0 to 10 kHz (±3 dB) for detailed vibration signal analysis, providing high accuracy essential for effective machinery diagnostics.
The model number 22810-00-06-10-02 reveals insightful information about the probe:
22810: Indicates the specific model within the Bently Nevada 3300 XL Proximity Probes series.
00: Represents a standard baseline specification for the model.
06: Denotes the cable length (6.0 meters).
10: Refers to the probe’s standard sensitivity settings.
02: Indicates compliance with rigorous performance criteria.
| Parameter | Specification |
|---|---|
| Model Number | 22810-00-06-10-02 |
| Module Type | 3300 XL Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | Bently Nevada |
| Lead Time | In Stock |
| Weight | 0.12 kg |
| HS CODE | 8537101190 |
| Dimensions | 20.4 x 22.2 x 3.7 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Frequency Response Range | 0 to 10 kHz (±3 dB) |
| Sensitivity | 7.87 V/mm (200 mV/mil) with ±5% tolerance |
To ensure optimal performance of the Bently Nevada 22810-00-06-10-02 Probe, adhere to the following guidelines:
Mechanical Clearance: Ensure adequate space around the probe area to facilitate installation and accurate readings.
Wiring Connections: Utilize the M10 x 1 threaded design for secure mounting. Check that all connections are clean and securely fastened to maintain signal integrity.
Cable Management: Properly route the 6.0-meter cable to avoid kinks or sharp bends that could impair performance; keep it away from heat sources and moving parts.
Grounding Practices: Implement proper grounding techniques to minimize electrical noise and enhance measurement accuracy.
Installation Environment: Keep the installation area clear of excessive moisture and contaminants that could affect the probe's functionality.
The Bently Nevada 22810-00-06-10-02 3300 XL Proximity Probe is designed to withstand challenging conditions, featuring a rugged construction that ensures durability even in harsh operating environments. The use of 316 stainless steel housing provides resistance to corrosion and wear, making it suitable for various industrial applications.
This probe’s impressive sensitivity rating of 7.87 V/mm allows for accurate detection of vibration signals, essential for predictive maintenance and early fault detection in machinery. Its compatibility with the TSI system ensures seamless integration with existing monitoring setups, providing flexibility for both new installations and upgrades from older systems.
With its robust design and advanced performance specifications, the 22810-00-06-10-02 Probe enhances equipment reliability and helps prevent unexpected failures, making it a trusted choice for critical industrial monitoring.
Q1: What is the primary function of the Bently Nevada 22810-00-06-10-02 Probe?
A1: This proximity probe provides precise vibration monitoring for industrial machinery, ensuring reliable performance and early fault detection.
Q2: How does the threaded design enhance installation?
A2: The M10 x 1 threaded design securely mounts the probe, enabling reliable connections that maintain performance even in challenging environments.
Q3: What types of monitoring applications is this probe suitable for?
A3: This probe is ideal for monitoring turbine shafts, reciprocating compressors, and other critical machinery requiring accurate vibration measurements.
Q4: How does the probe's sensitivity influence its performance?
A4: The sensitivity rating of 7.87 V/mm ensures that the probe delivers consistent and accurate output, critical for detailed machinery diagnostics.
Q5: What maintenance practices should be followed to ensure optimal performance?
A5: Regularly inspect the probe and connections for wear or damage, maintain cleanliness in the installation area, and ensure that the setup is free from contaminants.
