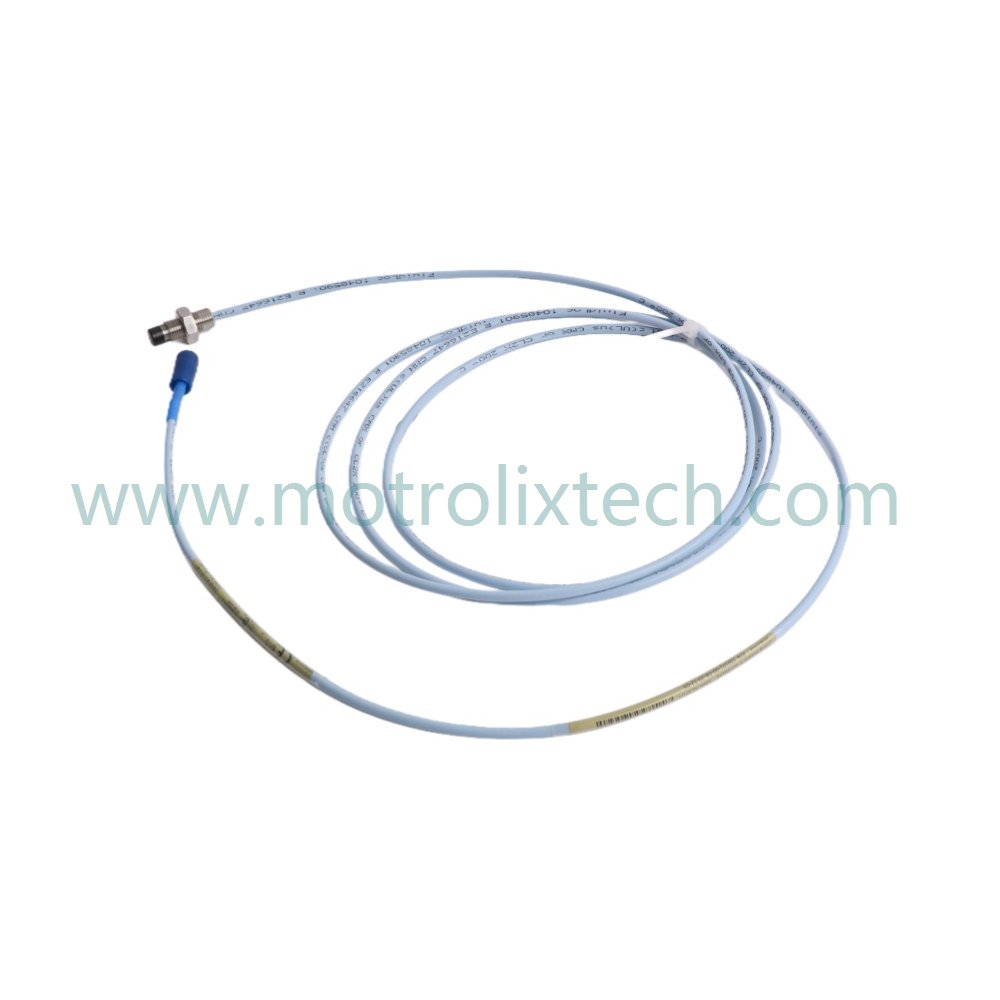

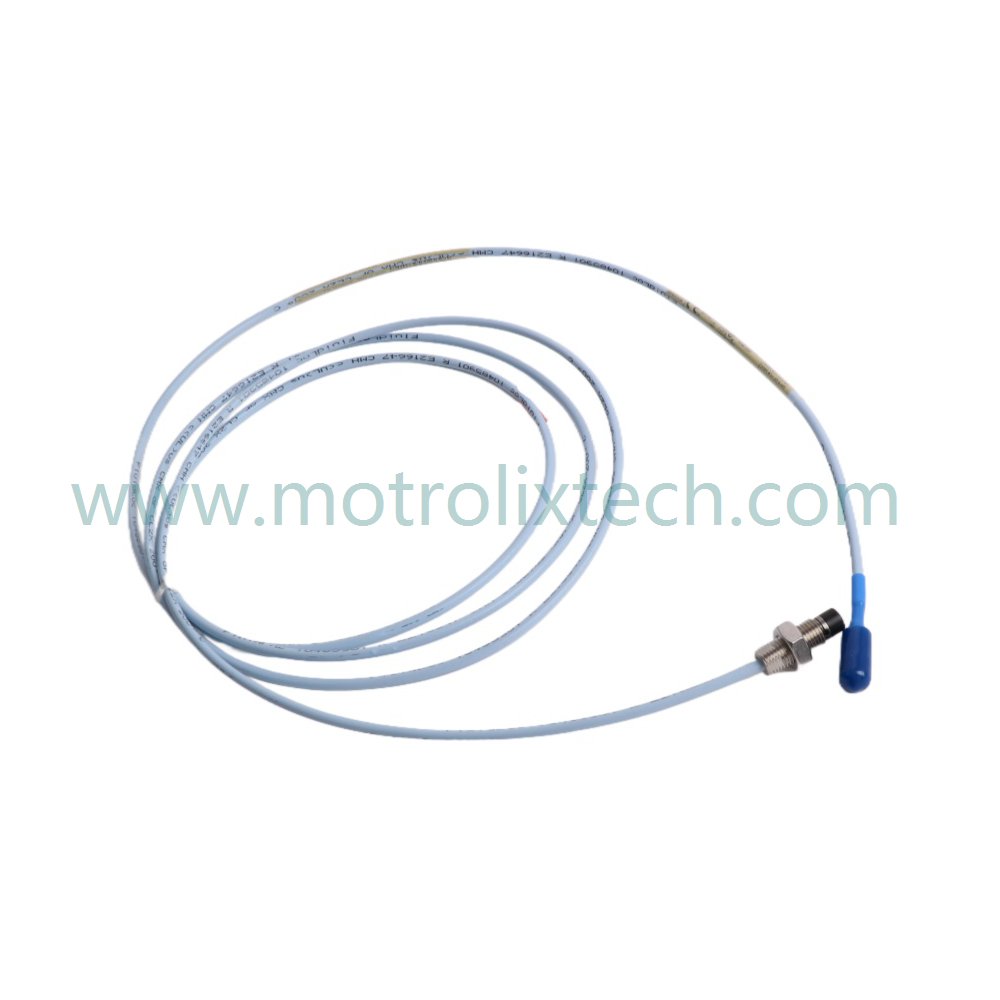

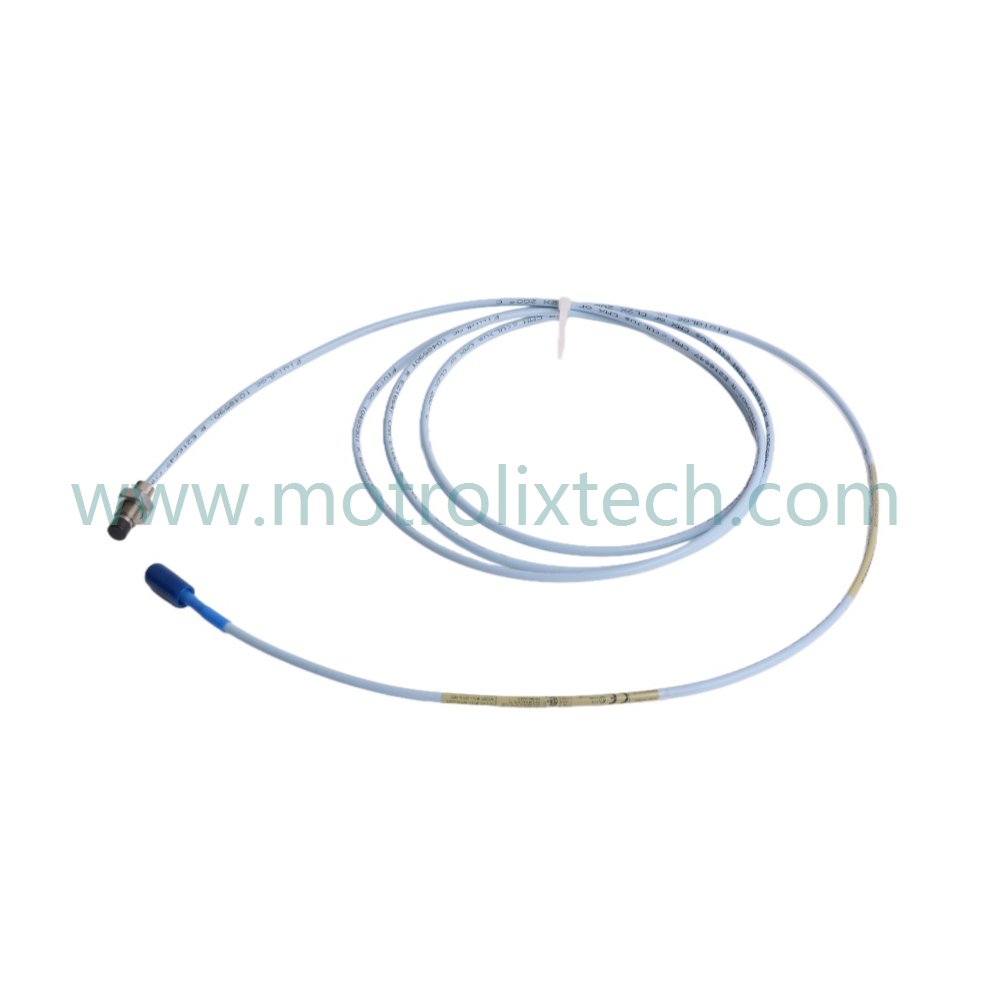

The Bently Nevada 330101-00-09-15-12-CN 3300 XL 8 mm Proximity Probe is designed for high-precision vibration and shaft position monitoring in critical industrial machinery. This advanced probe is vital for applications such as turbine and compressor monitoring, ensuring optimal performance and reliability. Its non-contact measurement capabilities, paired with robust construction, allow it to excel even in the most demanding environments, thereby supporting predictive maintenance strategies effectively.
Featuring an M10 x 1 thread and a 1.5-meter standard cable, this lightweight probe (0.06 kg) facilitates easy installation in confined spaces. Equipped with a miniature coaxial ClickLoc connector, it guarantees secure and stable electrical connections, enhancing long-term operational reliability.
The model number 330101-00-09-15-12-CN provides valuable insights into its specifications:
330101: Identifies the probe as part of the Bently Nevada 3300 XL series, specializing in high-performance applications.
00: Indicates a variant of the proximity probe without specialized features.
09: Refers to the minimum case length of 0.9 inches, crucial for specific installation requirements.
15: Represents the overall design features that enhance functionality.
12: Indicates compliance with international standards.
CN: Suggests that the model is intended for markets in China, though it can be used globally.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-09-15-12-CN |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.06 kg |
| HS CODE | 8537101190 |
| Dimensions | 1.8 x 1.6 x 123 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 1.5 meters (approximately 4.9 feet) |
| Thread Type | 3/8-24 UNF |
To ensure the best performance from the Bently Nevada 330101-00-09-15-12-CN Proximity Probe, follow these recommended installation practices:
Mechanical Clearance: Ensure there is adequate space for installation to avoid interference with surrounding equipment.
Wiring Connections: Use the ClickLoc connector for secure connections, inspecting for tightness before operation.
Bend Radius: Observe the minimum bend radius during installation to maintain the integrity of the cable and sensor.
Environmental Protection: Protect the probe from extreme moisture and temperature variations to enhance its lifespan and performance.
Consult Technical Support: For specific installation issues or questions, reach out to Bently Nevada’s technical support for guidance.
The Bently Nevada 330101-00-09-15-12-CN Proximity Probe is engineered to withstand harsh industrial environments, including high temperatures, pressure, and mechanical stress. Its robust design ensures reliability, making it suitable for critical applications that demand accuracy and durability.
This probe exhibits exceptional immunity to radio frequency interference (RFI) and electromagnetic interference (EMI), allowing for installation in fiberglass housings without the need for additional shielding or metallic enclosures. As a part of the 3300 XL Proximitor Sensor system, it reduces installation complexity and costs while maintaining high performance and safety.
Q1: What industries commonly use the Bently Nevada 330101-00-09-15-12-CN Proximity Probe?
A1: This probe is widely utilized in industries requiring precise vibration and position monitoring, particularly in power generation, oil and gas, and manufacturing.
Q2: What is the significance of the 3/8-24 UNF thread on this probe?
A2: The 3/8-24 UNF thread ensures compatibility with standard mounting interfaces, facilitating easy installation and secure fitting on machinery.
Q3: How does the ClickLoc connector benefit the installation process?
A3: The ClickLoc connector provides a secure and stable connection, simplifying the wiring process and ensuring consistent communication between the probe and monitoring systems.
Q4: Can this probe be used in hazardous environments?
A4: Yes, the Bently Nevada 330101-00-09-15-12-CN Proximity Probe meets strict international safety standards, making it suitable for use in hazardous industrial conditions.
Q5: Is this probe compatible with other components in the 3300 series?
A5: Yes, the probe is designed for full interchangeability within the Bently Nevada 3300 series, allowing easy upgrades and replacements.
