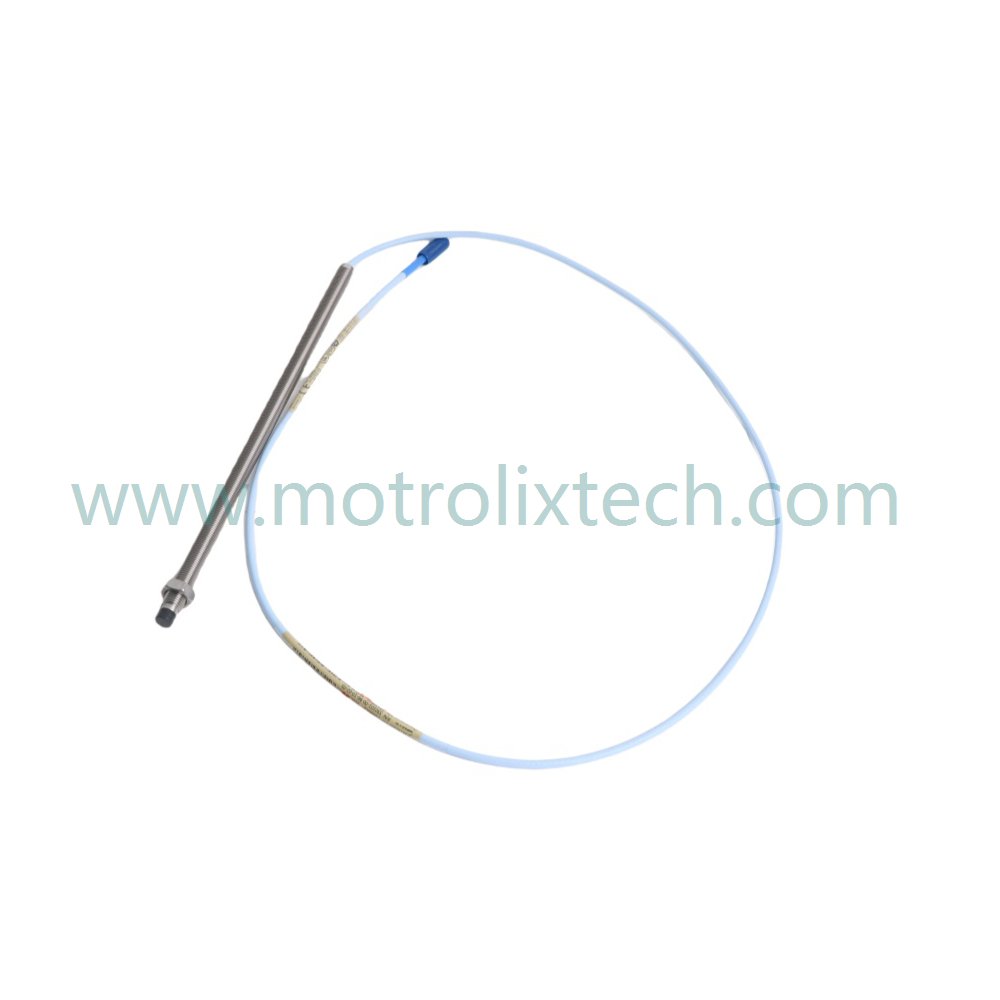

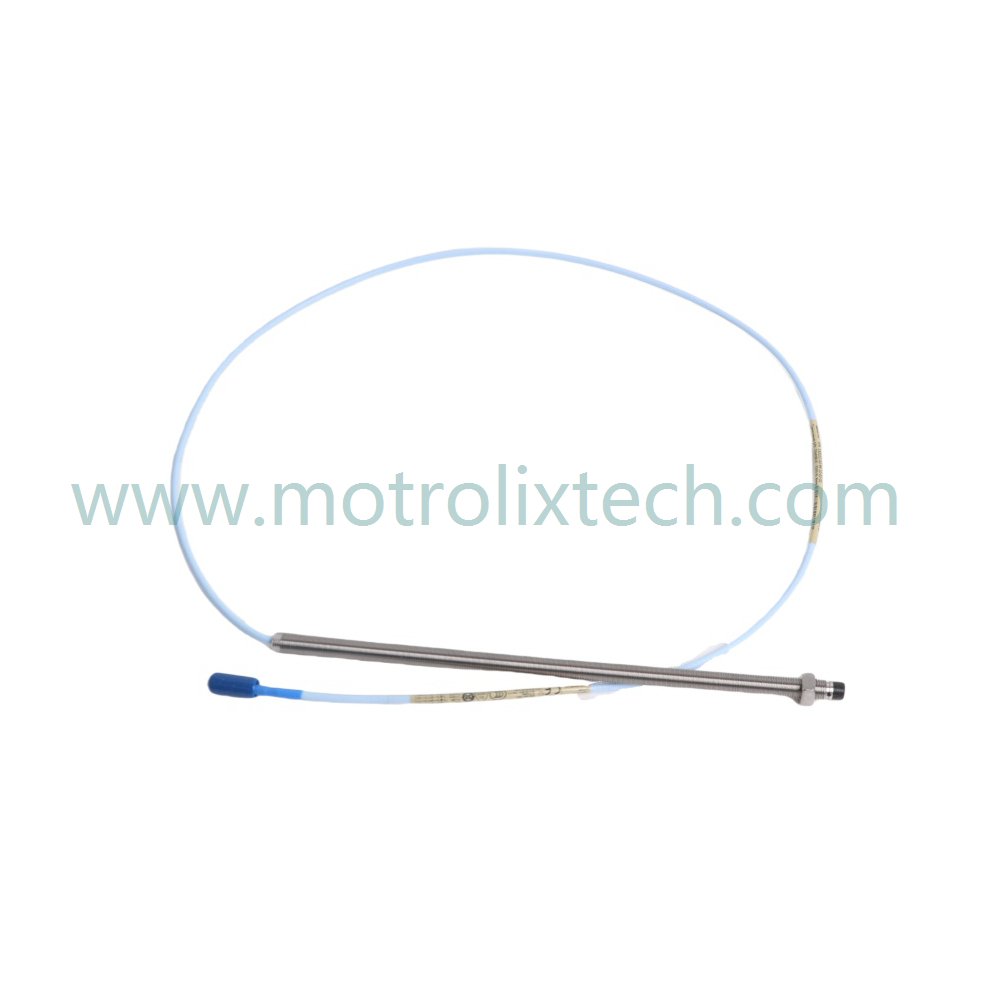

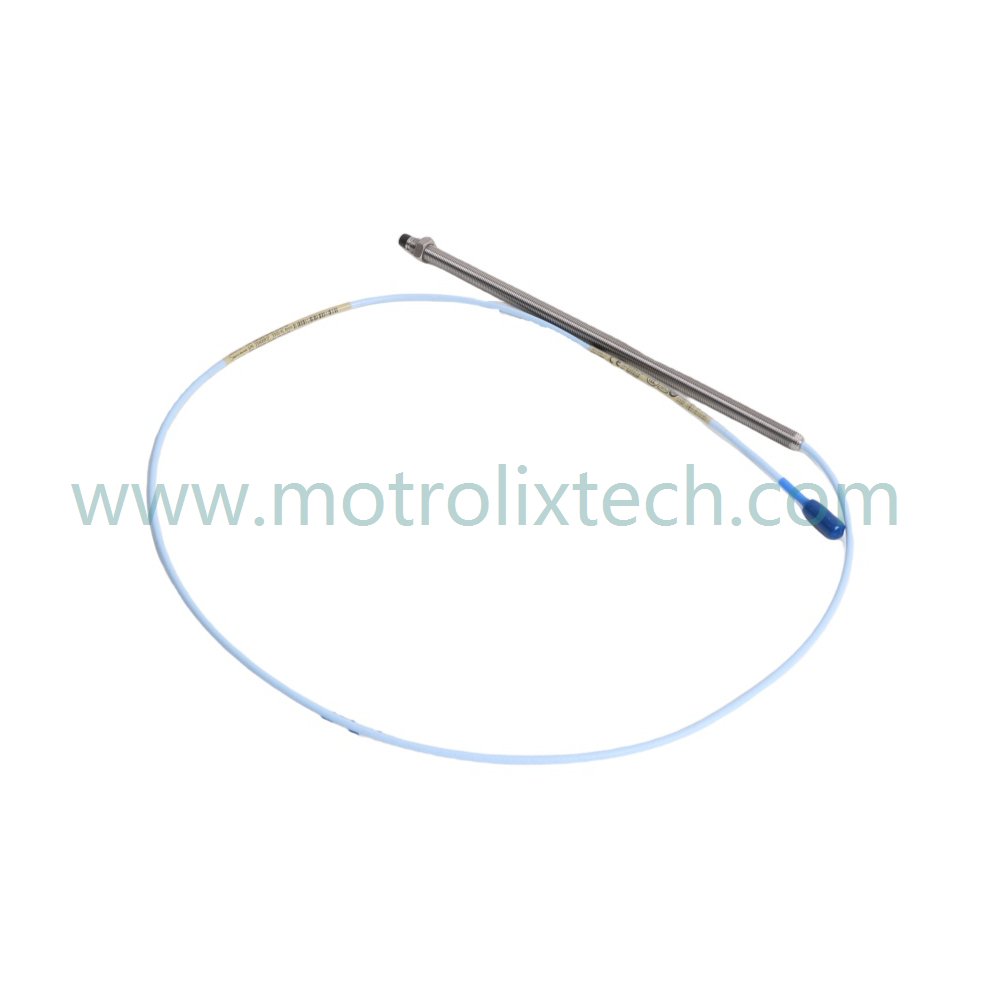

The Bently Nevada 330101-00-12-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision device designed for reliable vibration and position monitoring in critical industrial applications. This unarmored probe features an exceptionally compact design, with a case length of just 1.2 inches and a 3/8-24 UNF thread configuration. Equipped with a 1.0-meter (3.3 feet) standard cable terminated with a gold-plated miniature coaxial ClickLoc connector, this probe ensures secure signal transmission and is well-suited for environments that demand accuracy, such as steam turbines and compressors.
The Bently Nevada 330101-00-12-10-02-00 operates within a power range of -18 to -26V DC, providing precise gap-to-voltage measurements across a linear range of 2 mm. Manufactured in the USA and globally distributed from Xiamen, China, this lightweight probe (0.1 kg) adheres to the high-quality standards of the 3300 XL series, delivering exceptional reliability and performance in space-constrained applications.
The model number 330101-00-12-10-02-00 contains specific information regarding its features:
330101: Identifies the model within the Bently Nevada 3300 XL series.
00: Indicates the version of the probe.
12: Refers to the 1.2-inch case length for compact installations.
10: Represents the electrical configuration for optimized performance.
02: Denotes the use of a standard 1.0-meter cable.
00: Reflects additional enhancements for improved reliability.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-12-10-02-00 |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.1 kg |
| HS CODE | 8537101190 |
| Dimensions | 2 x 1.5 x 123 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Power Supply Range | -18 to -26V DC |
| Linear Measurement Range | 2 mm |
To ensure optimal installation and performance of the Bently Nevada 330101-00-12-10-02-00 Probe, adhere to the following recommendations:
Mechanical Clearance: Allow ample space for both installation and maintenance of the probe, reducing any potential interference from surrounding machinery.
Wiring Connections: Use the 3/8-24 UNF threading for secure mounting. Ensure that all wiring connections are free of corrosion and firmly attached to avoid signal loss.
Cable Management: Properly route the 1.0-meter cable to prevent sharp bends or kinks that could impair signal integrity. Avoid placement near moving parts or heat sources.
Grounding Practices: Implement effective grounding techniques to minimize electrical noise and enhance measurement accuracy, ensuring reliable data transmission.
Installation Environment: Maintain a clean and dry installation area, free from contaminants that could affect probe performance.
The Bently Nevada 330101-00-12-10-02-00 Proximity Probe stands out for its durability and versatility in extreme industrial conditions. It is designed to deliver high accuracy and reliability in monitoring applications, including those situated in high-temperature or high-pressure environments. The unarmored construction offers flexibility for applications where extra cable protection is unnecessary while maintaining robust performance.
This probe’s compatibility with the TSI system allows for seamless integration into existing setups, making it an ideal choice for predictive maintenance programs. The patented ClickLoc connection system, featuring gold-plated contacts, ensures secure locking against vibrations, reducing the likelihood of connection failures. By incorporating this probe, users can achieve optimal machinery performance and enhance operational safety.
Q1: What is the main purpose of the Bently Nevada 330101-00-12-10-02-00 Probe?
A1: This probe is designed for precise vibration and position monitoring in industrial applications, essential for the protection and reliability of machinery like turbines and compressors.
Q2: How does the ClickLoc connector enhance the performance of this probe?
A2: The ClickLoc connector guarantees a secure, vibration-resistant connection, preventing interruptions in signal transmission and ensuring consistent operational performance.
Q3: Is this probe compatible with older models of the 3300 series?
A3: Yes, the probe's mounting footprint allows for easy upgrades and replacements with older Proximitor Sensor models, simplifying installation and minimizing costs.
Q4: What benefits does the unarmored design provide?
A4: The unarmored design makes the probe lighter and adaptable to space-constrained environments without compromising measurement accuracy.
Q5: What maintenance should be performed to ensure optimal functionality?
A5: Conduct regular inspections to check for wear, ensure all connections are secure, and keep the installation environment clean and free from obstructions to maintain signal integrity.
