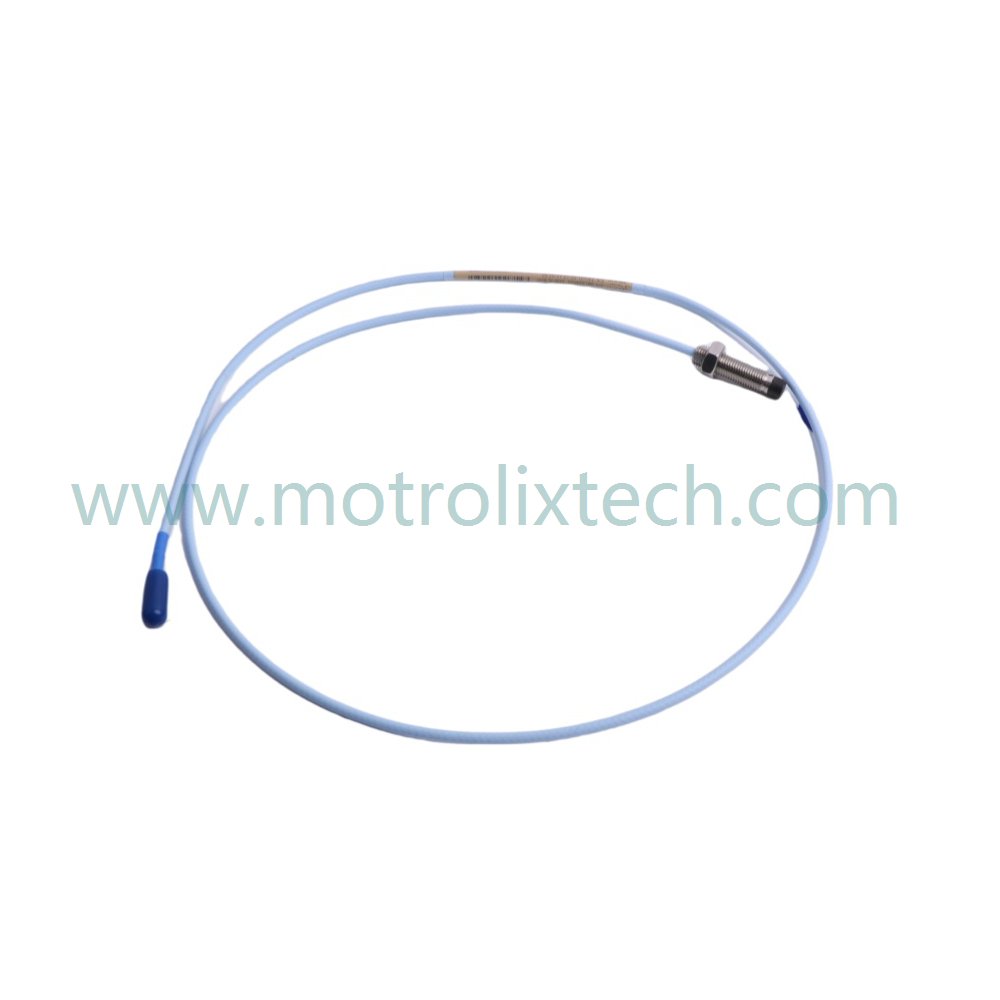

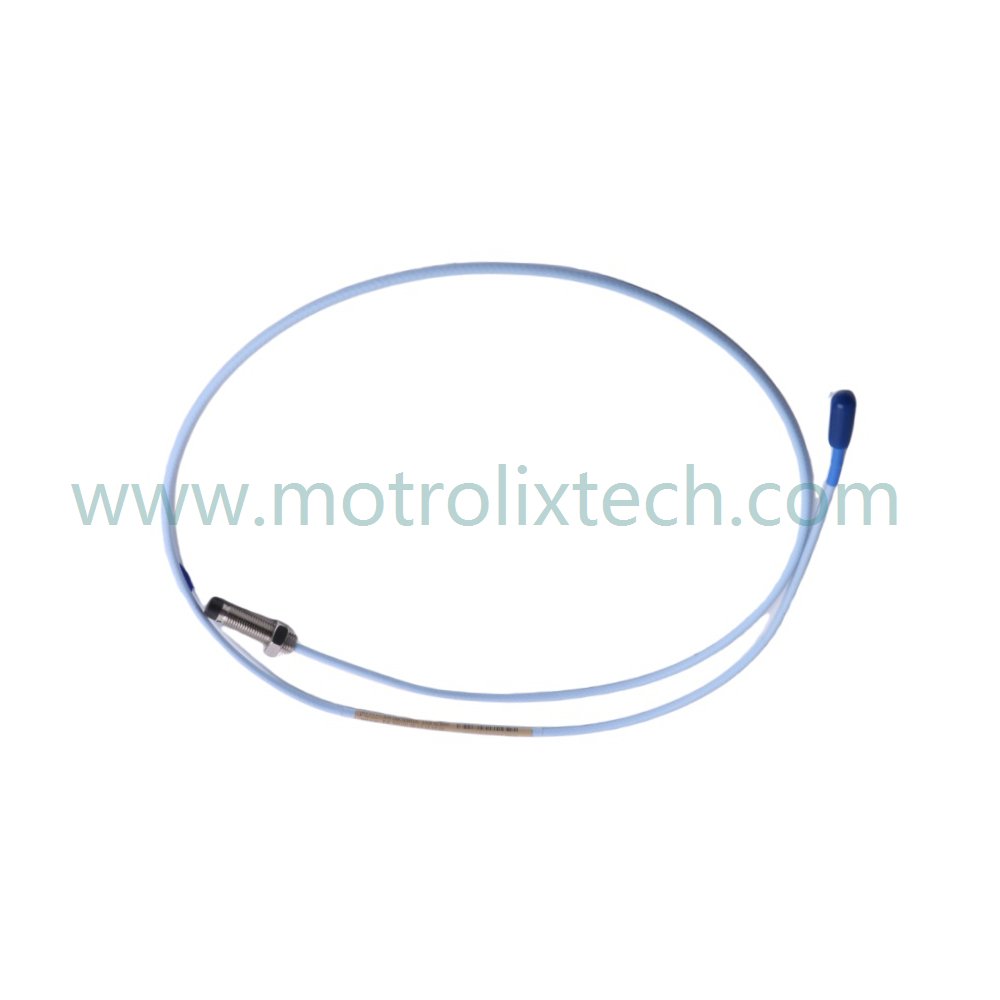

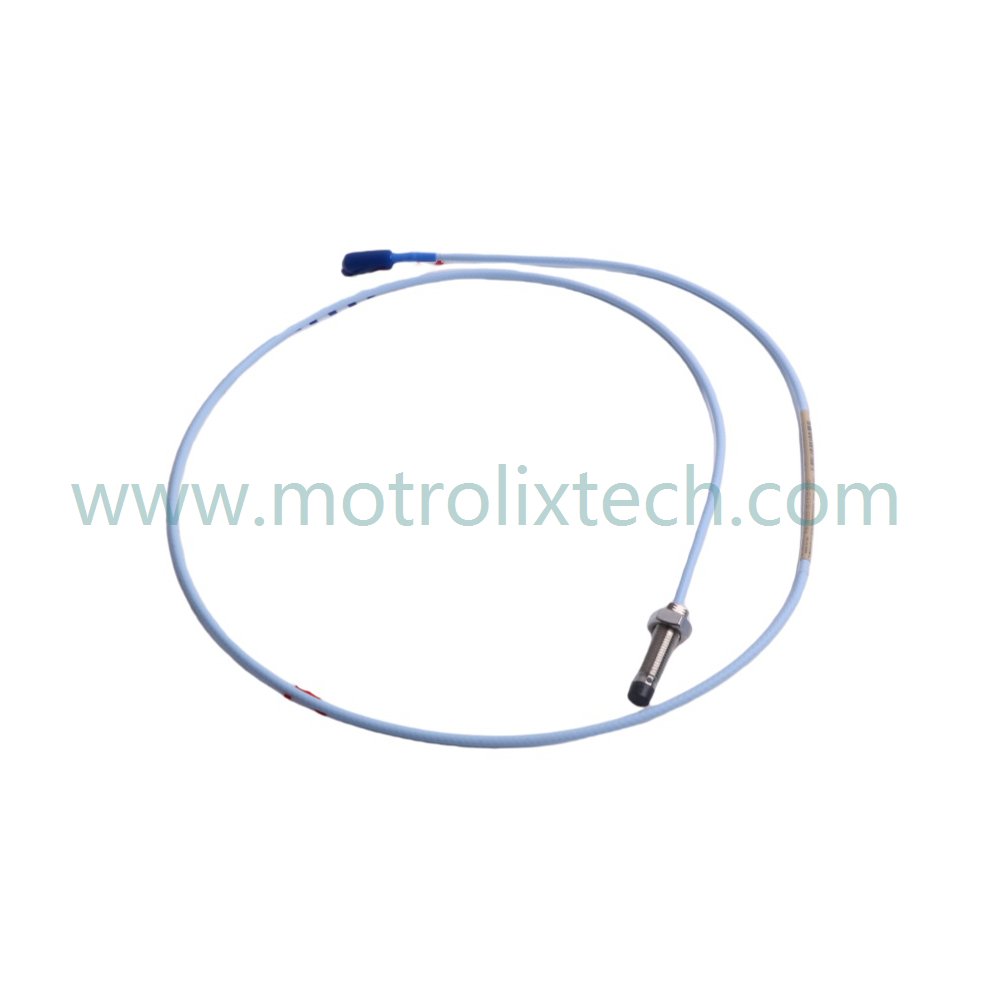

The Bently Nevada 330101-00-13-10-02-00 Proximity Probe is an advanced 8 mm sensor designed to deliver high-precision vibration and position monitoring for industrial machinery. This probe plays a critical role in ensuring optimal performance and reliability in large rotating equipment such as turbines and compressors. Its non-contact measurement technology captures accurate data for both dynamic and static monitoring applications, making it essential for predictive maintenance programs.
Designed with a compact form factor and a 3/8-24 UNF thread, this probe features a standard 1.0-meter miniature coaxial ClickLoc connector cable that facilitates secure and easy connections. Weighing only 0.1 kg, the 330101-00-13-10-02-00 is ideal for applications where space is limited, allowing installation in tight environments without compromising measurement capabilities.
The model number 330101-00-13-10-02-00 details important specifications about the proximity probe:
330101: Indicates the model series within the Bently Nevada 3300 XL Proximity Probes.
00: Represents general specifications relevant to this specific model variant.
13: Specifies characteristics related to the design and function of the probe.
10: Indicates the inclusion of a standard cable length of 1.0 meter.
02: Denotes compliance with key industry standards for safety and performance.
00: Designates the configuration within the model range.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-13-10-02-00 |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.1 kg |
| HS CODE | 8537101190 |
| Dimensions | 20.5 x 22.4 x 3.3 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Maximum Cable Length | 1.0 meters |
| Thread Configuration | 3/8-24 UNF |
| Operating Temperature Range | -40 °C to +85 °C |
To ensure optimal performance of the Bently Nevada 330101-00-13-10-02-00 Proximity Probe, follow these installation guidelines:
Mechanical Clearance: Be sure to maintain adequate space around the probe to facilitate accurate measurements and avoid interference from surrounding equipment.
Wiring Connections: Utilize the ClickLoc connector for secure connections. Ensure that all connections are clean and properly tightened to optimize signal integrity.
Cable Management: Properly route the standard 1.0-meter cable to avoid damage and stress, and protect it from mechanical wear and environmental hazards.
Grounding Practices: Ensure correct grounding of the probe to minimize electrical noise, which can impact measurement accuracy.
Installation Positioning: Install the probe in a clean environment to prevent contamination, and avoid exposing it to excessive moisture or harmful substances.
The Bently Nevada 330101-00-13-10-02-00 Proximity Probe is engineered for high durability and reliability in demanding industrial environments. Its advanced design features excellent immunity to radio frequency interference, meeting CE standards without the need for additional shielding, thereby reducing installation complexity and cost. This probe remains functional across a wide temperature range, ensuring reliability during extreme conditions.
Integration with the TSI system allows for seamless compatibility and easy upgrades from older models, making it an ideal choice for modern industrial applications that require precise, real-time vibration monitoring.
Q1: What is the main purpose of the Bently Nevada 330101-00-13-10-02-00 Proximity Probe?
A1: This probe is designed for accurate vibration and position monitoring in rotating machinery, ensuring optimal operational performance.
Q2: How does the ClickLoc connector enhance installation?
A2: The ClickLoc connector allows for tool-free, secure connections, simplifying the wiring process and improving installation efficiency.
Q3: Can this probe be used in harsh environments?
A3: Yes, the probe meets stringent industry standards, making it suitable for installation in harsh or hazardous environments.
Q4: What mounting options are available for this probe?
A4: The probe can be mounted using high-density DIN-rail configurations or traditional panel mounts, allowing for versatile installation.
Q5: What maintenance practices should be followed for this probe?
A5: Regularly inspect wiring connections for security, ensure the probe and cable remain clean, and monitor for any signs of wear or damage to maintain optimal performance.
