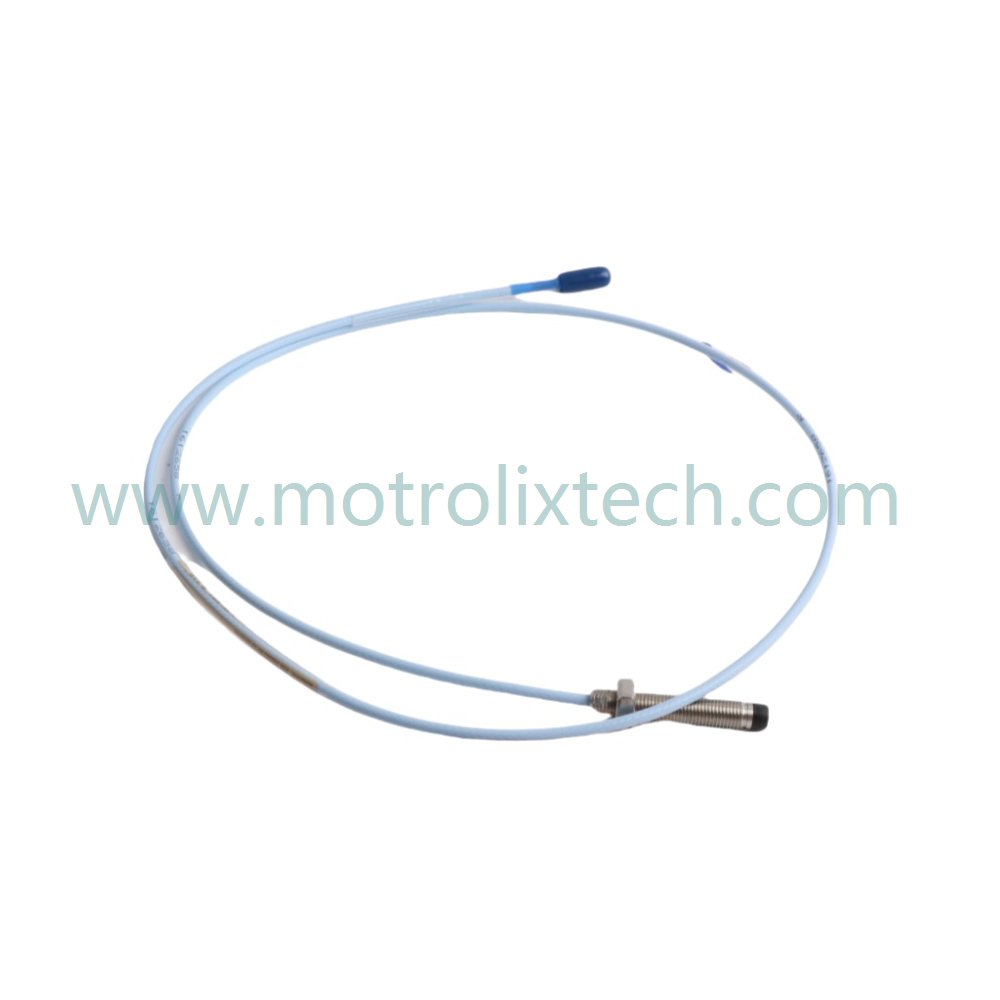

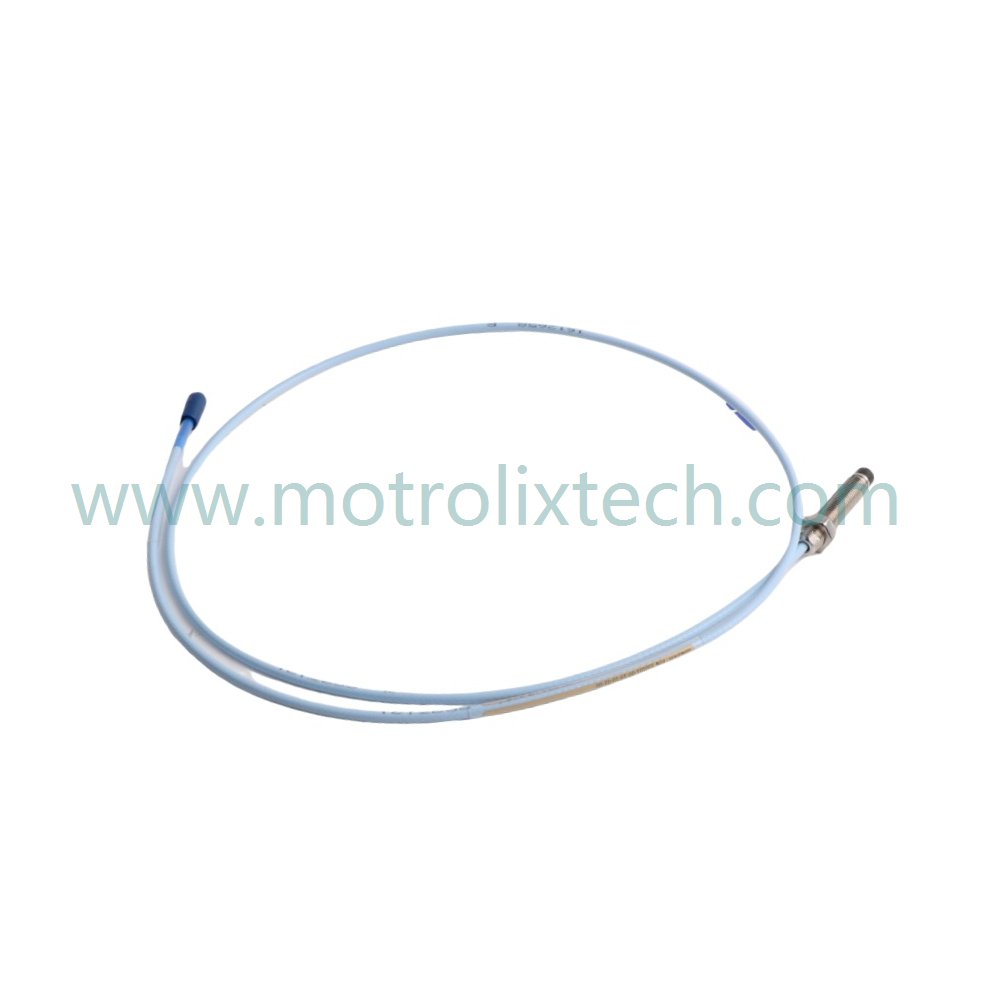

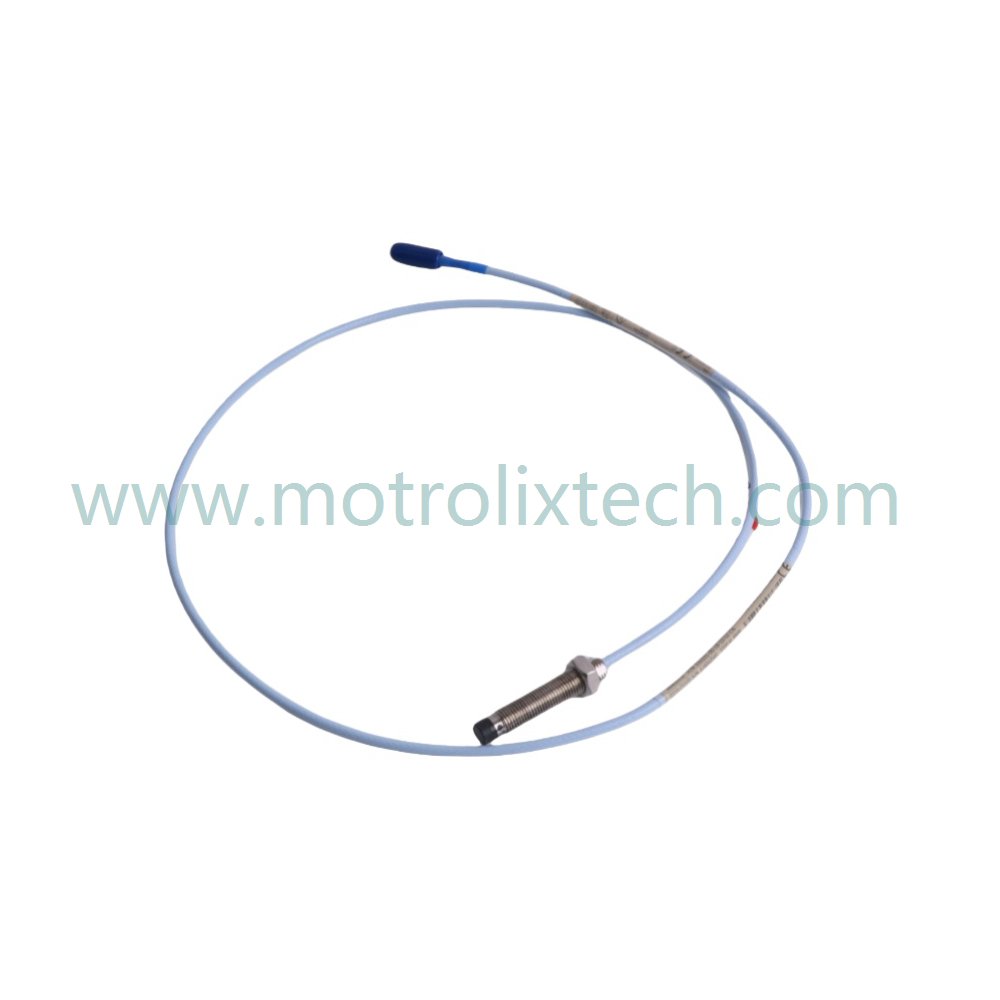

The Bently Nevada 330101-00-15-20-12-05 3300 XL 8 mm Proximity Probe is engineered for high-precision monitoring of vibration and shaft position in critical industrial machinery, such as turbines and reciprocating compressors. This state-of-the-art probe provides accurate measurements that are essential for predictive maintenance, ensuring operational reliability and efficiency.
Designed with an 8 mm diameter and a robust construction, this proximity probe stands out for its ability to withstand demanding environments. Its innovative features guarantee non-contact measurement with high precision, making it a vital instrument for maintaining the performance and safety of industrial equipment.
The model number 330101-00-15-20-12-05 provides details about its specific attributes:
330101: Indicates the model series within Bently Nevada's 3300 XL lineup.
00: Represents the standard configuration.
15: Denotes the probe's design features aimed at performance enhancement.
20: Refers to the specific thread size of 3/8-24 UNF.
12: Indicates the minimum unthreaded probe length of 0.0 inches.
05: Reflects the overall case length of 1.5 inches.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-15-20-12-05 |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.06 kg |
| HS CODE | 8537101190 |
| Dimensions | 1.8 x 1.6 x 123 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 2.0 meters (6.6 feet) |
| Thread Size | 3/8-24 UNF |
| Operating Temperature Range | -35°C to +120°C (-31°F to +248°F) |
| Certifications | CSA, ATEX, IECEx |
To ensure optimal performance of the Bently Nevada 330101-00-15-20-12-05 Proximity Probe, adhere to these installation guidelines:
Installation Clearance: Ensure sufficient space for proper installation to avoid interference from adjacent equipment.
Cable Management: Use the standard 2.0-meter cable to maintain flexibility in placement while ensuring connection reliability.
Connector Use: The miniature coaxial ClickLoc connector allows for secure connections and easy handling. Avoid using silicone tape in applications exposed to turbine oil.
Environmental Protection: Consider using fluid-resistant cables to enhance durability in moist conditions while safeguarding the probe’s integrity.
Safety First: Follow proper wiring procedures to ensure safe operation, particularly in hazardous environments recognized by CSA, ATEX, and IECEx certifications.
The Bently Nevada 330101-00-15-20-12-05 Proximity Probe showcases exceptional performance and reliability in extreme industrial conditions. Its robust encapsulation made of molded PPS plastic provides enhanced physical durability, making it highly resistant to mechanical stress.
Compatible with the TSI system, this probe maintains excellent signal integrity and operational stability while offering backward compatibility with existing monitoring infrastructure. The lightweight design facilitates easy handling during installation, and its precise measurements help ensure the optimal functioning of critical machinery.
Q1: What types of machinery are suitable for the Bently Nevada 330101-00-15-20-12-05 Proximity Probe?
A1: This probe is ideal for vibration and position monitoring in large rotating machinery, including turbines and reciprocating compressors.
Q2: How does the ClickLoc connector enhance installation?
A2: The ClickLoc connector allows for quick and secure connections, simplifying installation without requiring special tools.
Q3: What environmental factors can this probe withstand?
A3: The probe is designed to operate within a temperature range of -35°C to +120°C and is certified for use in hazardous industrial environments (CSA, ATEX, IECEx).
Q4: Is the use of silicone tape recommended for all installations?
A4: No, silicone tape should not be used in applications exposed to turbine oil as it may compromise the integrity of the connection.
Q5: Does this probe feature backward compatibility with older systems?
A5: Yes, the 330101-00-15-20-12-05 probe is fully compatible with previous generations of the 3300 series infrastructure, facilitating upgrades with minimal disruption.
