Product Overview:

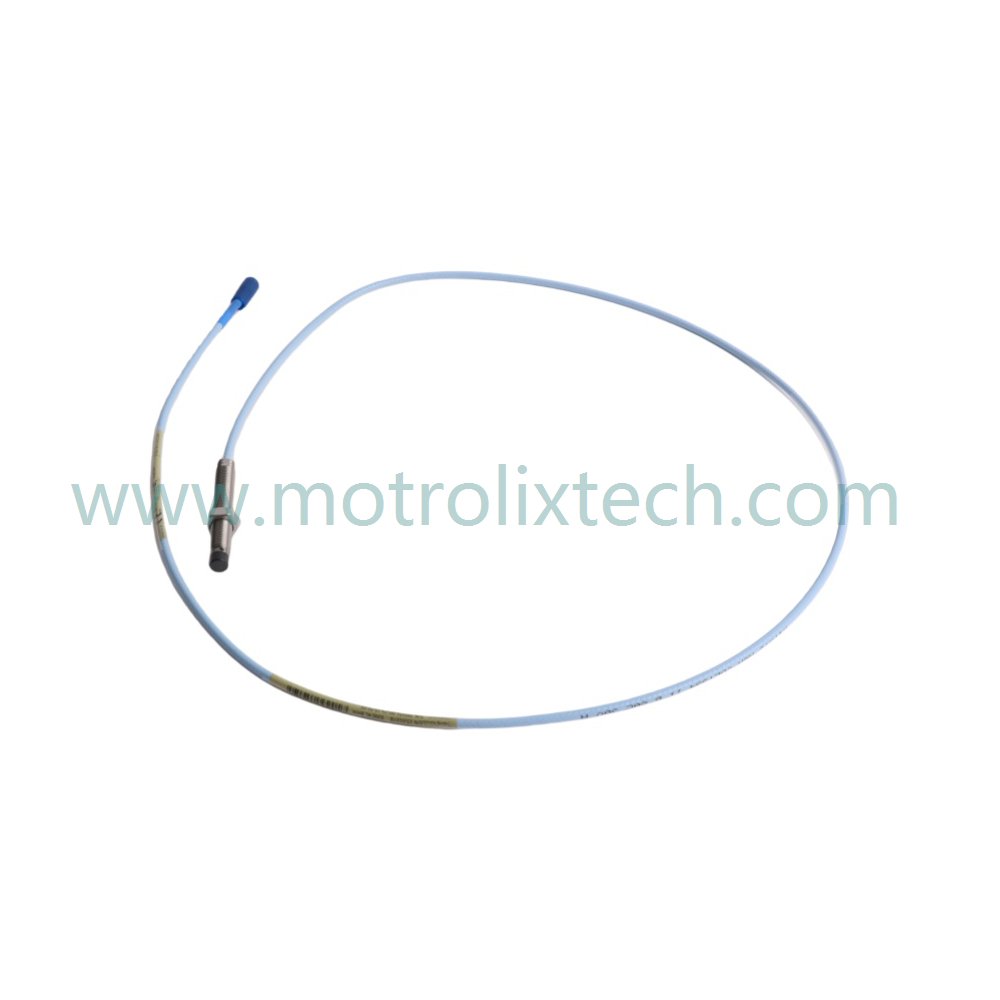

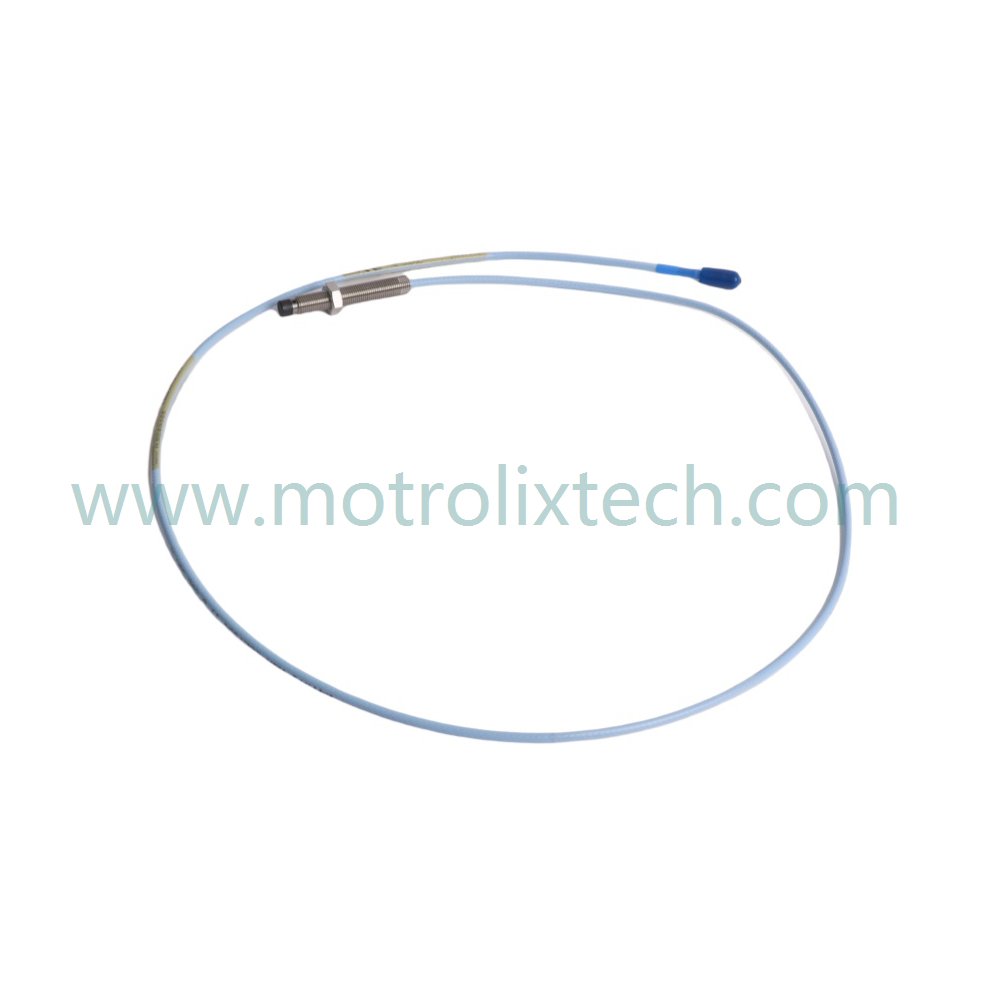

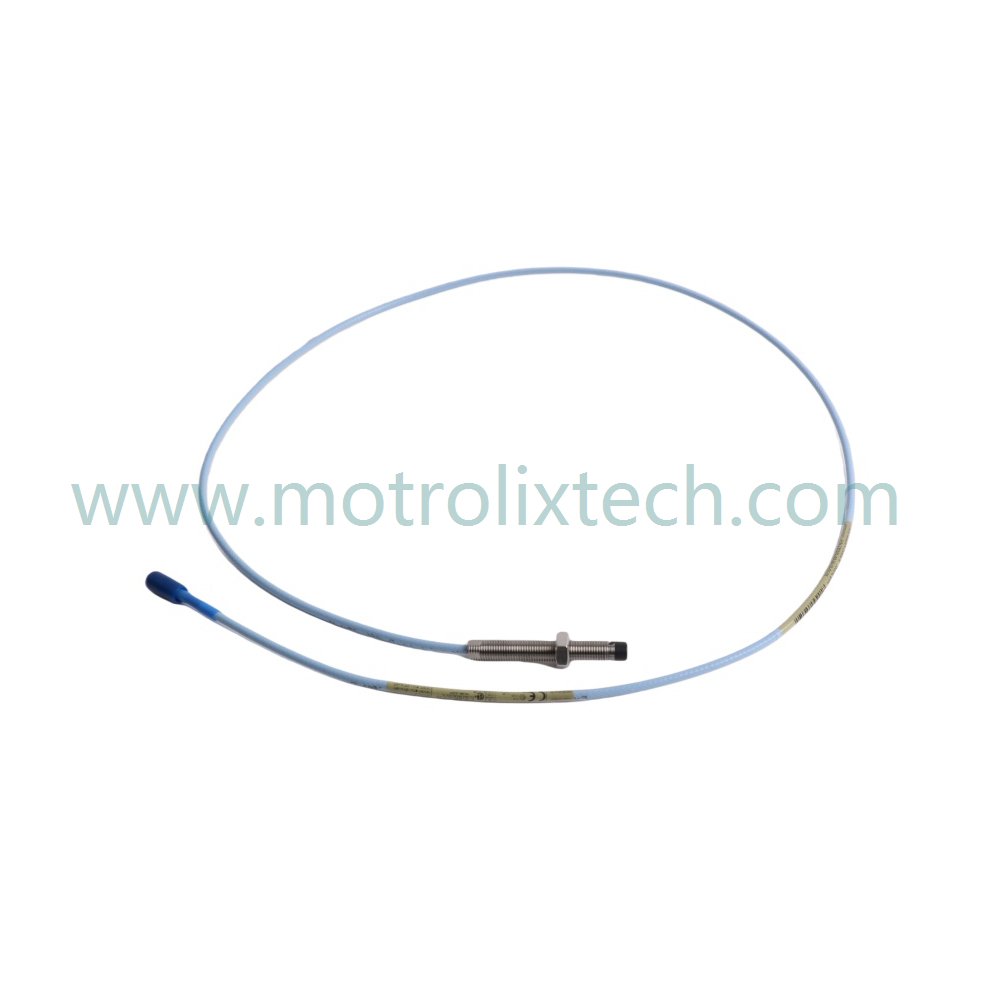

The Bently Nevada 330101-00-24-10-12-CN 3300 XL 8 mm Probe is a critical component designed for precise vibration and position monitoring in industrial applications. This proximity probe provides accurate measurements of dynamic and static parameters by delivering an output voltage that is directly proportional to the distance between the probe tip and the conductive surface being monitored. Its reliable performance makes it ideal for fluid-film bearing machines.
Technical Specifications:
Model Number: 330101-00-24-10-12-CN
Module Type: 3300 XL 8 mm Probe
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 0.12 kg
Dimensions: 1.5 x 1.3 x 118 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Model Code Breakdown:
330101: Represents the model number within the Bently Nevada 3300 series, focusing on its specific features and capabilities.
00: Indicates the standard configuration without additional modifications.
24: Refers to the unique specifications related to the output voltage and performance characteristics.
10: Denotes specific design features related to measuring distance and angle.
12: Indicates compliance with industry standards for reliability and accuracy.
CN: Signifies the configuration or special features intended for particular applications.
Installation Recommendations and Wiring Guide:
Select Installation Location: Choose an area that allows for proper alignment between the probe tip and the monitored surface, taking into account the environmental conditions.
Mounting Procedure: Secure the probe using appropriate hardware according to the manufacturer's specifications, ensuring stability and accessibility for maintenance.
Wiring Connections: Connect the probe to the monitoring system as per the wiring guidelines provided by the manufacturer. Ensure all connections are tight and secure.
Calibration and Verification: After installation, perform a calibration check to ensure accurate readings. Regular maintenance should be conducted to verify the system's performance over time.
Frequently Asked Questions (FAQ):
Q: What types of machines can the Bently Nevada 330101-00-24-10-12-CN monitor?
A: It is ideal for fluid-film bearing machines, providing effective monitoring for radial vibration, axial position, and rotational speed.
Q: Is the probe compatible with other Bently Nevada products?
A: Yes, it is fully interchangeable with other probes, extension cables, and Proximitor sensors in the 3300 series.
Q: How does the probe perform in harsh conditions?
A: It complies with API 670 standards, ensuring reliable data collection and high repeatability even in challenging environments.
Q: What are the dimensions and weight of the probe?
A: The Bently Nevada 330101-00-24-10-12-CN probe weighs 0.12 kg and has dimensions of 1.5 x 1.3 x 118 cm.
Q: What maintenance is required for this probe?
A: Regular checks should be made to ensure all connections are tight, and calibration should be performed periodically to maintain measurement accuracy.
