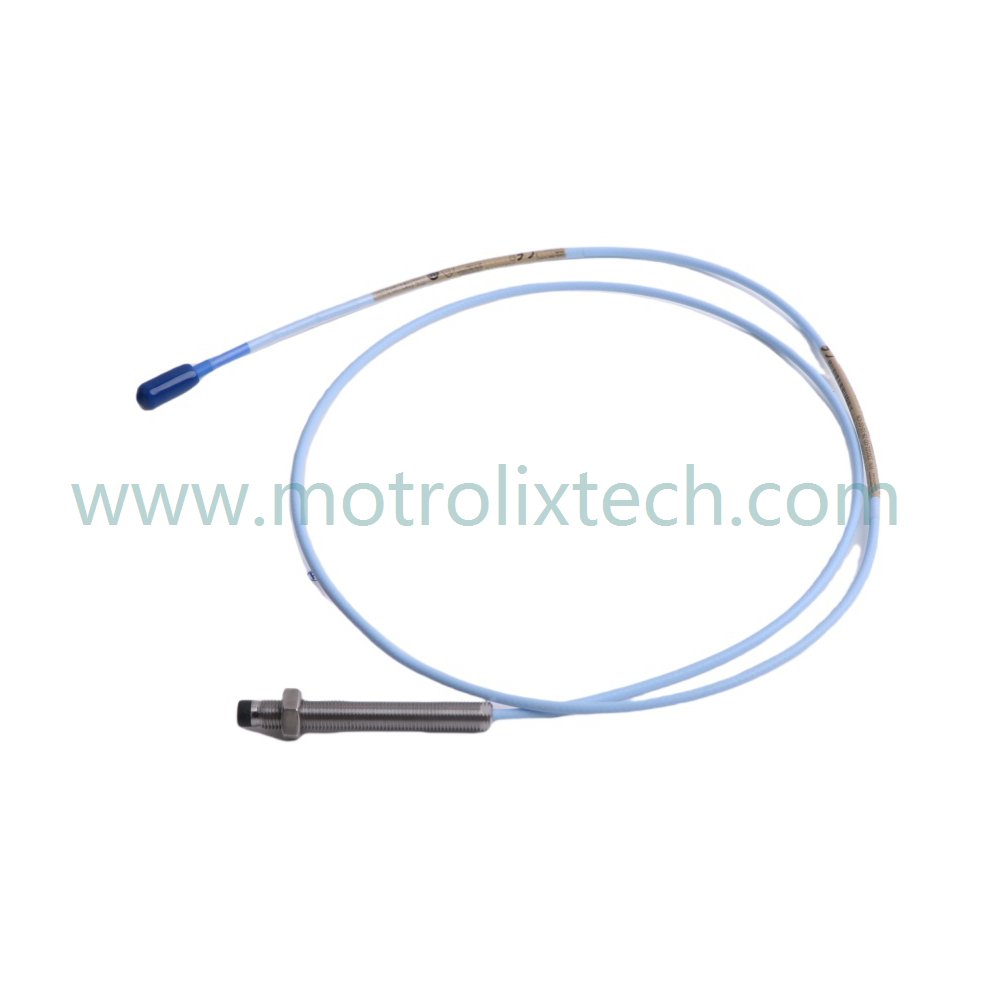

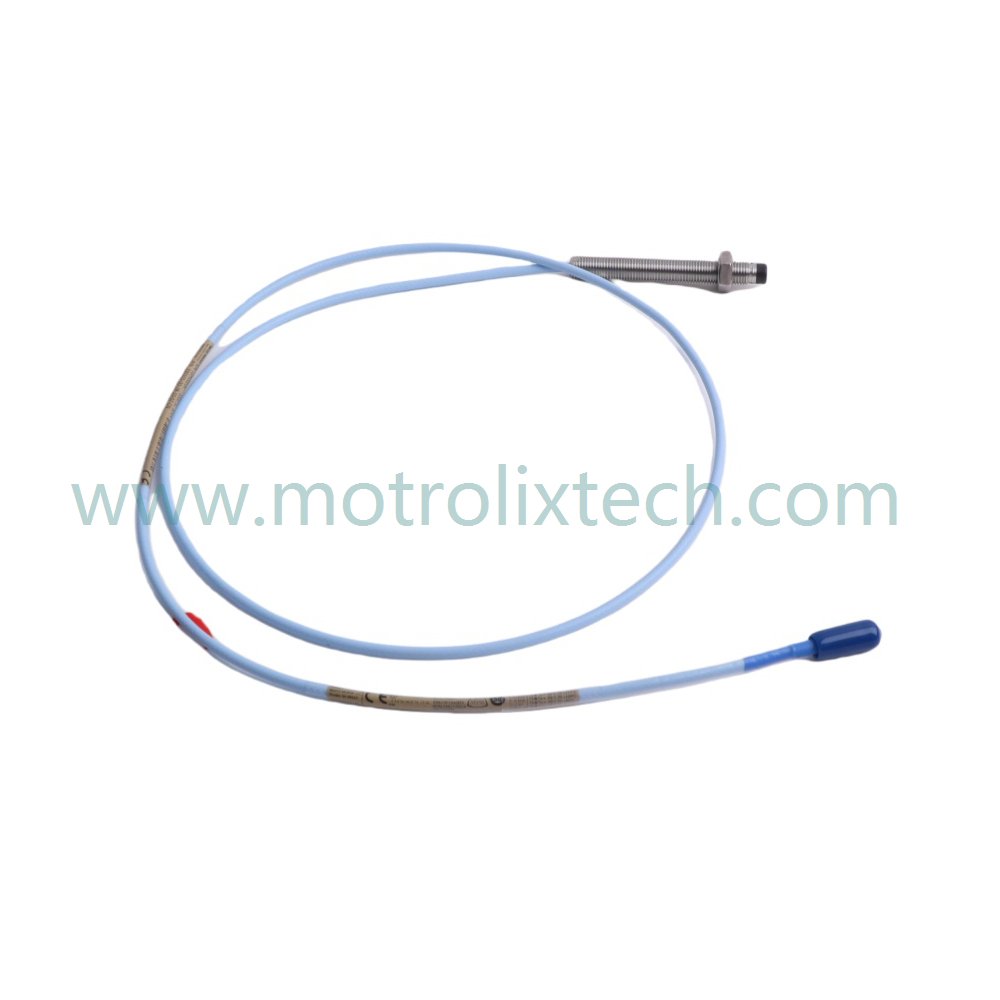

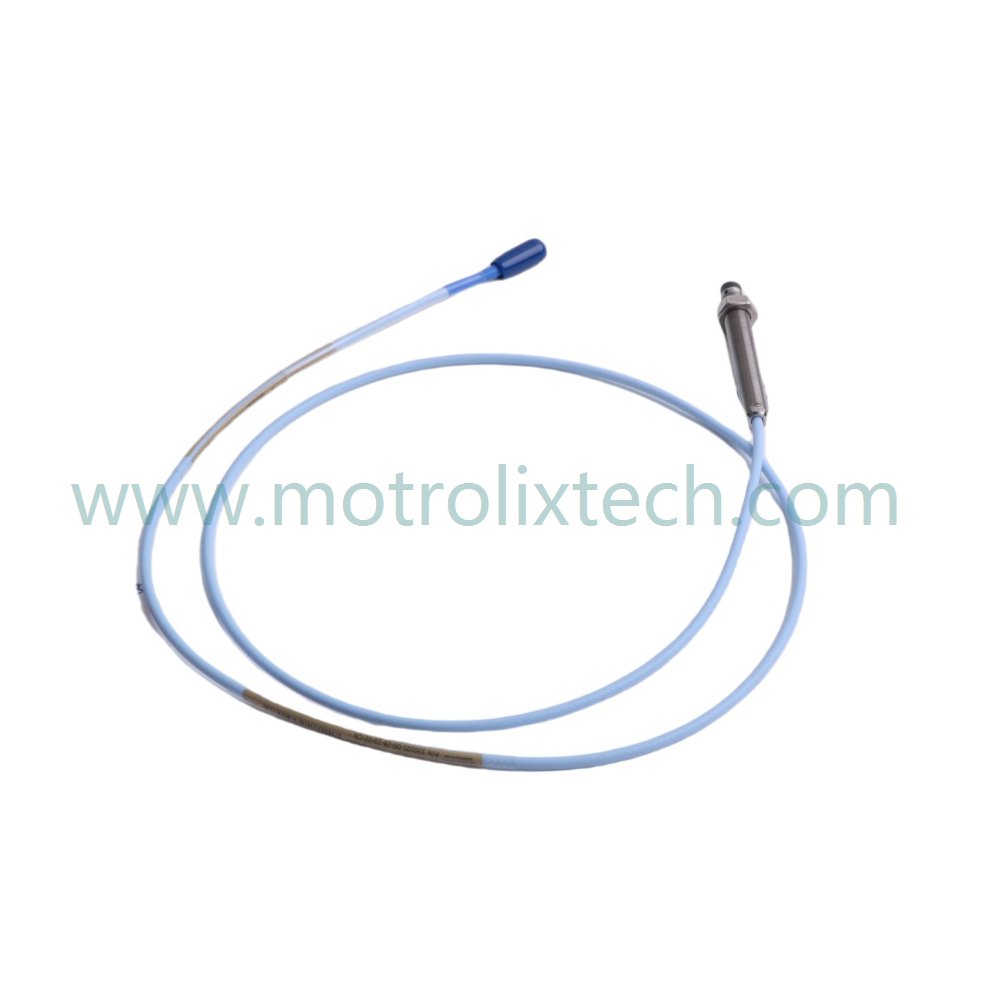

The Bently Nevada 330101-00-28-10-02-CN 3300 XL 8 mm Proximity Probe is a high-performance sensing solution engineered for critical machinery monitoring applications. This probe provides precise measurements of shaft vibration and position, making it essential for predictive maintenance and machine health diagnostics. With a compact design and a robust construction, this probe effectively contributes to operational efficiency and reduces downtime in large rotating equipment such as turbines and compressors.
Equipped with a 3/8-24 UNF threaded connection and a miniature coaxial ClickLoc connector, the 3300 XL 8 mm Proximity Probe ensures reliable signal integrity even in harsh industrial environments. Its standard unarmored cable length of 1.0 meter (3.3 feet) offers flexibility for optimal sensor placement, while its lightweight structure of only 0.04 kg allows for easy installation in space-constrained areas.
The model number 330101-00-28-10-02-CN indicates specific features of this probe:
330101: Identifies the specific model within the Bently Nevada 3300 XL series.
00: Refers to the basic model configuration.
28: Indicates characteristics related to the probe's design and application focus.
10: Represents standard specifications regarding cable length and type.
02: Denotes additional features or enhancements specific to this model.
CN: Indicates the version or region-specific compliance (China).
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-28-10-02-CN |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.04 kg |
| HS CODE | 8537101190 |
| Dimensions | 58.5 x 1.5 x 1.5 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 1.0 meter (3.3 feet) |
To ensure optimal operation of the Bently Nevada 330101-00-28-10-02-CN Proximity Probe, follow these installation recommendations:
Mechanical Clearance: Ensure adequate space for the installation and ease of access to the probe for maintenance purposes.
Wiring Connections: Use the 3/8-24 UNF threaded connection for secure installation. Verify that all connections are clean and tightly secured to prevent signal loss.
Cable Management: Route the 1.0-meter cable carefully to prevent sharp bends or kinks that could impact signal integrity. Keep cables away from heat sources and mechanical stress.
Grounding Practices: Implement proper grounding techniques to minimize electrical noise, ensuring that accurate data transmission is maintained.
Installation Environment: Install in a clean, dry location to protect against contamination that might affect sensor performance.
The Bently Nevada 330101-00-28-10-02-CN Proximity Probe is engineered to deliver high durability and accuracy, making it ideal for use in extreme environments. Its robust construction allows it to withstand high temperatures, vibrations, and potential exposure to harsh substances, ensuring reliable performance in demanding industrial applications.
Designed for seamless integration with the TSI system, this probe simplifies the upgrade process without the need for complex recalibration. The compact design and lightweight nature of this sensor further enhance its versatility, making it suitable for applications in space-constrained environments. By choosing this probe, users can ensure enhanced operational efficiency and reduced maintenance costs through effective predictive maintenance.
Q1: What is the primary function of the Bently Nevada 330101-00-28-10-02-CN Probe?
A1: This probe is designed for precise measurement of shaft vibration and position, critical for monitoring the health of machinery in industrial applications.
Q2: How does the ClickLoc connector enhance the probe's performance?
A2: The ClickLoc connector provides a secure locking mechanism that prevents disconnections due to vibrations, ensuring consistent signal integrity.
Q3: Is this probe compatible with older models of the 3300 series?
A3: Yes, this probe supports full interchangeability with other components in the 3300 series, facilitating upgrades without extensive modifications.
Q4: What is the significance of the 3/8-24 UNF thread?
A4: The 3/8-24 UNF thread ensures secure mounting, providing stability during operation and consistent measurement accuracy.
Q5: What maintenance practices are recommended for optimal performance?
A5: Regularly check the integrity of connections, clean the installation area to prevent dust accumulation, and ensure cables are securely routed and protected from damage.
