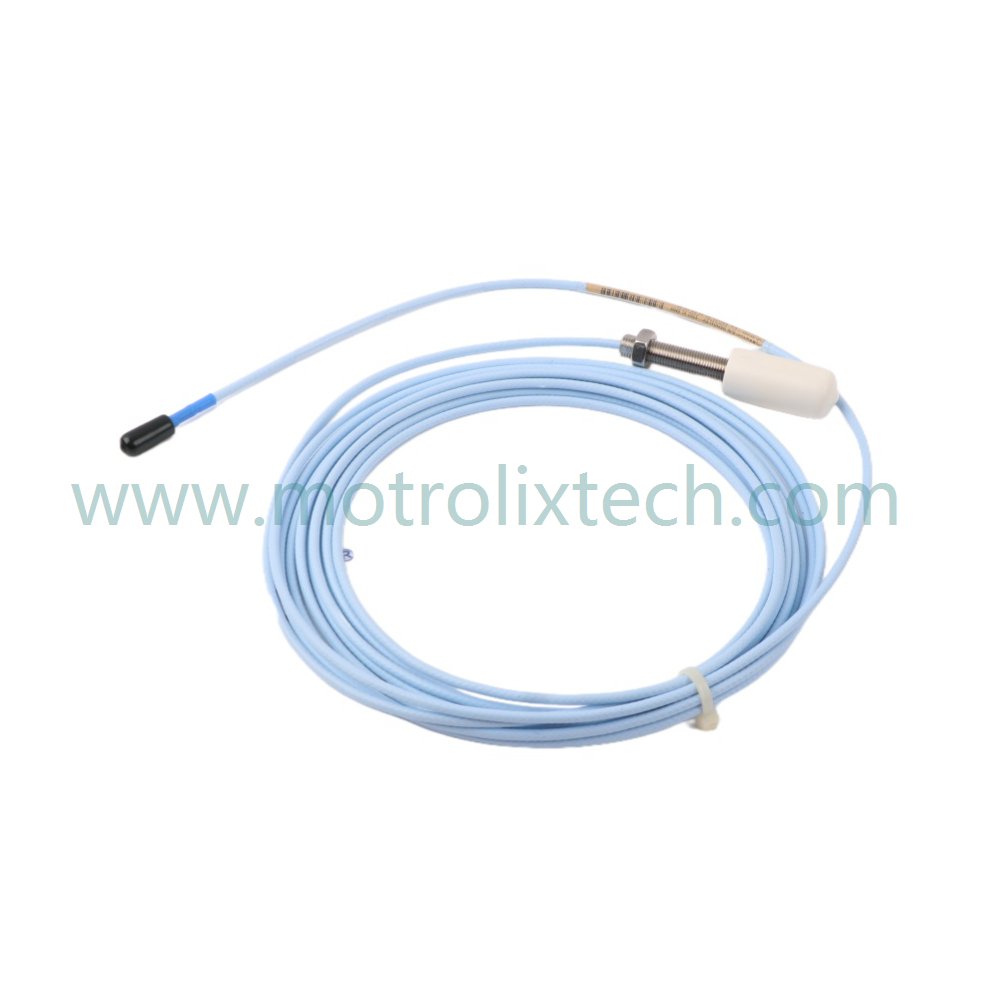

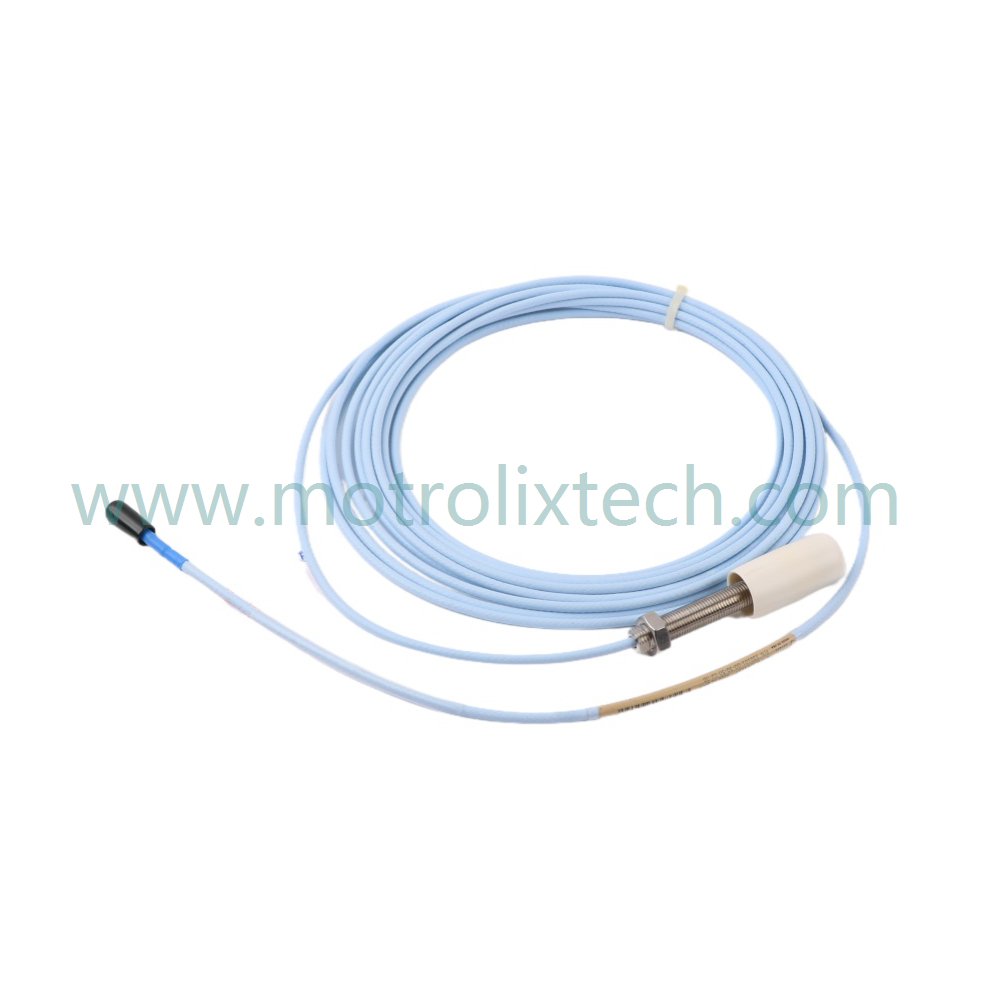

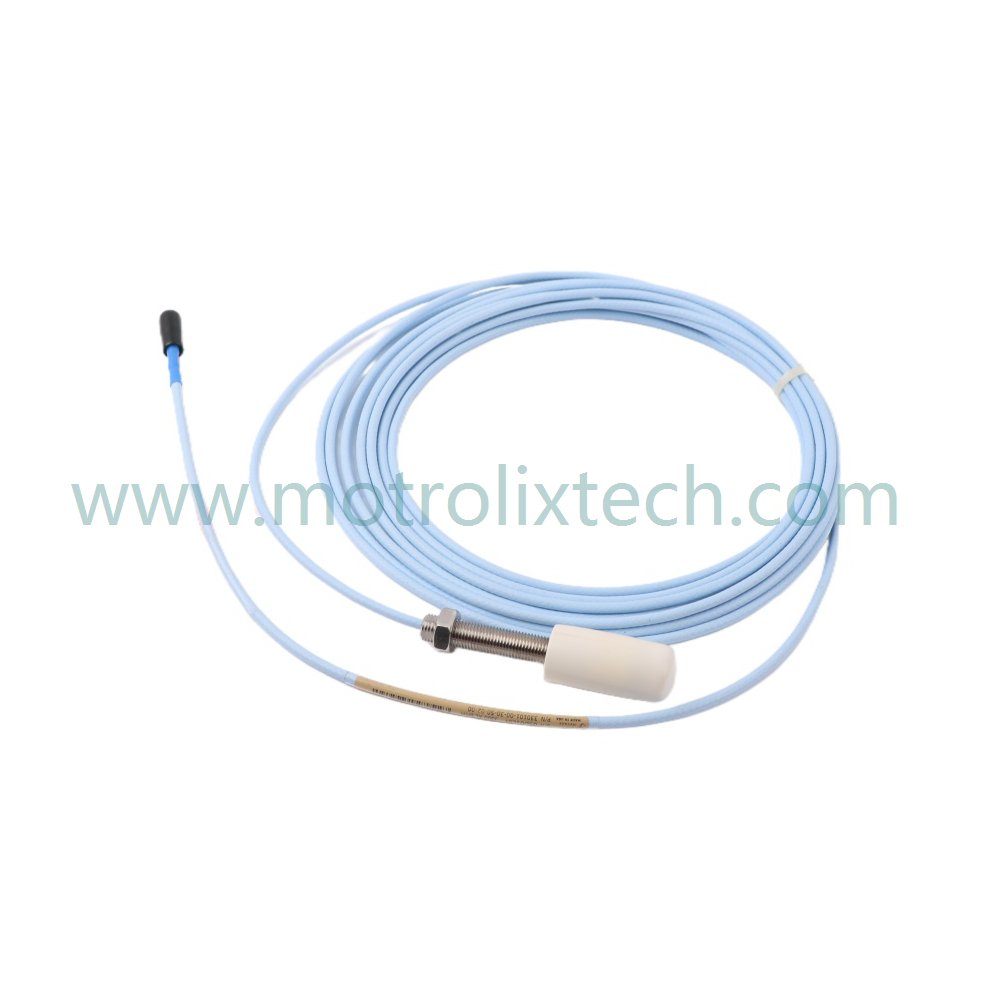

The Bently Nevada 330101-00-30-05-02-00 3300 XL 8 mm Proximity Probe is engineered for high-precision machinery condition monitoring in demanding industrial environments. This probe plays a critical role in monitoring applications including turbines and reciprocating compressors, enabling accurate non-contact measurements of vibration and position.
Incorporating advanced features such as a patented TipLoc molding process, this 8 mm proximity probe significantly enhances mechanical durability, ensuring longevity and reliability in harsh conditions. The CableLoc design offers robust pull strength, preventing disconnections under stress. With corrosion-resistant, gold-plated ClickLoc connectors, the probe guarantees a secure connection, ensuring optimal performance in critical applications.
The model number 330101-00-30-05-02-00 can be analyzed as follows:
330101: Indicates the specific model within the Bently Nevada 3300 series.
00: Represents standard features applicable to this probe.
30: Refers to a specific design feature or case length.
05: Denotes the configuration of the probe related to cable or connection specifications.
02: Indicates any additional specifications or enhancements.
00: Confirms this as a standard product model.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-30-05-02-00 |
| Module Type | 3300 XL 8 mm Proximity Probes |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.08 kg |
| HS CODE | 8537101190 |
| Dimensions | 112 x 1.5 x 1.2 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Output Voltage | Proportional to distance to target surface |
| Cable Length | 0.5 meters (1.6 feet) |
| Thread Size | 3/8-24 UNF |
| Pull Strength | 330 N (75 lbf) |
To ensure optimal performance of the Bently Nevada 330101-00-30-05-02-00 3300 XL 8 mm Proximity Probe, follow these installation recommendations:
Secure Connections: Ensure connections are tight and secure to avoid signal loss or disconnection during normal operation.
Cable Management: Route the integrated cable carefully to avoid sharp bends or kinks that could result in equipment damage.
Connector Usage: Utilize the ClickLoc connectors properly; an audible "click" indicates a secure connection without the need for special tools.
Installation Environment: Maintain control over environmental factors that may affect performance, ensuring that ESD protections are in place during installation.
The Bently Nevada 330101-00-30-05-02-00 3300 XL 8 mm Proximity Probe offers numerous engineering advantages:
Enhanced Durability: The robust TipLoc molding process and thicker molded components ensure the probe withstands harsh industrial conditions, enhancing mechanical integrity.
High Pull Strength: The CableLoc design prevents accidental disconnection, providing a secure attachment that holds under stress.
Corrosion Resistance: Gold-plated ClickLoc connectors enhance reliability by preventing corrosion and ensuring secure connections under varying environmental conditions.
Versatile Applications: This probe’s design supports compatibility with both XL and non-XL 3300 series components, making it a flexible choice for various monitoring configurations.
Q1: What types of machinery is the Bently Nevada 330101-00-30-05-02-00 Proximity Probe designed to monitor?
A1: This probe is ideal for monitoring large rotating machinery, including turbines, compressors, and other fluid-film bearing systems.
Q2: How does the TipLoc molding process benefit this proximity probe?
A2: The TipLoc process creates a more robust bond between the probe tip and body, significantly improving mechanical durability and reliability.
Q3: What is the purpose of the CableLoc design in this probe?
A3: The CableLoc design ensures a strong pull strength of 330 N (75 lbf), preventing the cable from disconnecting under stress, which is crucial for maintaining signal integrity.
Q4: Can this probe be used in environments with high exposure to liquids?
A4: Yes, the optional FluidLoc cable prevents oils and other liquids from migrating through the interior of the cable, making this probe suitable for such environments.
Q5: What should be checked during installation to ensure proper operation?
A5: Always confirm that the ClickLoc connectors are secure, manage the cable to prevent bends, and ensure electrostatic discharge protections are in place to maintain probe integrity.
