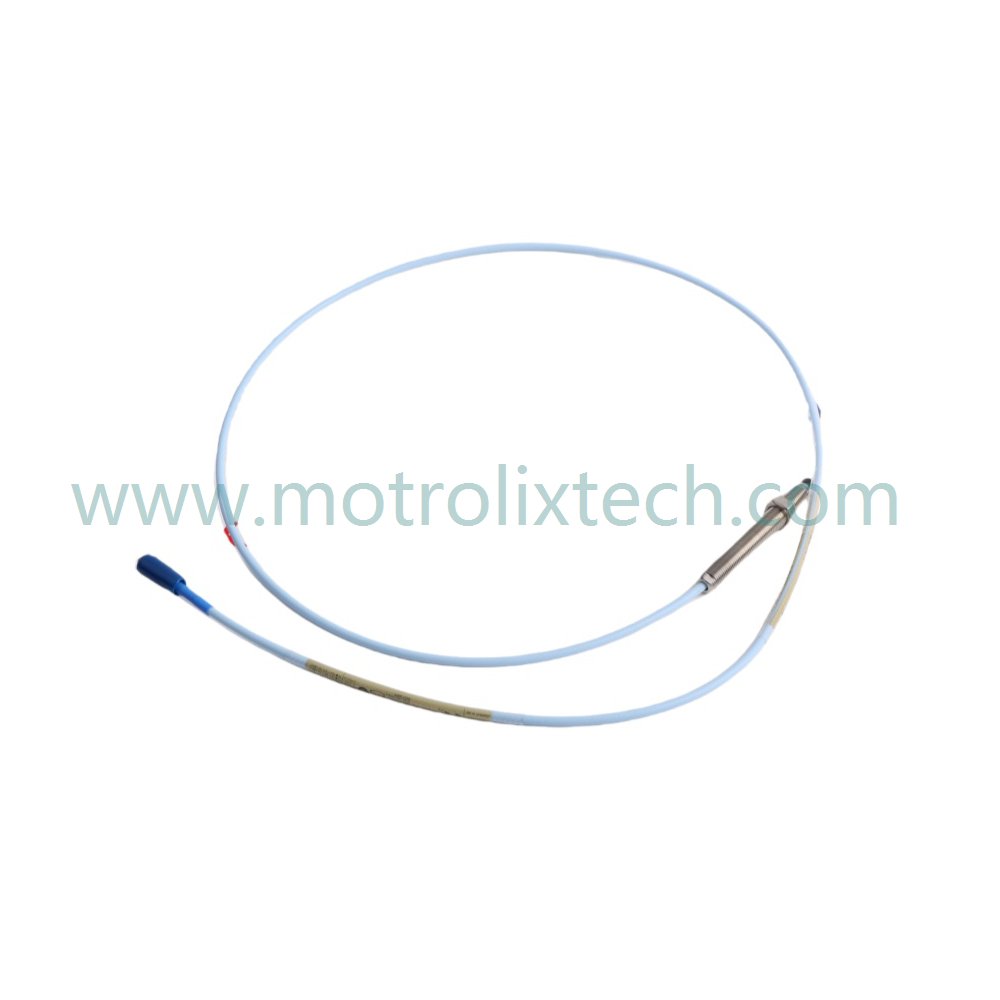

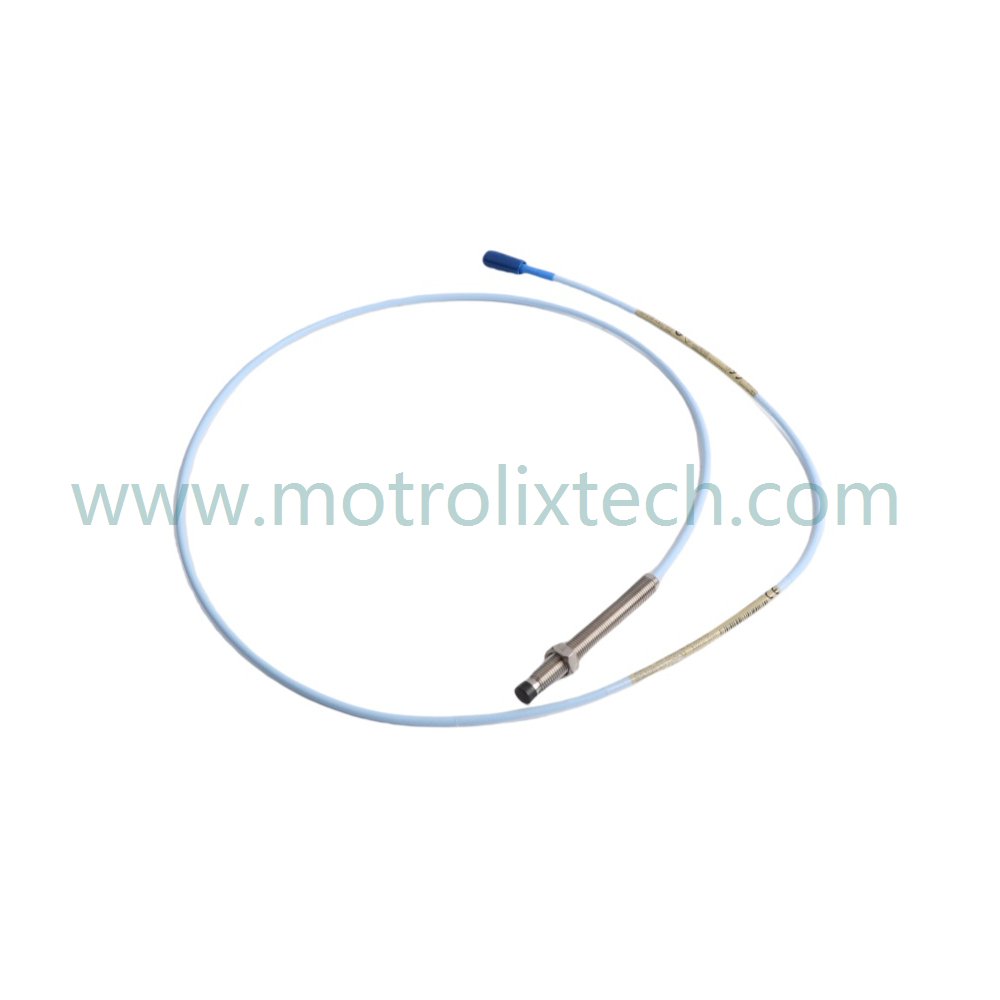

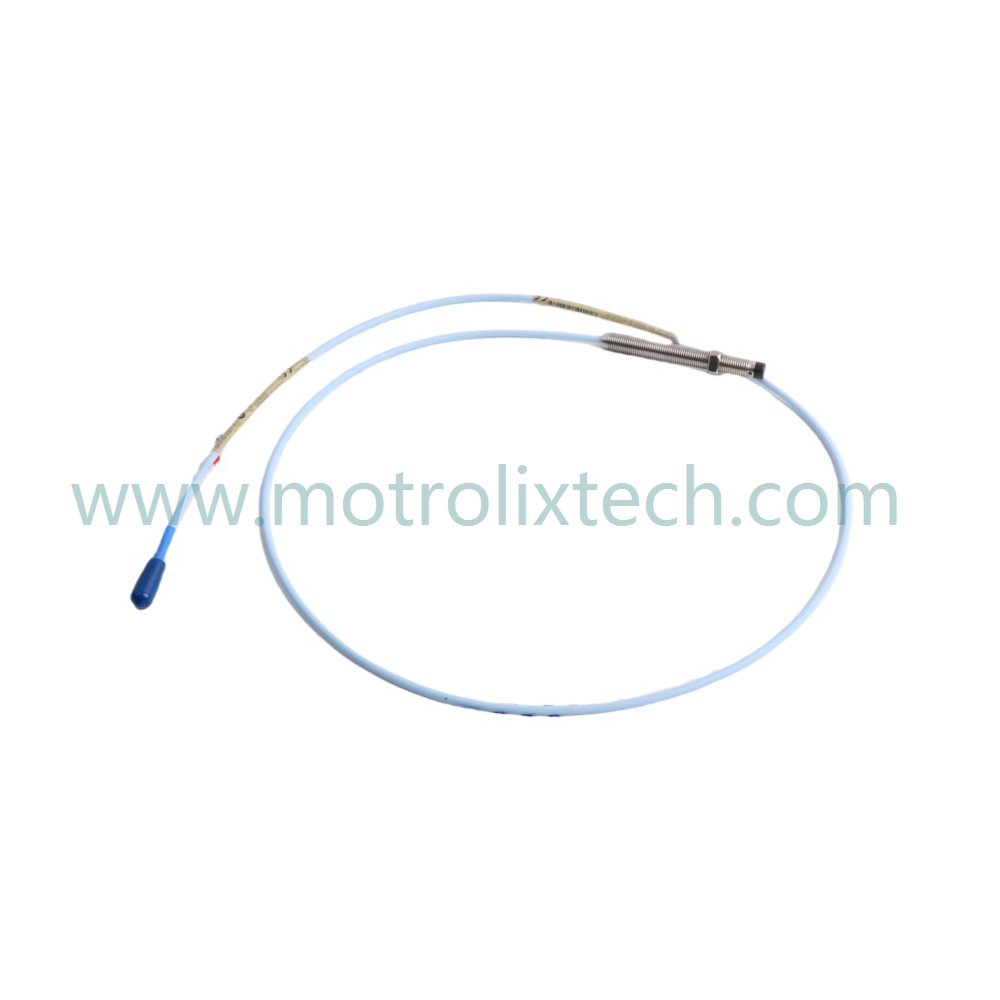

The Bently Nevada 330101-00-30-10-10-02-05 3300 XL 8 mm Proximity Probe is expertly designed for precision measurement of vibration and shaft position in critical industrial applications. With a compact design and a 3/8-24 UNF thread, this probe is ideal for machines with limited space where traditional transducer systems may not fit. It provides reliable data for radial vibration measurements on shafts smaller than 51 mm (2 inches) and axial position detection on flat surfaces under 15 mm (0.6 inches).
The probe's unarmored design allows for flexible installation, making it perfect for setups with restricted access. This reliable sensor is suited for fluid-film bearing machines, ensuring accurate data for applications such as tachometer functions, zero speed detection, and Keyphasor signal generation.
The model number 330101-00-30-10-10-02-05 provides insights into its specifications:
330101: Identifies the specific model within the Bently Nevada 3300 XL series of proximity probes.
00: Represents standard features of this probe variant.
30: Indicates the case length of 3.0 inches, which is essential for fitting within constrained spaces.
10: Refers to specific design aspects that enhance performance.
10: Suggests compatibility or enhancement features related to previous components.
02: Indicates certifications or versions that enhance safety and operational reliability.
05: Designates additional compliance with industry standards.
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-30-10-10-02-05 |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.1 kg |
| HS CODE | 8537101190 |
| Dimensions | 104 x 1.5 x 1.2 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 1.0 meter (approximately 3.3 feet) |
| Thread Size | 3/8-24 UNF |
To ensure optimal performance of the Bently Nevada 330101-00-30-10-10-02-05 Proximity Probe, follow these installation guidelines:
Installation Clearance: Ensure adequate space around the probe for installation, especially in confined areas to avoid interference.
Cable Management: Keep the cable routing organized to prevent sharp bends that could impact signal integrity.
Connector Security: Use the miniature coaxial ClickLoc connector to ensure secure and reliable connections during installation.
Environmental Protection: Protect the probe from harsh environmental conditions that could affect performance, especially in hazardous locations.
Technical Support: Contact Bently Nevada's technical support for assistance with installation or troubleshooting inquiries.
The Bently Nevada 330101-00-30-10-10-02-05 Proximity Probe is built for durability and high performance under extreme industrial conditions. Its rugged design features a compact form and reliable materials, ensuring operation in high temperatures, vibrations, and corrosive environments.
Certified by CSA, ATEX, and IECEx, this probe guarantees compliance with strict safety standards, making it suitable for hazardous applications. Its compatibility with the TSI system allows seamless integration, simplifying upgrades and maintenance while retaining measurement accuracy.
Q1: What is the main function of the Bently Nevada 330101-00-30-10-10-02-05 Proximity Probe?
A1: This probe is designed for precise measurement of vibration and shaft position in industrial applications, suitable for machinery with space constraints.
Q2: How does the ClickLoc connector enhance installation?
A2: The ClickLoc connector allows for secure, tool-free assembly, simplifying the installation process and ensuring reliable connections.
Q3: What is the operating temperature range of this probe?
A3: The probe operates effectively in a standard industrial temperature range; specific temperature limits should be confirmed in detailed product documentation.
Q4: Is this probe suitable for hazardous environments?
A4: Yes, the probe is certified by CSA, ATEX, and IECEx, making it compliant for use in hazardous areas where strict safety standards are required.
Q5: Can this probe be used with older models of the 3300 series?
A5: Yes, it is designed for interchangeability with other 3300 XL components, ensuring flexibility for upgrades and reducing the need for recalibration.
