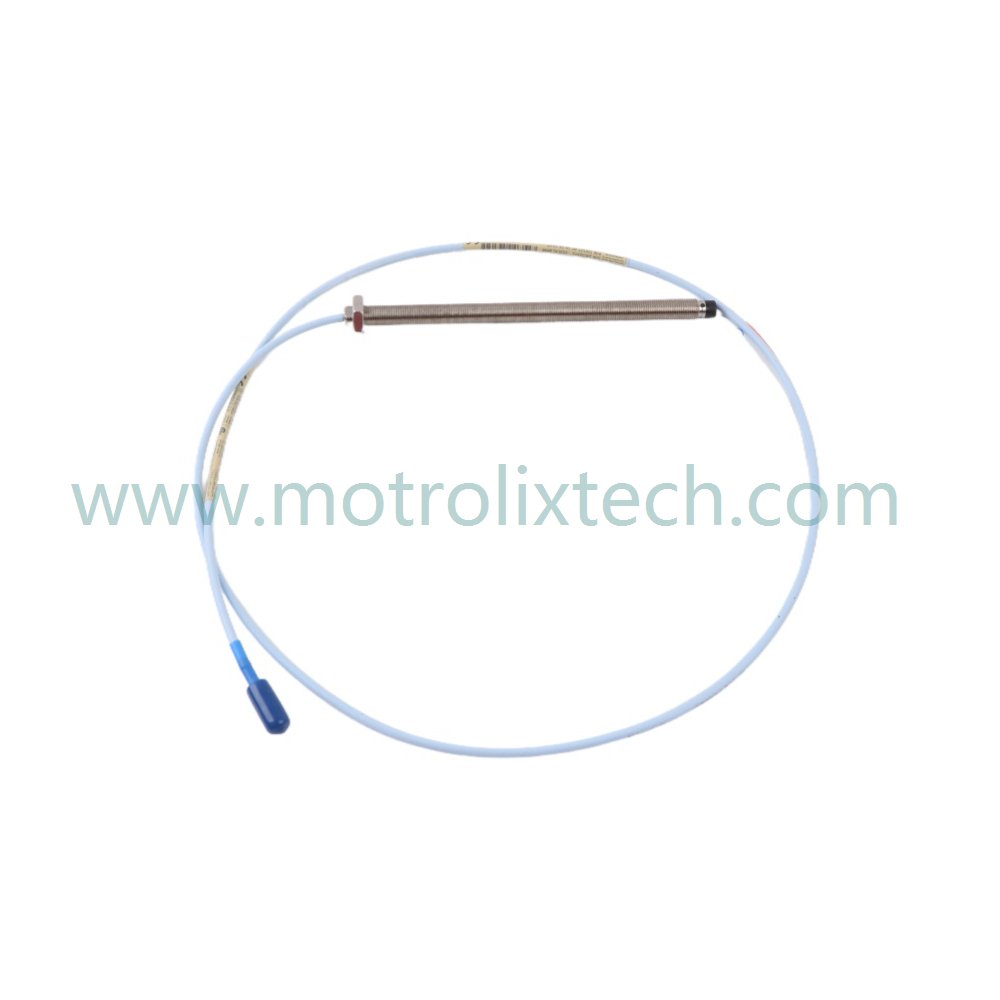

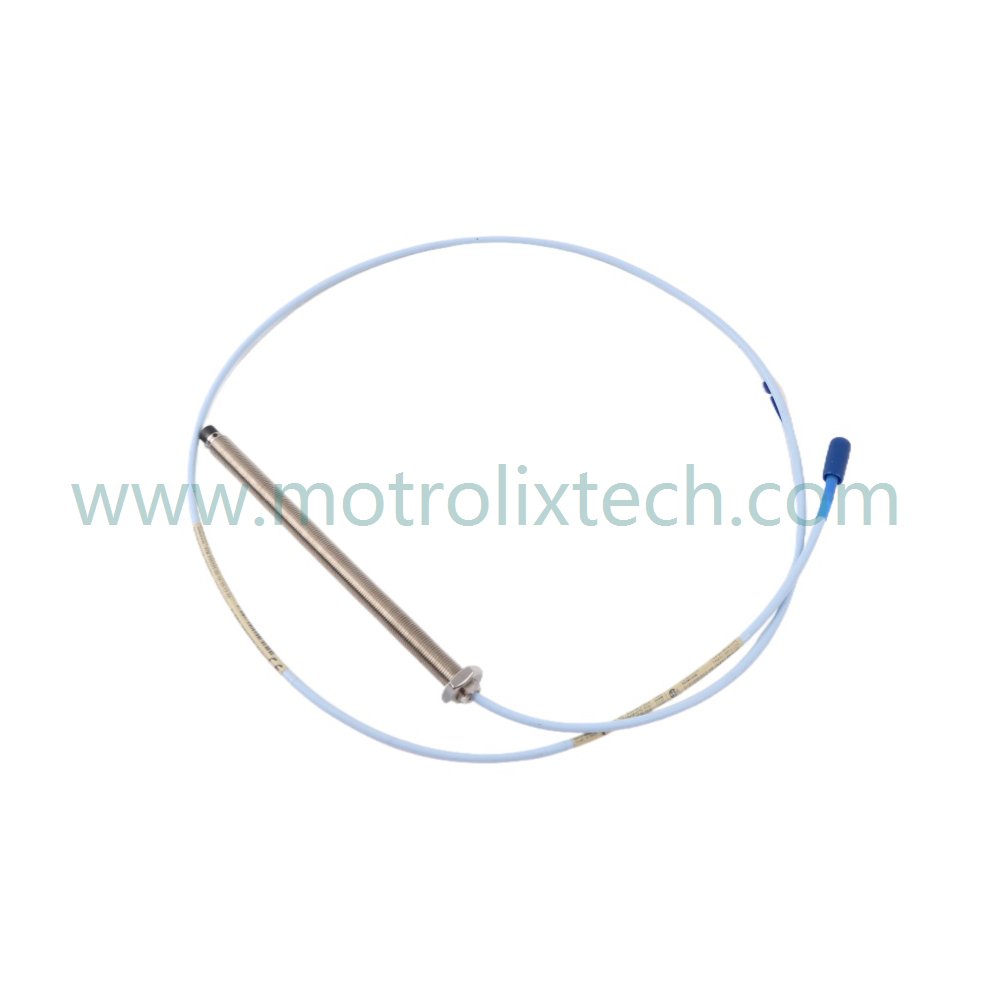

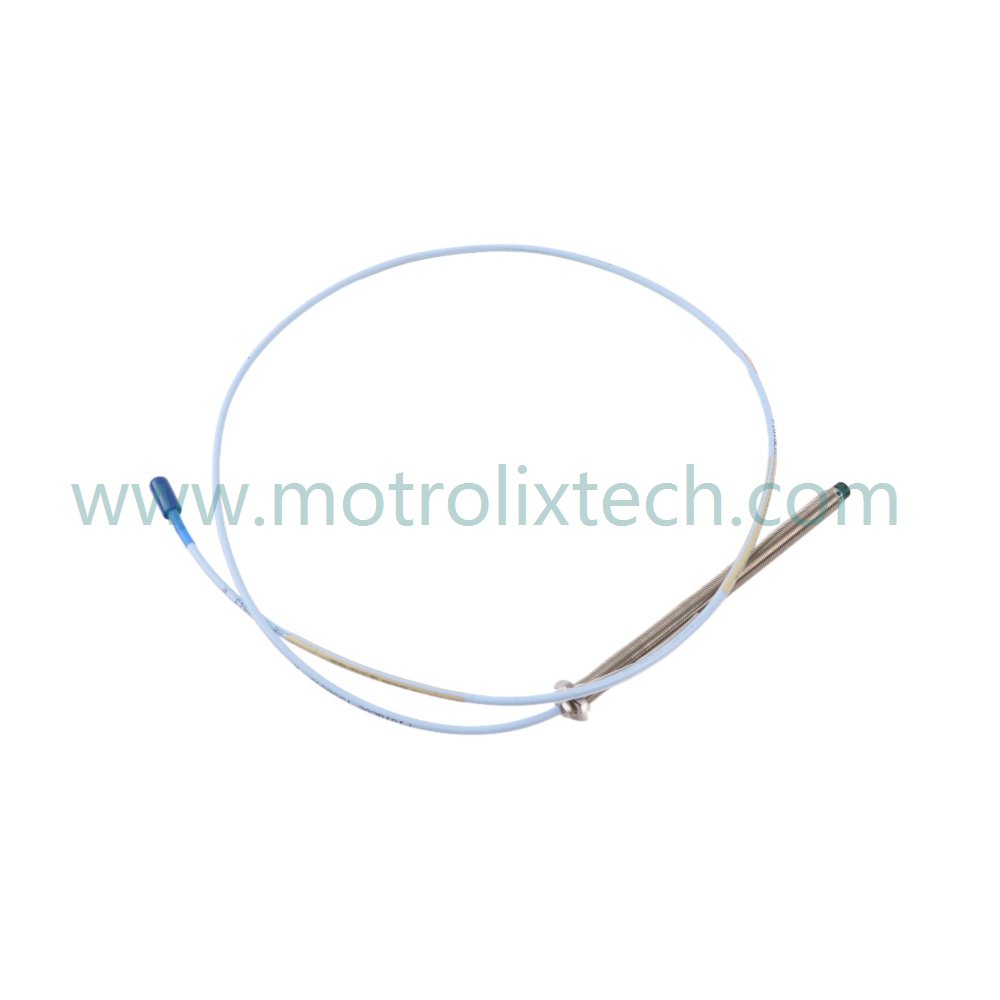

The Bently Nevada 330103-00-17-10-02-CN 3300 XL 8 mm Proximity Probe provides high-precision measurement essential for monitoring critical machinery operations. Designed for use in large rotating equipment such as turbines, compressors, and pumps, this robust probe ensures accurate vibration and position measurements. With its lightweight stainless steel construction and a compact M10x1 threaded design, the sensor maintains structural integrity while operating effectively across a wide temperature range from -52°C to +177°C, and even up to +218°C with appropriate components.
Incorporating advanced sensing technology, the probe generates an output voltage directly proportional to the distance from the target surface, enabling precise condition monitoring. The integration of a standard 1.0-meter coaxial ClickLoc connector simplifies the installation process, while the unit’s efficiency supports predictive maintenance and enhances operational reliability.
The model number 330103-00-17-10-02-CN identifies specific configurations and features:
330103: Indicates this is part of the Bently Nevada 3300 series specialized for high-precision applications.
00: Refers to the standard configuration and model type.
17: Denotes the case length of this specific probe, indicating its compact structure (17 mm).
10: Refers to the threaded design specification, with a metric thread size of M10x1.
02: Indicates specific features or enhancements related to this model.
CN: Signifies its compliance with specifications suited for the Chinese market.
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-17-10-02-CN |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.06 kg |
| HS CODE | 8537101190 |
| Dimensions | 1.8 x 1.6 x 123 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Sensitivity | Proportional voltage output |
| Amplitude Range | Up to 75 g peak |
| Temperature Range | -52°C to +177°C (extended to +218°C with ETR components) |
| Frequency Response | Wide coverage for vibration detection |
To ensure optimal performance of the Bently Nevada 330103-00-17-10-02-CN Proximity Probe, adhere to the following installation recommendations:
Mechanical Clearance: Ensure there is sufficient space around the probe for installation and future maintenance, facilitating easy access to all fittings.
Wiring Connections: Utilize the provided ClickLoc connectors for secure and easy wiring. Confirm that connections are tight and clear of contaminants to avoid signal degradation.
Mounting Procedure: Use the standard M10x1 threading for secure installation on the designated machinery parts. Position the probe to capture the most accurate measurements.
Environmental Considerations: Install in a dry and clean environment, protecting the unit from corrosion and contamination.
Check Compatibility: Ensure the probe integrates seamlessly with existing 3300 XL system components, maintaining overall system reliability.
The Bently Nevada 330103-00-17-10-02-CN Proximity Probe is engineered for superior durability and reliability, even in extreme operational conditions. Its stainless steel construction withstands high temperatures and mechanical stress, ensuring long-term performance in demanding industrial settings. The wide operational temperature range allows versatility in application, accommodating a variety of equipment.
The inclusion of ClickLoc connector technology simplifies installation and maintenance, removing the need for additional tools. Additionally, this proximity probe is fully compatible with the TSI system, enhancing interoperability with other components and facilitating upgrades to current systems.
By employing the Bently Nevada 330103-00-17-10-02-CN, users can confidently enhance their predictive maintenance strategies, improving equipment uptime and reliability through precise, real-time monitoring.
Q1: What is the primary application of the Bently Nevada 330103-00-17-10-02-CN Proximity Probe?
A1: This probe is designed for precise measurement of vibration and position in large rotating machinery, essential for condition monitoring and predictive maintenance.
Q2: How do the ClickLoc connectors benefit the installation process?
A2: The ClickLoc connectors allow for tool-free connections with an audible click confirmation, ensuring quick and reliable installations.
Q3: What temperature range can this probe operate within?
A3: The probe operates effectively between -52°C and +177°C, with the ability to reach +218°C when using appropriate extended temperature range components.
Q4: Is this probe compatible with older models in the 3300 series?
A4: Yes, the Bently Nevada 330103-00-17-10-02-CN Proximity Probe is compatible with existing 3300 XL system components, simplifying upgrades and replacements.
Q5: What maintenance practices are recommended for this probe?
A5: Regularly inspect the probe for secure mounting, verify connection integrity, and ensure the installation area is free from contaminants to maintain optimal performance.
