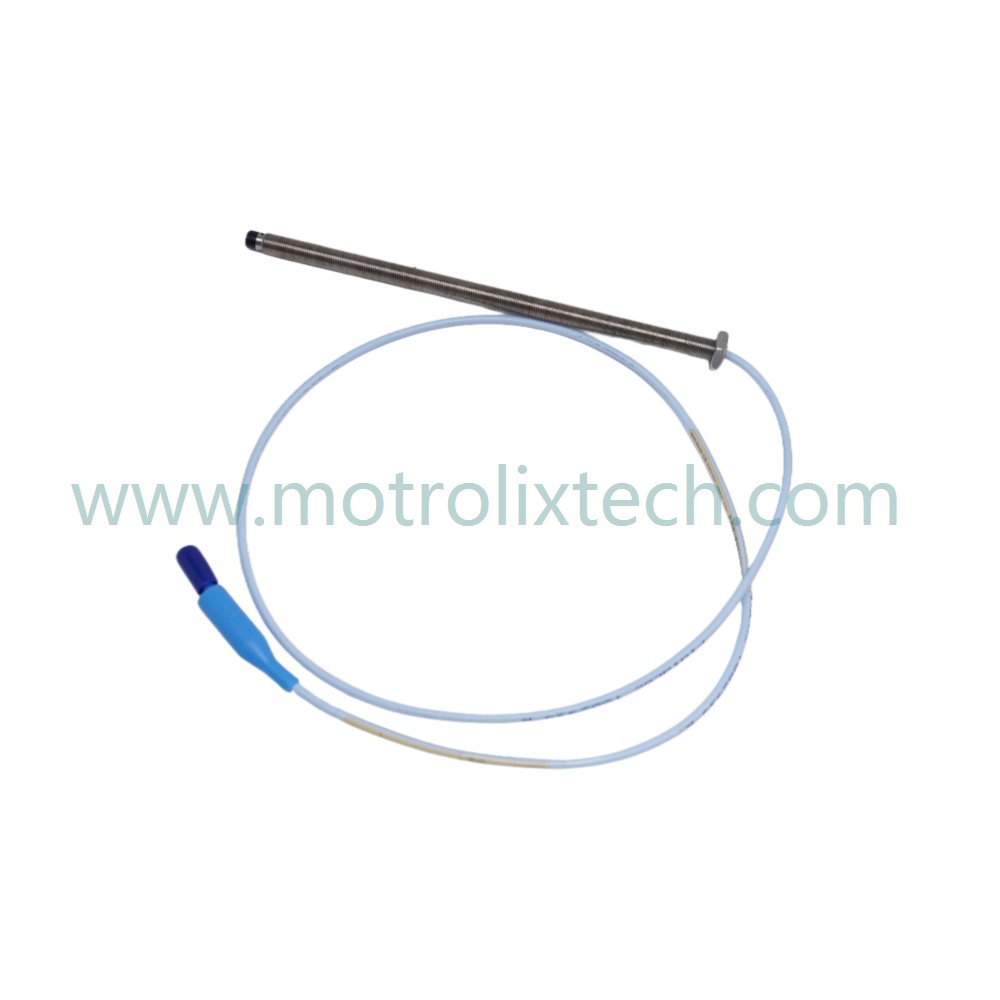

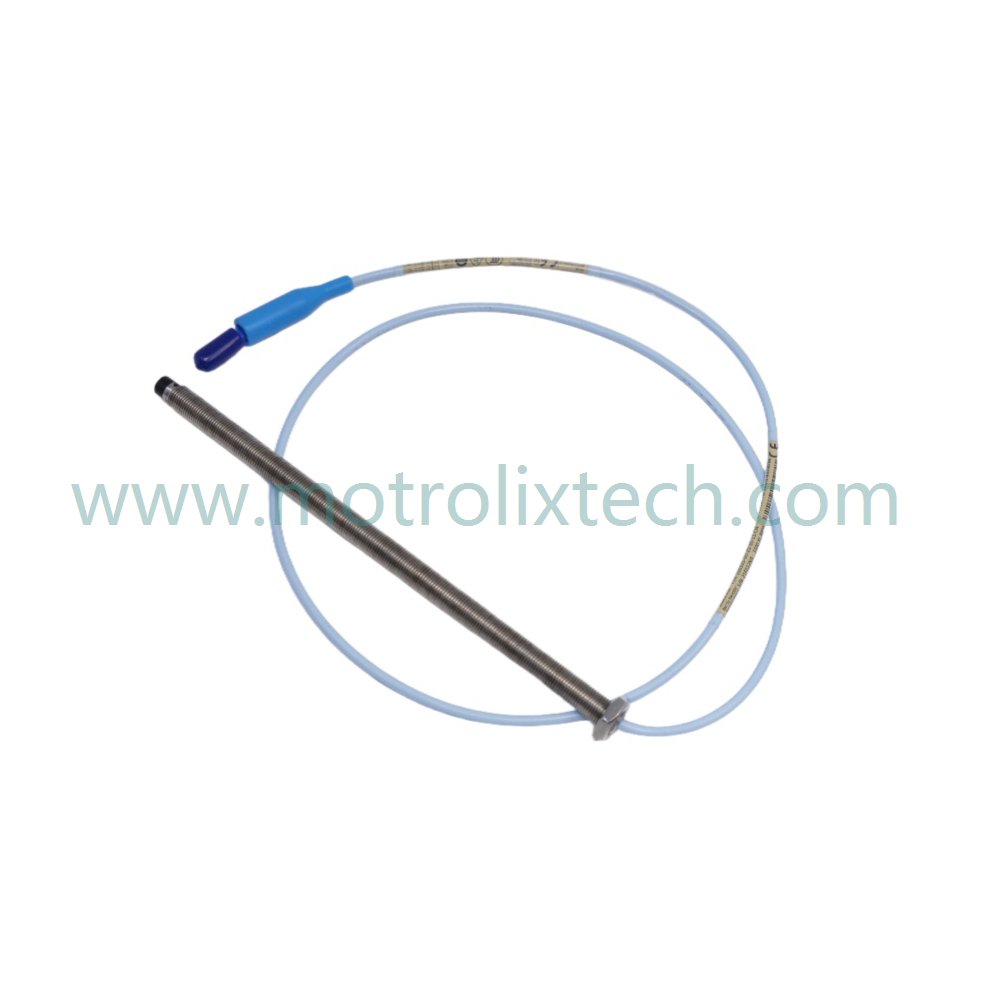

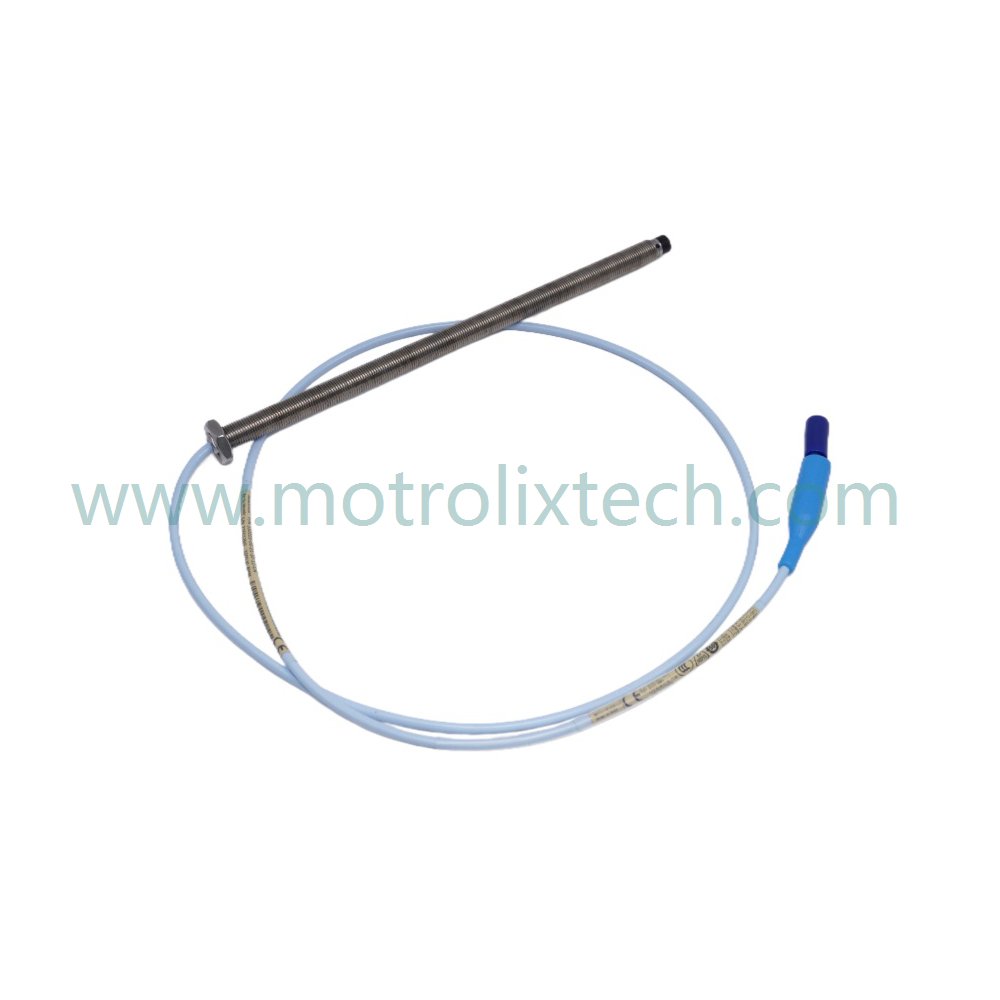

The Bently Nevada 330103-00-22-10-12-05 3300 XL 8 mm Proximity Probe represents a cutting-edge solution for critical machinery monitoring. Engineered for precise measurements of shaft vibration and position, this advanced sensor is essential for enhancing the reliability of large rotating machinery such as turbines, compressors, and generators. The probe's robust design, featuring a durable 220mm armored case and a FluidLoc cable, protects against fluid contamination while maintaining high levels of measurement accuracy even in harsh industrial settings.
With its innovative ClickLoc connector system, connecting the probe is quick and tool-free, ensuring a secure and reliable connection confirmed by an audible click. The Bently Nevada 330103-00-22-10-12-05 excels in applications demanding exceptional durability, making it a vital component in any vibration monitoring system.
The model number 330103-00-22-10-12-05 is structured to convey specific features:
330103: Identifies this probe model in the Bently Nevada 3300 XL series.
00: Denotes the basic configuration of the device.
22: Indicates the design related to the probe's length or features.
10: Refers to the standard specifications regarding its capabilities.
12: Represents enhancements or materials used in the construction.
05: Refers to additional compliance or regional specification details.
| Parameter | Specification |
|---|---|
| Model Number | 330103-00-22-10-12-05 |
| Module Type | 3300 XL 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 1.48 kg |
| HS CODE | 8537101190 |
| Dimensions | 28 x 26 x 6 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 1.0 meter |
| Armored Case Length | 220 mm |
| Cable Pull Strength | 330N (75 lbf) |
| Certifications | CSA, ATEX, IECEx |
To maximize the performance of the Bently Nevada 330103-00-22-10-12-05 Proximity Probe, follow these installation recommendations:
Mechanical Clearance: Ensure that the installation site allows sufficient space for the probe and accessory cables, facilitating easy access for future maintenance.
Wiring Connections: Utilize the gold-plated ClickLoc connectors for secure and reliable connections. Ensure they are properly cleaned and firmly attached to prevent signal loss.
Mounting Protocol: Install the probe on the bearing housing or machine casing to capture accurate vibration data. Improper installation can lead to inaccurate readings and potential damage to the monitoring system.
Environmental Conditions: Protect the installation from extreme temperatures and fluids that could compromise the system's integrity.
Consultation for Optimal Mounting: Seek assistance from Bently Nevada’s engineering team for guidance on mounting locations and installation best practices to ensure peak performance.
The Bently Nevada 330103-00-22-10-12-05 Proximity Probe is designed to withstand extreme industrial environments, showcasing high resilience against vibrations, high temperatures, and corrosive materials. Its armored construction and fluid-resistant cable significantly enhance its durability, making it particularly suitable for turbine, compressor, and generator applications where reliability is critical.
Integrated with FluidLoc technology, the probe prevents oil migration through the cable, ensuring that sensitive components remain protected. Certification from CSA, ATEX, and IECEx underscores its safety for hazardous area installations. This probe seamlessly connects to 3300 XL Proximitor sensors, providing a robust solution that enhances overall system performance while simplifying the installation process.
Q1: What is the primary function of the Bently Nevada 330103-00-22-10-12-05 Proximity Probe?
A1: This probe is used for precise measurements of shaft vibration and position in critical applications, essential for monitoring large rotating machinery.
Q2: How does the ClickLoc connector enhance usability?
A2: The ClickLoc connector allows for tool-free connections, ensuring secure attachment with an audible click, simplifying installation and maintenance.
Q3: Can this probe handle high vibration environments?
A3: Yes, the probe features a cable pull strength of 330N (75 lbf), making it suitable for high-vibration applications without risking disconnection.
Q4: What certifications does this probe have for hazardous area use?
A4: The probe is certified by CSA, ATEX, and IECEx, ensuring it can be safely used in explosive atmospheres and other hazardous environments.
Q5: What maintenance practices should be followed for optimal performance?
A5: Regularly check connection integrity, ensure the installation area is clean and dry, and consult with engineering support for any adjustments needed based on operational conditions.
