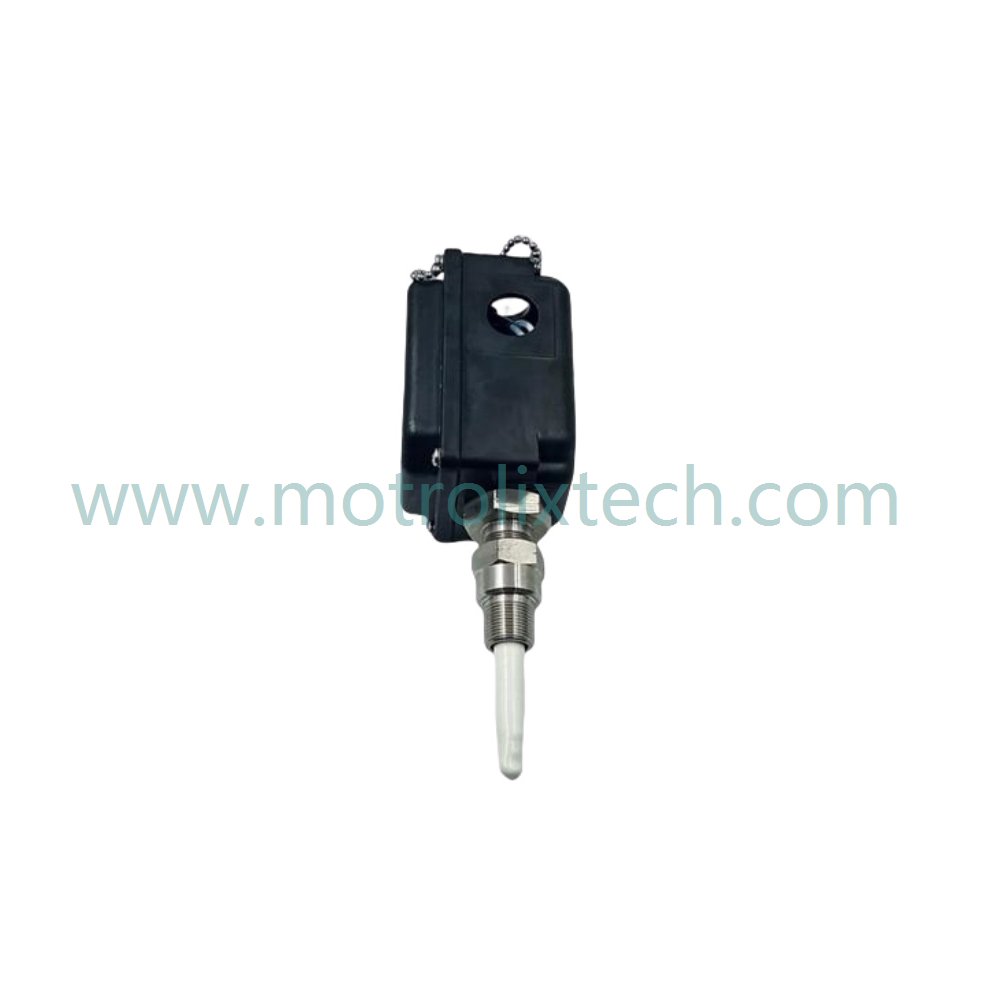

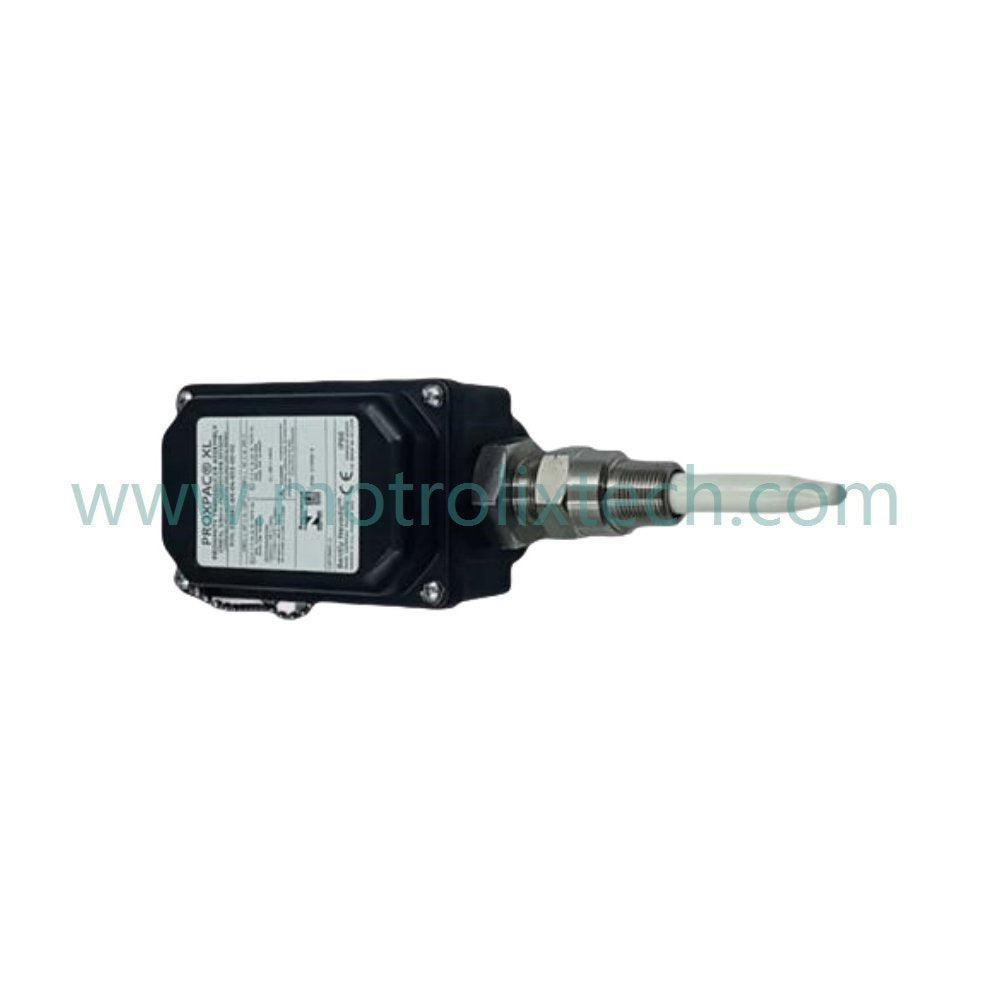

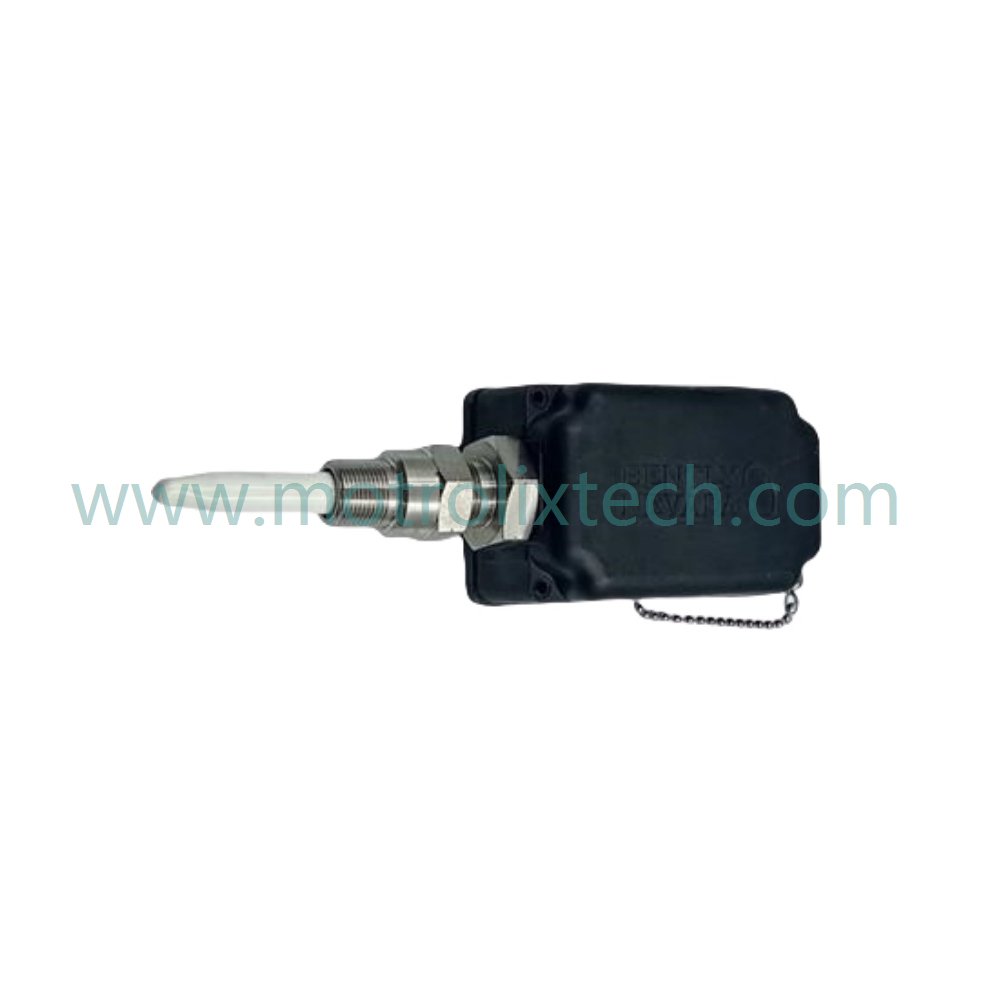

The Bently Nevada 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer is engineered for exceptional accuracy and reliability in the monitoring of large rotating machinery, such as turbines and compressors. This advanced transducer assembly integrates a built-in 3300 XL Proximitor sensor, creating a self-contained solution for vibration management, which simplifies installation and maintenance processes.
Designed to operate efficiently in demanding environments, the PROXPAC XL delivers precise measurements of vibration and displacement, with an impressive sensitivity of 200mV/mil (±5%) and a frequency response from 0 to 10 kHz. With capabilities for monitoring axial displacement and Keyphasor speeds, this unit ensures optimal operational performance and preventative maintenance across various industrial sectors.
The model number 330800-16-00-039-03-02 provides insights into its features and functionalities:
330800: Designates the product family within Bently Nevada's offerings.
16: Indicates a specific configuration designed for operational efficiency.
00: Reflects the base model's standard features.
039: Represents enhancements that optimize performance for specific applications.
03: Denotes the model variant tailored for target industries.
02: Indicates the design iteration or version.
| Parameter | Specification |
|---|---|
| Model Number | 330800-16-00-039-03-02 |
| Module Type | PROXPAC XL Proximity Transducer |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 1.48 kg |
| HS CODE | 8537101190 |
| Dimensions | 28 x 26 x 6 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Power Supply | -18 to -26V DC |
| Current Consumption | 2-12 mA |
| Output Signal Range | -1 to -20V DC |
| Sensitivity | 200 mV/mil (±5%) |
| Frequency Response | 0 to 10 kHz |
| Measurement Range | 0.25 to 2.5 mm |
| Optimal Linear Performance | 0.5 to 2.0 mm |
| Resolution | 1 μm (0.04 mils) |
| Temperature Drift | ±0.1%/°C |
To ensure optimal functioning of the Bently Nevada 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer, follow these installation tips:
Proper Installation Alignment: Ensure the transducer is correctly aligned with the monitored equipment to maintain accurate signal detection.
Field Wiring Simplification: Utilize the direct wiring capabilities to connect monitors and PROXPAC XL Assemblies without the need for additional extensions, reducing potential failure points.
Environment Adaptation: Install in controlled environments to maximize temperature stability and prevent potential downtimes associated with adverse conditions.
The Bently Nevada 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer excels in challenging industrial scenarios by delivering high precision and robustness. The absence of separate extension cables reduces installation complexities while enabling enhanced reliability.
This integration permits direct communication with monitoring systems, streamlining operations and reducing maintenance efforts. The transducer’s high sensitivity and minimal temperature drift ensure that it maintains accuracy across varying environmental conditions, making it an ideal solution for critical machinery monitoring and protective maintenance strategies.
Q1: What types of applications is the Bently Nevada 330800-16-00-039-03-02 suitable for?
A1: This transducer is designed for precise vibration and displacement monitoring in large rotating machinery, including turbines and compressors.
Q2: How does the integrated design benefit users?
A2: The integrated design eliminates the need for separate extension cables, reducing potential failure points and simplifying installation and maintenance.
Q3: What are the temperature and resolution specifications of this transducer?
A3: The transducer operates with minimal temperature drift of ±0.1%/°C and has a high resolution of 1 μm (0.04 mils), ensuring accurate performance.
Q4: Can the PROXPAC XL be used with older Bently Nevada systems?
A4: Yes, the PROXPAC XL Proximity Transducer is compatible with the 3300 XL Proximity Transducer System and can integrate with existing monitoring solutions.
Q5: What power requirements does this transducer have?
A5: The Bently Nevada 330800-16-00-039-03-02 operates on a power supply of -18 to -26V DC with a current consumption ranging from 2-12 mA.
