Product Overview:

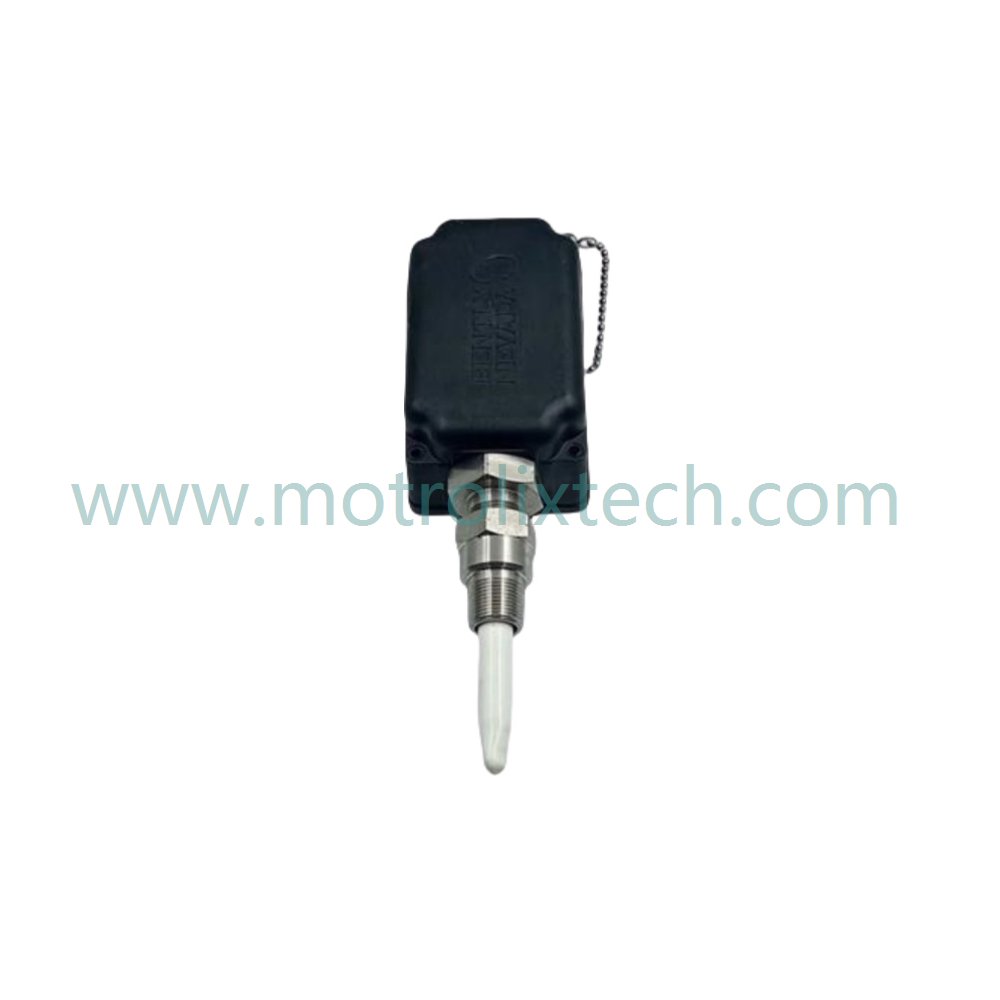

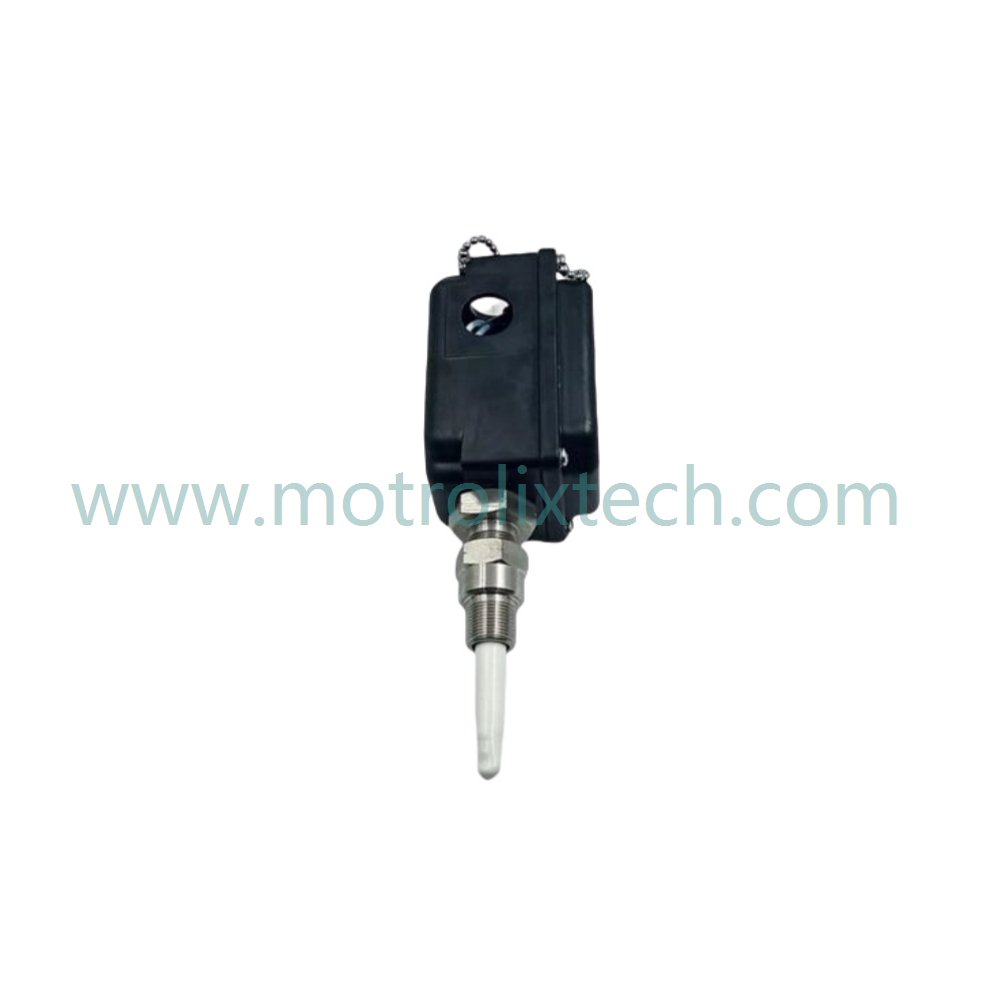

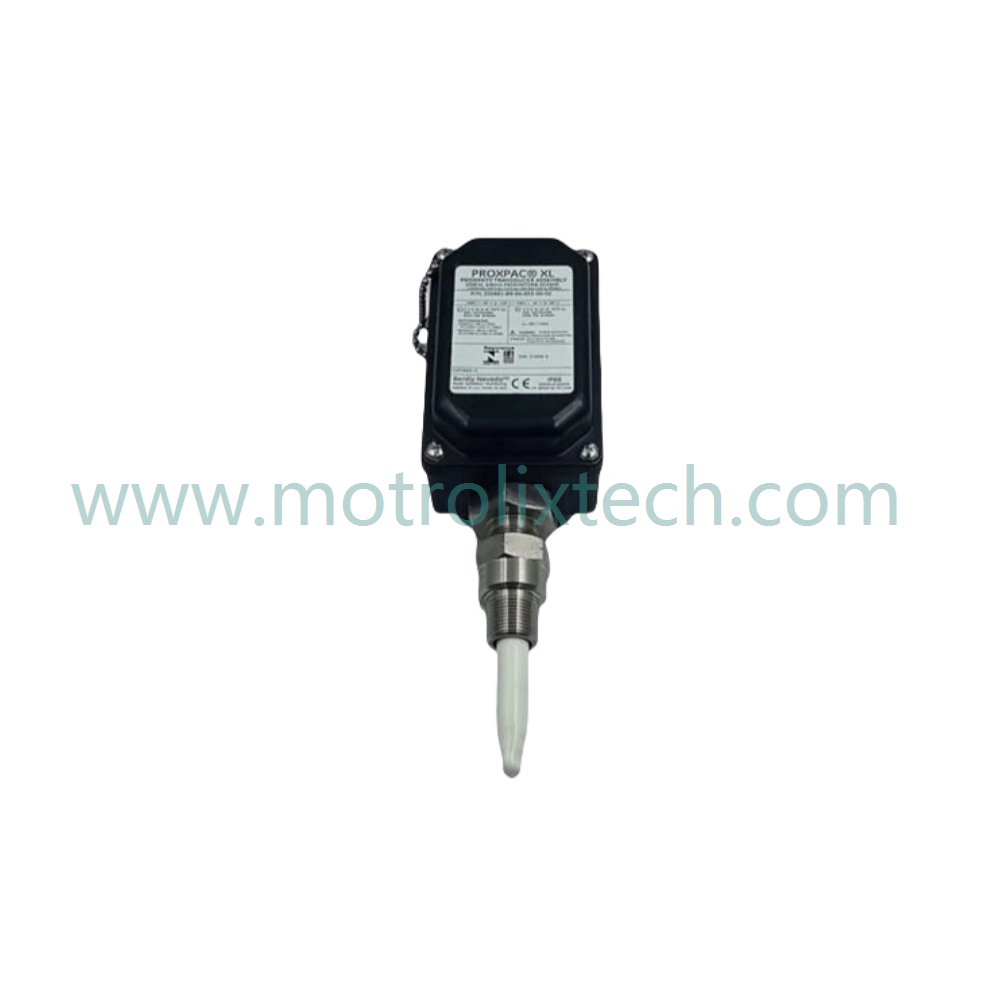

The Bently Nevada 330881-28-00-050-03-02 PROXPAC XL Proximity Transducer is designed for robust vibration monitoring in demanding industrial environments. Built with advanced Polyphenylene Sulfide (PPS) thermoplastic and reinforced with glass fibers, this transducer offers exceptional durability and precision, making it ideally suited for applications in power generation, oil refining, and heavy manufacturing. It ensures accurate measurements while withstanding harsh conditions, making it an essential component for reliable machinery protection and maintenance.

Technical Specifications:

• Model Number: 330881-28-00-050-03-02

• Module Type: PROXPAC XL Proximity Transducer

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: Bently Nevada

• Lead Time: In Stock

• Weight: 1.44 kg

• Dimensions: 30.02 x 12 x 9.14 cm

• HS CODE: 8537101190

• Product Origin: USA

• System: TSI

• Protection Ratings: IP66 and Type 4X

• Measurement Range: 50 mm

• Connector Type: M20 fittings

Model Code Breakdown:

• 330881: Represents the specific model number, denoting the PROXPAC series designed for vibration monitoring.

• 28: Indicates enhancements and specifications related to materials and construction quality.

• 00: Signifies the standard configuration, indicating compatibility and general applications.

• 050: Refers to the measurement range of 50 mm, allowing for precise proximity measurements.

• 03: Represents the type of probe used and additional design features enhancing its monitoring capabilities.

• 02: Indicates the version number that signifies improvements made since the earlier designs.

Installation Recommendations and Wiring Guide:

1. Select Installation Location: Identify an optimal mounting point that allows for accurate measurement positioning without interference from nearby machinery or environmental factors.

2. Mounting Procedure: Utilize the M20 fittings for secure installation. Ensure all mounting hardware is tightly secured to prevent movement that might affect measurement accuracy.

3. Wiring Connections: Connect to the monitoring system according to the manufacturer’s wiring guidelines, ensuring that all connections are secure to maintain signal integrity.

4. Calibration and Verification: After installation, calibrate the device according to operational standards. Routine maintenance checks are recommended to ensure the ongoing accuracy and reliability of measurements.

Frequently Asked Questions (FAQ):

• Q: What types of applications is the Bently Nevada 330881-28-00-050-03-02 suitable for?
  A: It is ideal for applications in power generation, oil refining, heavy manufacturing, and any environment where precise vibration monitoring is critical.

• Q: How does the PPS construction benefit the proximity transducer?
  A: The PPS material offers excellent resistance to corrosion and physical wear, ensuring that the sensor maintains performance in harsh conditions.

• Q: What are the protection ratings for this transducer?
  A: The transducer meets IP66 and Type 4X protection standards, safeguarding it against dust and moisture ingress.

• Q: Is the installation of this transducer straightforward?
  A: Yes, the M20 fittings and compact design simplify the installation process, making it easy to integrate into existing systems.

• Q: What is the weight and size of the proximity transducer?
  A: The transducer weighs 1.44 kg and has dimensions of 30.02 x 12 x 9.14 cm.
