Product Overview:

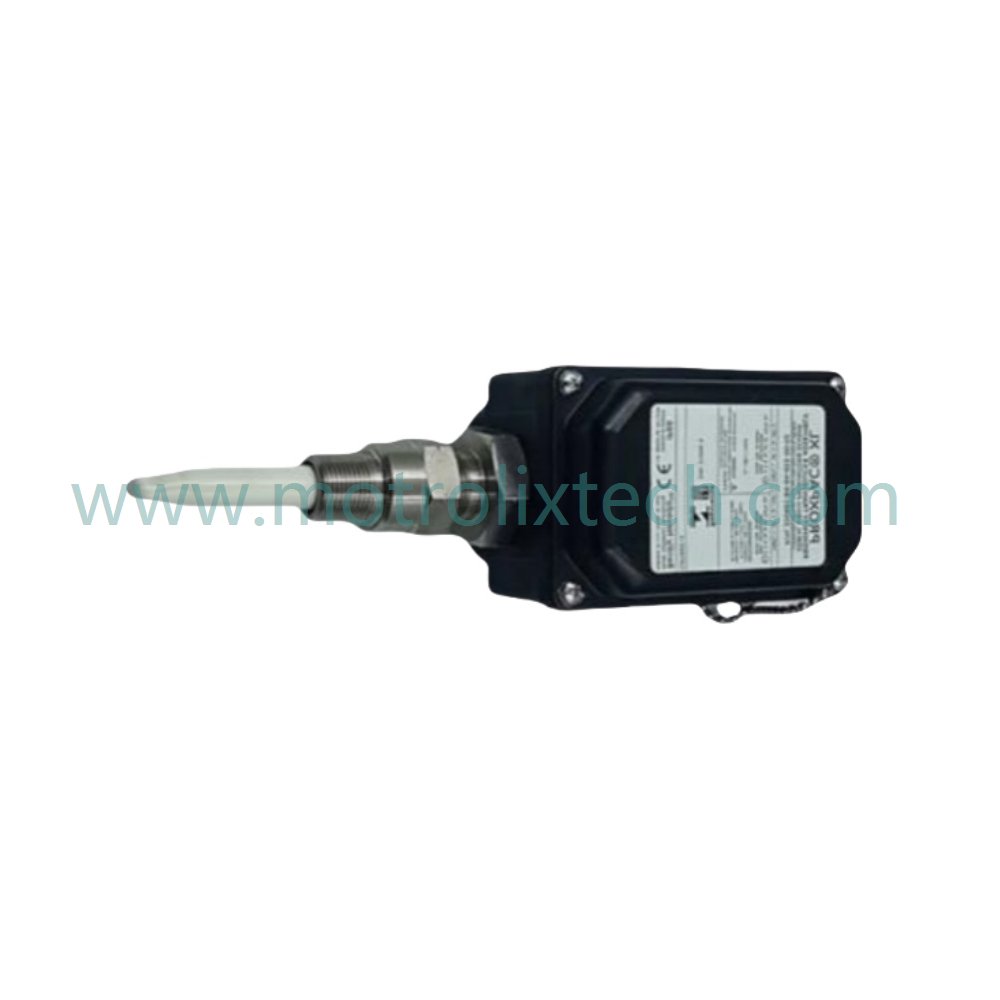

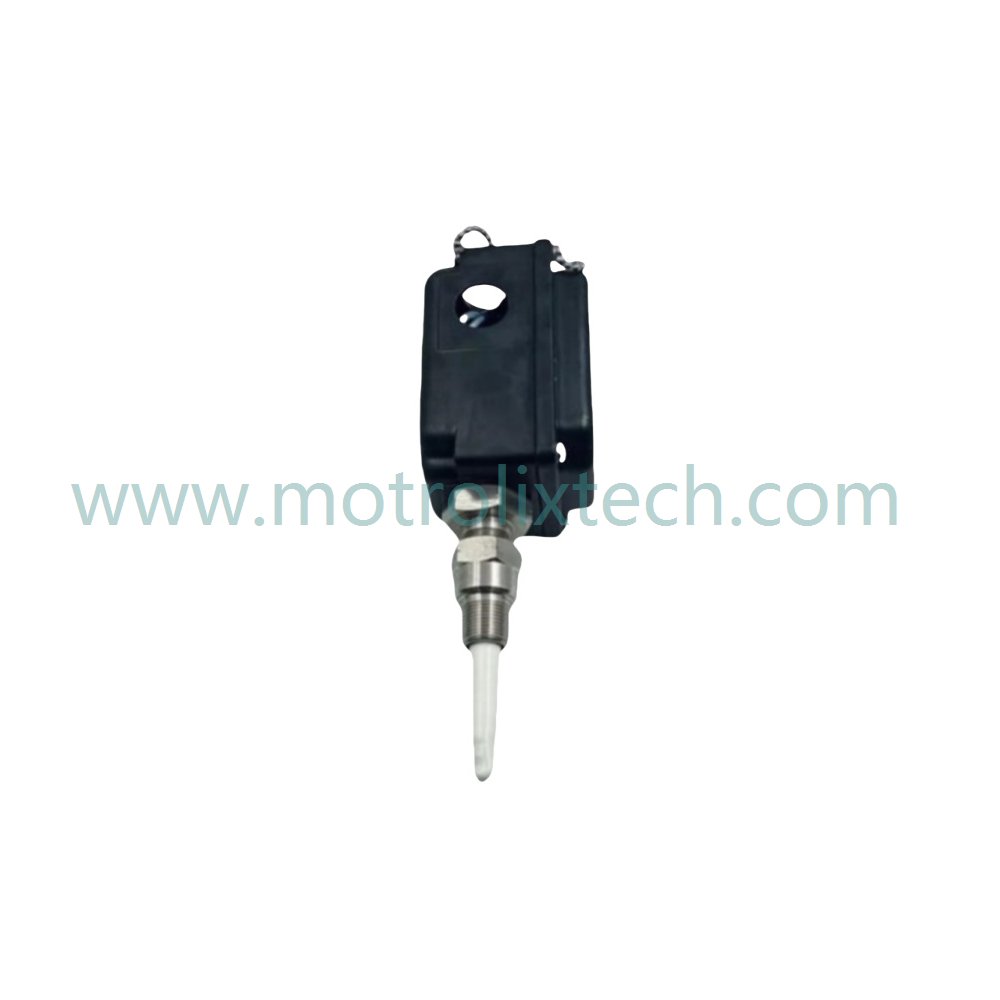

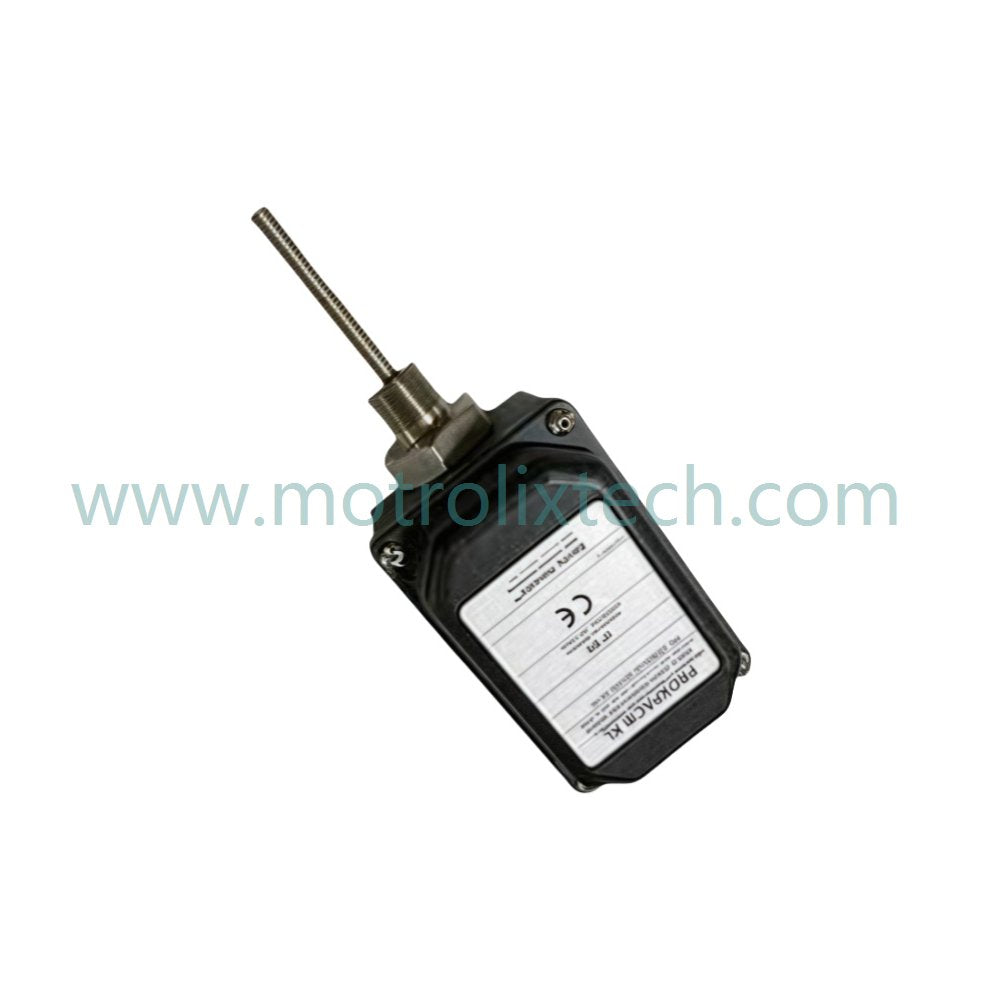

The Bently Nevada 330881-28-00-145-00-02 PROXPAC XL Proximity Transducer represents a significant advancement in industrial monitoring technology. This state-of-the-art transducer integrates the 3300 XL Proximitor sensor directly into its housing, eliminating unnecessary components and simplifying installation processes while ensuring high measurement accuracy. Designed for monitoring critical assets in challenging environments, this transducer is ideal for use with turbines, compressors, and pumps across various industries, including power generation and oil & gas.

Technical Specifications:

• Model Number: 330881-28-00-145-00-02

• Module Type: PROXPAC XL Proximity Transducer

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: Bently Nevada

• Lead Time: In Stock

• Weight: 1.44 kg

• Dimensions: 30.02 x 12 x 9.14 cm

• HS CODE: 8537101190

• Product Origin: USA

• System: TSI

• Communication Service: Ethernet Router

• Measurement Range: 145 mm

• Environmental Rating: Type 4X and IP66

Model Code Breakdown:

• 330881: Specifies the model within the Bently Nevada PROXPAC XL series, focusing on high-precision proximity monitoring.

• 28: Refers to the series variant designed for specific industrial applications and conditions.

• 00: Indicates the standard configuration of the transducer with no special modifications.

• 145: Represents the measurement range of the proximity transducer, crucial for various industrial applications.

• 00: Denotes the version of the design within the series, confirming it is an unmodified, standard model.

• 02: Signifies design features related to integration and performance within the specified range of the PROXPAC XL series.

Installation Recommendations and Wiring Guide:

1. Select an Appropriate Installation Location: Ensure the site allows for proper alignment and accessibility to critical assets for monitoring.

2. Mount the Proximity Transducer: Use compatible mounting hardware to secure the transducer, ensuring it is stable and properly aligned with the machinery.

3. Connect to the System Using Ethernet: Utilize the integrated Ethernet router for seamless data communication between the transducer and monitoring systems.

4. Perform System Tests: After installation, conduct tests to verify measurement accuracy and ensure the transducer operates effectively within the monitoring setup.

Frequently Asked Questions (FAQ):

• Q: What industries benefit from the Bently Nevada 330881-28-00-145-00-02 Proximity Transducer?
  A: This transducer is particularly useful in power generation, oil & gas, and heavy manufacturing where precision monitoring of critical machinery is essential.

• Q: How does the integration of the Proximitor sensor improve functionality?
  A: Integrating the sensor directly into the transducer housing reduces system complexity and enhances measurement accuracy, making it easier to maintain.

• Q: What does the Type 4X and IP66 rating signify?
  A: These ratings indicate that the transducer is suitable for use in harsh conditions, including exposure to moisture, dust, and corrosive environments.

• Q: Is the installation of this device complex?
  A: No, the design simplifies installation due to its integrated features, although proper alignment and mounting are crucial for optimal performance.

• Q: What types of data can be monitored with this transducer?
  A: The PROXPAC XL Proximity Transducer provides comprehensive vibration and proximity data, allowing for complete monitoring of machinery health.
