Product Overview:

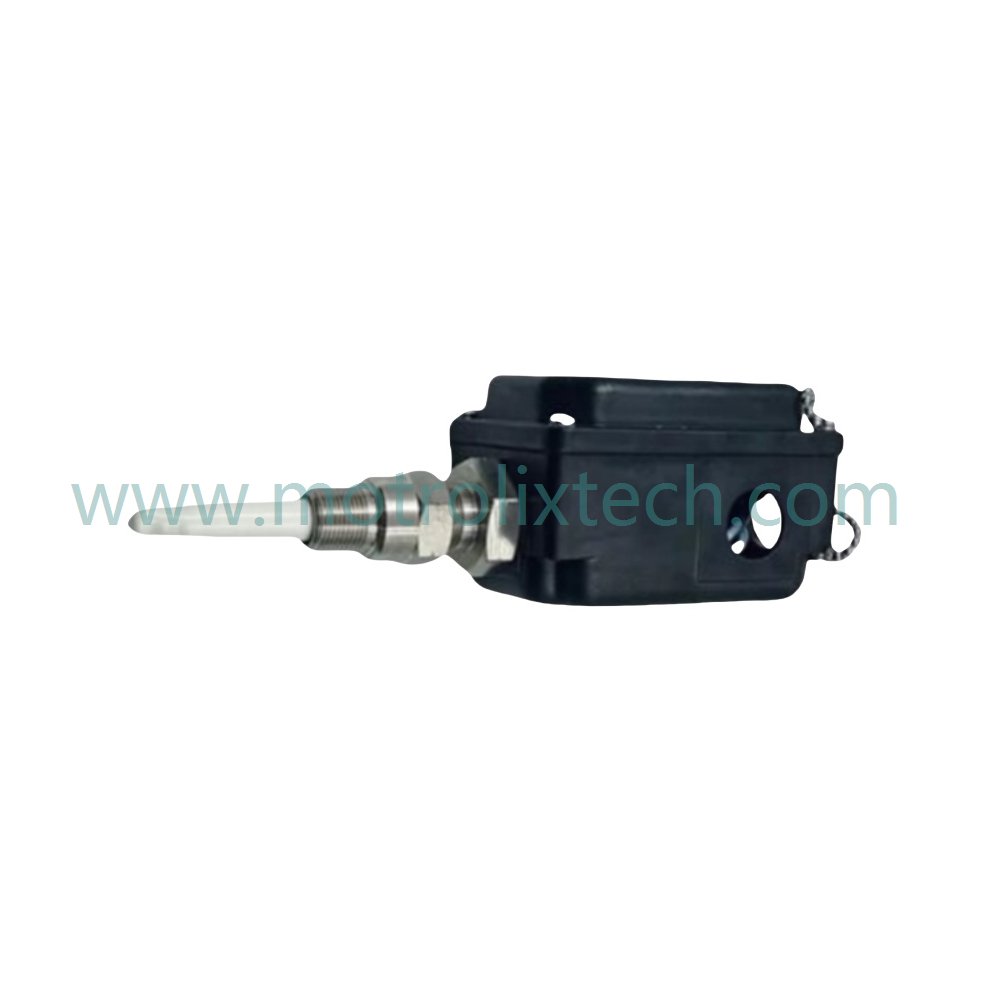

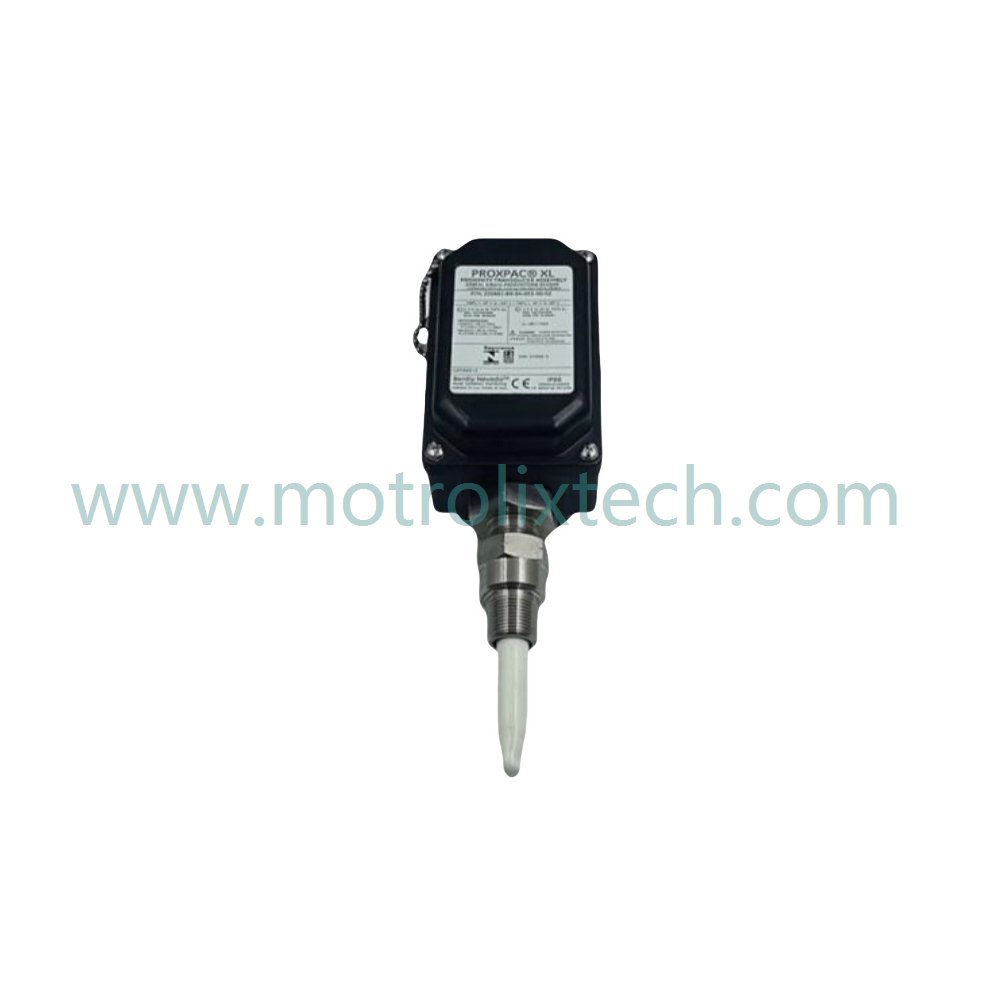

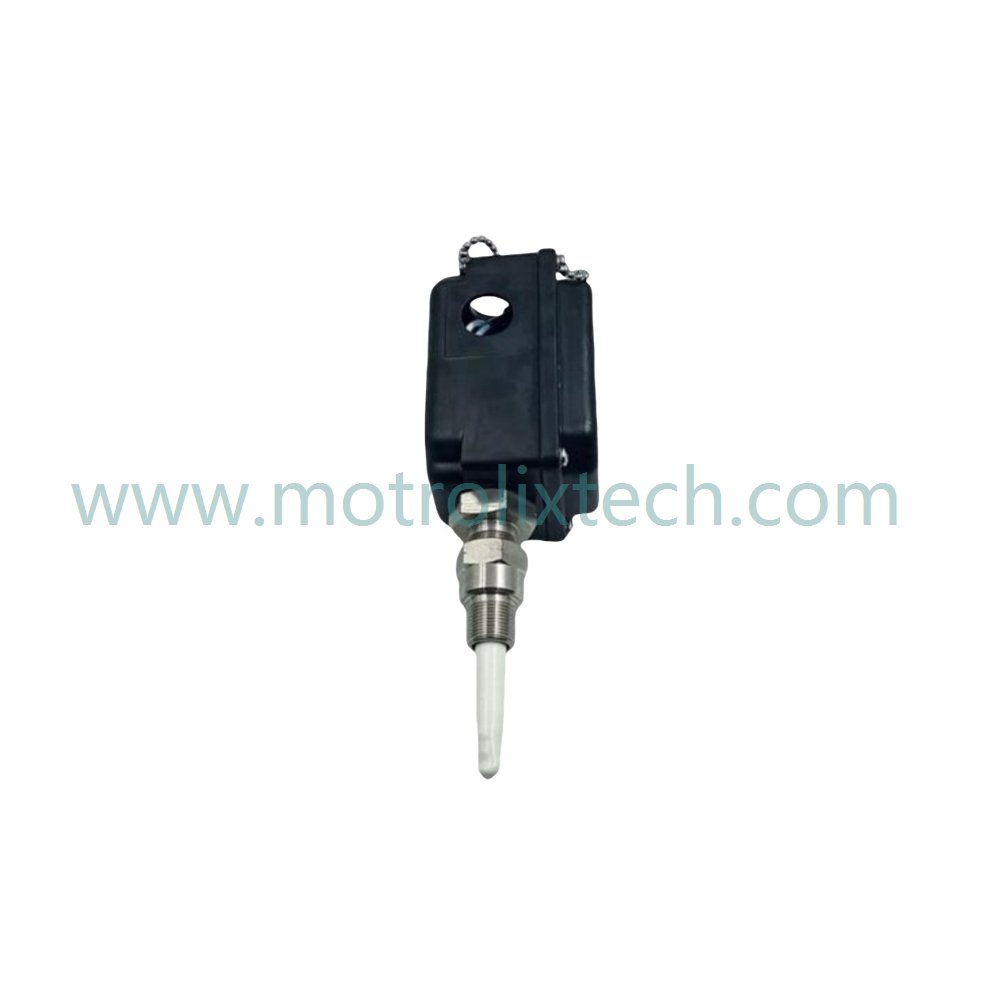

The Bently Nevada 330881-28-04-090-03-02 PROXPAC XL Proximity Transducer is a cutting-edge monitoring solution designed for critical applications in severe industrial environments. Engineered with advanced materials such as Polyphenylene Sulfide (PPS) thermoplastic, this transducer provides exceptional durability and resistance to corrosion while delivering accurate and reliable vibration measurements. Ideal for power generation, oil refineries, and heavy manufacturing, it ensures continuous operation while protecting valuable assets from potential failures.

Technical Specifications:

• Model Number: 330881-28-04-090-03-02

• Module Type: PROXPAC XL Proximity Transducer

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: Bently Nevada

• Lead Time: In Stock

• Weight: 1.44 kg

• Dimensions: 30.02 x 12 x 9.14 cm

• HS CODE: 8537101190

• Product Origin: USA

• System: TSI

• Protection Rating: Type 4X and IP66

• Operational Range: 90 mm

• Standoff Configuration: 40 mm

• Connectivity Options: M20

Model Code Breakdown:

• 330881: Indicates the specific model within the Bently Nevada PROXPAC series, highlighting its advanced design features.

• 28: Refers to enhancements in material and structural integrity, ensuring durability in harsh conditions.

• 04: Signifies the probe’s specific characteristics related to operational efficiency and measurements specifications.

• 090: Denotes the operational range of the transducer, indicating its capability for precise measurements.

• 03: Represents configuration features optimized for installation and maintenance, contributing to overall usability.

• 02: Indicates the version, reinforcing compliance with the latest industry standards and requirements.

Installation Recommendations and Wiring Guide:

1. Select Installation Location: Identify a suitable mounting location for the transducer that ensures optimal alignment with machinery and minimizes exposure to potential hazards.

2. Mounting Procedure: Secure the transducer using the M20 connectivity options, carefully following the manufacturer’s guidelines to ensure stable installation.

3. Wiring Connections: Connect the field wiring directly to the monitoring system, ensuring all connections are secure to prevent signal loss or interference.

4. Calibration and Verification: After installation, calibrate the system according to operational guidelines. Regular maintenance checks should be scheduled to uphold measurement accuracy and reliability.

Frequently Asked Questions (FAQ):

• Q: What industrial applications is the Bently Nevada 330881-28-04-090-03-02 designed for?
  A: This transducer is ideal for use in power generation, oil refineries, and heavy manufacturing environments where precise vibration monitoring is critical.

• Q: How does the PPS construction benefit this proximity transducer?
  A: The PPS material provides exceptional corrosion resistance and mechanical durability, ensuring reliable performance even in harsh conditions.

• Q: What protection ratings does this transducer have?
  A: It meets Type 4X and IP66 protection standards, safeguarding it against moisture ingress, airborne contaminants, and chemical corrosion.

• Q: Is the installation of this transducer straightforward?
  A: Yes, the design features M20 connectivity for easy mounting and simplified installation, reducing complexity in setup.

• Q: What are the dimensions and weight of the proximity transducer?
  A: The Bently Nevada 330881-28-04-090-03-02 weighs 1.44 kg with dimensions of 30.02 x 12 x 9.14 cm, making it a robust yet manageable component for installation.
