Product Overview:

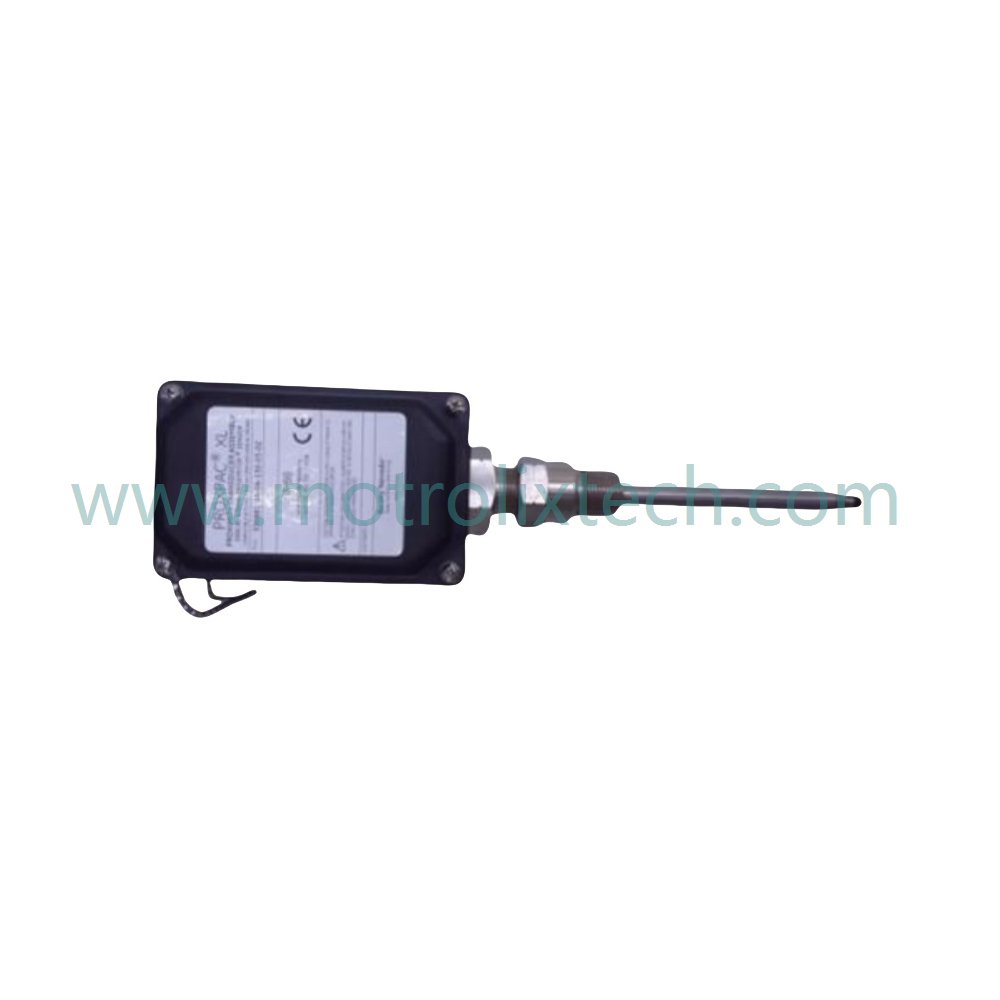

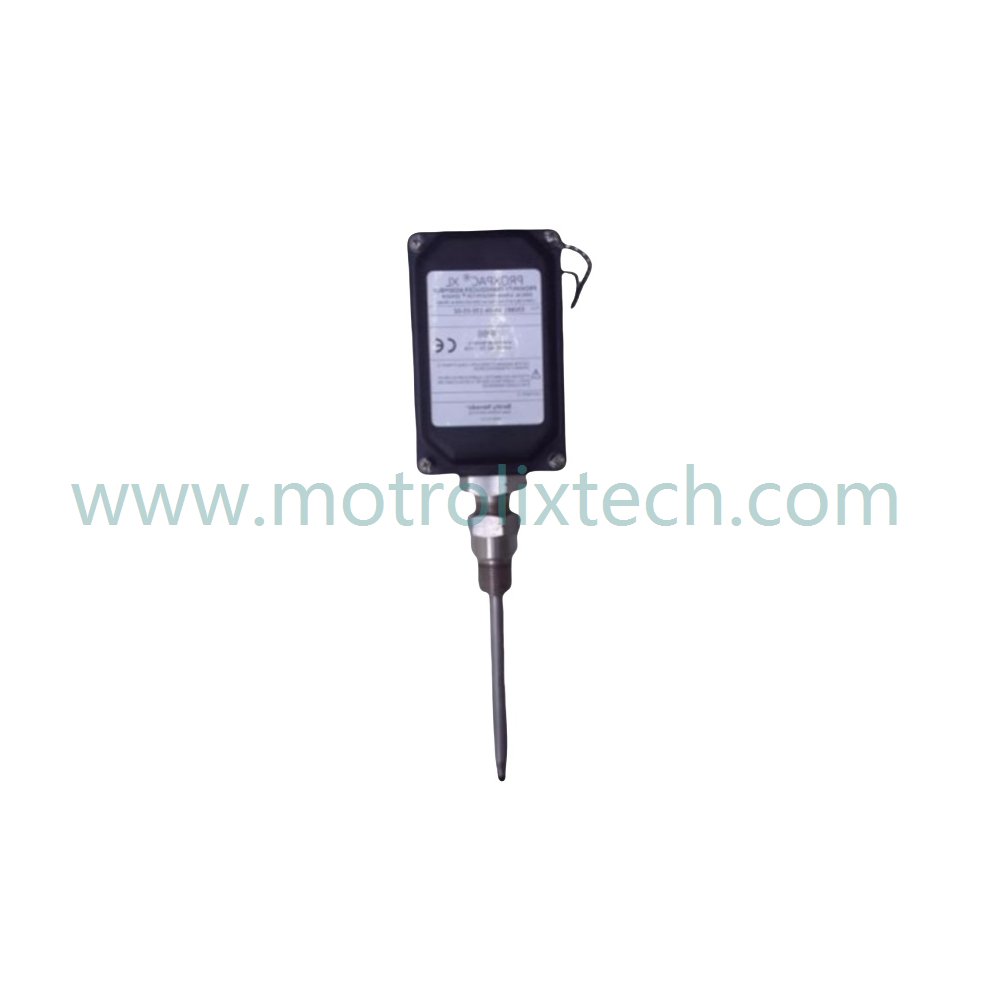

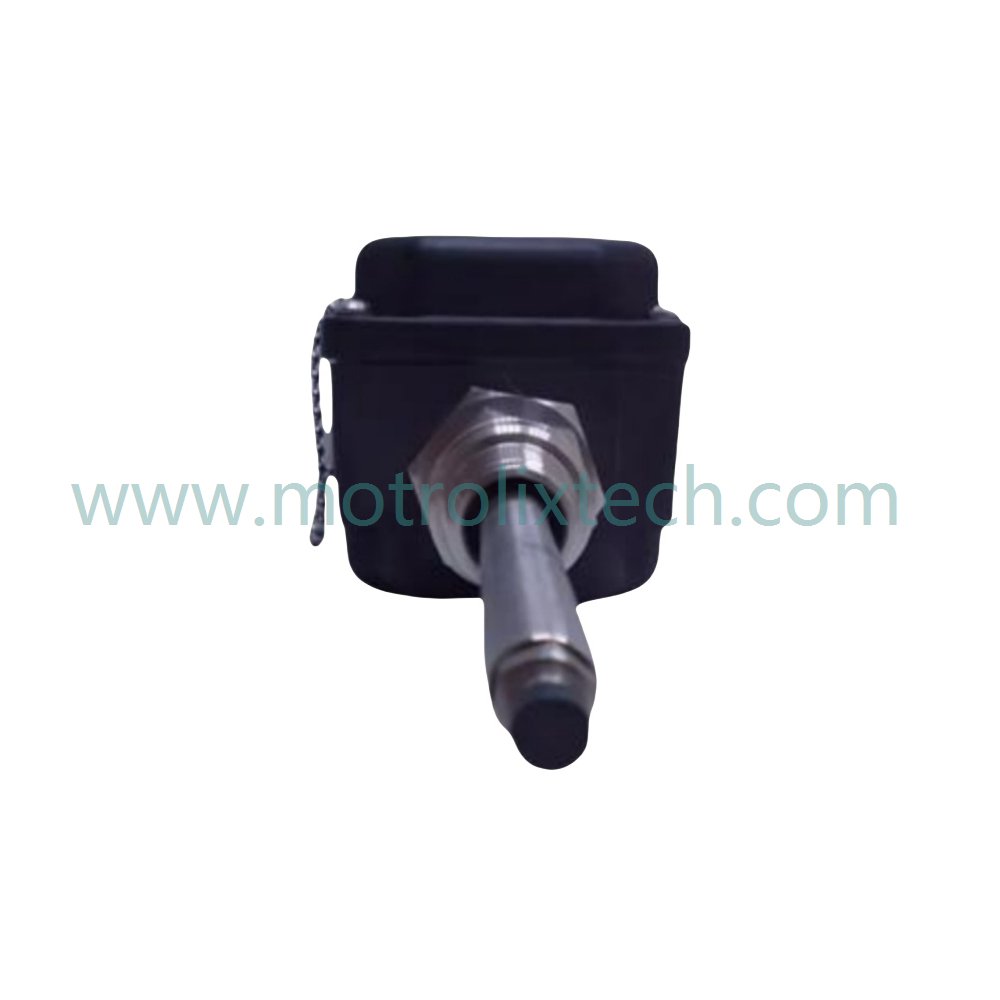

The Bently Nevada 330881-28-04-105-00-02 PROXPAC XL Proximity Transducer is a state-of-the-art vibration monitoring module designed to operate reliably in challenging industrial environments. Engineered with advanced sealing technology, this transducer utilizes specialized Viton and Neoprene O-rings for optimal environmental protection. It is ideal for monitoring applications that require durability against wet and dusty conditions, ensuring consistent equipment health assessment.

Technical Specifications:

• Model Number: 330881-28-04-105-00-02

• Module Type: PROXPAC XL Proximity Transducer

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: Bently Nevada

• Lead Time: In Stock

• Weight: 1.44 kg

• Dimensions: 30.02 x 12 x 9.14 cm

• HS CODE: 8537101190

• Product Origin: USA

• System: TSI

• Communication Service: Ethernet Router

• Measurement Range: 105 mm

• Standoff Configuration: 40 mm

• Environmental Protection: Type 4X and IP66 certifications

Model Code Breakdown:

• 330881: Indicates the specific series of the PROXPAC XL Proximity Transducer within Bently Nevada’s product lineup.

• 28: Refers to design enhancements or specific configuration features unique to this model.

• 04: Represents the operational characteristics related to measurement capabilities.

• 105: Denotes the measurement range in millimeters, emphasizing the operational scope of this transducer.

• 00: Indicates this is a standard configuration without additional modifications.

• 02: Refers to the model’s specific characteristics that enhance functionality.

Installation Recommendations and Wiring Guide:

1. Select an Appropriate Location: Choose a secure mounting site that allows for easy access to monitored machinery while considering environmental conditions.

2. Utilize Proper Sealing: Ensure that the provided plugs and washers are correctly installed to maintain environmental seals and effective O-ring function.

3. Connect the Proximity Transducer: Use the 3/4-14 NPT connections for a secure and straightforward installation while avoiding the need for additional fittings.

4. Inspect O-Rings: Prior to installation, check the O-rings for wear or damage to ensure optimal sealing performance and reliability.

Frequently Asked Questions (FAQ):

• Q: What industries commonly use the Bently Nevada 330881-28-04-105-00-02?
  A: This transducer is widely used in various industrial sectors, including manufacturing, power generation, and oil & gas, for effective machinery monitoring.

• Q: What type of environments is this transducer suitable for?
  A: The module is designed for use in wet and dusty environments, with protective ratings that ensure reliable operation in harsh conditions.

• Q: How does the O-ring sealing technology enhance performance?
  A: The Viton and Neoprene O-rings provide excellent environmental protection, preventing contamination and preserving measurement integrity.

• Q: Is this transducer compatible with existing Bently Nevada systems?
  A: Yes, it is designed to integrate seamlessly with other PROXPAC XL components for comprehensive machinery protection.

• Q: How can I ensure proper installation?
  A: Follow the installation guidelines, check O-rings before mounting, and ensure that connections are secure for reliable performance.
