Product Overview:

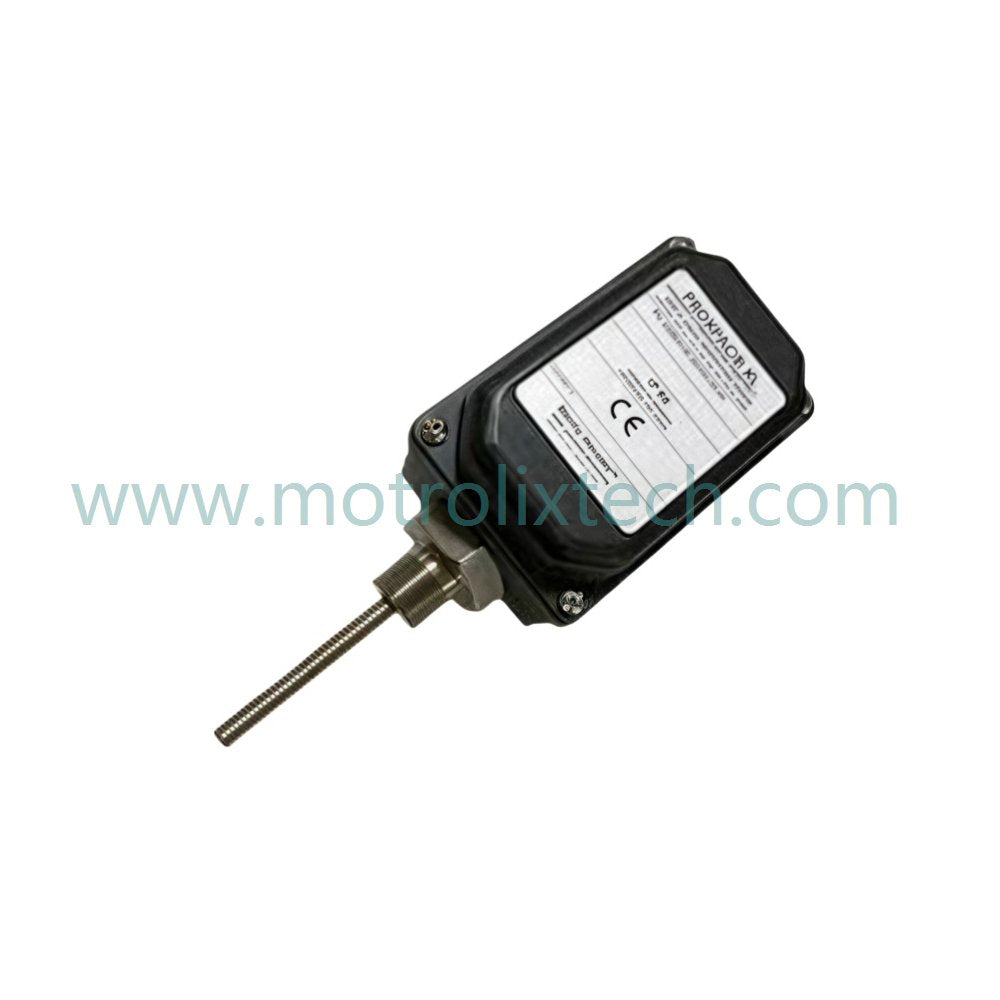

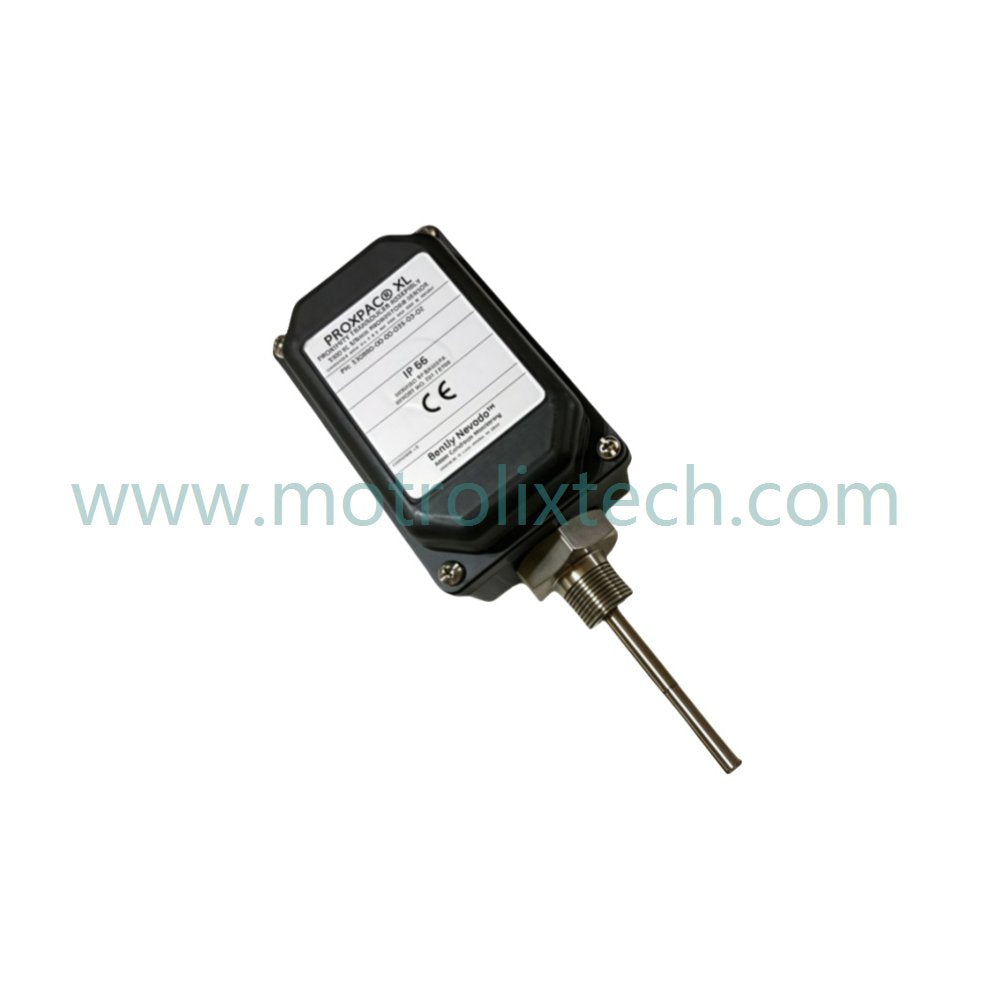

The Bently Nevada 330881-28-06-155-00-02 PROXPAC XL Proximity Transducer Assembly is a cutting-edge solution for precision vibration monitoring in industrial applications. This innovative assembly integrates a sleek 8mm probe with a 3300 XL Proximitor sensor into a single rugged housing, streamlining the installation process and enhancing measurement accuracy. Ideal for environments with space constraints, this transducer offers significant advantages in simplifying wiring and reducing maintenance needs, making it a preferred choice for turbines, compressors, and other critical rotating assets.

Technical Specifications:

• Model Number: 330881-28-06-155-00-02

• Module Type: PROXPAC XL Proximity Transducer Assembly

• Manufacturer: Bently Nevada

• Condition: Brand New

• Product Range: Bently Nevada

• Lead Time: In Stock

• Weight: 0.12 kg

• Dimensions: 2.8 x 2.3 x 110 cm

• HS CODE: 8537101190

• Product Origin: USA

• System: TSI

• Communication Service: Ethernet Router

• Probe Length: 15.5 mm

• Thread Size: 5 mm

• Connection Type: 3/4-14 NPT

Model Code Breakdown:

• 330881: Identifies the specific model within the Bently Nevada PROXPAC XL series, designed for advanced proximity monitoring.

• 28: Indicates the series variant that provides features specifically tailored to industrial applications.

• 06: Refers to the standard configuration regarding the design and capabilities of the assembly.

• 155: Represents the probe length; in this case, a compact 15.5 mm ideal for tight installations.

• 00: Denotes that this is a standard version of the product with no specific enhancements.

• 02: Signifies a version tailored for specific functionality and compatibility within the Bently Nevada system.

Installation Recommendations and Wiring Guide:

1. Select Installation Site: Identify an appropriate location that allows for optimal alignment with machinery and provides good access for maintenance.

2. Prepare the Mounting Area: Ensure the surface is clean and ready for installation, allowing for secure fitting.

3. Attach the Proximity Transducer: Utilize the provided 3/4-14 NPT connection for secure mounting, ensuring that the position is aligned with the target for accurate readings.

4. Use Included Components: The assembly includes two plugs and washers, facilitating quick and easy installation in the field. Ensure all fittings are tight to avoid leaks and ensure signal consistency.

5. Perform Initial Testing: After installation, conduct functional tests to verify that the transducer operates correctly and that measurements are accurate.

Frequently Asked Questions (FAQ):

• Q: What applications are suitable for the Bently Nevada 330881-28-06-155-00-02 Proximity Transducer?
  A: This transducer is suitable for use in turbines, compressors, and other critical rotating assets in various industrial environments.

• Q: What advantages does the integrated design provide?
  A: The integrated design simplifies installation, reduces the need for separate components, and minimizes maintenance efforts due to fewer connections.

• Q: How does this transducer ensure accurate measurements?
  A: The combination of precision sensor technology and robust signal processing allows for accurate detection of vibration and position in demanding conditions.

• Q: What are the benefits of the API 670 compliance?
  A: API 670 compliance ensures that the transducer meets industry standards for machinery protection and monitoring, providing operators with peace of mind.

• Q: Is this transducer suitable for harsh environments?
  A: Yes, the durable construction of the Bently Nevada 330881-28-06-155-00-02 is designed to withstand the rigors of industrial applications, ensuring reliable operation.
