Product Overview:

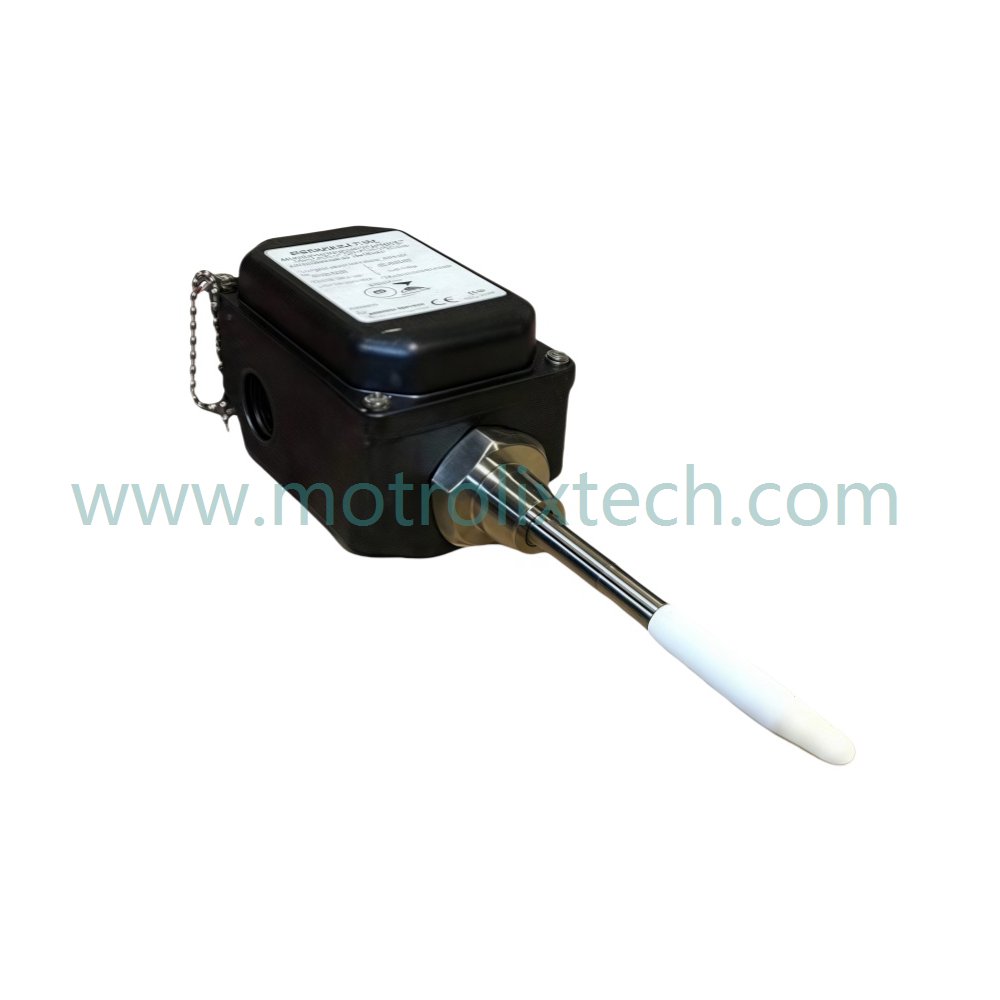

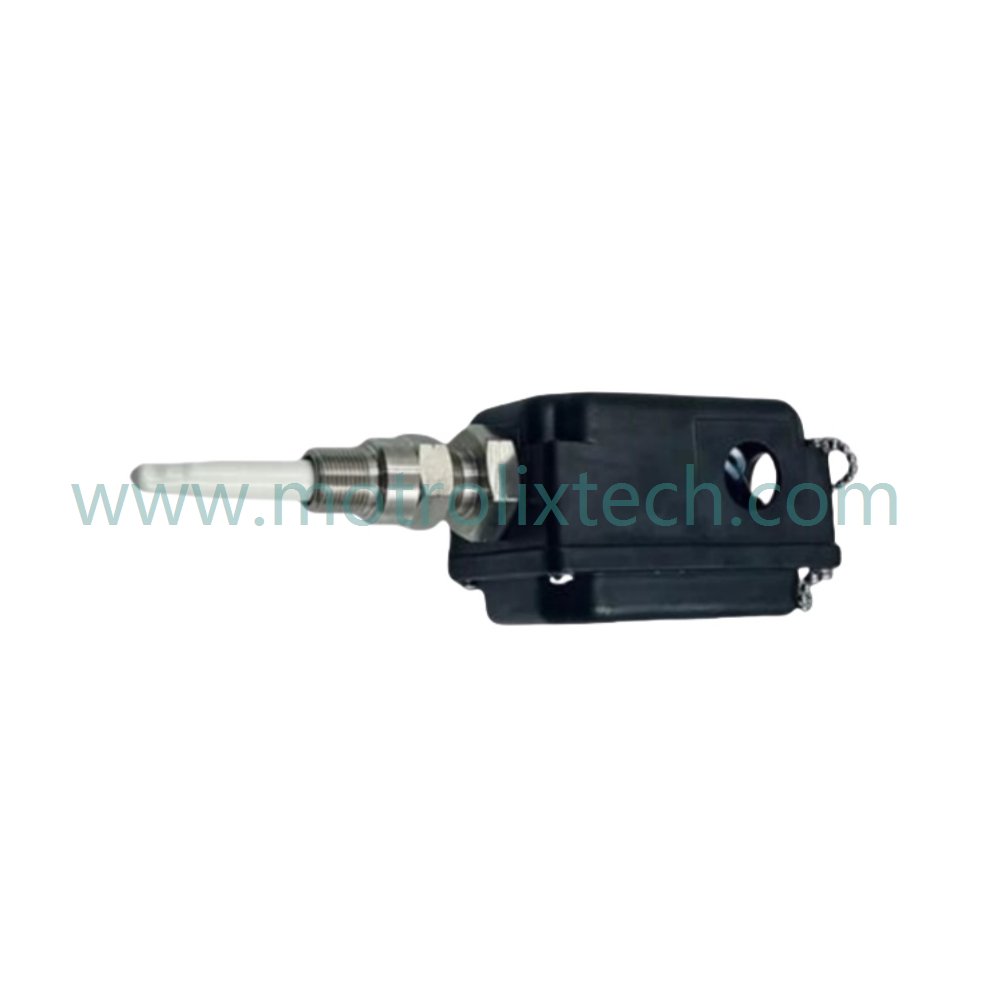

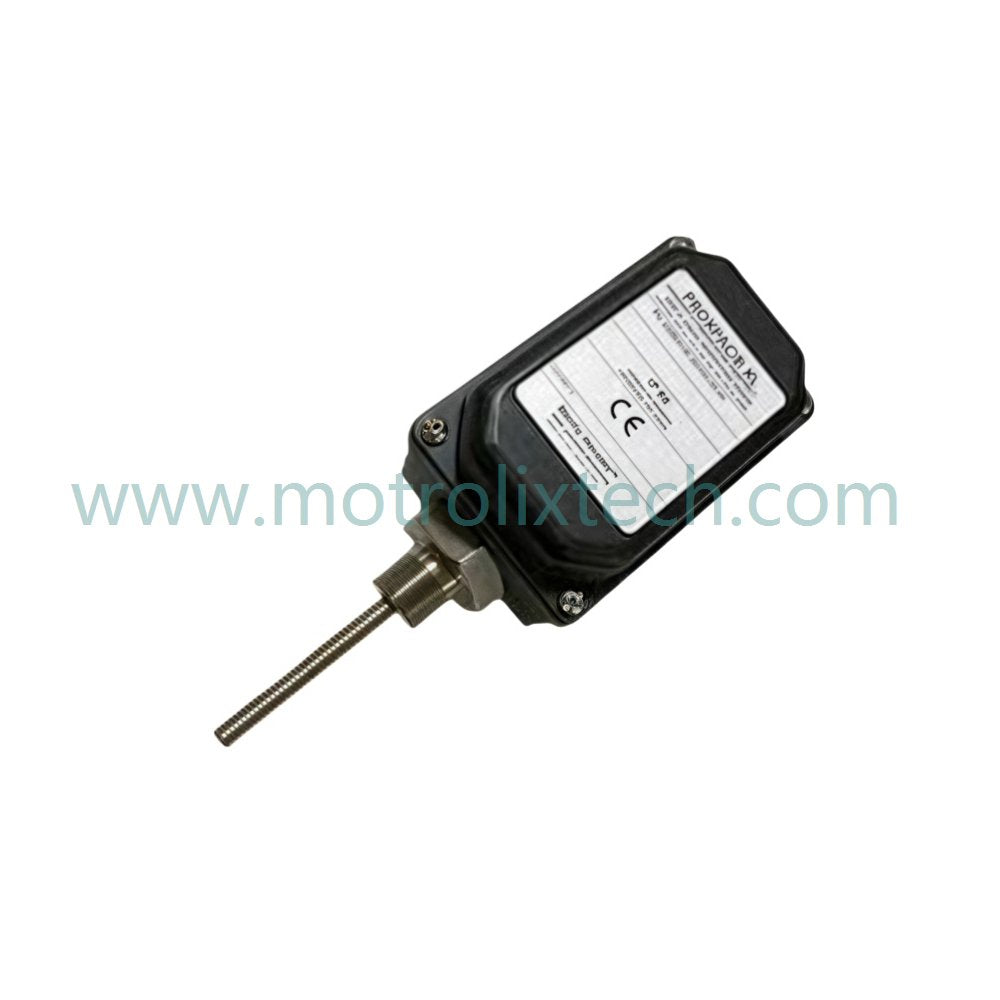

The Bently Nevada 330881-28-10-148-03-02 PROXPAC XL Proximity Transducer is a cutting-edge solution designed for advanced vibration monitoring in large rotating equipment and turbines. Building upon the reliable 31000/32000 series design, this transducer features a long 148 mm threaded probe with a 10 mm diameter, making it ideal for deep-set applications where access can be challenging. Its innovative design simplifies installation and maintenance while providing robust protection against harsh operating conditions.
Technical Specifications:
Model Number: 330881-28-10-148-03-02
Module Type: PROXPAC XL Proximity Transducer
Manufacturer: Bently Nevada
Condition: Brand New
Product Range: 3300 Proximity Transducer System
Lead Time: In Stock
Weight: 1.4 kg
Dimensions: 32.02 x 12 x 9.14 cm
HS CODE: 8537101190
Product Origin: USA
System: TSI
Communication Service: Ethernet Router
Probe Length: 148 mm
Probe Diameter: 10 mm
Environmental Rating: Type 4X, IP66
Material: Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers
Model Code Breakdown:
330881: Indicates the specific model within the Bently Nevada PROXPAC series, focusing on proximity measurement capabilities.
28: Refers to the version number or specific configuration, highlighting enhancements over previous models.
10: Specifies the probe diameter in millimeters, providing essential detail for installation requirements.
148: Denotes the length of the threaded probe in millimeters, indicating its suitability for deep measurement applications.
03: Refers to specific features or capabilities that enhance the model's performance.
02: Indicates compliance with industry standards for safety and performance.
Installation Recommendations and Wiring Guide:
Select Installation Location: Identify a suitable location for the transducer that accommodates the length of the probe and allows proper alignment with the monitored machinery.
Mounting Procedure: Securely attach the transducer using appropriate mounting hardware, ensuring that it is stable and correctly oriented to minimize measurement variability.
Wiring Connections: Connect the integrated Proximitor sensor directly to the monitoring system using the provided field wiring connections. This design simplifies installation by eliminating extension cables.
Calibration and Verification: Regular checks and calibrations are recommended to ensure accurate measurements, especially following installation or any maintenance work.
Frequently Asked Questions (FAQ):
Q: What applications is the Bently Nevada 330881-28-10-148-03-02 suitable for?
A: This transducer is ideal for monitoring vibration in large rotating equipment, turbines, and other critical assets in harsh environments.
Q: How does the integrated design benefit users?
A: By eliminating the need for extension cables and a separate Proximitor enclosure, the installation process is streamlined, reducing complexity and potential points of failure.
Q: Is this transducer durable in severe conditions?
A: Yes, it features a robust PPS housing with an IP66 rating, offering excellent protection against moisture, dust, and extreme temperatures.
Q: What are the dimensions of the probe?
A: The probe has a length of 148 mm and a diameter of 10 mm, designed for easy placement in deep-set locations.
Q: How does the material of this transducer enhance performance?
A: The PPS material provides high strength and electrostatic dissipation, improving the integrity and reliability of measurements in industrial settings.
