Product Overview

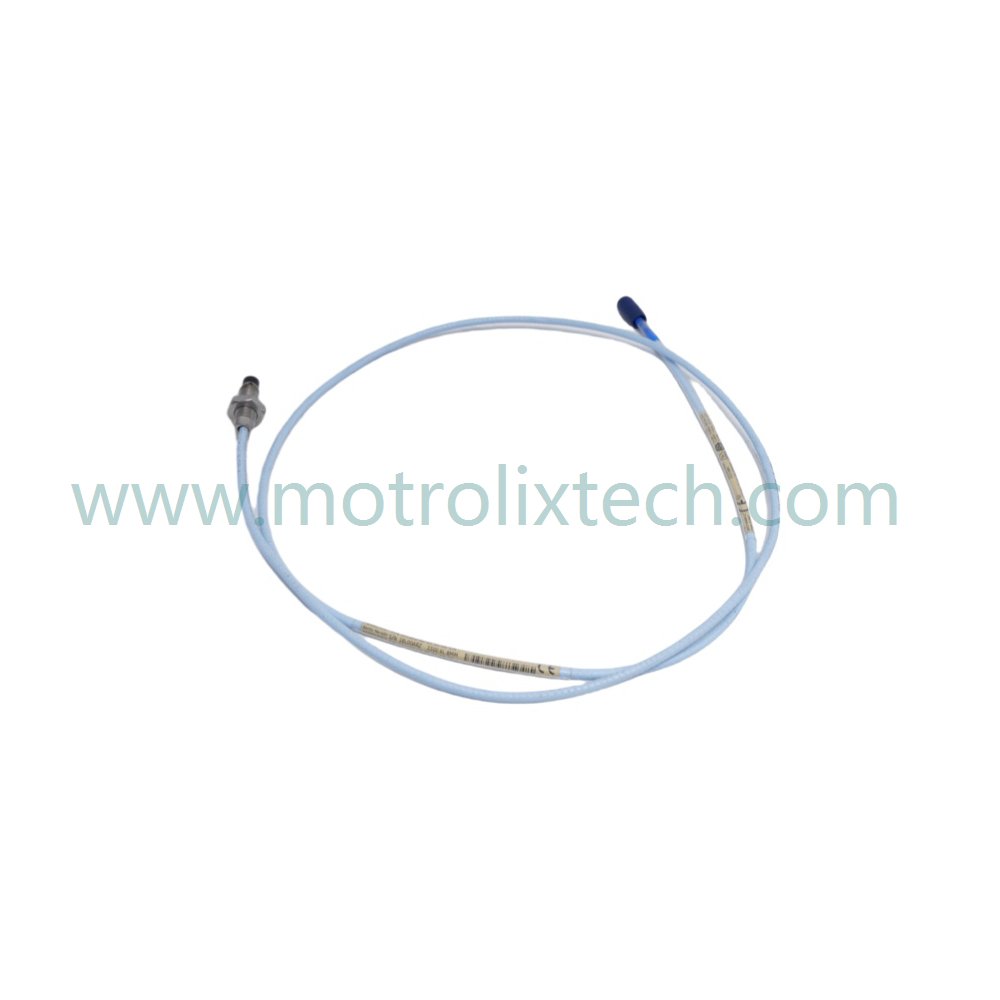

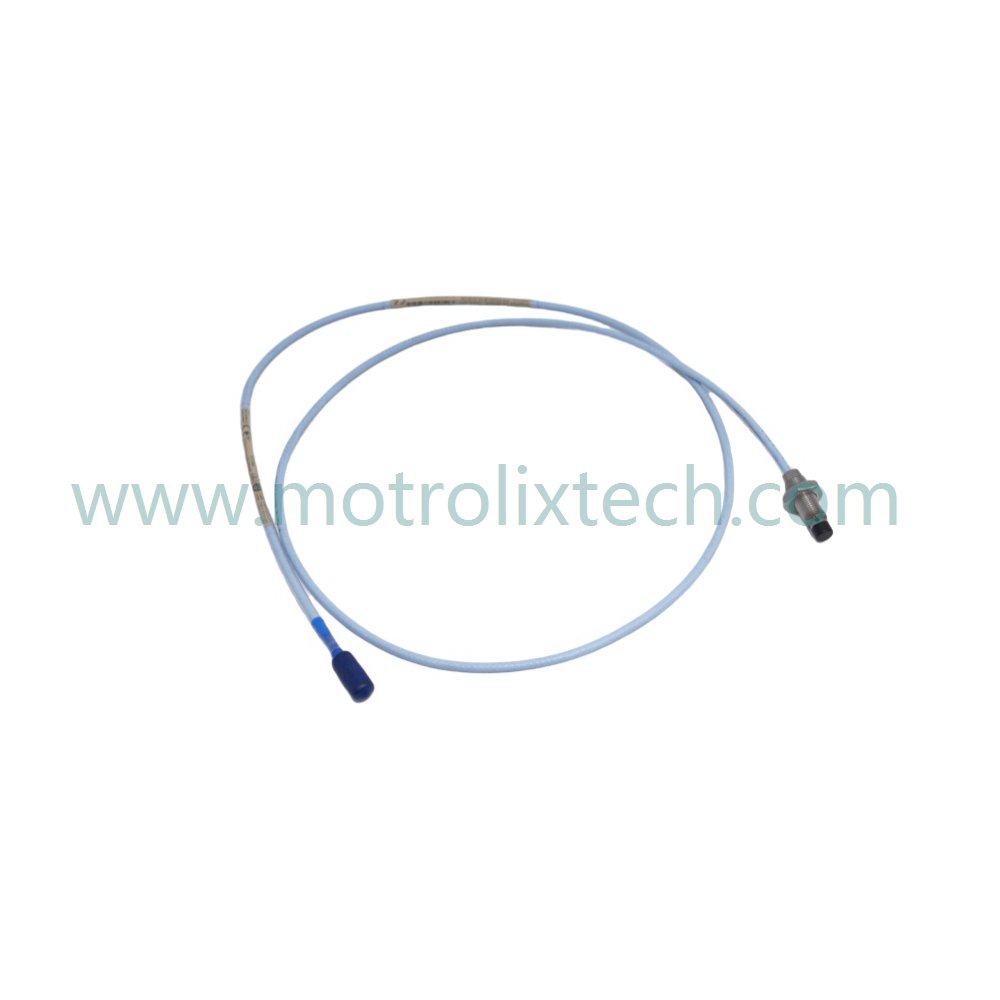

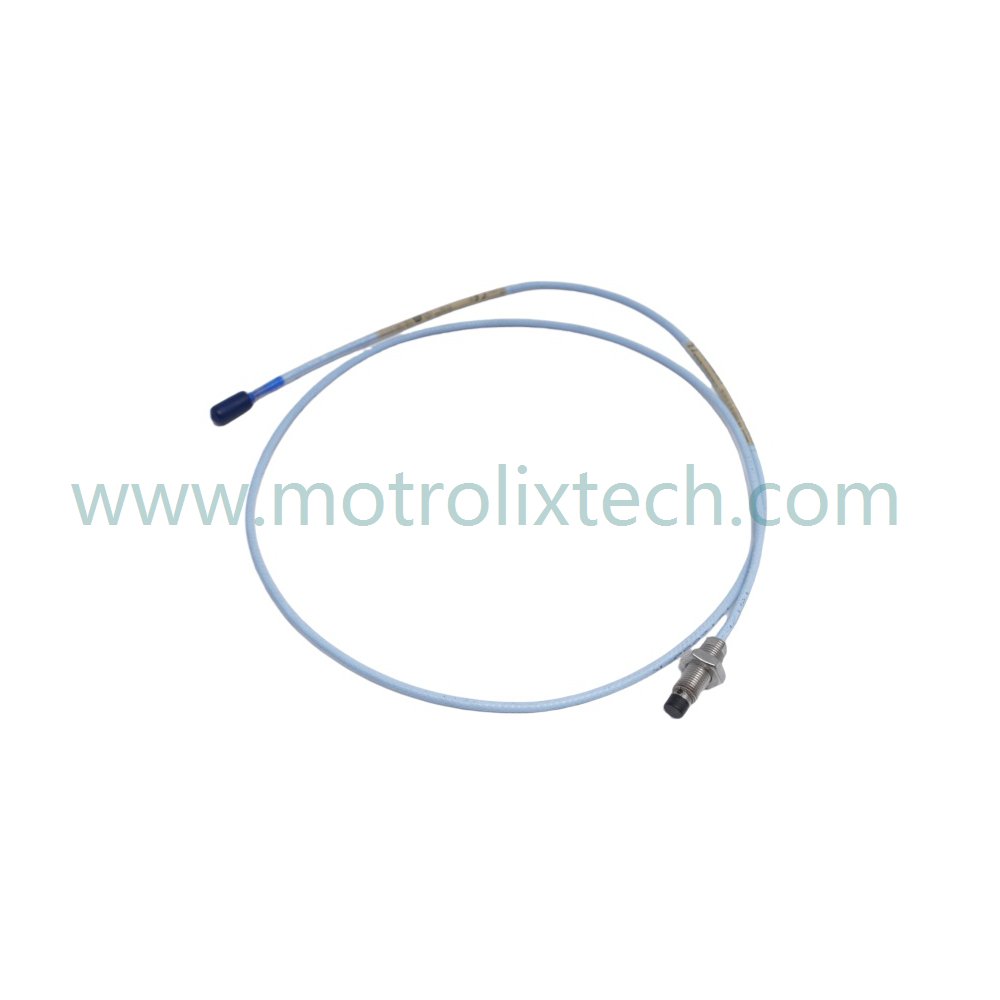

The Bently Nevada 330905-00-10-10-02-CN NSv Proximity Probe is a rugged, high-repeatability eddy‑current sensor designed to provide reliable non‑contact position and vibration sensing for industrial automation and machinery monitoring. It solves early‑fault detection and process-control accuracy challenges by delivering stable displacement signals in harsh environments (conveyor systems, manufacturing lines, petrochemical plants), helping reduce unplanned downtime and improve asset reliability.
Technical Specifications
Model Number: 330905-00-10-10-02-CN
Product Series / Family: Bently Nevada NSv / 3300-compatible proximity probes
Module Type: NSv Proximity Probe (eddy‑current displacement sensor)
Weight: 0.08 kg
Dimensions: 1.8 × 1.6 × 114 cm (probe body/shaft length)
Environmental Rating: IP67 (dust-tight, protected against immersion)
Operational Temperature: (confirm exact range in data sheet) — suitable for typical industrial ambient conditions
Typical Output / Interface: Designed for connection to proximitor/transducer electronics (TSI / 3300 family or NSv interface) — confirm electrical characteristics with datasheet
System Compatibility: TSI / Bently 3300 ecosystems and compatible proximitor electronics (verify module compatibility)
Lead Time: In stock — ready for fast shipment
HS Code: 8537101190
Product Origin: USA
Typical Applications: Machinery monitoring, conveyor systems, process control, position sensing in manufacturing and petrochemical industries
Model Code Breakdown (interpretation — verify with official datasheet)
330905 — Base part number identifying the probe family and core sensing element.
-00 — Mechanical/housing variant or standard body/finish (often denotes default material or basic configuration).
-10 — Probe tip / sensing element variant (may indicate tip style, insulating sleeve, or sensing face option).
-10 — Cable, length or internal wiring option (second -10 commonly used for cable/lead variant in some tables).
-02 — Connector/termination or mounting-adapter variant (specific connector type, thread or boss option).
-CN — Country/region or special customer configuration code (CN often used to denote China-region packaging or custom option; confirm with vendor).
Note: Suffix semantics vary by product table and revision. Always confirm exact suffix-to-feature mapping with the official Bently Nevada parts table or technical datasheet before ordering or installing.
Installation Recommendations & Wiring Guide
Mechanical mounting: mount the probe in a rigid boss or bracket that prevents probe movement under dynamic loads. Ensure probe sensing face is perpendicular to the measured surface and secured with specified torque. Avoid flexible clamps that introduce micro‑motion.
Working gap: set probe‑to‑target clearance per the manufacturer’s recommendation. Establish mechanical zero during commissioning and verify repeatability after thermal cycles.
Cable routing: use the manufacturer‑recommended shielded cable; route separately from power and VFD runs. Provide drip loops and avoid sharp bends near the probe.
Shielding & grounding: terminate cable shield at the monitoring/proximitor end only (single‑point ground) unless system documentation specifies otherwise to prevent ground loops.
Electrical interface: connect the probe only to compatible proximitor/transducer electronics (e.g., 3300-series or NSv interface). Confirm pinout, connector type and polarity with the datasheet or wiring diagram. Do not apply power directly to the probe without correct proximitor electronics.
EMC mitigation: maintain separation from high‑current cables and VFDs; use ferrite cores, additional shielding, or grounded conduits in high‑noise areas.
Commissioning checks: verify continuity and insulation resistance prior to power-up. With shaft stationary confirm zero offset; perform run‑up checks and capture baseline signals for trend reference.
Maintenance & safety: follow lockout/tagout procedures during installation/inspection. Periodically inspect probe body, wiring, and seals; replace if ingress or mechanical damage is found.
FAQ — Common Questions
Q: What is the primary function of the 330905-00-10-10-02-CN?
A: It is a proximity (eddy‑current) probe used for non‑contact shaft position and vibration sensing to support condition monitoring and process control.
Q: Is this a genuine Bently Nevada part?
A: Yes — this listing is for authentic Bently Nevada 330905-00-10-10-02-CN probes. Units are in stock and available for rapid shipment.
Q: What are the physical size and weight?
A: Dimensions: 1.8 × 1.6 × 114 cm. Weight: approximately 0.08 kg.
Q: What environmental protection does it provide?
A: The probe is rated IP67 for protection against dust and temporary immersion; suitable for most harsh industrial environments.
Q: How should the probe be wired?
A: Use the specified shielded cable and connect to compatible proximitor/transducer electronics. Ground cable shield at the monitor end only and follow the manufacturer’s pinout. Do not power the probe directly without the correct proximitor module.
Q: Which systems is it compatible with?
A: Designed to integrate with TSI/3300‑series monitoring systems and compatible proximitor electronics. Always verify compatibility with your monitor model and wiring diagram.
Q: What is the lead time and shipping?
A: Units are in stock and ready for fast worldwide shipping. Contact sales for region‑specific lead times and expedited options.
Q: Do you provide technical support or calibration services?
A: Yes — technical assistance for selection, installation, commissioning and troubleshooting is available. Provide your system topology and monitor details when requesting support.
Note: For precise electrical pinouts, transfer curves, temperature/pressure ratings and definitive suffix meanings, always consult the official Bently Nevada datasheet or contact factory technical support prior to procurement or installation.
