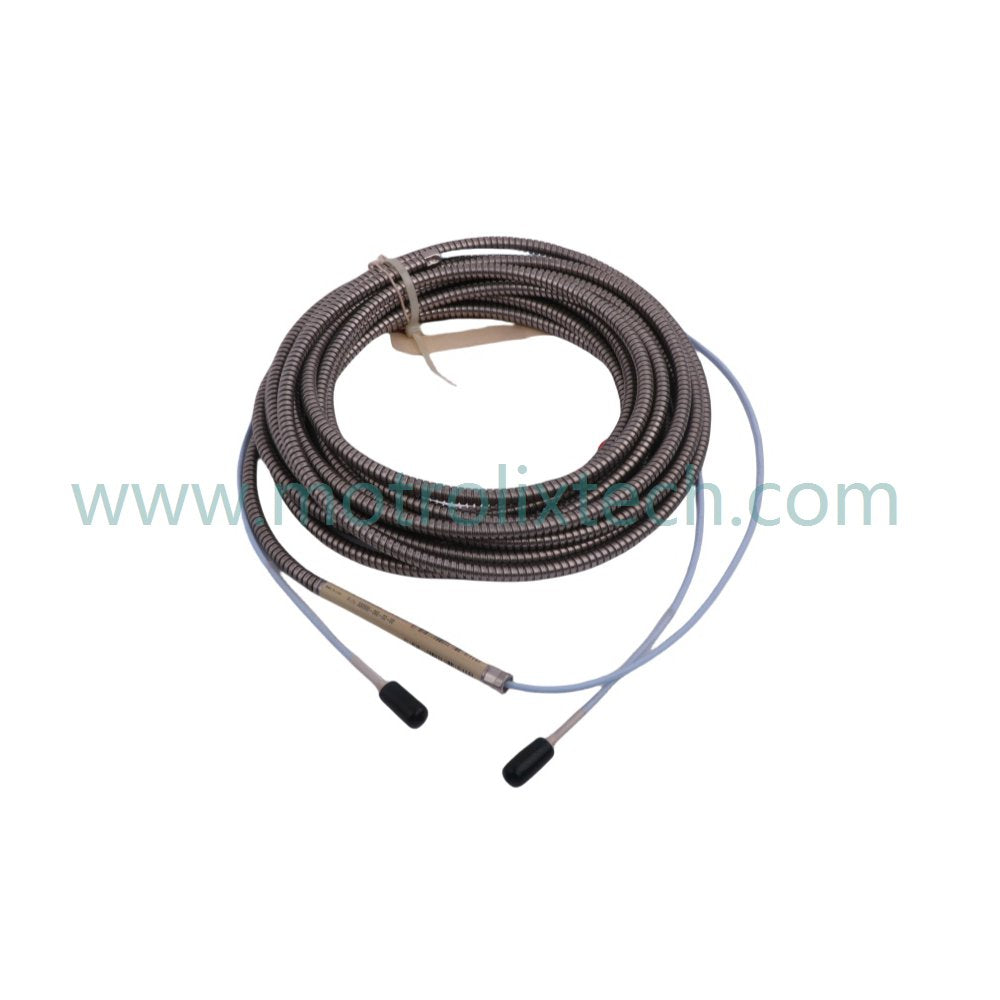

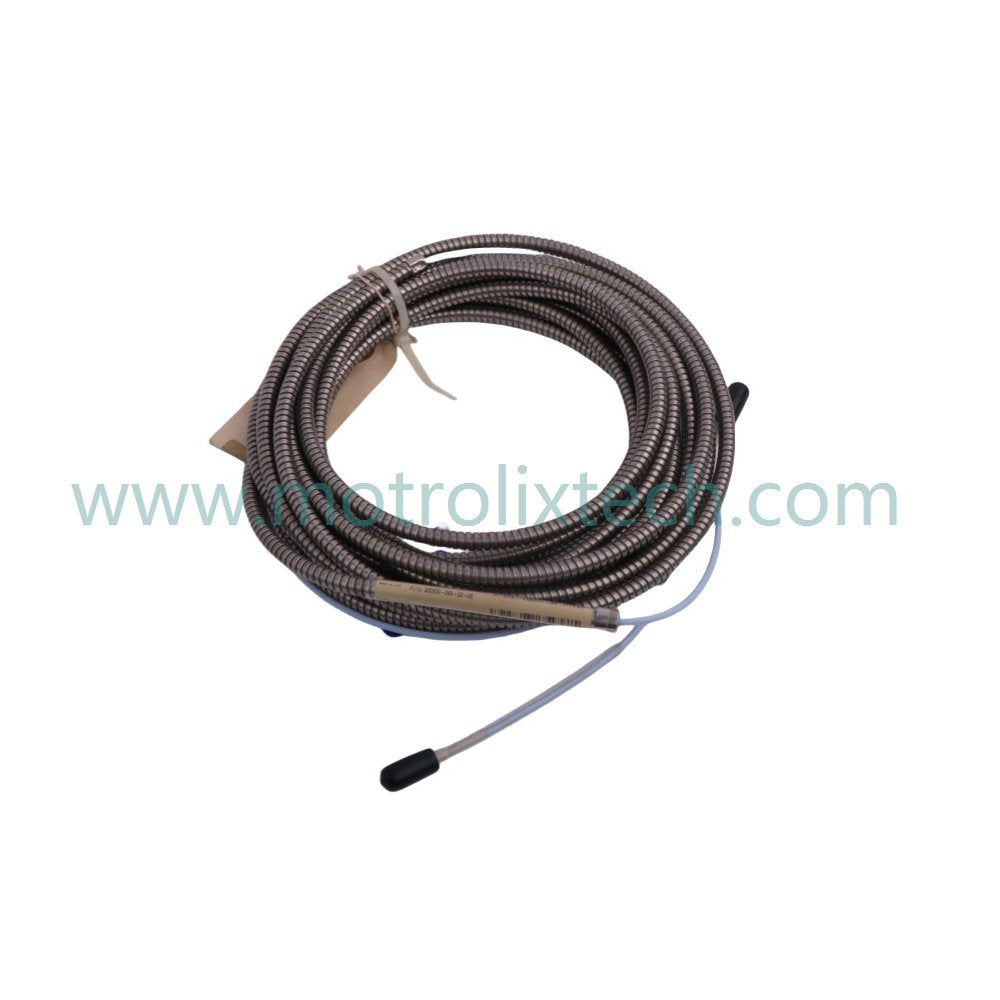

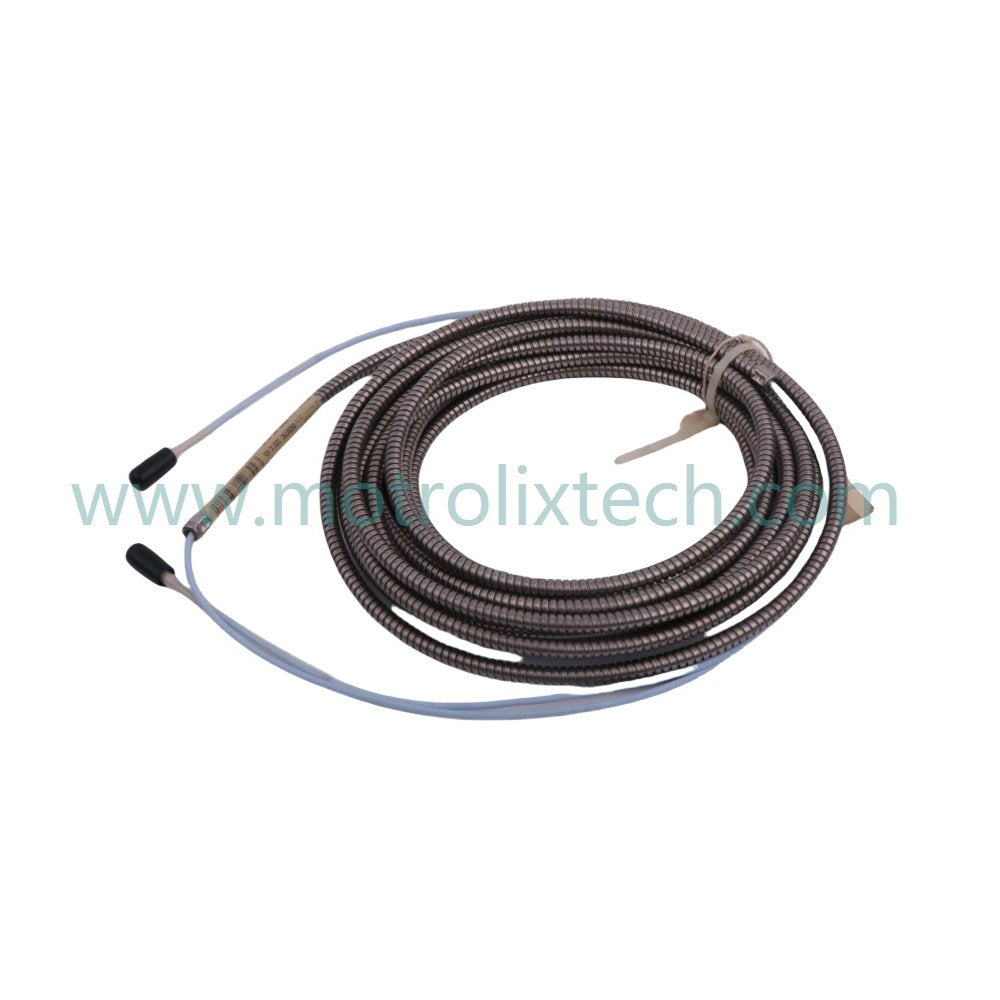

The Bently Nevada 330930-065-02-00 Extension Cable is specifically designed for the 3300 XL NSv Proximity Transducer System, playing a crucial role in machinery monitoring, particularly when standard transducers cannot be installed due to space constraints. This cable excels in environments such as centrifugal compressors, refrigeration compressors, and process gas compressors, ensuring accurate vibration and position measurements even in tight installations.
With a generous length of 6.5 meters (21.3 feet), this extension cable provides excellent flexibility for monitoring small-diameter shafts (under 51 mm) and narrow targets (under 15 mm). The cable's design incorporates a stainless steel armored option for enhanced durability, allowing for reliable performance in demanding industrial settings.
The model number 330930-065-02-00 contains specific identifiers relevant to its design and capabilities:
330930: Identifies the specific series focused on the extension capabilities for the 3300 XL Proximity Transducer System.
065: Indicates the cable length, providing a flexible solution for various applications.
02: Represents unique features pertaining to the build or specifications of the extension cable.
00: Indicates compliance with the latest industry standards without additional approvals required for deployment.
| Parameter | Specification |
|---|---|
| Model Number | 330930-065-02-00 |
| Module Type | Extension Cable |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.55 kg |
| HS CODE | 8537101190 |
| Dimensions | 20.5 x 22.4 x 3.3 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 6.5 meters (21.3 feet) |
| Average Scale Factor | 200 mV/mil (7.87 V/mm) |
| Performance Features | Enhanced chemical resistance |
| Interchangeability | Compatible with previous Bently Nevada 3300 RAM probe systems |
To maximize the performance of the Bently Nevada 330930-065-02-00 Extension Cable, follow these installation guidelines:
Secure Installations: Ensure all connections are tight and utilize the connector protector to prevent moisture and contamination.
Maintain Installation Gaps: Keep appropriate gaps during installation to facilitate readings and maintenance.
Cable Management: Avoid sharp bends or stress points on the cable to mitigate wear and maintain signal integrity.
Electrostatic Discharge Precautions: Handle the cable with care, as it is designed to withstand electrostatic discharge, but best practices should be followed.
The Bently Nevada 330930-065-02-00 Extension Cable offers numerous benefits tailored for industrial monitoring applications:
Flexibility in Design: Its 6.5-meter cable length allows effective monitoring of hard-to-reach areas and small-diameter shafts, ensuring precise measurements.
Robust Durability: The stainless steel armored option enhances protection, making it suitable for challenging environments with potential mechanical abuse.
Interchangeability and Compatibility: The extension cable is fully compatible with previous Bently Nevada systems, ensuring seamless integration without the need for calibration.
High-Performance Capability: Designed to support vibration and position measurements with an impressive average scale factor, ensuring that it meets the needs of industrial applications.
Overall, the Bently Nevada 330930-065-02-00 Extension Cable is a reliable and efficient solution for effective condition monitoring, ideal for maintenance programs across petrochemical, power generation, and other heavy industries.
Q1: What applications is the Bently Nevada 330930-065-02-00 Extension Cable suitable for?
A1: This extension cable is ideal for use in centrifugal compressors, refrigeration compressors, and process gas compressors, enabling accurate measurements in tight installations.
Q2: How does the scale factor affect performance?
A2: The scale factor of 200 mV/mil ensures that the extension cable provides accurate signal transmission for both vibration and position monitoring.
Q3: Is the extension cable compatible with older models?
A3: Yes, it is compatible with previous Bently Nevada 3300 RAM probe systems and can replace older 3000/7000-series models without requiring additional approvals.
Q4: What should I consider during installation?
A4: Ensure that all connections are secure, maintain specified installation gaps, manage cable routing carefully, and observe precautions for electrostatic discharge to preserve performance.
Q5: Does this cable require further agency approvals for usage?
A5: No, the design of the Bently Nevada 330930-065-02-00 Extension Cable does not require additional agency approvals, simplifying deployment in various industrial scenarios.
