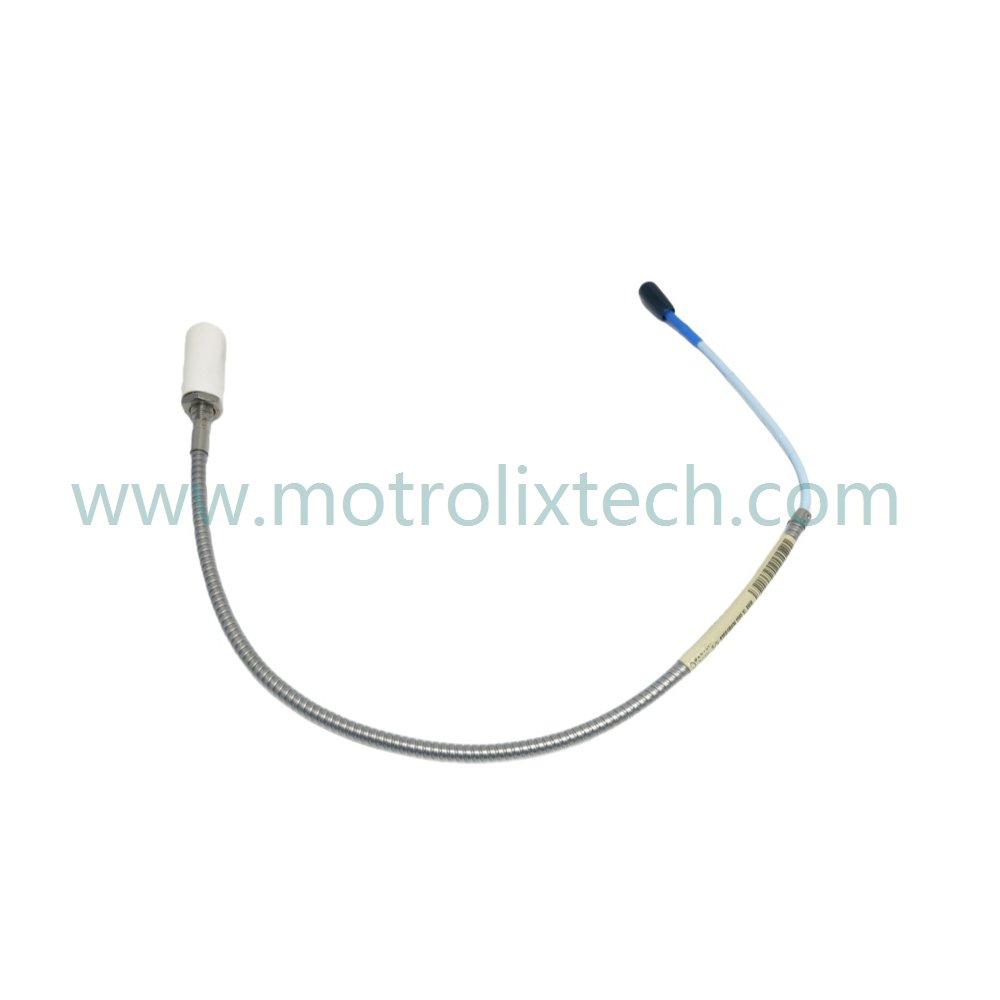

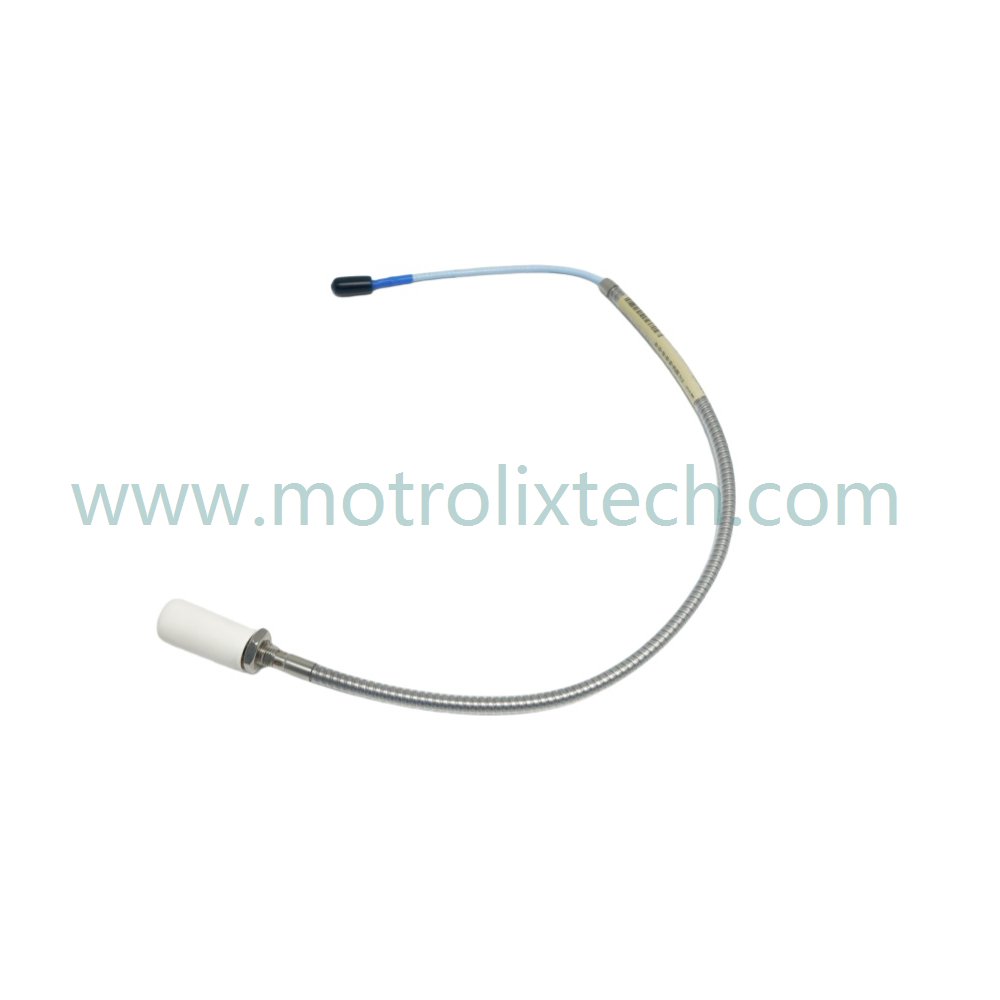

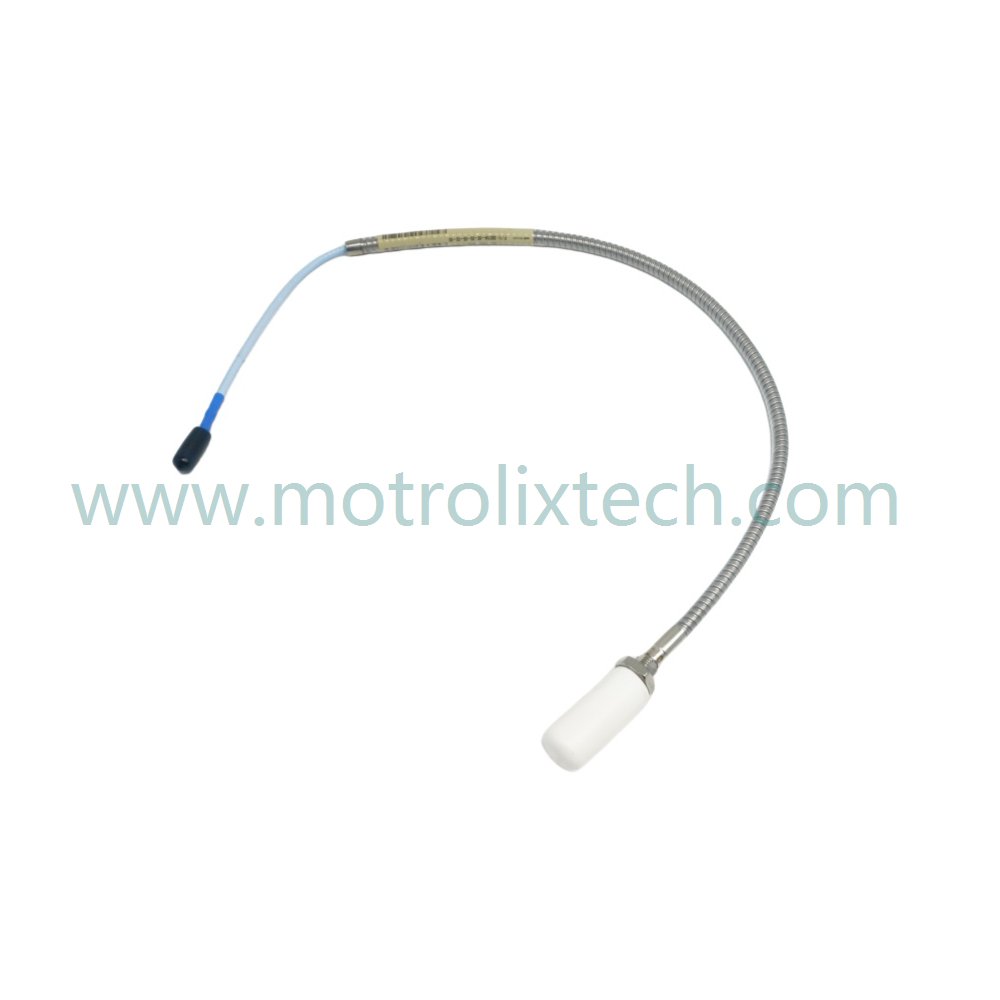

The Bently Nevada 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probe is engineered for high-precision vibration and displacement monitoring in industrial machinery. This probe is essential for applications involving large rotating machinery, such as turbines and reciprocating compressors, where accurate measurements are critical for predictive maintenance and safeguarding equipment health.
Designed with an M10 x 1 threaded connection and a minimum case length of 60 mm, this probe offers versatile installation options, particularly in compact spaces. The robust 1.0-meter (3.3 feet) armored cable comes equipped with a ClickLoc miniature coaxial connector, ensuring secure connections that reduce installation time and enhance long-term reliability. The advanced construction of the 3300 XL series guarantees exceptional performance even in harsh operating conditions.
The model number 330104-00-03-10-01-00 can be analyzed as follows:
330104: Identifies the specific model within the Bently Nevada 3300 series.
00: Represents standard features for this model.
03: Indicates a specific feature or configuration related to installation or measurement.
10: Refers to the cable length of 1.0 meter (3.3 feet).
01: Denotes additional specifications relevant to this model.
00: Indicates the module version or revision number.
| Parameter | Specification |
|---|---|
| Model Number | 330104-00-03-10-01-00 |
| Module Type | 3300 XL 8 mm Proximity Probes |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 XL Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.08 kg |
| HS CODE | 8537101190 |
| Dimensions | 2.0 x 1.5 x 58 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 1.0 meter (3.3 feet) |
| Thread Size | M10 x 1 |
To ensure optimal performance of the Bently Nevada 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probe, follow these installation recommendations:
Secure Mounting: Ensure proper mounting to prevent misalignment and to maintain measurement accuracy.
Cable Management: Route the armored cable carefully to avoid sharp bends or pull stresses that could lead to failure.
Utilize ClickLoc Connectors: The ClickLoc connector simplifies installation and creates a secure electrical connection that ensures reliable performance.
Electrical Safety Precautions: Implement necessary ESD (electrostatic discharge) protections during installation to safeguard the probe and associated equipment.
The Bently Nevada 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probe presents several advantages for industrial applications:
High Precision Monitoring: This probe excels in providing accurate non-contact measures of vibration and position essential for effective machinery diagnostics.
Durable Construction: The robust design, including an armored cable and reliable connectors, ensures consistent performance in demanding environments.
Flexible Installation Options: Compatible with traditional panel mounts, the probe easily integrates into existing setups without requiring recalibration.
User-Friendly Features: The Miniature ClickLoc connector is designed to prevent accidental disconnections, enhancing operational reliability.
Q1: What types of machinery is the Bently Nevada 330104-00-03-10-01-00 Probe best suited for?
A1: This probe is ideal for monitoring large rotating machinery, including turbines and reciprocating compressors, ensuring accurate vibration and position data.
Q2: How does the ClickLoc connector enhance installation?
A2: The ClickLoc connector ensures a secure fit and easy connection, reducing installation time and preventing unintentional disconnections during operation.
Q3: What is the significance of the M10 x 1 thread size?
A3: The M10 x 1 thread size allows for versatile mounting options, accommodating various installation requirements in tight spaces.
Q4: How does the probe maintain its performance in harsh environments?
A4: The probe's armored cable and robust construction are designed to withstand high levels of vibration and exposure to industrial conditions, ensuring reliable monitoring.
Q5: Does this probe require recalibration when installed in existing systems?
A5: No, the 330104-00-03-10-01-00 probe is designed to be backward compatible with traditional mounts, allowing for seamless integration without recalibration.
