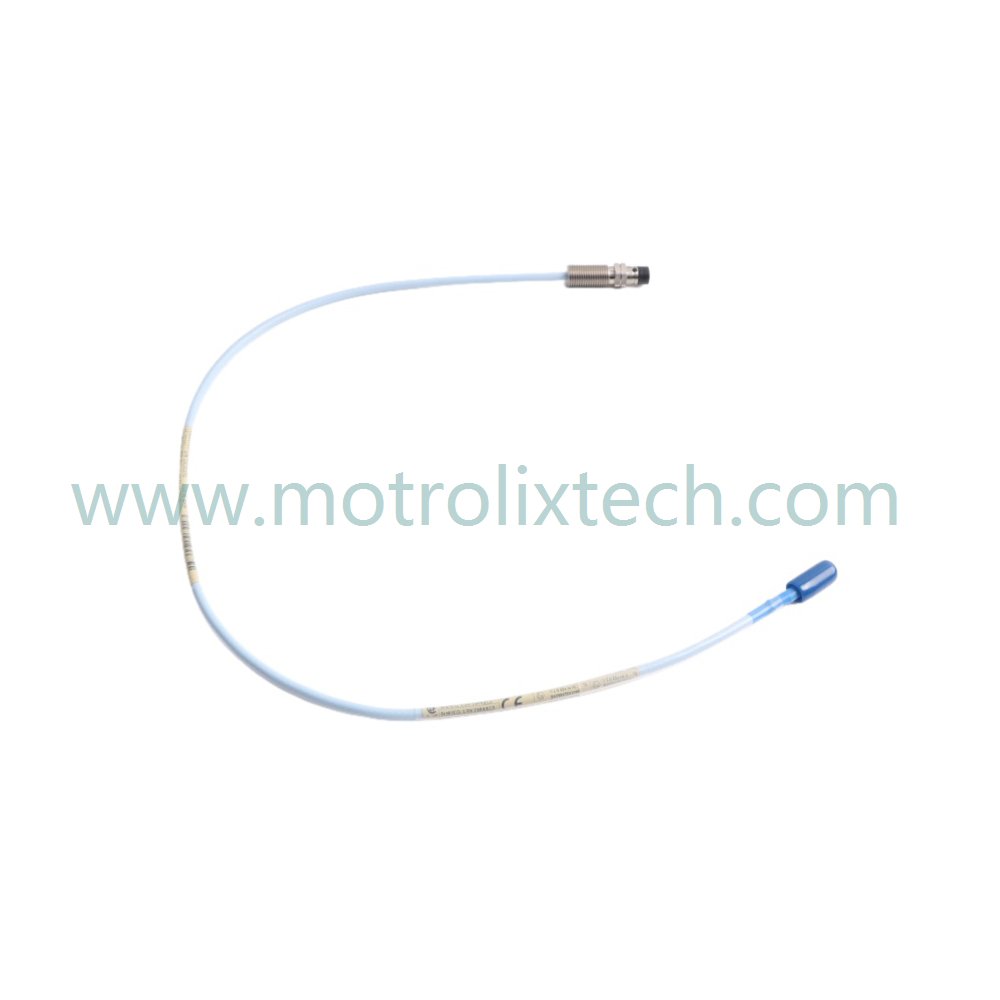

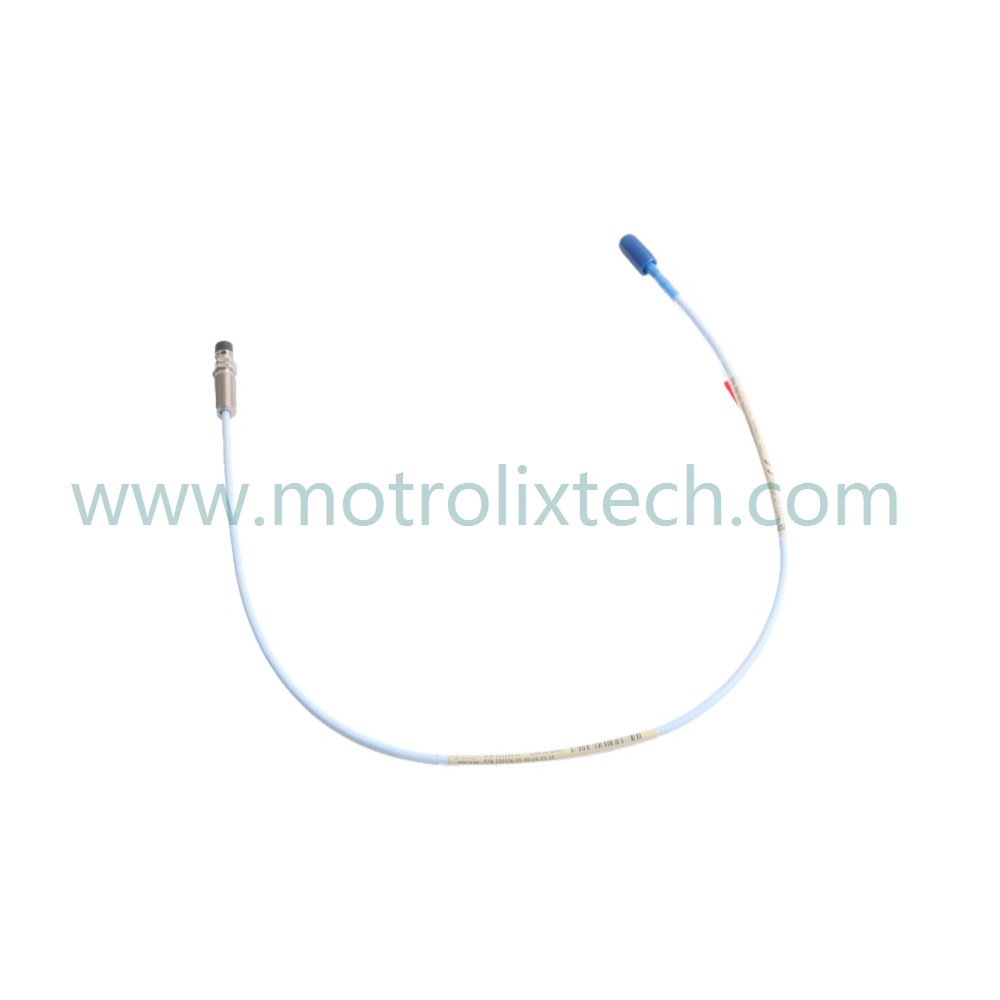

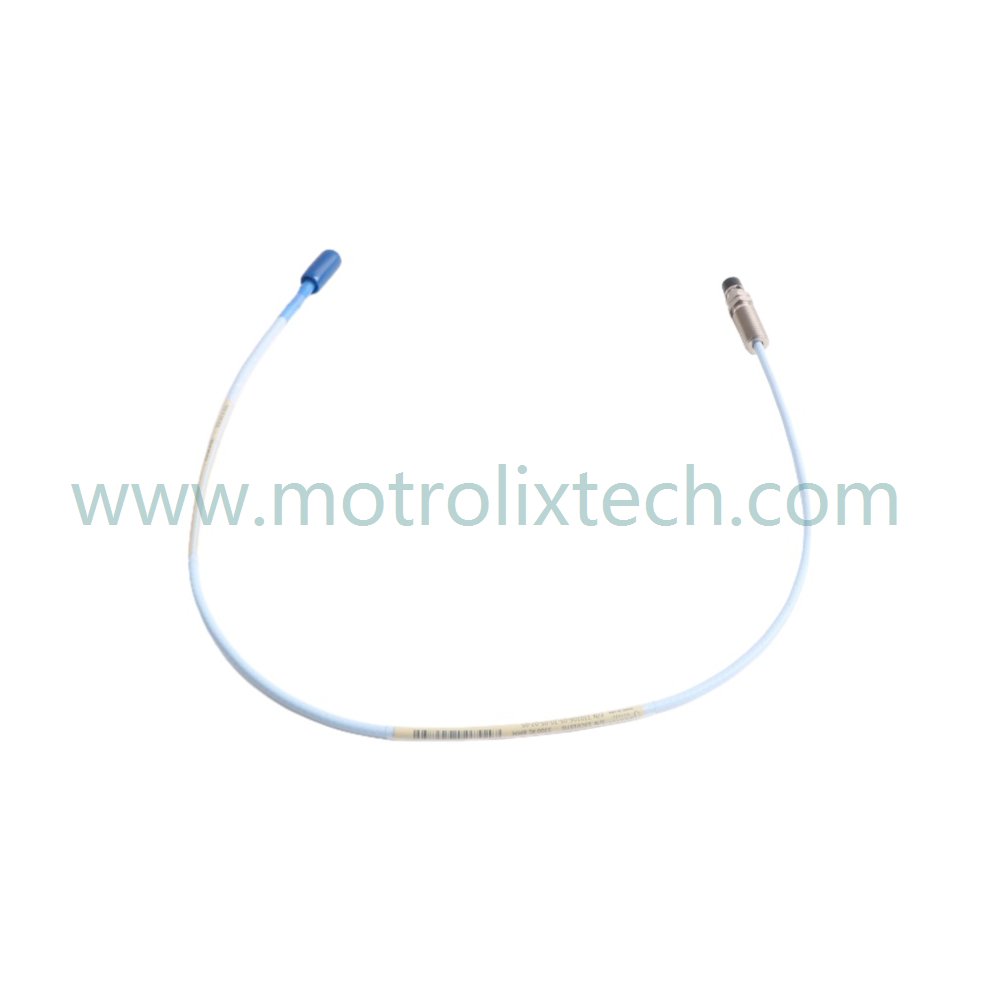

The Bently Nevada 330106-05-30-05-02-05 3300 XL 8 mm Reverse Mount Probes are specifically designed for high reliability in industrial machinery monitoring applications. These precision probes enable accurate measurements of vibration and displacement in critical rotating machinery, such as turbines and reciprocating compressors. With a robust design and advanced non-contact measurement capabilities, the probes ensure high precision and durability in demanding environments.
Utilizing an M10 x 1 threaded body, this probe offers easy installation and stability. The combination of a durable A308 aluminum construction and advanced connector technology makes it an ideal choice for maintaining the integrity of your machinery condition monitoring systems.
The model number 330106-05-30-05-02-05 provides specific information regarding its features:
330106: Identifies the specific series within the Bently Nevada 3300 XL range.
05: Indicates a particular design variant or configuration.
30: Refers to the case length in millimeters.
05: Represents the diameter of the probe in millimeters.
02: Suggests additional specifications pertinent to operational capabilities or enhancements.
05: Reflects compatibility with existing systems and functionality in various settings.
| Parameter | Specification |
|---|---|
| Model Number | 330106-05-30-05-02-05 |
| Module Type | 3300 XL 8 mm Reverse Mount Probe |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.06 kg |
| HS CODE | 8537101190 |
| Dimensions | 1.8 x 1.6 x 123 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Cable Length | 0.5 meters (1.6 feet) |
| Thread Type | M10 x 1 |
| Maximum Connector Torque | 0.565 N·m (5 in·lbf) |
| Certifications | CSA, ATEX, IECEx |
To ensure optimal performance and reliability of the Bently Nevada 330106-05-30-05-02-05 Proximity Probes, adhere to these installation guidelines:
Secure Mounting: Ensure correct use of the M10 x 1 thread for stable mounting, facilitating precise positioning of the probe.
Cable Management: The probe comes with a 0.5-meter cable featuring a miniature ClickLoc coaxial connector. Manage cable routing carefully to prevent bends that could compromise signal integrity.
Installation Gaps: Maintain appropriate installation gaps as specified in the guidelines to allow for accurate measurements.
Torque Requirements: Apply the specified maximum torque of 0.565 N·m (5 in·lbf) during installation to secure the connector firmly without damaging it.
The Bently Nevada 330106-05-30-05-02-05 Proximity Probes offer numerous advantages for industrial monitoring applications:
Robust Design: Constructed from durable A308 aluminum, these probes withstand harsh industrial environments, ensuring long-term reliability.
High Precision Measurements: Designed for measuring vibration and displacement, they enable high-accuracy monitoring critical for predictive maintenance.
Environmental Certifications: Certified with CSA, ATEX, and IECEx approvals, these probes can be used safely in hazardous environments globally.
Compact and Lightweight: Weighing only 0.06 kg and with a slim design, these probes are easy to install and integrate into various machinery without requiring additional space.
Q1: What applications are the Bently Nevada 330106-05-30-05-02-05 Proximity Probes suitable for?
A1: These probes are ideal for vibration and displacement monitoring in critical rotating machinery such as turbines and reciprocating compressors.
Q2: How do the ClickLoc connectors enhance the installation process?
A2: The ClickLoc connectors ensure a secure connection with minimal effort, requiring only finger-tight torque to fasten, eliminating the need for special tools.
Q3: Is this probe compatible with older Bently Nevada models?
A3: Yes, the probe is designed to be compatible with existing Bently Nevada systems, offering flexibility for upgrades without altering the entire system.
Q4: What benefits do the CSA, ATEX, and IECEx certifications provide?
A4: These certifications ensure that the probes meet stringent safety and operational standards, making them suitable for use in hazardous environments worldwide.
Q5: How does the robust aluminum construction benefit the probe's performance?
A5: The durable aluminum construction enhances resistance to wear and tear, ensuring long-lasting reliability and accurate measurements in demanding conditions.
