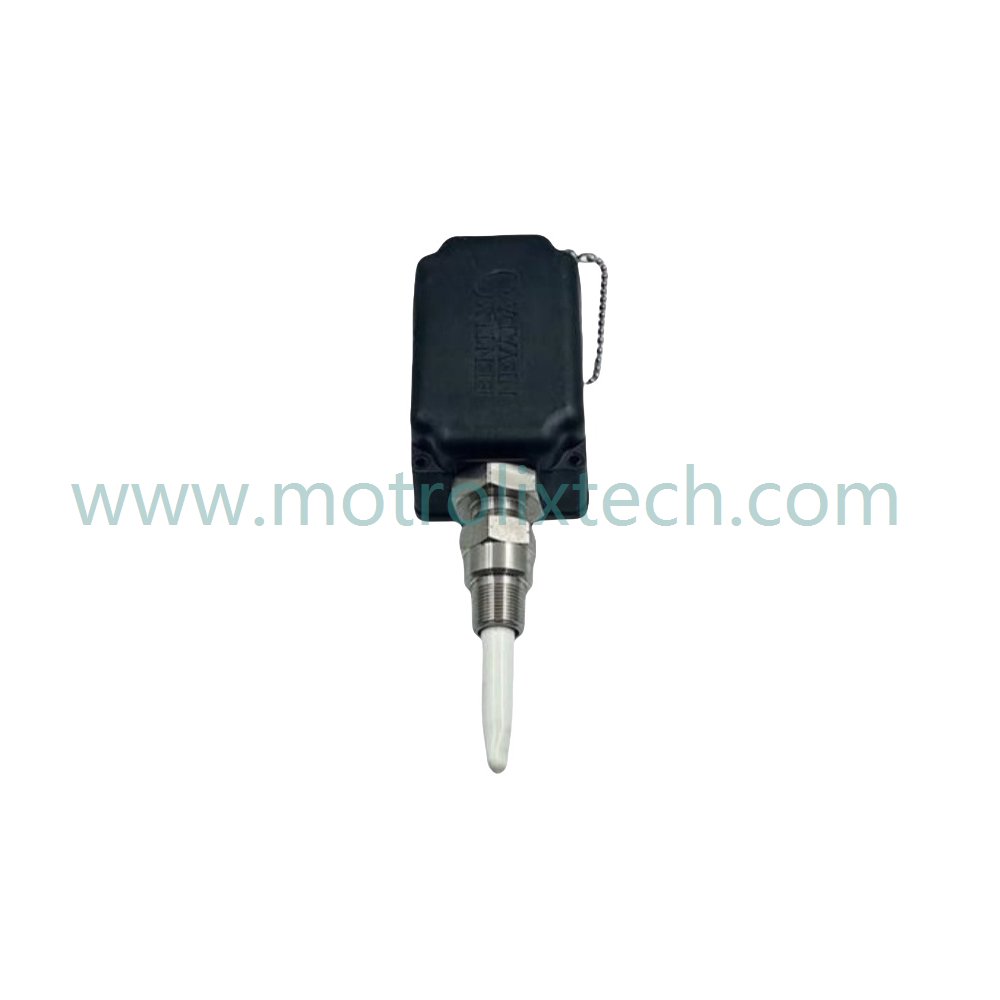

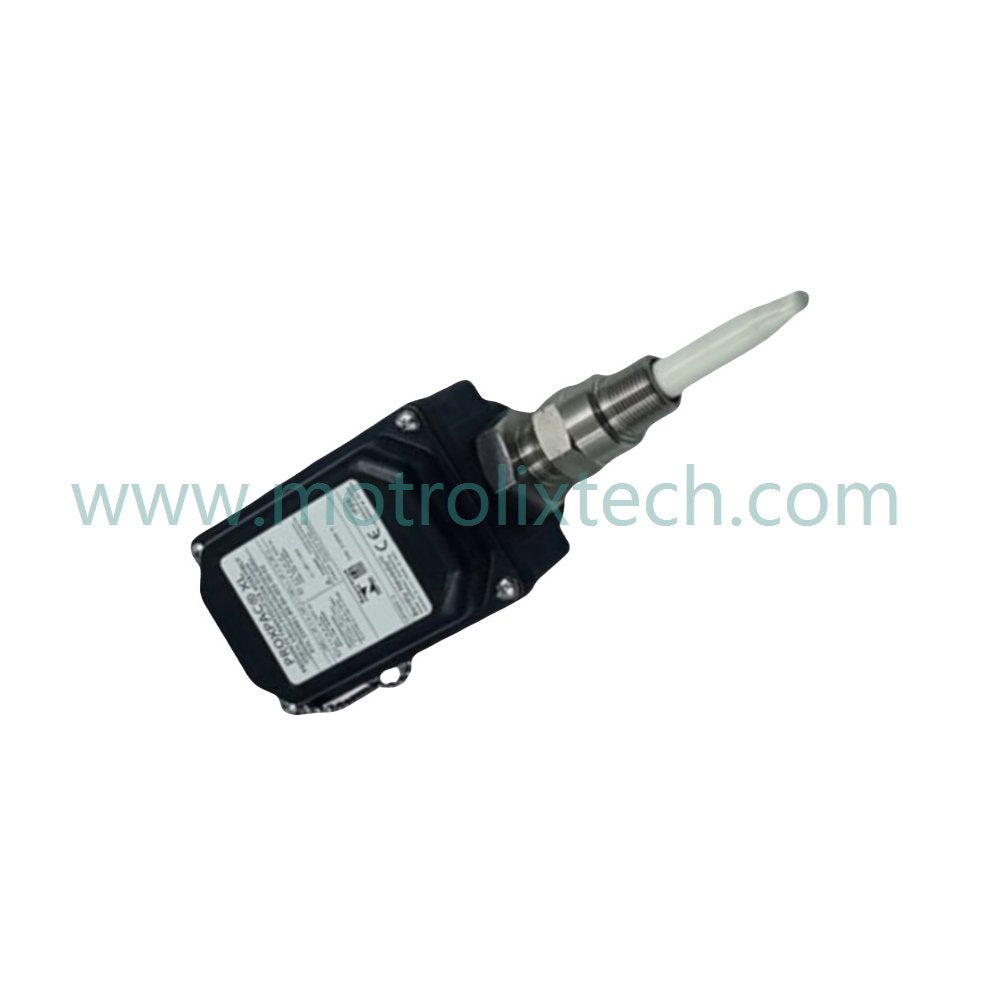

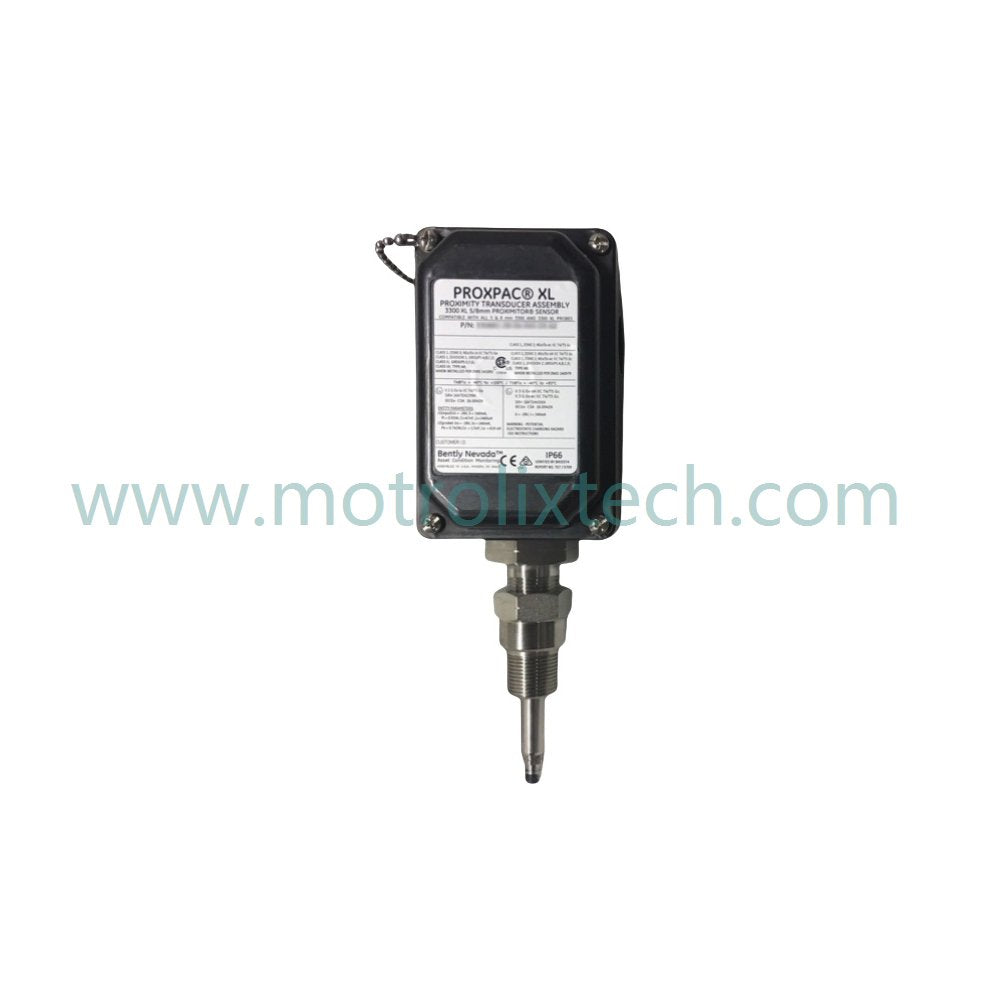

The Bently Nevada 330881-28-04-080-03-02 PROXPAC XL Proximity Transducer is engineered for high-precision measurement in critical industrial applications. This innovative assembly integrates directly within a self-contained proximity probe system, eliminating the need for external extension cables and separate Proximitor enclosures. It plays a vital role in monitoring large rotating machinery, such as turbines and reciprocating compressors, by providing reliable data for vibration analysis and machine health monitoring.
Constructed with a robust housing made from glass-reinforced Polyphenylene Sulfide (PPS), this transducer delivers exceptional strength and electrostatic charge dissipation. Its compact design and advanced integration facilitate simplified installation and maintenance, making it suitable for severe operating environments where traditional systems may fall short.
The model number 330881-28-04-080-03-02 can be broken down as follows:
330881: Indicates the specific model within the Bently Nevada product line.
28: Represents specific design or configuration features of the proximity transducer.
04: Refers to the type of probe or voltage ratings applicable to this model.
080: Denotes critical dimensions or measurement features like penetration depth.
03: Suggests variations in fittings or assembly characteristics.
02: Indicates the revision or iteration of this particular model.
| Parameter | Specification |
|---|---|
| Model Number | 330881-28-04-080-03-02 |
| Module Type | PROXPAC XL Proximity Transducer |
| Manufacturer | Bently Nevada |
| Condition | Brand New |
| Range of Product | 3300 Proximity Transducer System |
| Lead Time | In Stock |
| Weight | 0.06 kg |
| HS CODE | 8537101190 |
| Dimensions | 1.8 x 1.6 x 123 cm |
| Minimum Order Quantity (MOQ) | 1 |
| Product Origin | USA |
| System Compatibility | TSI |
| Discontinued | Active |
| Communication Service | Ethernet router |
| Protection Rating | Type 4X, IP66 |
| Probe Diameter | 8 mm |
| Standoff Adapter | 40 mm |
| Probe Penetration | 80 mm |
| Mounting Threads | M20 fitting and 3/4-14 NPT |
For optimal performance of the Bently Nevada 330881-28-04-080-03-02 PROXPAC XL Proximity Transducer, adhere to the following installation recommendations:
Secure Mounting: Use the M20 fitting to ensure the transducer is securely mounted, preventing any misalignment that could affect measurement accuracy.
Cable Management: Avoid sharp bends or stretches to the I/O connections to prevent damage and maintain signal integrity.
Electrical Connections: Utilize direct field wiring connections to reduce installation complexity and enhance the reliability of connections under industrial conditions.
Environment Controls: Ensure installation in environments compliant with the specified IP66 rating to prevent ingress of dust and water that could damage the assembly.
The Bently Nevada 330881-28-04-080-03-02 PROXPAC XL Proximity Transducer provides distinct advantages for users in industrial sectors:
Robust Design: Constructed with PPS reinforced with glass and conductive fibers, this transducer withstands harsh conditions while providing electrostatic discharge protection.
Simplified Installation: The integrated design eliminates the need for external components, reducing potential failure points and streamlining wiring and installation processes.
Compatibility: Designed to maintain backward compatibility with previous models, it facilitates easy upgrades to existing systems without loss of functionality.
Enhanced Reliability: By consolidating the transducer and sensor into a single unit, it minimizes vulnerabilities inherent in traditional setups, ensuring dependable performance for critical monitoring tasks.
Q1: What type of machinery is the Bently Nevada 330881-28-04-080-03-02 suitable for?
A1: This proximity transducer is ideal for monitoring large rotating equipment, such as turbines and compressors, providing essential vibration analysis and machine health data.
Q2: How does the integrated design benefit installation?
A2: The integration of the Proximitor sensor within the transducer housing simplifies installation by eliminating the need for separate extension cables and enclosures, allowing direct connections for quicker setup.
Q3: What environmental ratings does this transducer have?
A3: The transducer has a Type 4X and IP66 rating, ensuring it is resistant to dust and moisture, making it suitable for harsh industrial environments.
Q4: Can the Bently Nevada 330881-28-04-080-03-02 be used to replace older models?
A4: Yes, this model is designed to maintain backward compatibility, making it a suitable replacement for older proximity monitoring systems.
Q5: What are the installation requirements for the transducer?
A5: Ensure the transducer is mounted securely using the M20 fitting. Maintain proper cable management for I/O connections, and install in environments that meet the specified environmental ratings to ensure optimal performance.
