Product Overview:

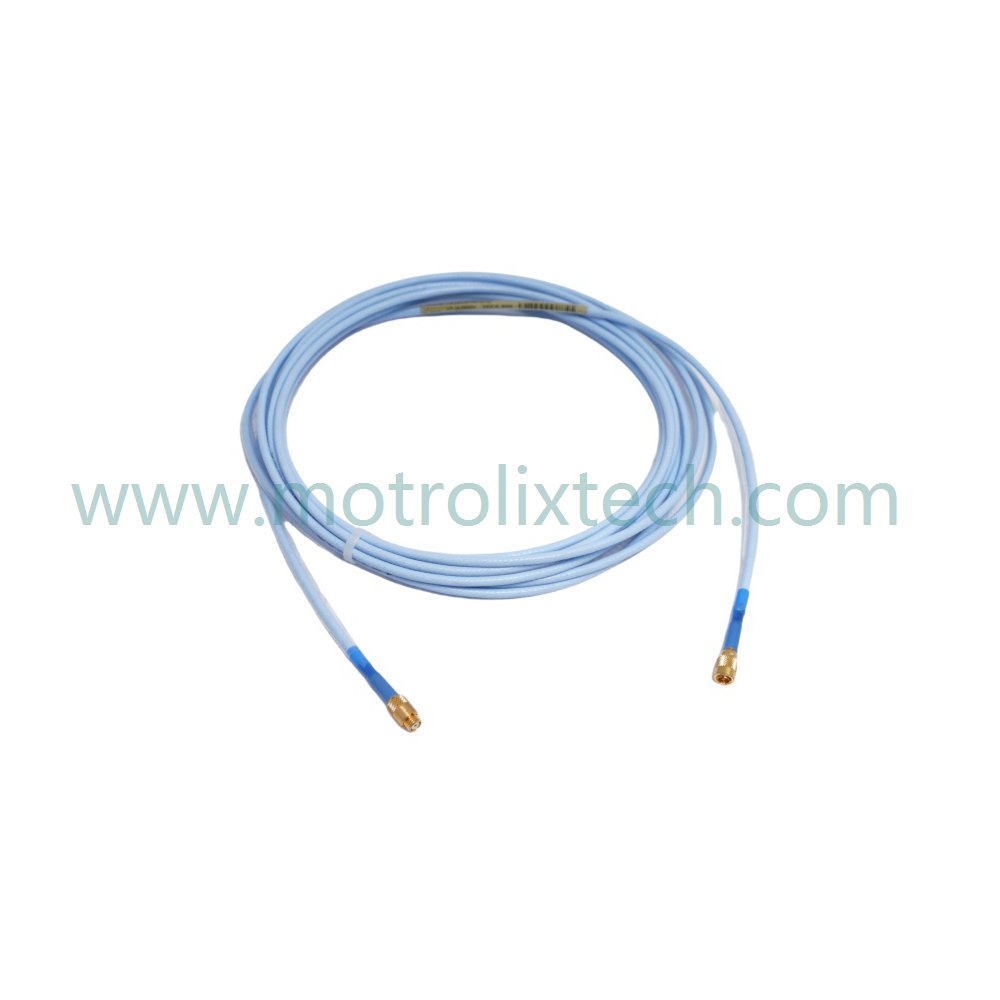

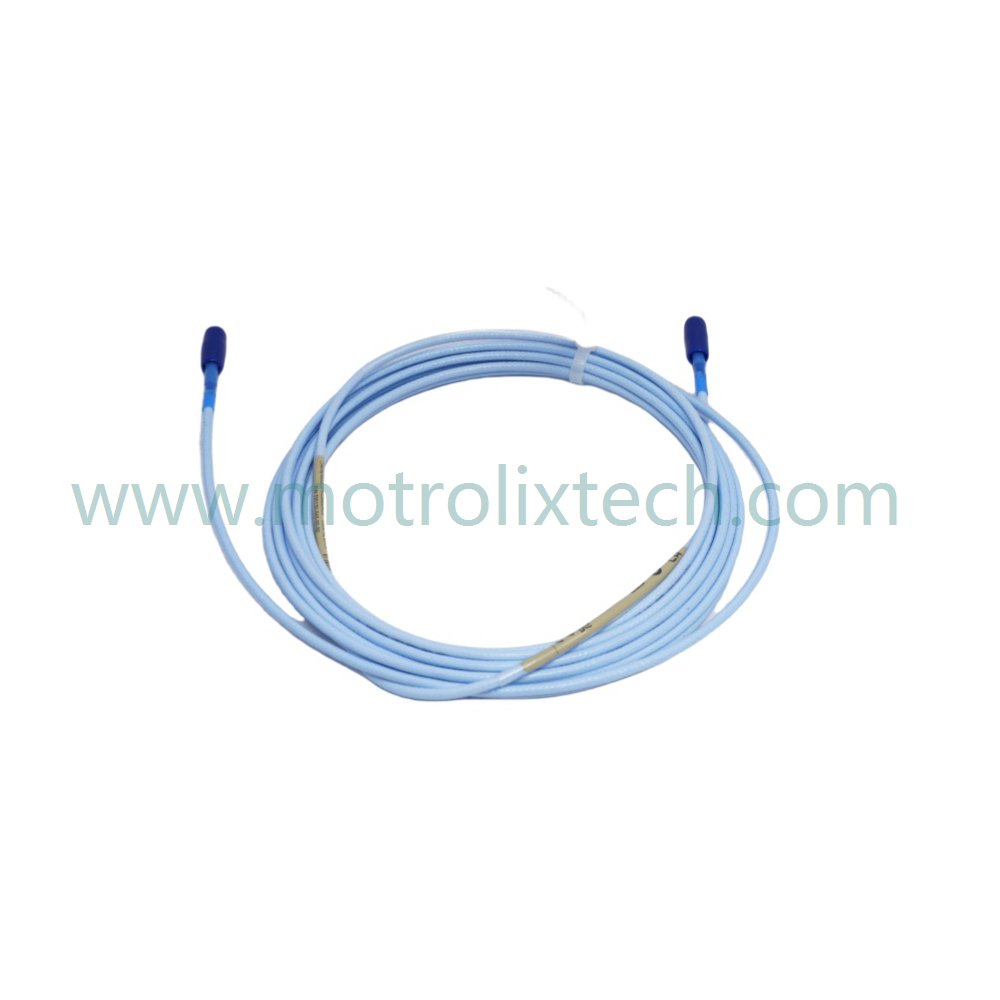

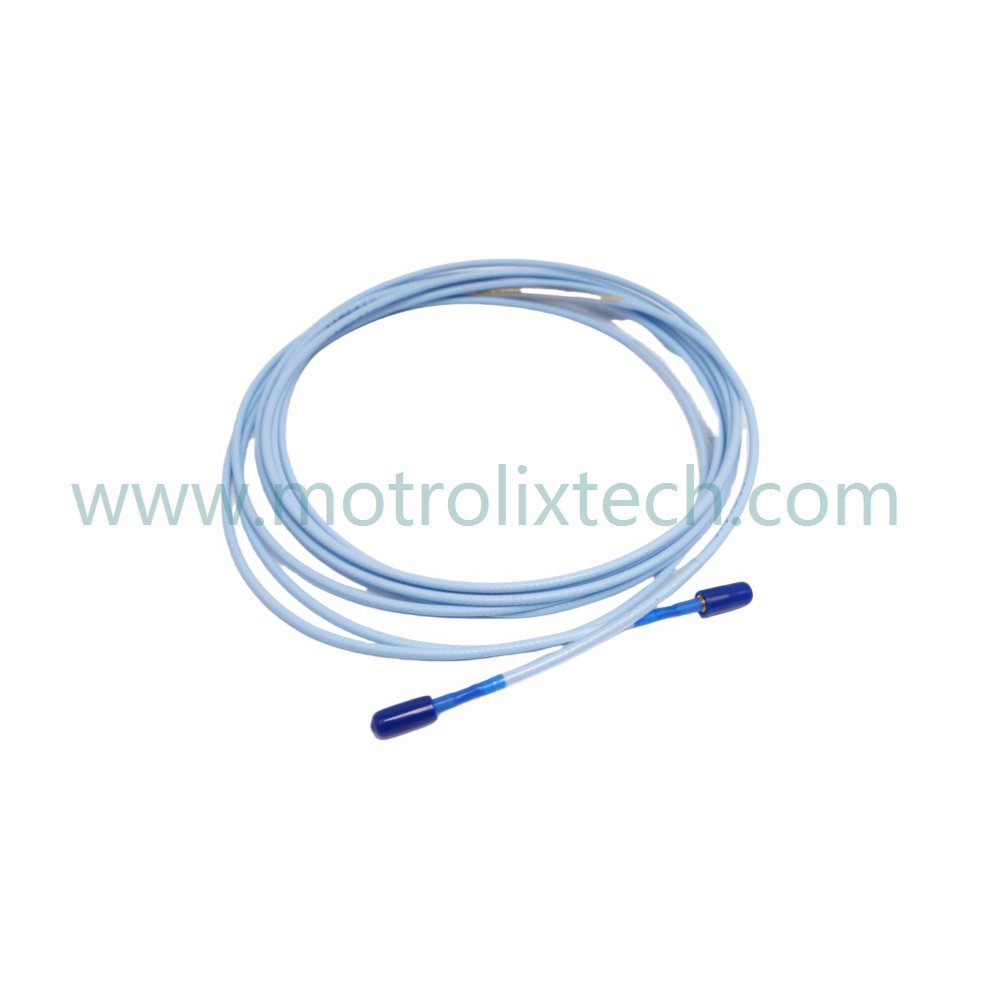

The Bently Nevada 330130-045-00-00 3300 XL Extension Cable is a vital component designed for the Bently Nevada 3300 XL system, providing reliable signal transmission between proximity probes and monitoring equipment. This high-performance extension cable ensures accurate data transfer in demanding industrial environments, thanks to its robust construction that withstands extreme temperatures and mechanical stress. The cable’s design prioritizes signal integrity, making it essential for precise machinery monitoring while facilitating easy integration into both new and existing protection systems.

With high-purity copper conductors for optimal electrical conductivity and a fiber braid shield to protect against electromagnetic interference, the 330130-045-00-00 extension cable offers stable performance even in high-vibration settings. Its flame-retardant PVC insulation ensures safety in harsh thermal conditions, while the color-coded design simplifies installation and maintenance.

Technical Specifications:

• Manufacturer: Bently Nevada

• Model Number: 330130-045-00-00

• Module Type: Extension Cable

• System Compatibility: 3300 XL 8 mm Proximity Transducer System

• Conductor Material: High-purity copper

• Insulation Material: Flame-retardant PVC

• Operating Temperature Range: -40°C to +85°C

• Voltage Rating: 1000V

• Product Status: Active

• Origin: USA

• Weight: 0.16 kg

• Dimensions: 20 x 20 x 1.5 cm

• HS Code: 8537101190

Model Code Breakdown:The model number 330130-045-00-00 can be dissected as follows:

• 330130: Indicates the specific product family within the Bently Nevada line, focusing on extension cables compatible with the 3300 XL series.

• 045: Refers to specific design features and configurations that enhance the cable's functionality and durability.

• 00: Signifies a standard version of the cable without custom modifications, ensuring compatibility across a range of applications.

Installation Recommendations and Wiring Guide:To achieve optimal performance with the Bently Nevada 330130-045-00-00 Extension Cable, follow these guidelines:

1. Select an Appropriate Location: Position the cable away from sources of potential mechanical stress and interference to maintain signal integrity.

2. Secure the Cable: Use appropriate cable management solutions to avoid pinching or crushing, which could affect performance over time.

3. Connect to Proximity Probes: Ensure that the cable is properly connected to 8 mm proximity probes and adhere to color-coded connectors for accurate installations.

4. Conduct Testing: After connection, test the cable for proper signal transmission before finalizing installation to ensure reliability and data accuracy.

Frequently Asked Questions (FAQ):

• Q: What is the primary function of this extension cable?
  A: The cable transmits signals from 8 mm proximity probes to the monitoring system, ensuring data accuracy for effective machine health assessment.

• Q: Is this cable compatible with all 3300 XL system components?
  A: Yes, it is designed for seamless integration with the Bently Nevada 3300 XL platform and works with standard 8 mm proximity transducers.

• Q: How does the cable perform in high-temperature environments?
  A: The flame-retardant insulation maintains integrity under extreme thermal conditions, ensuring continuous operation in demanding applications.

• Q: What safety certifications does this cable have?
  A: The cable complies with UL, CE, and RoHS standards, ensuring compliance with international safety and environmental requirements.

• Q: Is this product still in active production?
  A: Yes, the 330130-045-00-00 is actively produced and available for immediate shipment from stock.
