Product Overview

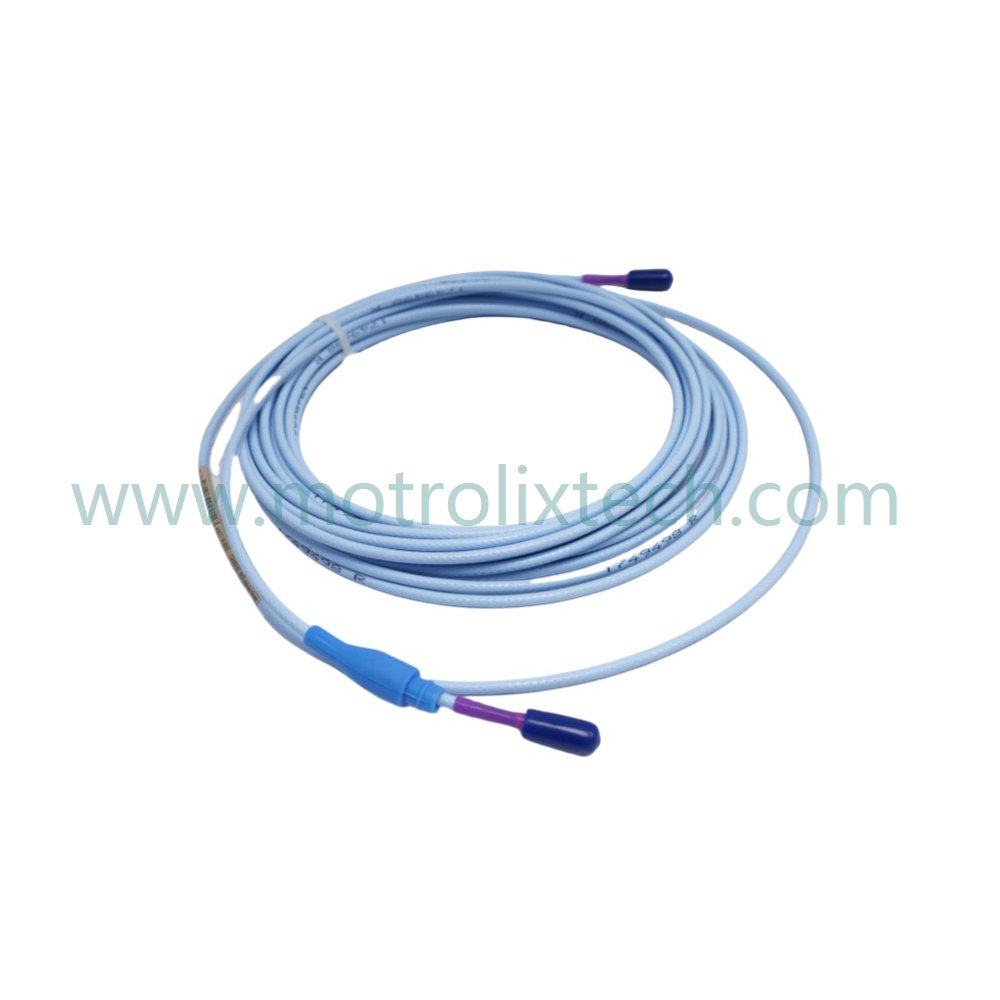

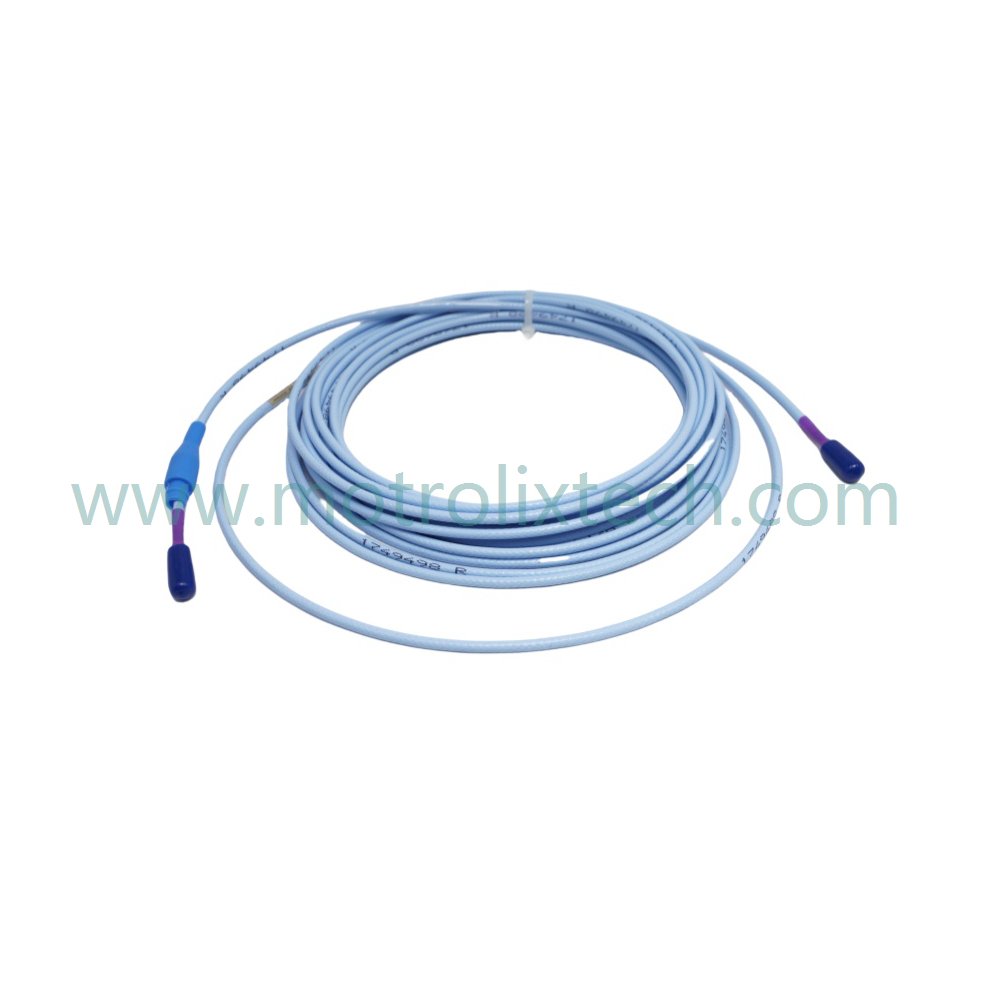

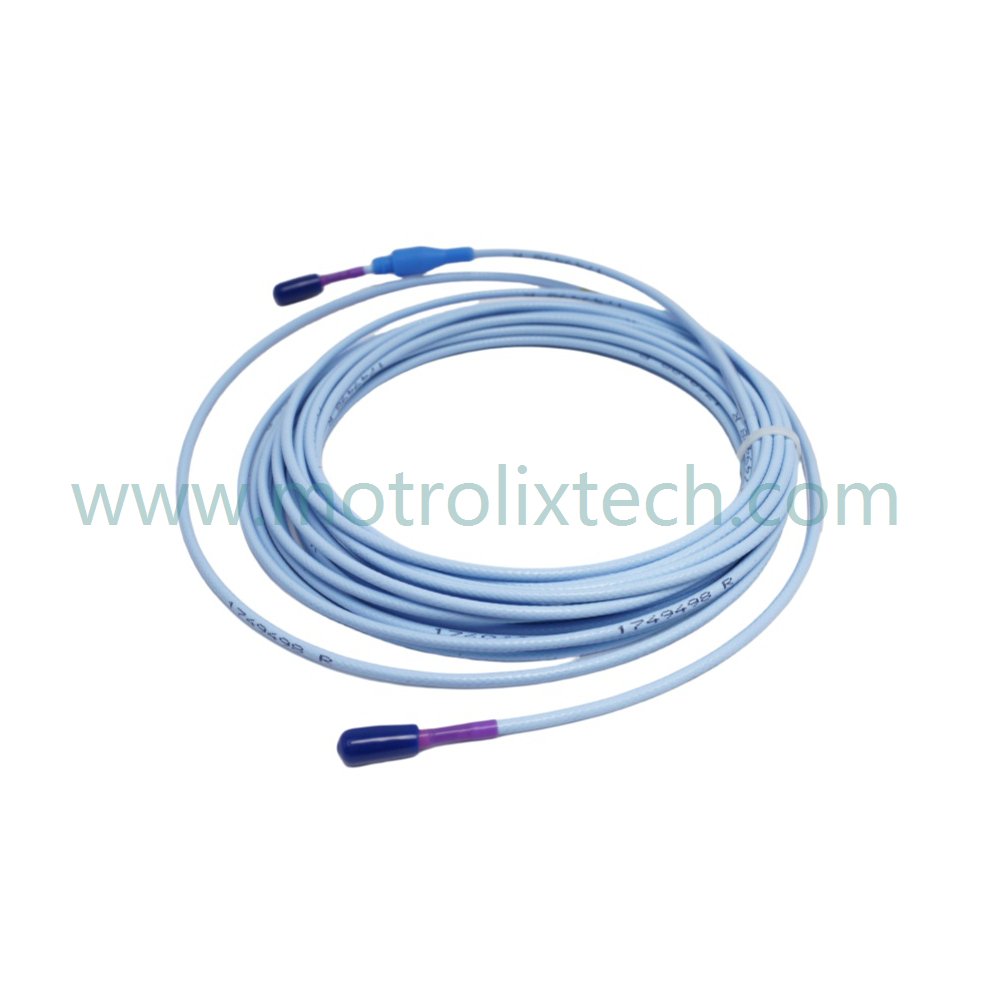

The Bently Nevada 330730-080-03-00 3300 XL 11 mm Extension Cable delivers critical 4-20mA vibration signals within a 0.5-1000 Hz frequency range, complementing the 11 mm proximity transducer system. Designed for harsh industrial environments, it provides comprehensive machinery protection by capturing detailed vibration signatures for turbines, compressors, and other heavy-duty rotating equipment.
Technical Specifications
Model Number: 330730-080-03-00
Product Series: 3300 XL
Module Type: 11 mm Extension Cable
Weight: 0.35 kg
Dimensions: 20.5 × 22.4 × 3.3 cm
Lead Time: In Stock – ready for fast dispatch
HS Code: 8537101190
Product Origin: USA
System Compatibility: Bently Nevada TSI Systems
Communication: Ethernet router compatible
Frequency Range: 0.5 – 1000 Hz
Output Signal: 4-20 mA
Sensitivity: 100 mV/g
Power Input: 18-30 VDC
Environmental Rating: Stainless steel housing, ATEX/IECEx certified for hazardous areas
Applications: Turbines, compressors, axial position, and vibration monitoring
Model Code Breakdown
330730: Base part number for 3300 XL extension cables
-080: Cable length or specific configuration
-03: Cable version or connector type
-00: Factory or regional customization indicator
This code aids accurate identification and compatibility assurance within the 3300 XL family.
Installation Recommendations & Wiring Guide
Mounting: Connect securely to corresponding 11 mm probes; ensure connectors are corrosion-free for optimal signal transmission.
Cable Routing: Avoid high electromagnetic interference areas; use shielded conduits where applicable.
Power Supply: Ensure stable 18-30 VDC supply compatible with system requirements.
Grounding: Ground cable shields properly at instrumentation panel to minimize noise.
Testing: Confirm signal integrity and calibration before commissioning.
FAQ — Common Questions
Q: What does this extension cable do in a monitoring system?
A: It transmits vibration data from 11mm proximity probes, extending system reach while preserving signal fidelity.
Q: Is this an original Bently Nevada product?
A: Yes, it is brand new, genuine, and manufactured to Bently Nevada quality standards.
Q: What environments is it suitable for?
A: Designed for harsh industrial settings, including hazardous areas certified by ATEX/IECEx.
Q: What power supply is required?
A: Operates with an 18-30 VDC power input.
Q: Can it be used with older 3300 systems?
A: Yes, fully compatible with 3300 XL components and adaptable to system upgrades.
For detailed installation support and technical documentation, please consult official Bently Nevada manuals or authorized service partners.
