Overview

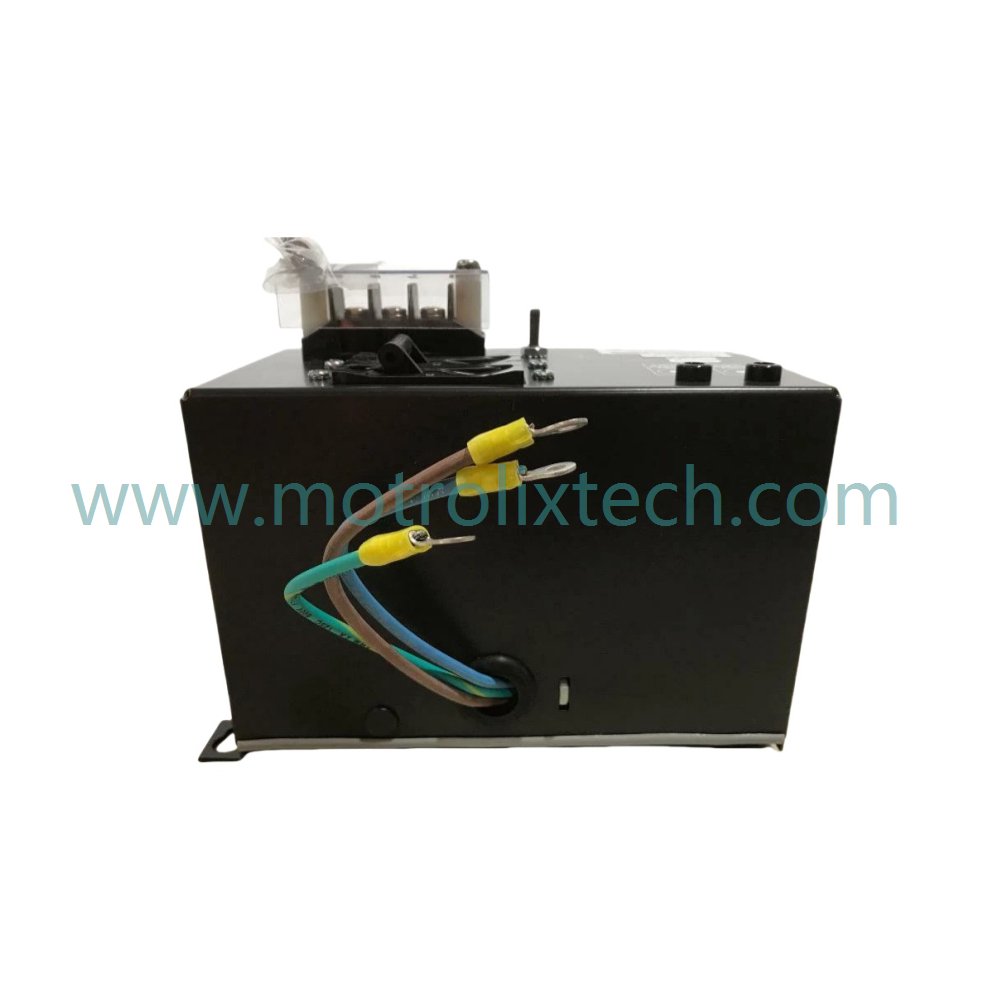

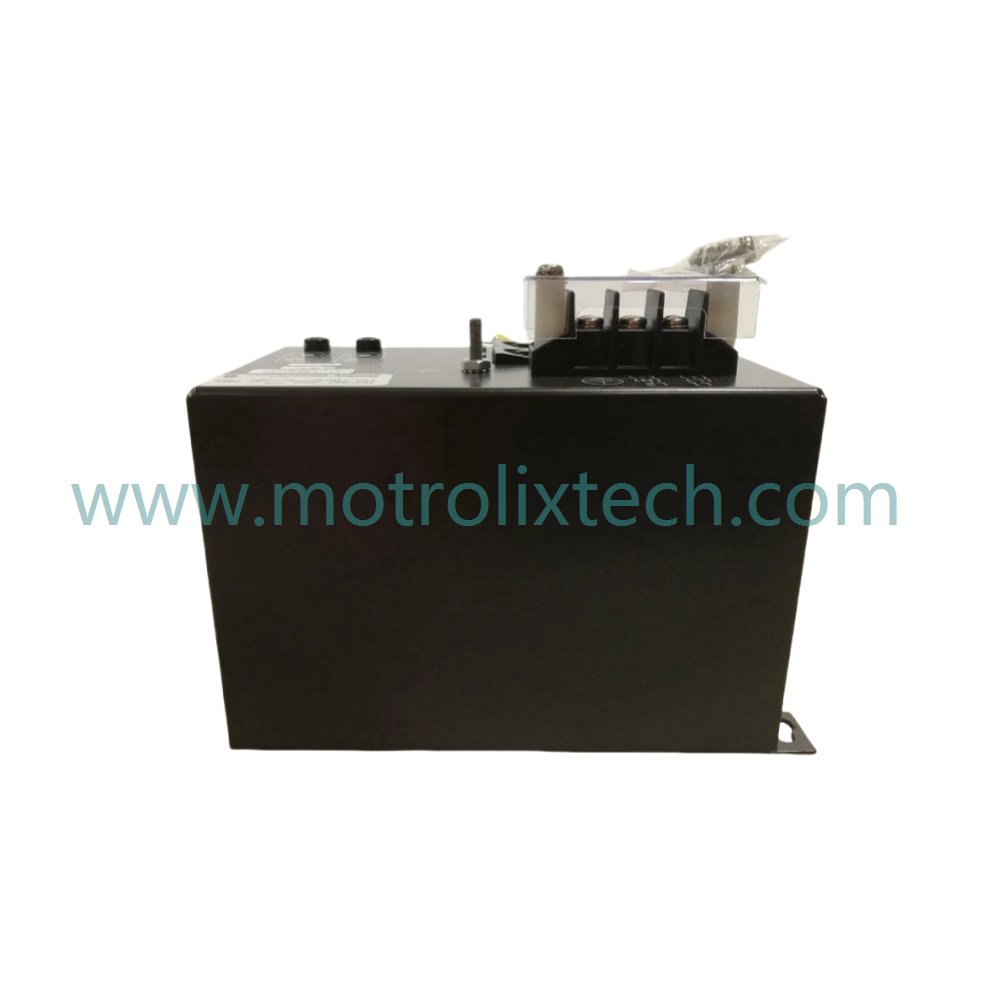

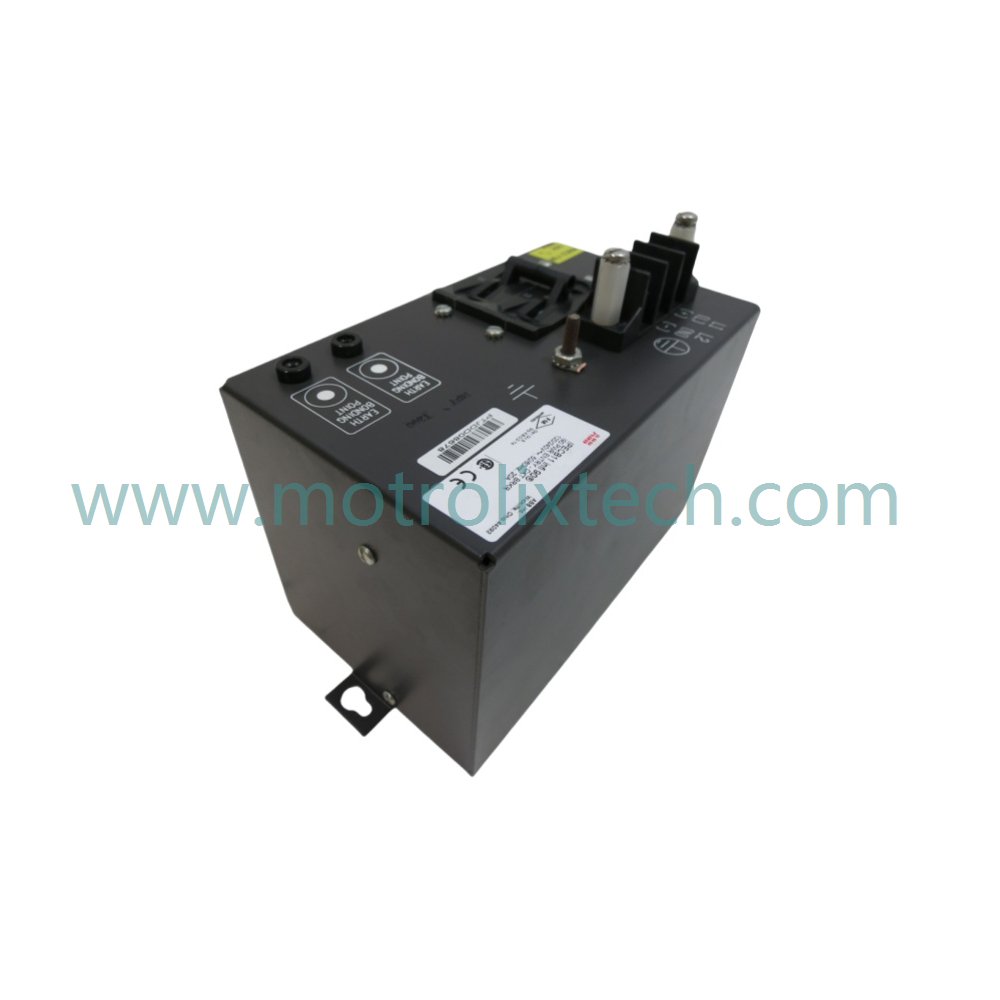

The ABB IPECB11 Power Entry Circuit Breaker is a robust solution designed for industrial power distribution systems. This product, engineered for reliability and engineered with high-quality materials, features a 120/240V AC voltage rating and a continuous current capacity of 20A, suitable for demanding electrical applications. The circuit breaker provides essential circuit protection in critical environments.

Functional Highlights

With a breaking capacity of 19 kAIC, the IPECB11 ensures reliable circuit protection for downstream devices in various industrial settings. This circuit breaker is specifically designed for Harmony components in Symphony™ control systems, allowing it to accept wire sizes from 4 AWG to 14 AWG via screw clamp terminals.

Moreover, its compact dimensions (22.9 x 12.7 x 17.8 cm) and weight of 2.4 kg enable flexible integration into control panels, making it ideal for space-constrained installations. The breaker also delivers multi-voltage support, providing protection for downstream 5VDC to 125VDC power rails.

Additionally, the durable design of the IPECB11 complies with industrial standards, as indicated by tariff code 8537101190, ensuring you can confidently use it in various applications. This circuit breaker safeguards Harmony I/O blocks and controller modules from potential power faults effectively.

Technical Data

• Model Number: IPECB11
• Module Type: Power Entry Circuit Breaker
• Manufacturer: ABB
• Condition: Brand New
• Weight: 2.4 kg
• Dimensions: 22.9 x 12.7 x 17.8 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Voltage Rating: 120/240V AC
• Current Capacity: 20A continuous
• Breaking Capacity: 19 kAIC
• Wire Sizes Supported: 4 AWG – 14 AWG

Typical Applications

The ABB IPECB11 is ideal for:

• Protecting electrical circuits in industrial power distribution systems.
• Integrating into Symphony™ control systems for gas turbine operations.
• Supporting critical applications requiring reliable circuit protection.
• Ensuring the safety and reliability of Harmony I/O blocks and controller modules.

FAQ

1. What is the weight of the IPECB11?
   The circuit breaker weighs 2.4 kg.

2. What are the dimensions of the IPECB11?
   Its dimensions are 22.9 x 12.7 x 17.8 cm.

3. What is the voltage rating of the IPECB11?
   It supports a voltage rating of 120/240V AC.

4. What is the continuous current capacity of this circuit breaker?
   It has a continuous current capacity of 20A.

5. What type of wire sizes can be used with the IPECB11?
   It accepts wire sizes ranging from 4 AWG to 14 AWG.
