Overview

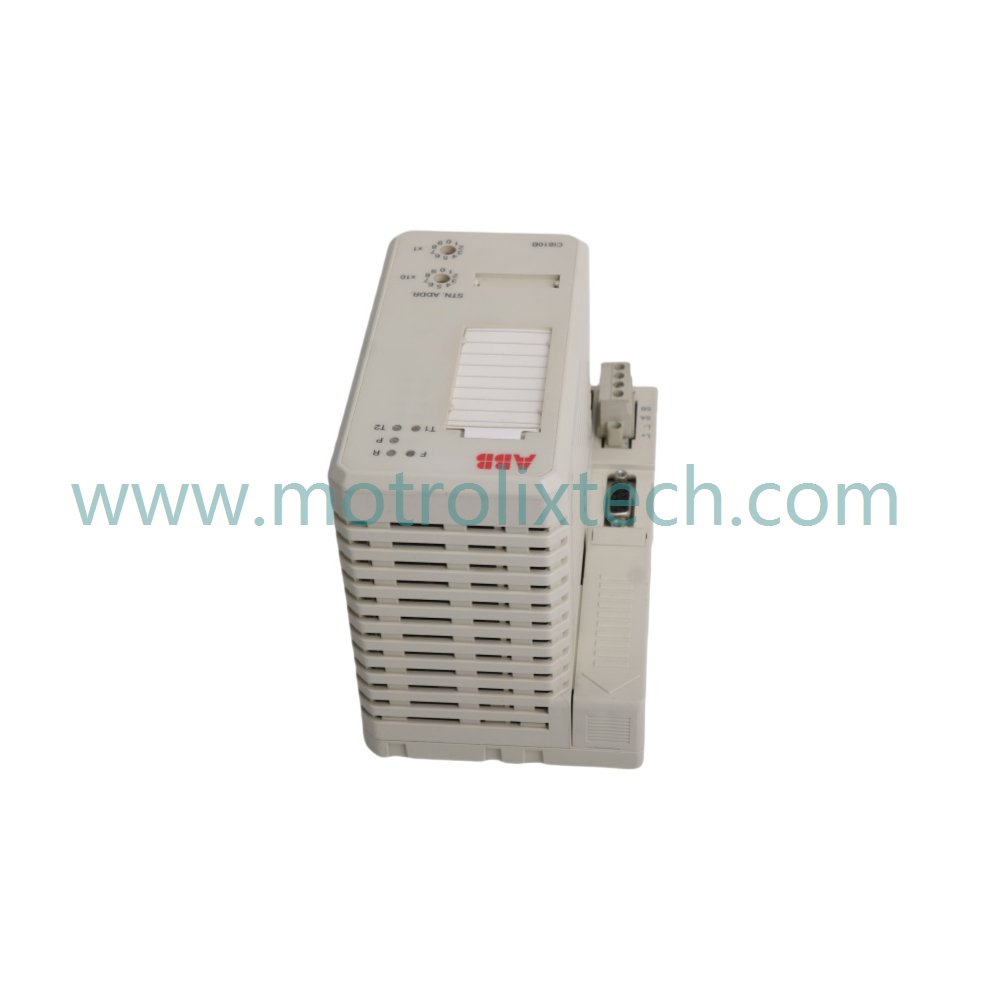

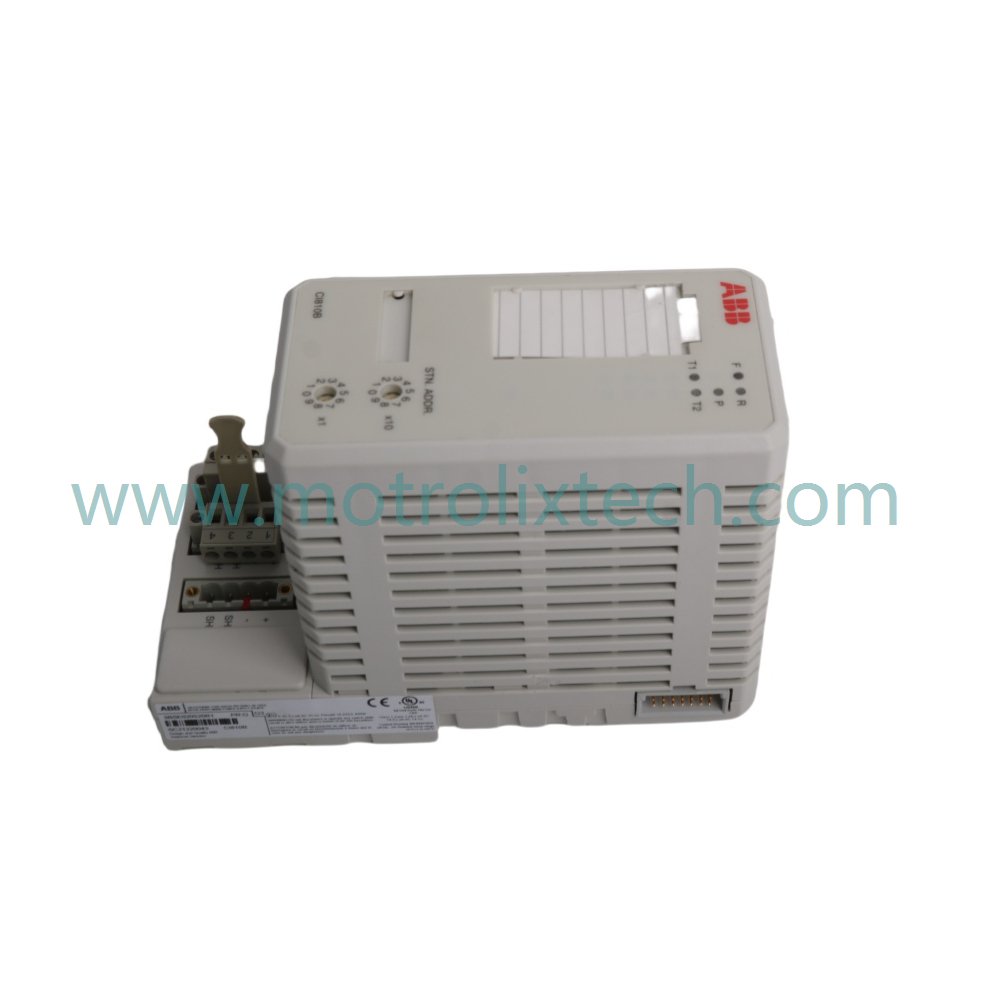

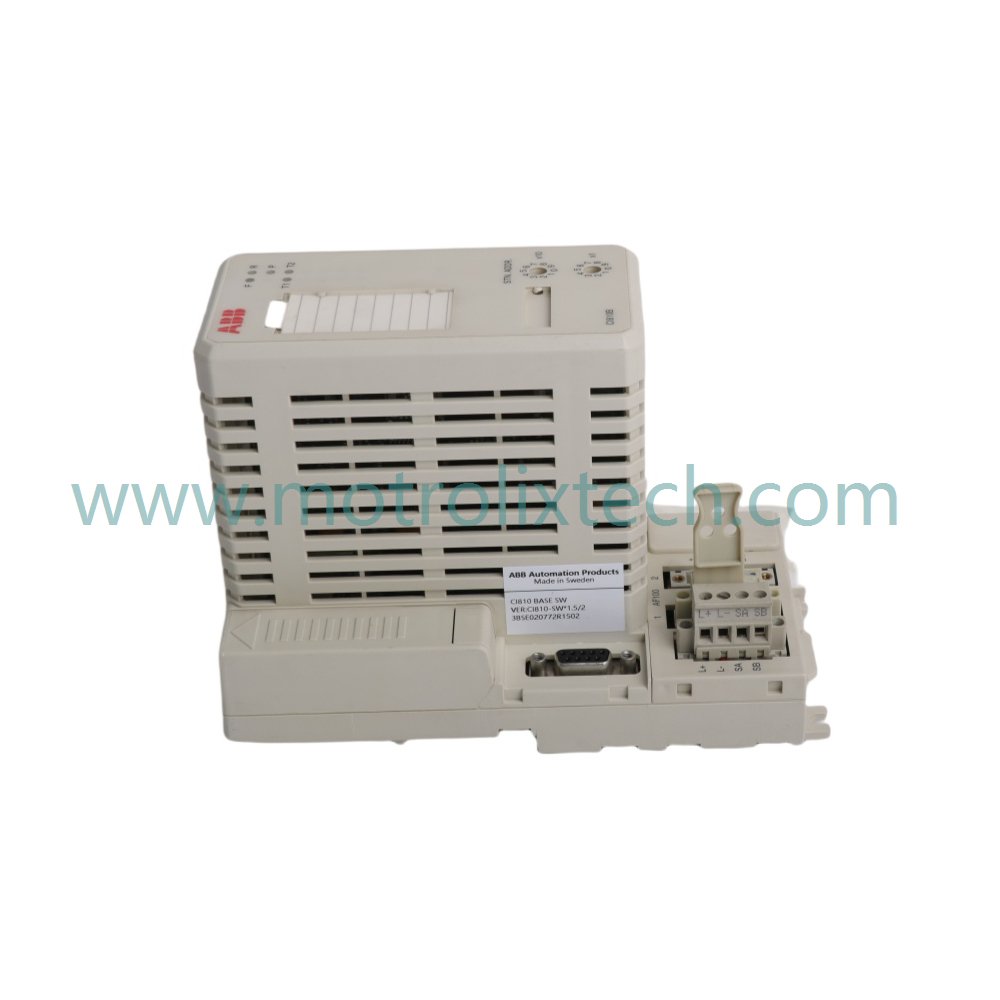

The ABB CI810B 3BSE020520R1 Fieldbus Communication Interface is an essential component of ABB's System 800xA automation platform. Specifically designed for seamless integration with PROFIBUS DP, this module acts as a critical communication gateway, enabling real-time data exchange between the control system and field devices. With its robust construction and advanced features, the CI810B enhances operational efficiency and supports asset optimization across diverse industrial applications.

Functional Highlights

This communication interface operates at a communication speed of 12 Mbps, ensuring rapid data transfer and facilitating time-critical process control across various industries. The CI810B module plays a vital role in connecting distributed I/O systems and intelligent field devices to the central control architecture, making it integral to the 800xA system's overall functionality.

Moreover, the CI810B supports redundant configurations, meeting the high-availability requirements of manufacturing and batch processing applications. It maintains synchronization with 800xA’s Aspect Object technology, ensuring that all connected field devices are fully incorporated into the system’s object-oriented data structure.

Engineers value the CI810B for its ability to bridge legacy PROFIBUS DP networks with modern 800xA systems, allowing for seamless digital transformation while protecting existing infrastructure investments. The module’s DIN-rail mounting design simplifies its installation in control cabinets, and its diagnostic capabilities enhance asset optimization through detailed communication status and performance metrics.

Technical Data

• Model Number: CI810B 3BSE020520R1
• Module Type: Fieldbus Communication Interface
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.36 kg
• Dimensions: 17 x 8.5 x 12 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Communication Speed: 12 Mbps
• Connection Type: PROFIBUS DP
• Mounting Type: DIN-rail

Typical Applications

The ABB CI810B Fieldbus Communication Interface is suited for:

• Integrating with ABB’s System 800xA for enhanced automation
• Facilitating communication in manufacturing management and batch processing
• Connecting distributed I/O modules with intelligent field devices
• Bridging legacy systems with modern control infrastructure

FAQ

1. What is the weight of the CI810B module?
   The CI810B module weighs 0.36 kg.

2. What are the dimensions of the CI810B?
   Its dimensions are 17 x 8.5 x 12 cm.

3. What communication standard does the CI810B support?
   It supports the PROFIBUS DP standard for communication.

4. What is the communication speed of the CI810B?
   The module operates at a communication speed of 12 Mbps.

5. How is the CI810B mounted?
   It features a DIN-rail mounting design for easy installation.
