Product Description
Overview: Unlock Native EtherNet/IP Connectivity for Your ABB Drive

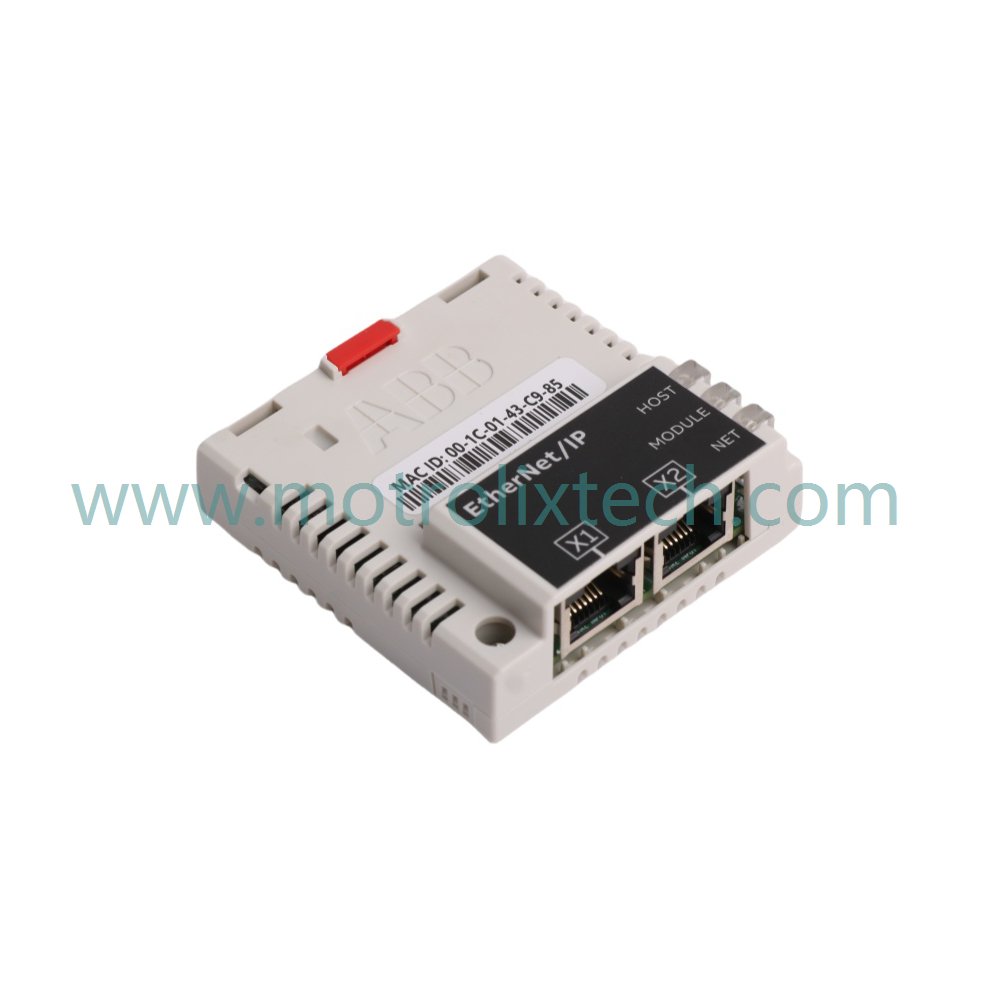

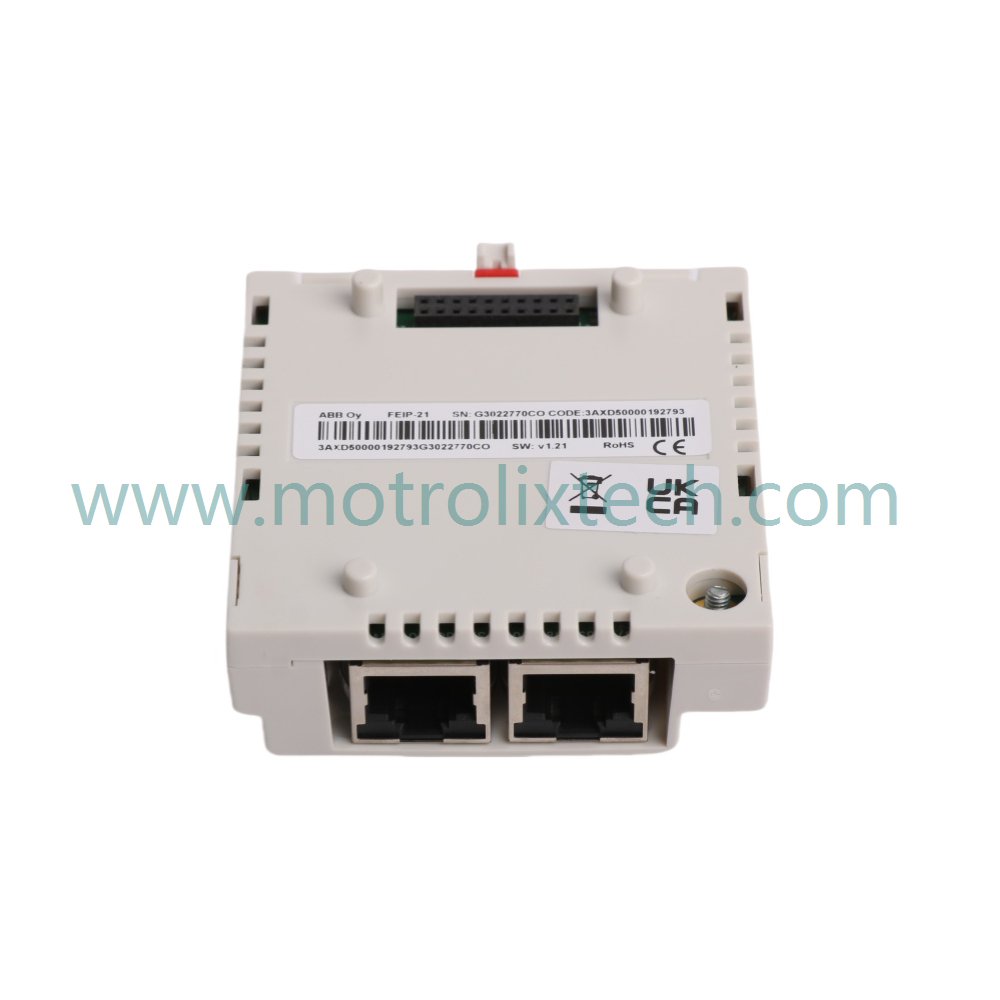

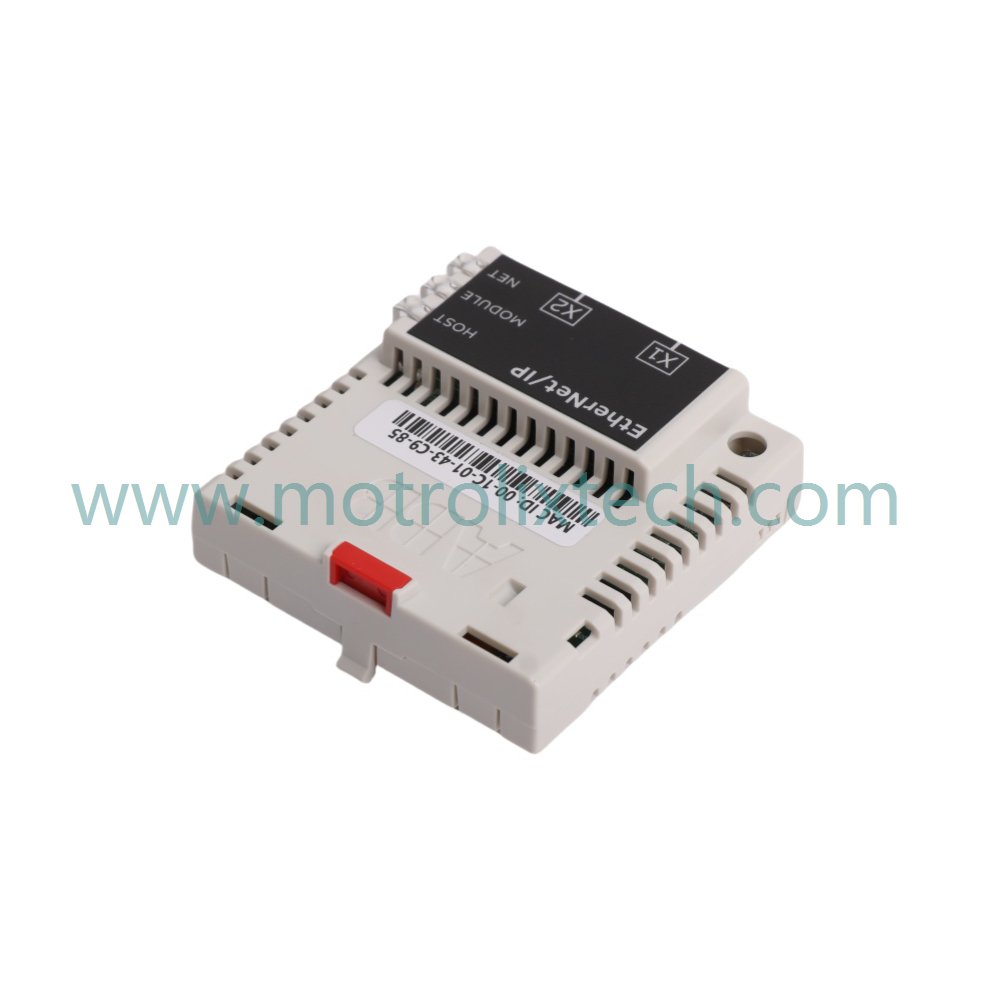

The ABB FEIP-21 adapter module seamlessly integrates your ACS 380 drive into modern industrial Ethernet networks. This compact plug-in board enables direct, real-time communication between your drive and an EtherNet/IP master controller, such as a PLC. By installing this module, you eliminate the need for complex gateways and hardwired control signals. Consequently, you gain streamlined access to drive control and diagnostics directly over a single Ethernet cable.
Functional Highlights: Simplify Control and Enhance Diagnostics
This module provides full cyclical control (CIP Motion) for critical commands like start, stop, and speed reference. Moreover, it supports explicit messaging for parameter access, allowing you to read or modify drive settings from your PLC logic. In addition, the integrated OPC UA client/server functionality enables secure data connectivity for higher-level MES and SCADA systems. Therefore, you achieve a unified architecture that simplifies wiring, improves diagnostics, and supports Industry 4.0 data strategies.
Technical Data & Specifications
Here are the key technical parameters for the FEIP-21 EtherNet/IP Adapter:
Manufacturer & Model: ABB FEIP-21
Ordering Number: 3AXD50000192793
Module Type: EtherNet/IP Adapter Module
Compatible Drive Series: ACS 380
Protocol: EtherNet/IP (CIP Motion, Explicit Messaging)
Additional Connectivity: OPC UA Client/Server
Configuration Tool: ABB DriveComposer (PC connection supported)
Physical Interface: Standard RJ45 Ethernet port
Dimensions (H x W x D): 24 x 62 x 65 mm
Weight: 0.05 kg
Origin: Sweden
Condition: Brand New, Active Product
Typical Applications & System Integration
This module is ideal for any application using an Allen-Bradley (Rockwell Automation) ControlLogix or CompactLogix PLC to control an ACS 380 drive. For instance, it is perfect for conveyor systems, pump control stations, or fan arrays in material handling and water treatment plants. Furthermore, its OPC UA capability makes it suitable for plants collecting performance data for energy management or predictive maintenance analytics. Its plug-in design ensures a fast and clean upgrade for existing ACS 380 drives, extending their connectivity lifespan.
FAQ
What is the main purpose of the FEIP-21 module?
It allows an ABB ACS 380 variable frequency drive to communicate natively on an EtherNet/IP network, enabling direct control and monitoring from compatible PLCs like Allen-Bradley controllers without additional hardware.
Does this module replace traditional hardwired control signals?
Yes, absolutely. Once configured, you can send start/stop commands and speed references via the Ethernet network, significantly reducing control cabinet wiring. However, you may still retain hardwired safety circuits.
Can I use this module with drives other than the ACS 380?
No, the FEIP-21 is specifically designed as a plug-in option module for the ACS 380 drive series. Other ABB drive families require different, specific communication modules.
What is the benefit of the integrated OPC UA functionality?
OPC UA provides a secure, standardized way for SCADA, MES, or analytics software to read drive data (like power, speed, alarms) without going through the PLC, simplifying data architecture.
Do I need special software to configure this module?
You will use ABB's DriveComposer PC tool for the initial configuration of the IP address and basic parameters. After that, the drive and module are primarily configured and controlled from your EtherNet/IP master PLC.
