Product Description
Product Summary: The Dedicated Modbus TCP Gateway for ABB Drives

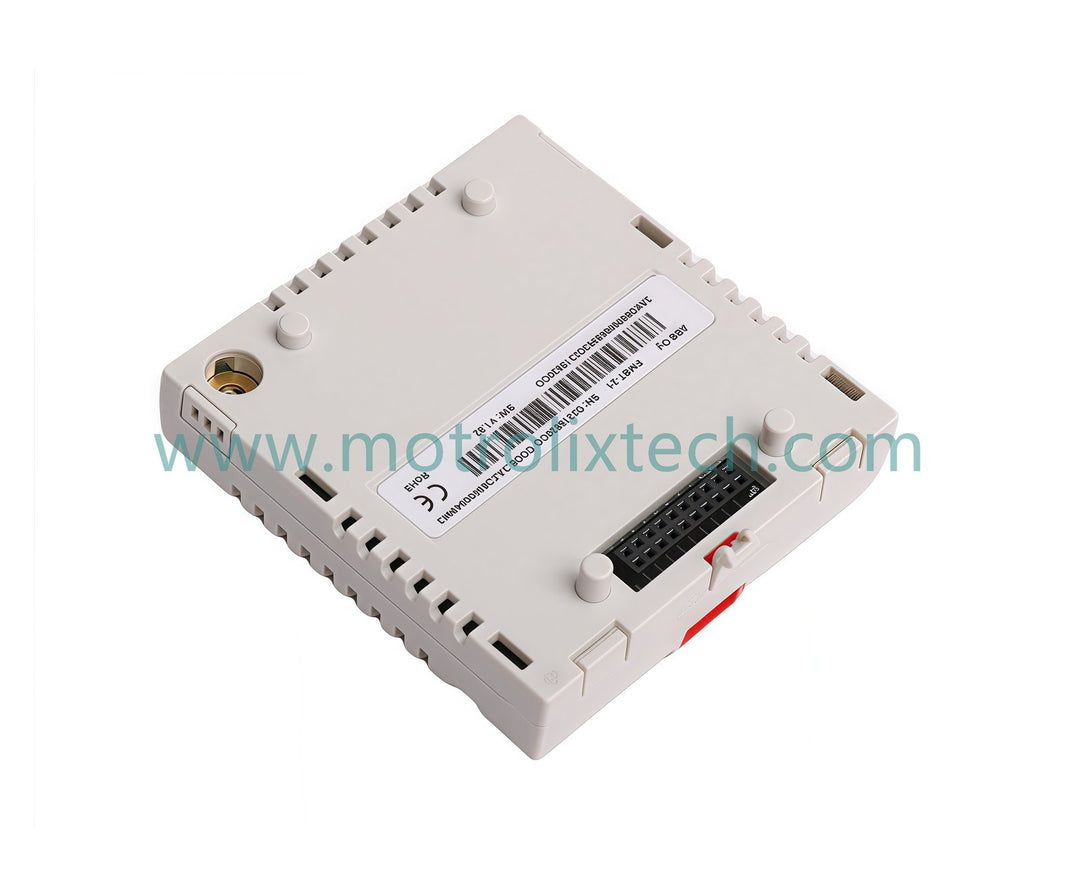

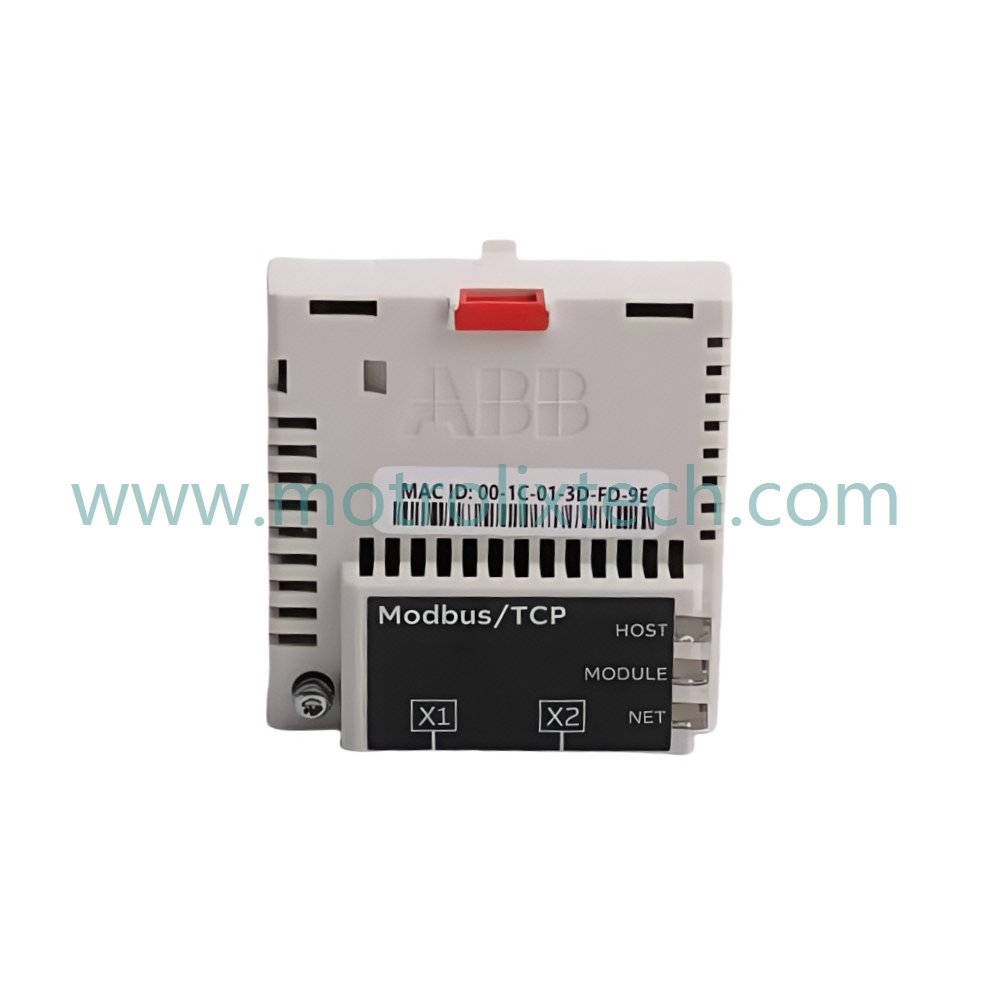

The ABB FMBT-21 is a specialized communication adapter that provides a robust Modbus TCP/IP interface for your ABB drive. This module plugs directly into the drive's option slot, creating a seamless Ethernet connection for SCADA systems, HMIs, or any Modbus TCP master. It effectively translates drive parameters and commands into the universal Modbus register map. Therefore, it simplifies integration into plants where Modbus TCP is the standard for device-level communication.
Key Benefits: Dual-Port Simplicity and Deep Drive Access

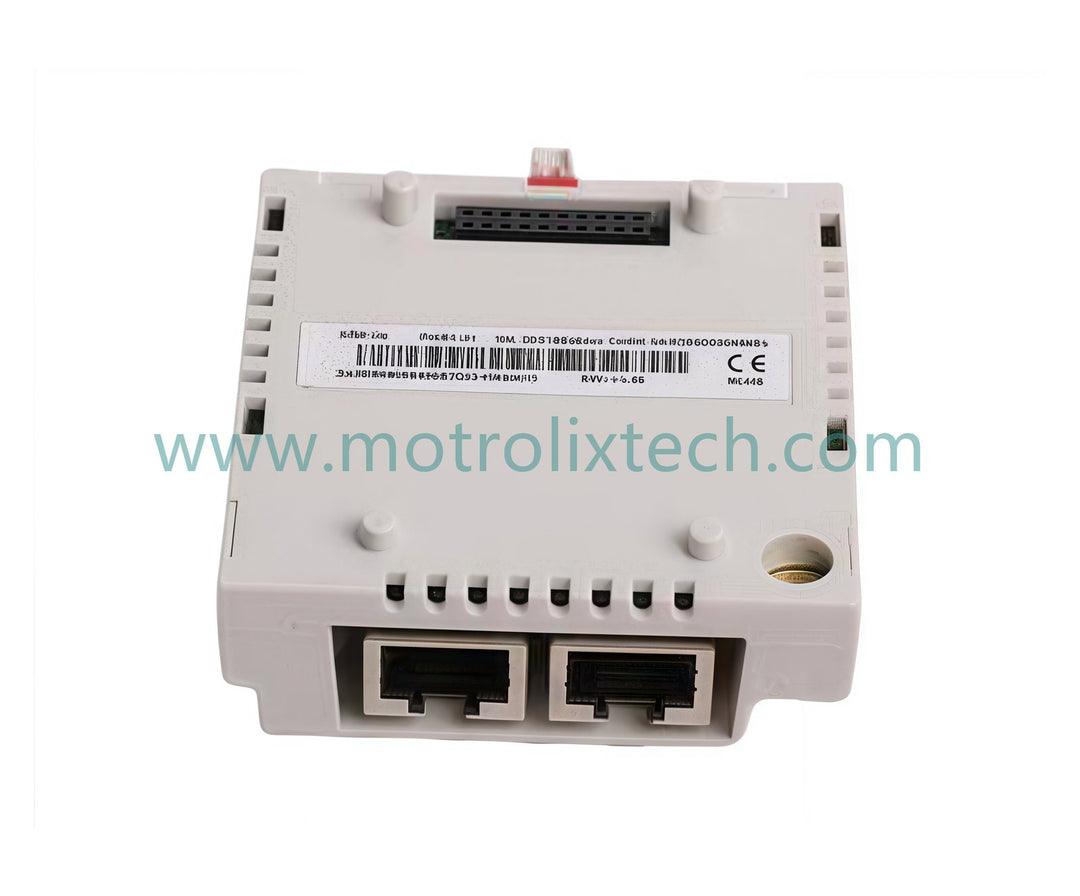

A standout feature is its two independent RJ45 Ethernet ports, which offer superior network flexibility. You can use one port for the main control network and the second for a PC running Drive Composer Pro, eliminating the need for a network switch at the drive. Moreover, the adapter provides comprehensive access for reading real-time data (current, speed, power) and writing control commands (start, stop, speed reference). In addition, its wide operating temperature range ensures reliable performance in harsh electrical rooms or outdoor enclosures. Consequently, you get a versatile and rugged solution for monitoring and controlling drives over Ethernet.
Technical Data & Specifications
Here are the definitive technical parameters for the FMBT-21 adapter:
Manufacturer & Model: ABB FMBT-21
Module Type: Modbus TCP/IP Communication Adapter
Primary Protocol: Modbus TCP (Client/Server)
Network Interface: Dual 10/100BASE-TX RJ45 ports, auto-negotiating
Power Supply: 24V DC (typically sourced from the drive)
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Key Functions: Drive control, parameter access, fault reset, real-time monitoring
Software Tools: Compatible with ABB Drive Composer Professional
Dimensions (H x W x D): 60 x 300 x 160 mm
Weight: 1.02 kg
Origin: Sweden
Condition: Brand New, Active Product
Typical Applications & System Integration
This adapter is perfect for integrating ABB drives into larger Modbus TCP SCADA networks, common in water/wastewater, building automation, and renewable energy systems. For instance, you can connect multiple solar inverters or pump drives to a central monitoring station using simple Ethernet cabling. Furthermore, the dual ports are excellent for creating a "tool network" where a technician can connect a laptop directly to one port for configuration without disrupting the main control network on the other port. Always consult the drive's compatibility list and reference ABB's application guides for optimal parameter setup.
FAQ
What is the advantage of having two Ethernet ports on the FMBT-21?
The dual ports allow for flexible network topologies. You can daisy-chain multiple drives to save on switch ports, or more commonly, dedicate one port to the control network and the other for a local engineering PC, enabling simultaneous access.
Can I use this adapter with non-ABB drives or devices?
No, the FMBT-21 is designed exclusively as an option module for specific ABB drives and converters. It communicates using the drive's internal bus and is not a standalone, universal Modbus TCP gateway.
Does it support both Modbus RTU and Modbus TCP?
The FMBT-21 is specifically a Modbus TCP adapter, designed for Ethernet networks. For serial Modbus RTU communication, you would need a different module, such as an RMBA or FRNA module.
How do I map drive parameters to Modbus registers?
ABB provides a detailed Modbus register map for each compatible drive type. This document defines which Modbus holding register or input register corresponds to a specific drive parameter (e.g., output frequency, motor current).
Is the FMBT-21 suitable for real-time, high-speed control?
While it provides reliable cyclical data exchange, Modbus TCP is not a deterministic, real-time protocol like PROFINET IRT or EtherNet/IP with CIP Motion. It is best suited for monitoring, setpoint control, and parameter handling where sub-100ms cycle times are acceptable.
