Product Description
Overview: Integrate Your Drive into Proven PROFIBUS Networks

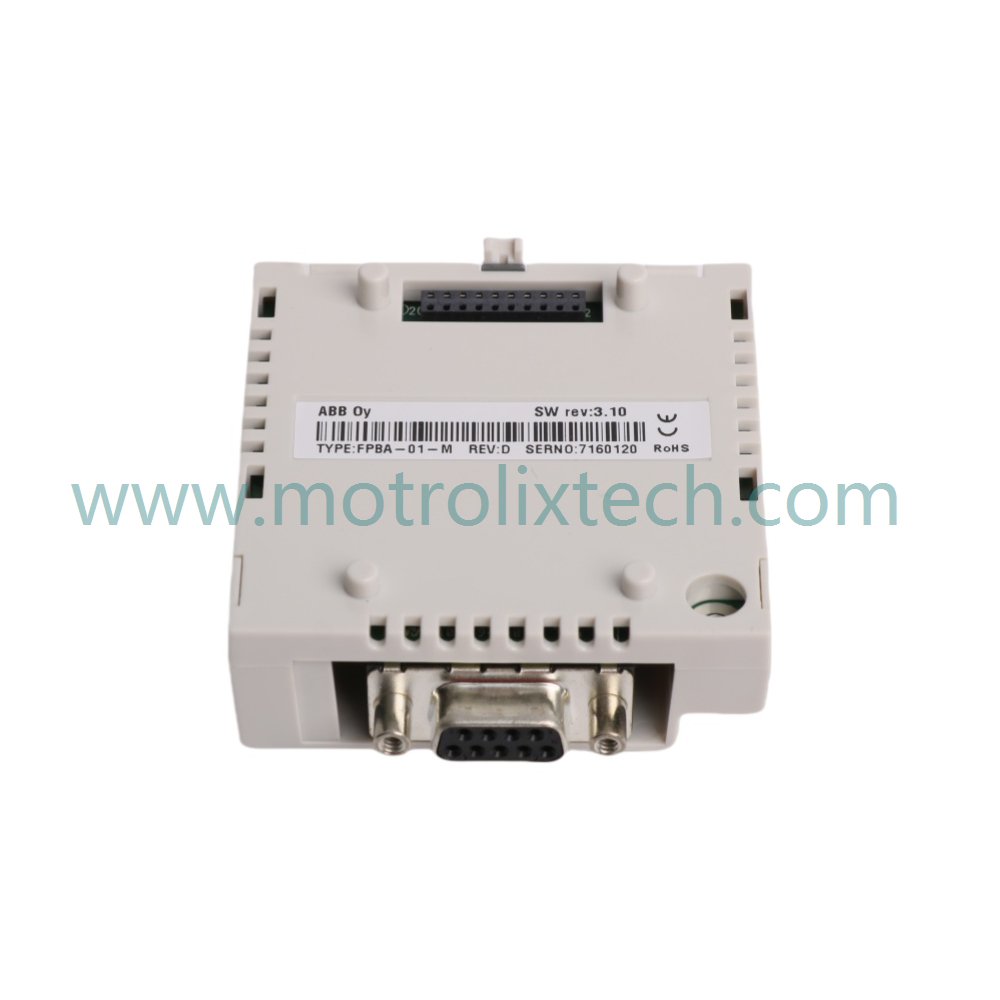

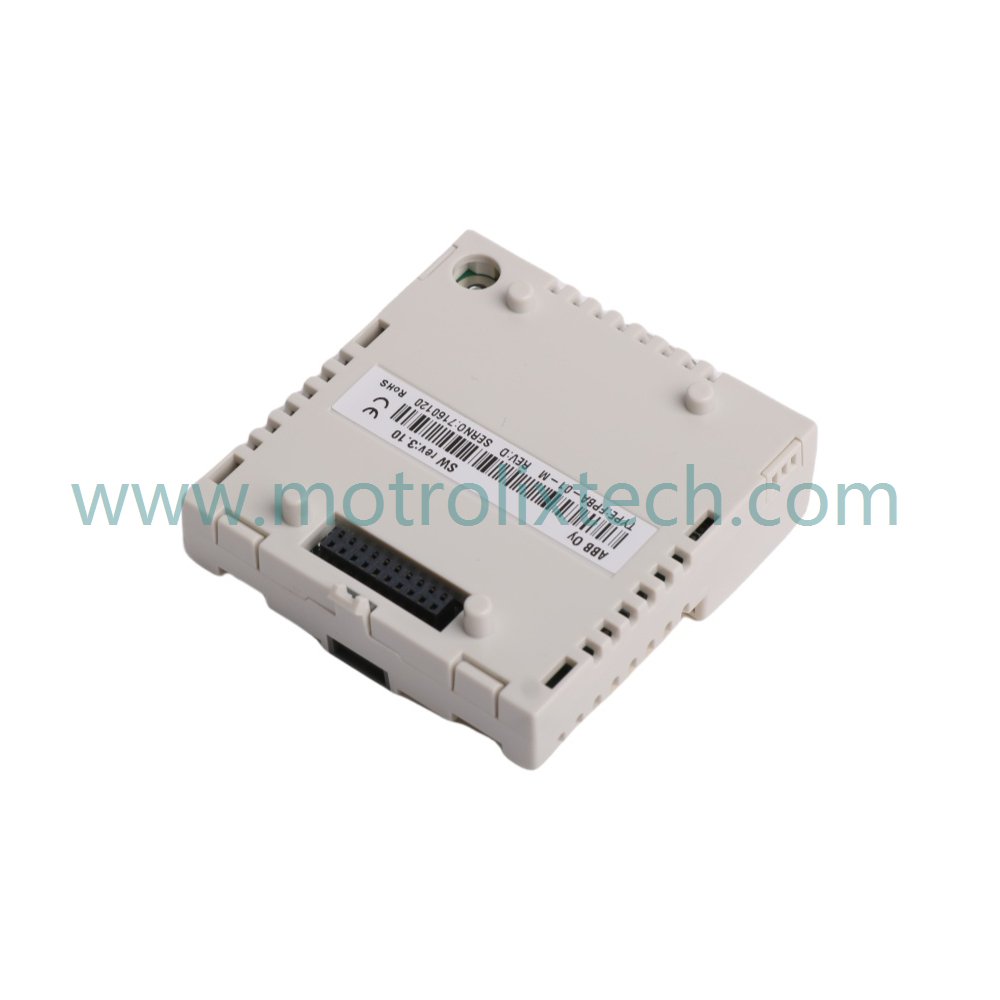

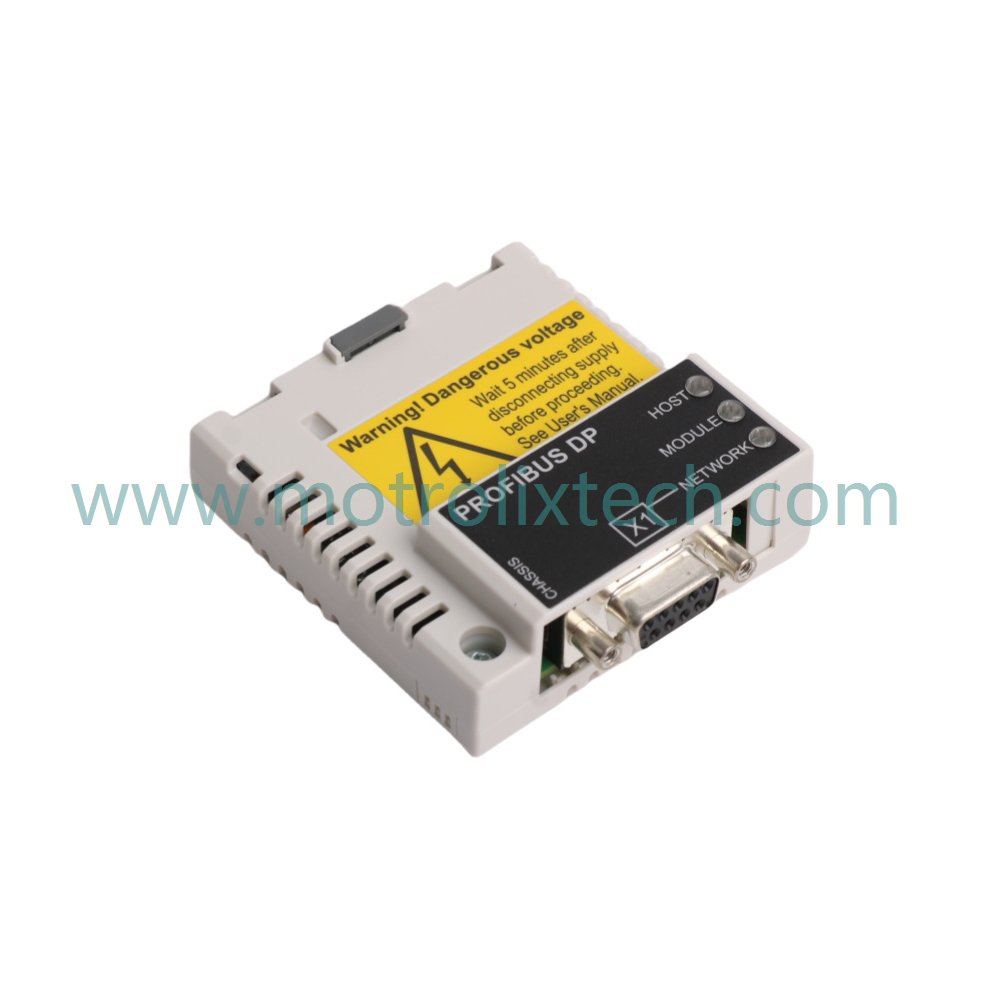

The ABB FPBA-01-M is a dedicated PROFIBUS DP adapter module that seamlessly connects compatible ABB drives to this widely adopted fieldbus standard. This compact plug-in module acts as a slave device on a PROFIBUS network, allowing a central DP master (like a Siemens PLC) to control and monitor the drive directly. By installing this adapter, you enable high-speed cyclical data exchange over robust RS-485 cabling. Therefore, you can integrate ABB drives into existing factory automation systems that rely on the PROFIBUS DP backbone.
Functional Highlights: Reliable, High-Speed Industrial Connectivity
This module provides deterministic communication with selectable baud rates from 9.6 kbps up to 12 Mbps, allowing you to optimize network speed for your application's needs. Moreover, it supports the standard PROFIBUS DP-V1 specifications, which include parameterization, alarm handling, and non-cyclical data access. In addition, the robust electrical interface is designed for the noisy industrial environment, supporting cable segments up to 1200 meters at lower speeds. Consequently, you achieve a reliable and proven integration method that reduces control cabinet wiring and centralizes drive management.
Technical Data & Specifications
Here are the core technical specifications for the FPBA-01-M Adapter:
Manufacturer & Model: ABB FPBA-01-M
Module Type: PROFIBUS DP (Decentralized Periphery) Adapter
Protocol Standard: PROFIBUS DP-V1
Physical Layer: RS-485 (Twisted pair, shielded)
Baud Rate: 9.6 kbps to 12 Mbps (selectable)
Max Segment Length: 1200 m (at 9.6 kbps); reduces with higher speed
Network Nodes: Up to 32 nodes per segment without repeaters; 126 with repeaters
Device Role: Slave
Dimensions (H x W x D): 24 x 62 x 72 mm
Weight: 0.05 kg
Origin: Sweden
Condition: Brand New, Active Product
Typical Applications & System Integration
This adapter is the go-to solution for integrating an ABB drive into a Siemens S7 PLC environment or any other PROFIBUS DP master system. For instance, it is commonly used in automotive manufacturing lines, conveyor systems, and large pump/fan installations where PROFIBUS is the established network. Furthermore, it is perfect for machine builders who need to supply equipment that must interface with a customer's existing Siemens-based control system. Remember to configure the drive's station address via the module's DIP switches or software and set the matching baud rate for trouble-free network commissioning.
FAQ
What does the "-M" in FPBA-01-M signify?
The "M" typically indicates that this is a module version intended for a specific drive series or form factor. Always verify compatibility with your exact ABB drive model (e.g., ACS550, ACS850) before ordering.
Can this module act as a PROFIBUS DP Master?
No, the FPBA-01-M is designed exclusively as a Slave device. It responds to commands from a central DP Master controller (like a PLC). You cannot use it to control other slaves on the network.
What is the difference between PROFIBUS DP and PROFINET?
PROFIBUS DP is a traditional, high-speed serial fieldbus (RS-485). PROFINET is an Industrial Ethernet standard. The FPBA-01-M is for PROFIBUS DP networks; for PROFINET, you would need a different adapter like a FENA series module.
How do I set the PROFIBUS address on this module?
The station address is usually set via a rotary switch or DIP switches on the module itself. Consult the specific installation manual for the FPBA-01-M and your drive for the correct procedure.
Is a GSD file required for configuration?
Yes, you will need the specific Device Master File (GSD file) for the FPBA-01-M to configure it in your master PLC's engineering software (e.g., Siemens STEP 7). This file defines the module's data structure and parameters for the network.
