Overview

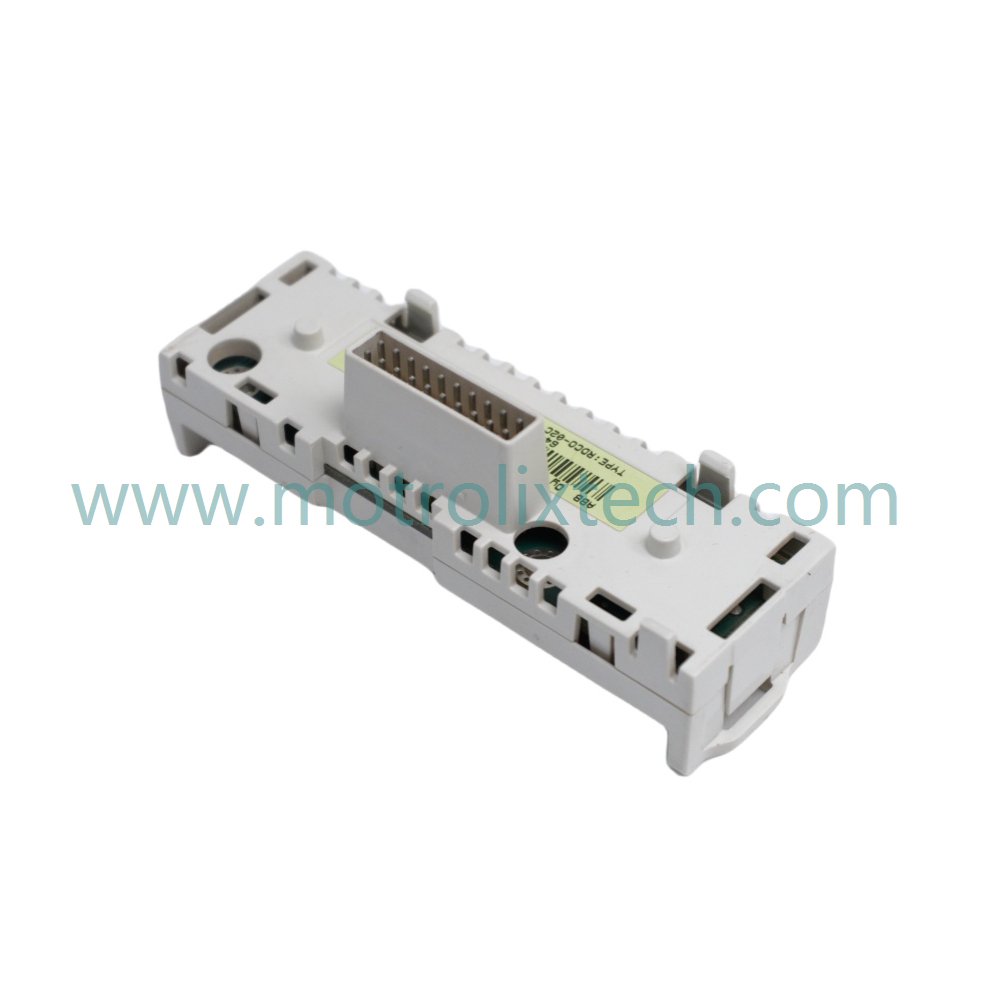

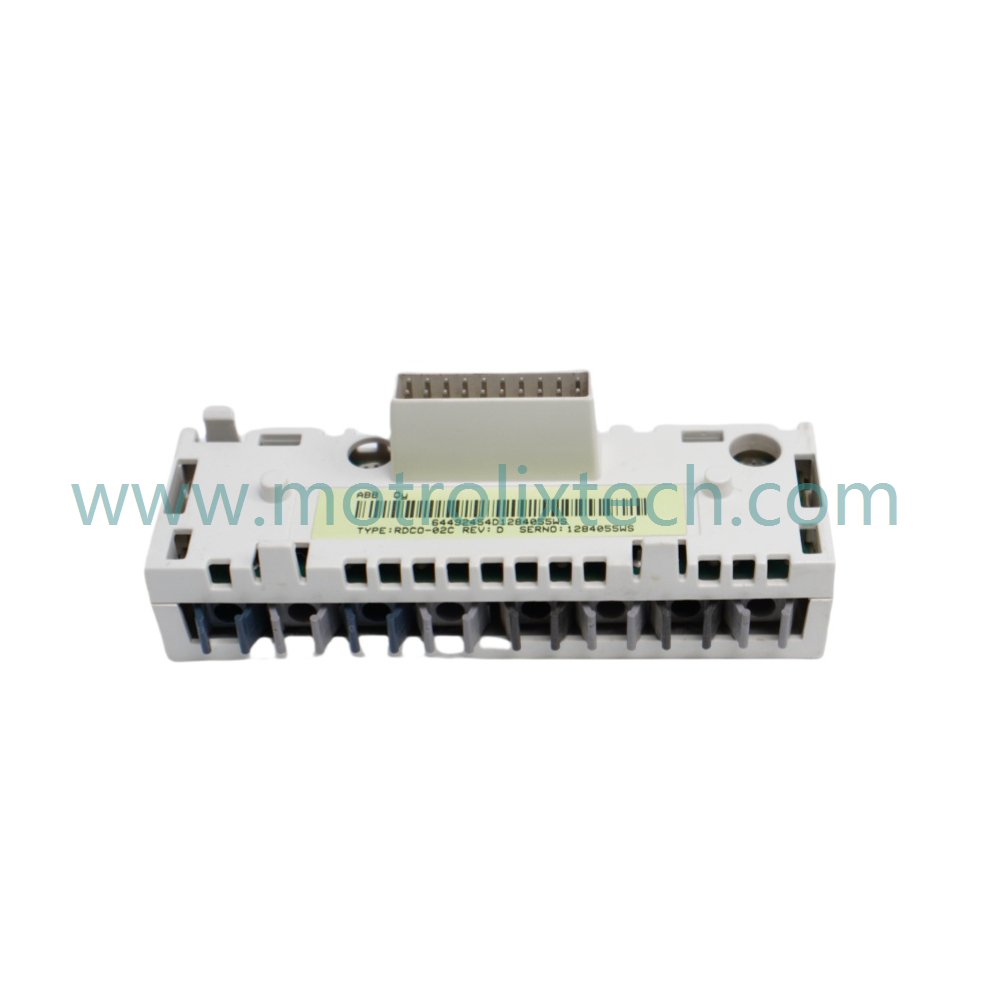

The ABB RDCO-02C Communication Adapter is a versatile and robust communication module designed for integration with RMIO Motor Control and I/O boards, as well as BCU control units. This adapter enhances system connectivity in industrial automation, making it suitable for various applications. Available as both a factory-installed option and a retrofit kit, it caters to diverse installation requirements for new and existing ABB drive systems.

Functional Highlights

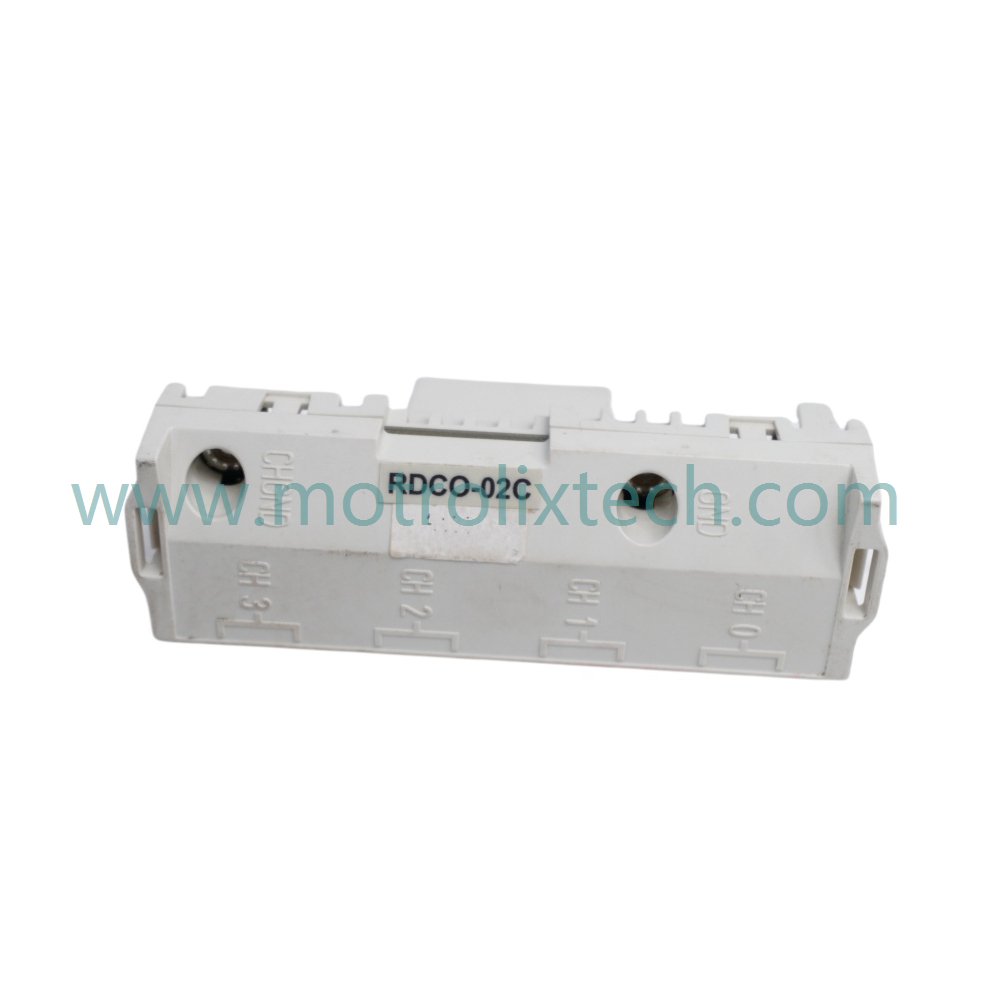

The RDCO-02C features four fiber optic DDCS channels: CH0, CH1, CH2, and CH3. Each channel is designated for specific functions: CH0 manages overriding systems like fieldbus adapters, CH1 connects I/O options and supply units, CH2 handles Master/Follower links, and CH3 is primarily for PC tool connections in ACS800 drives. This clear channel allocation simplifies configuration and supports streamlined communication.

Equipped with high-quality optical components such as Agilent Technologies’ Versatile Link, the RDCO-02C ensures reliable fiber optic transmission. It operates at communication speeds of 1, 2, or 4 Mbit/s and requires a voltage of +5 V DC with a current consumption of up to 200 mA. Furthermore, the module adheres to stringent electromagnetic immunity standards (IEC 1000-4-2), ensuring stable and interference-resistant data exchange in demanding environments.

Moreover, the RDCO-02C is constructed to withstand harsh conditions, with options for coated circuit boards for added durability. Its 20-pin pin header and four transmitter/receiver connector pairs ensure secure integration and long-term reliability for a wide range of ABB drive applications.

Technical Data

• Model Number: RDCO-02C
• Module Type: Communication Adapter
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.55 kg
• Dimensions: 12.7 x 3.1 x 28.2 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: ABB
• System Type: DCS

Typical Applications

The ABB RDCO-02C Communication Adapter is suitable for:

• Integration into RMIO Motor Control and I/O boards.
• Applications requiring enhanced system connectivity in industrial automation.
• Use in existing and new ABB drive systems for streamlined communication.

FAQ

1. What is the weight of the RDCO-02C Communication Adapter?
   The RDCO-02C weighs 0.55 kg.

2. What are the dimensions of the RDCO-02C?
   Its dimensions are 12.7 x 3.1 x 28.2 cm.

3. What communication speeds does the RDCO-02C support?
   It supports speeds of 1, 2, or 4 Mbit/s.

4. What channels does the RDCO-02C feature?
   It features four fiber optic channels: CH0, CH1, CH2, and CH3.

5. What is the voltage requirement for the RDCO-02C?
   It operates at +5 V DC with a current consumption of up to 200 mA.
