Overview

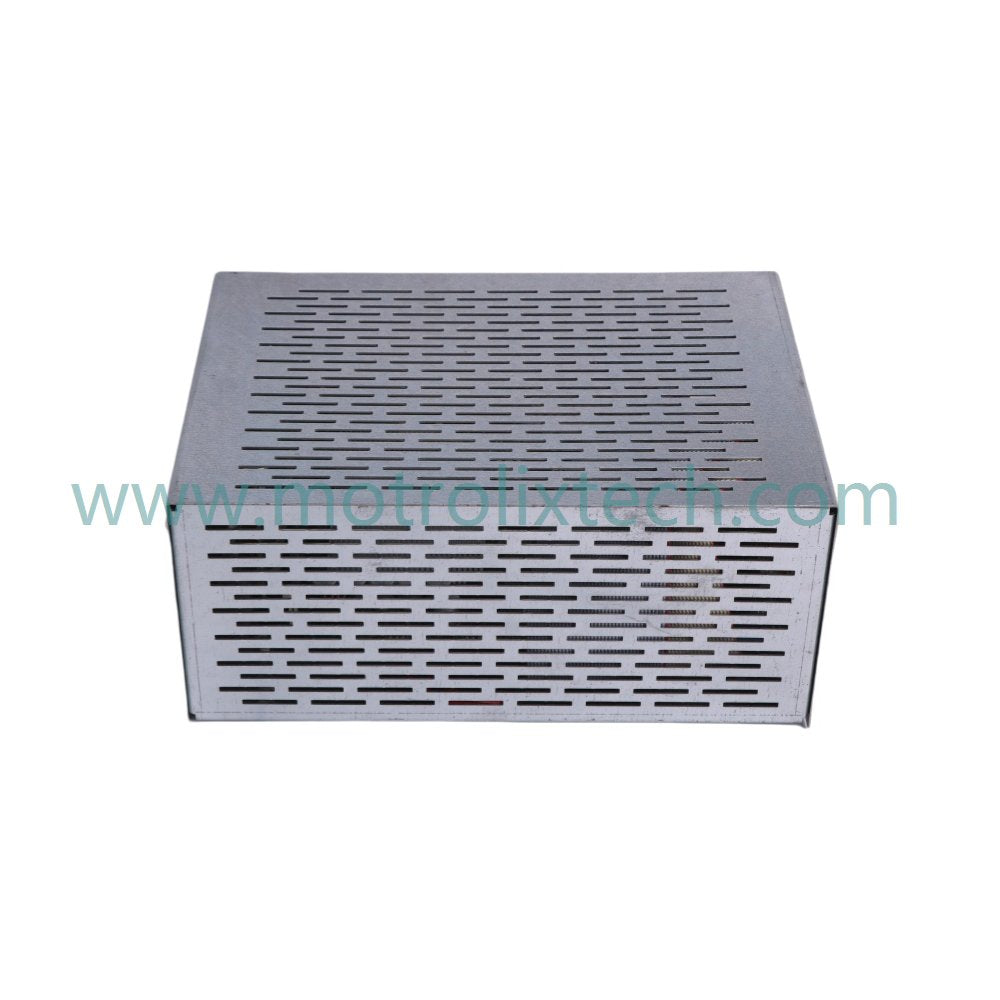

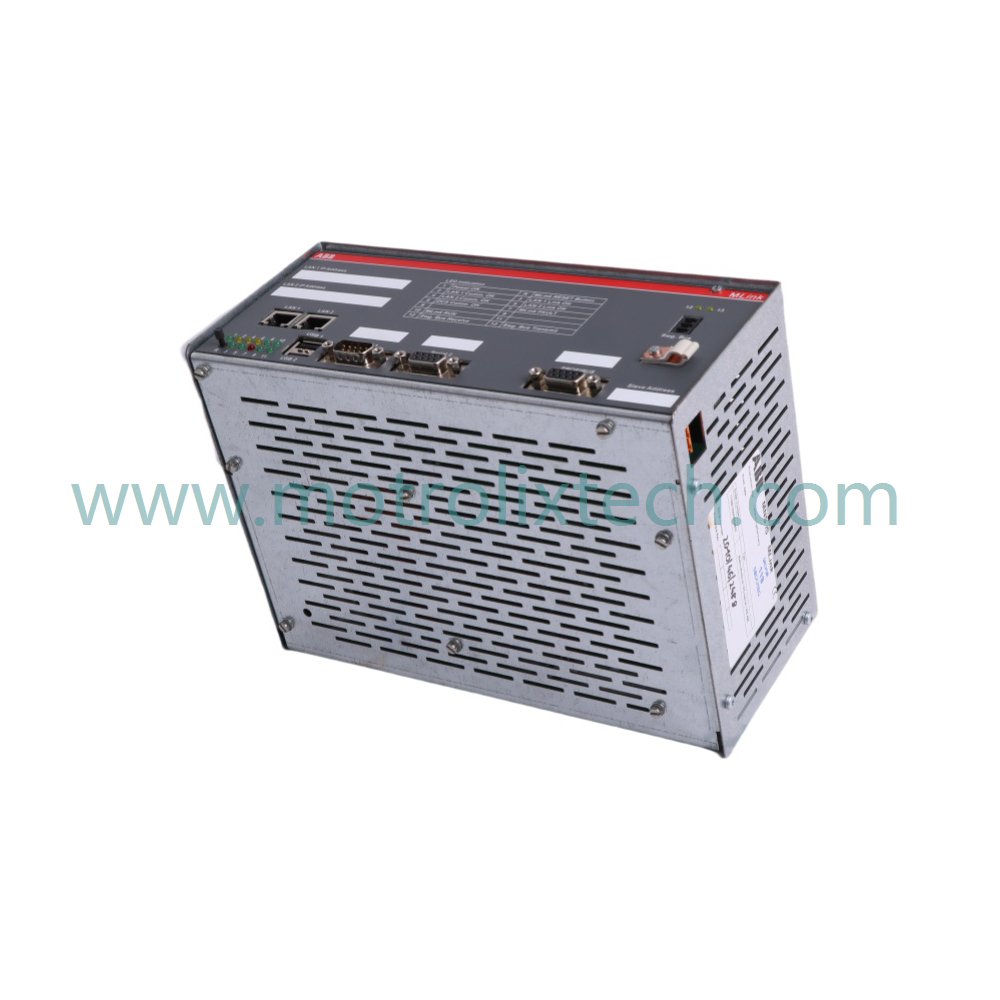

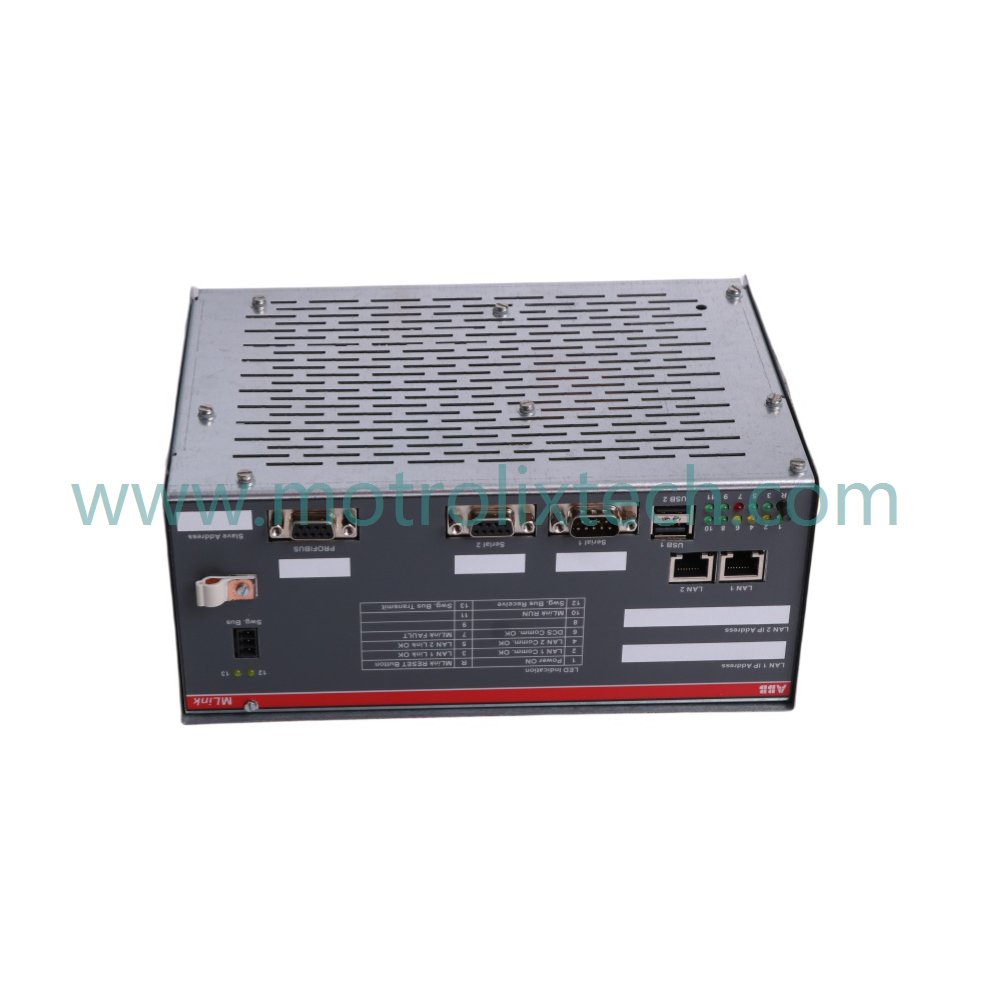

The ABB 1TGE102009R4800 Baslc-Modbus TPC+serial/RS 485 MLink Control Unit is a high-performance communication gateway designed to facilitate seamless integration between Modbus TCP systems and PROFIBUS/PROFINET IO networks. This versatile device features dual-protocol conversion capabilities, allowing for the simultaneous operation of Modbus RTU/TCP and industrial Ethernet protocols, which is essential for modern Industry 4.0 connectivity.

Functional Highlights

Built for reliable 24/7 operation, the MLink Control Unit maintains exceptional performance across a broad operating temperature range of -25°C to +70°C. It features a robust current capacity of 10A, ensuring stable operation in demanding environments.

The compact DIN-rail design of the 1TGE102009R4800 saves valuable panel space. Additionally, its wide input voltage range of 85-264V AC allows for compatibility with global voltage standards. This makes it an ideal solution for various industrial applications.

Moreover, the device excels in providing energy-efficient communication, boasting an operational efficiency of ≥90%. This feature enables effective data exchange between legacy and modern control systems, making it suitable for complex automation environments.

Fully compliant with CE and UL certifications, the 1TGE102009R4800 meets stringent industrial safety standards. This gateway is particularly well-suited for power plants, manufacturing facilities, and infrastructure projects that require high-speed and secure communication between diverse control systems.

Technical Data

• Model Number: 1TGE102009R4800 Baslc-Modbus TPC+serial/RS 485
• Module Type: MLink Control Unit
• Manufacturer: ABB
• Condition: Brand New
• Product Range: ABB
• Weight: 1.7 kg
• Dimensions: 23.5 x 16.5 x 10.1 cm
• HS CODE: 8537101190
• System Type: DCS
• Status: Active
• Minimum Order Quantity: 1
• Product Origin: Sweden
• Communication Service: Ethernet router

Typical Applications

The ABB 1TGE102009R4800 MLink Control Unit is suitable for various applications, including:

• Integration between Modbus TCP systems and industrial Ethernet networks
• Environments requiring reliable communication in automation processes
• Power plants and manufacturing facilities that demand efficient data exchange
• Infrastructure projects needing secure and fast communication between disparate control systems

FAQ

1. What is the weight of the 1TGE102009R4800 MLink Control Unit?
   The unit weighs 1.7 kg.

2. What are the dimensions of this control unit?
   Its dimensions are 23.5 x 16.5 x 10.1 cm.

3. What is the operating temperature range for this device?
   It operates reliably within a temperature range of -25°C to +70°C.

4. What input voltage range does the MLink Control Unit support?
   It supports a wide input voltage range of 85-264V AC.

5. Is the 1TGE102009R4800 compliant with safety standards?
   Yes, it is CE and UL certified, meeting stringent industrial safety standards.
