Overview

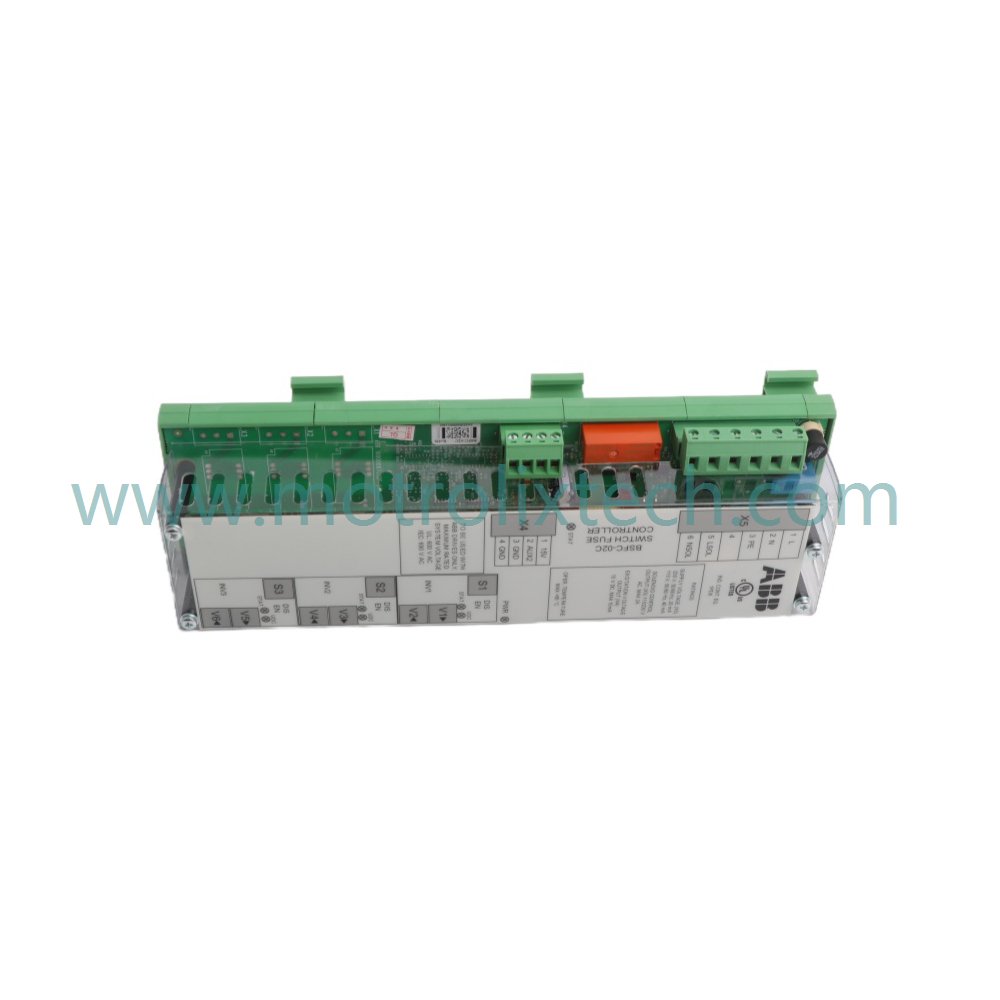

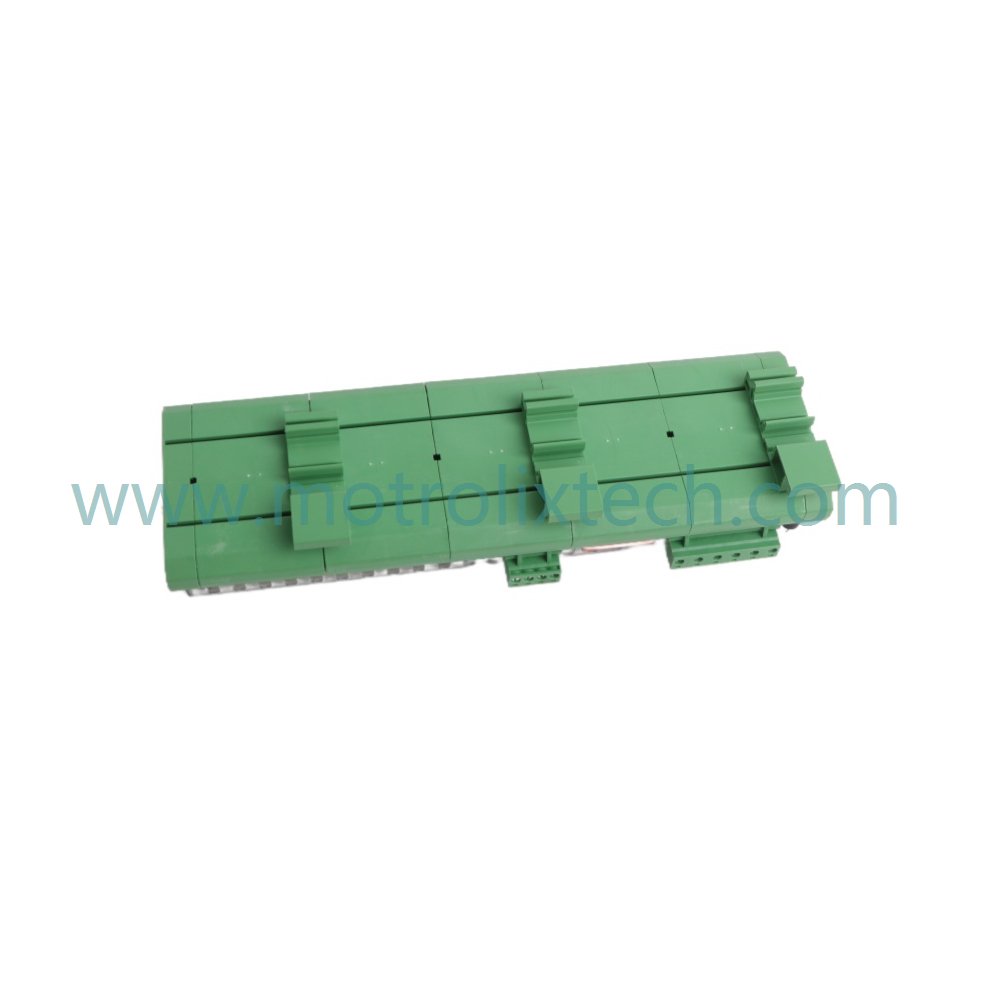

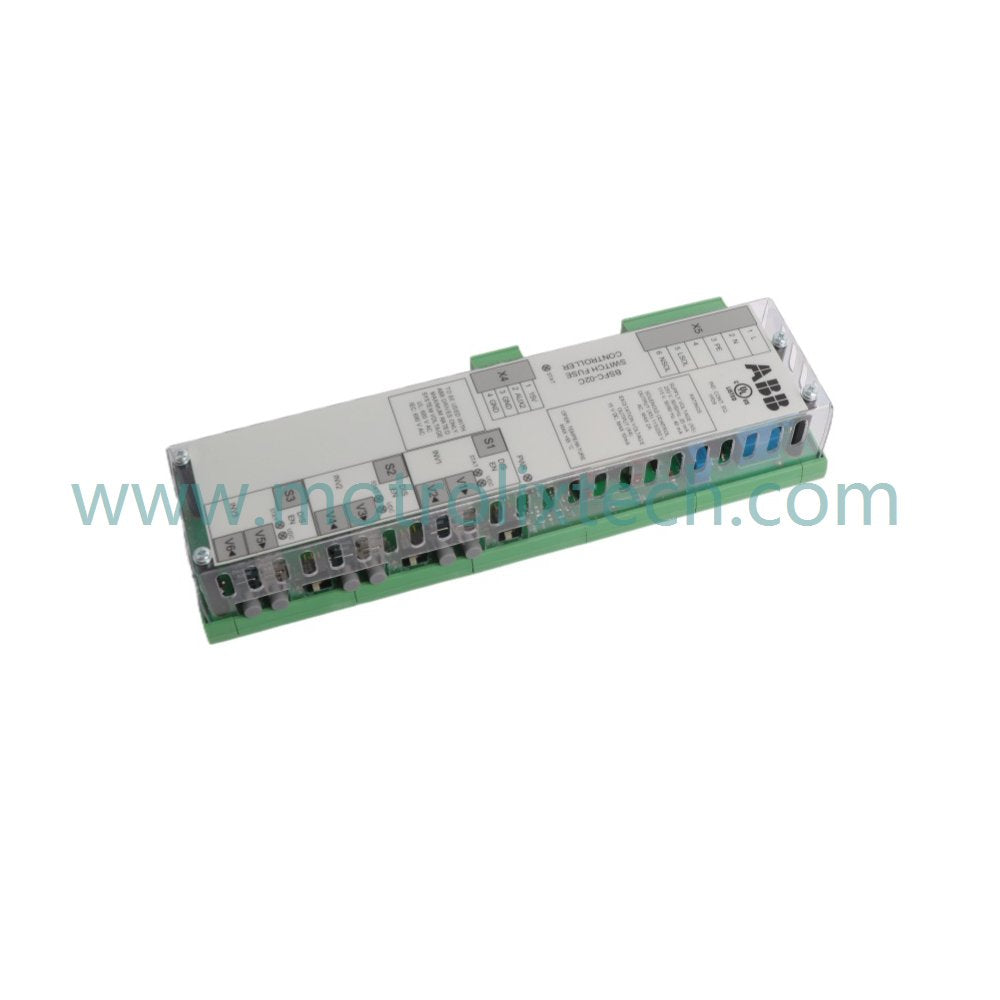

The ABB BSFC-02C 3AXD50000011461 Charging Controller is a high-performance switch fuse controller designed for industrial automation systems. This module excels at providing reliable and efficient management of electrical circuits, making it essential for ensuring stable operation in critical applications. With a wide input voltage range of 380-480V AC (3-phase), this controller delivers output voltages of 115V AC or 230V AC.

Functional Highlights

The BSFC-02C Charging Controller features robust construction with advanced protection capabilities to safeguard connected systems against overvoltage, overcurrent, reverse polarity, and short circuits. This protective functionality ensures uninterrupted power supply, especially in demanding environments.

The intuitive user interface allows for easy setup and maintenance, which minimizes downtime and simplifies integration into existing automation systems. Moreover, it supports multiple communication protocols to enhance operational flexibility and enables seamless networked control for a variety of industrial applications.

Engineered to operate reliably under extreme conditions, the BSFC-02C boasts a wide operating temperature range and high environmental resistance. Its compact design allows for efficient use of space, making it suitable for installation in areas with limited room. Programmable relay outputs and customizable settings provide users with precise control over circuit protection, tailoring the system to specific operational needs.

Technical Data

• Model Number: BSFC-02C 3AXD50000011461
• Module Type: Charging Controller
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.08 kg
• Dimensions: 18.5 x 8.5 x 30.5 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Input Voltage: 380-480V AC (3-phase)
• Output Voltage: 115V AC or 230V AC
• Protection Features: Overvoltage, overcurrent, reverse polarity, short circuit
• Operating Temperature Range: Wide range suitable for extreme conditions
• Humidity Tolerance: Designed for high environmental resistance

Typical Applications

The ABB BSFC-02C Charging Controller is ideally suited for:

• Industrial automation systems requiring reliable power management
• Battery charging systems in manufacturing and utility applications
• Renewable energy systems where protection and precise control are essential
• Electrical circuit management in challenging environments

FAQ

1. What is the weight of the BSFC-02C Charging Controller?
   The BSFC-02C weighs 1.08 kg.

2. What are the dimensions of this charging controller?
   Its dimensions are 18.5 x 8.5 x 30.5 cm.

3. What is the input voltage range for the BSFC-02C?
   It supports an input voltage range of 380-480V AC (3-phase).

4. What output voltages can the BSFC-02C deliver?
   The controller can deliver output voltages of 115V AC or 230V AC.

5. What protective features does the BSFC-02C include?
   It protects against overvoltage, overcurrent, reverse polarity, and short circuits.
