Overview

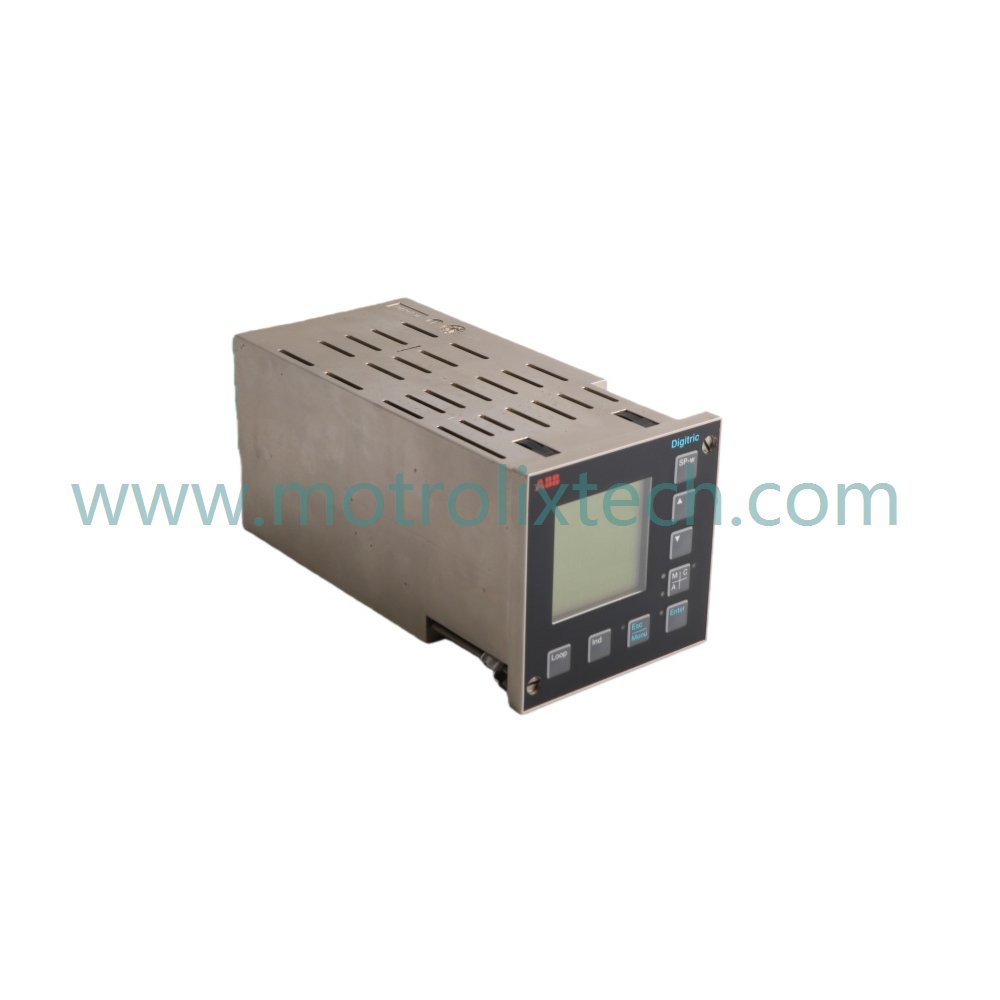

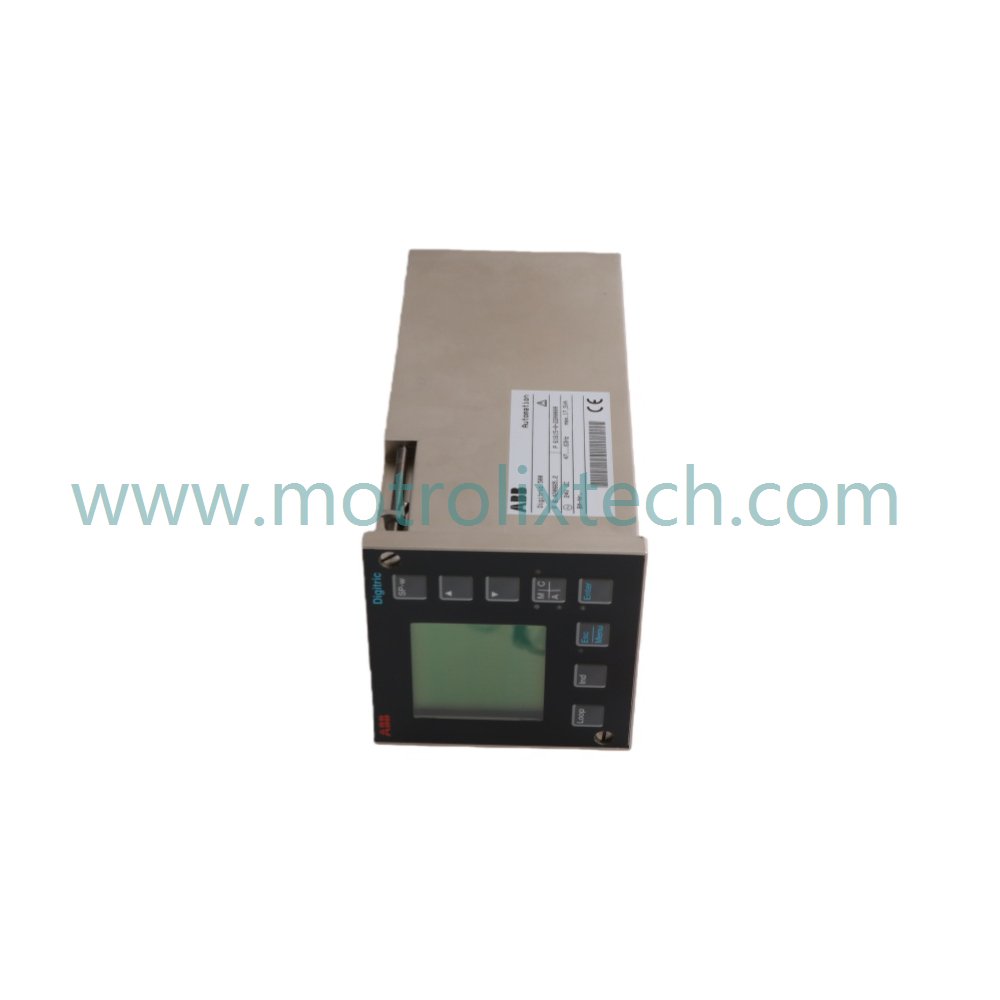

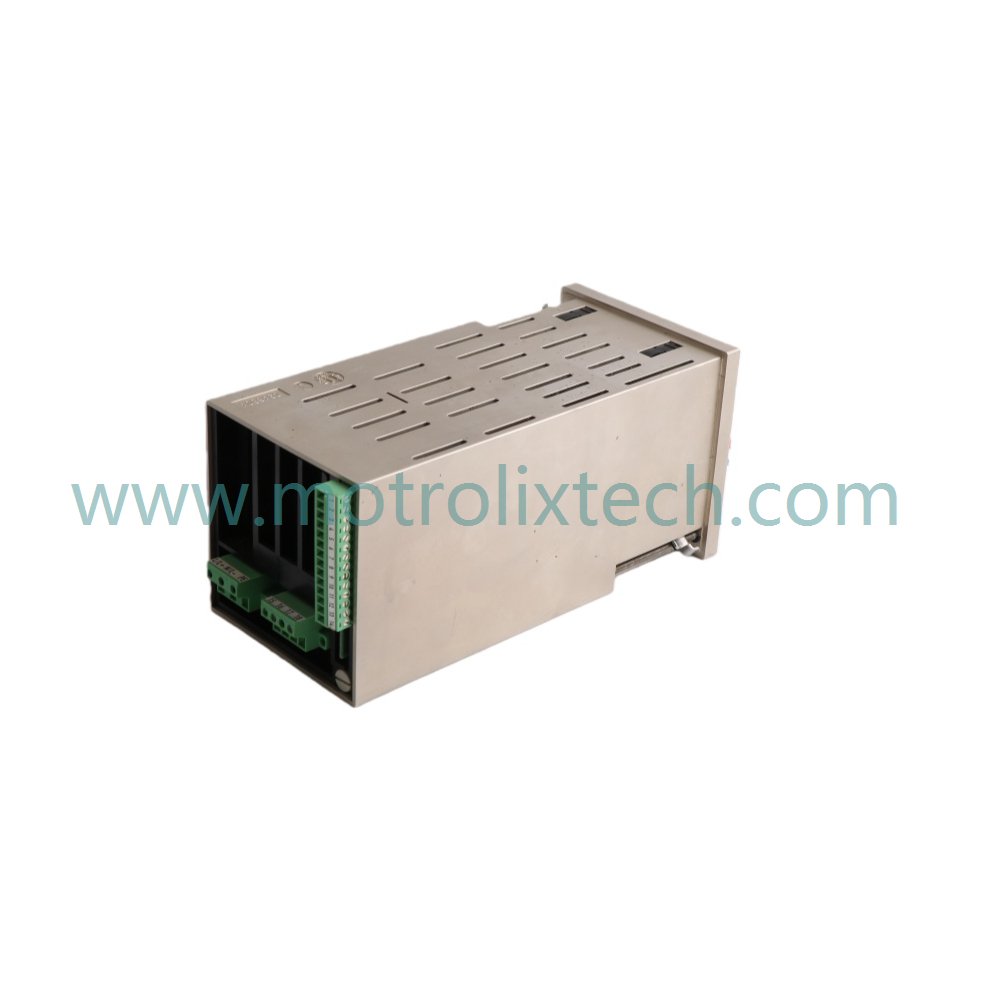

The ABB Digitric 500 F 6.420665.2 P61615-0-2200000 Panel Controller is designed for robust industrial automation applications. With its versatile performance and flexible configuration, this controller is an essential component for enhancing control systems. Operating on 24V DC, it supports both analog inputs of 0-10V and 4-20mA, allowing seamless integration with various industrial sensors.

Functional Highlights

This panel controller ensures reliable operation within a temperature range of -10°C to +50°C, with proper derating above 40°C. This wide temperature range makes the Digitric 500 suitable for challenging environments. It handles up to 200 I/O points through the MODBUS RTU communication protocol, providing substantial control capacity for complex applications.

Moreover, with compact dimensions of 160mm x 255mm x 148mm and a weight of 1.22 kg, the controller is ideal for installations where space is limited. The IP-rated enclosure ensures excellent protection against dust and moisture, thus maintaining operational integrity in harsh conditions.

The ABB Digitric 500 undergoes rigorous testing to assure it meets original specifications, delivering high-speed digital processing and precise response times. Its robust communication capabilities, including an RS-485 interface and support for multiple industrial protocols, allow it to function effectively as a data hub within automated systems.

Technical Data

• Model Number: Digitric 500 F 6.420665.2 P61615-0-2200000
• Module Type: Panel Controller
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS (Distributed Control System)
• Status: Active
• Input Voltage: 24V DC
• Analog Inputs: 0-10V, 4-20mA
• Temperature Range: -10°C to +50°C (derating above 40°C)
• Max I/O Points: Up to 200
• Communication Protocol: MODBUS RTU

Typical Applications

The ABB Digitric 500 Panel Controller is ideal for:

• Industrial automation systems requiring robust control and monitoring
• Applications in manufacturing and process control environments
• Systems in need of reliable integration with various sensors and devices
• Control architectures where space constraints are a concern

FAQ

1. What is the weight of the Digitric 500 Panel Controller?
   The controller weighs 1.22 kg.

2. What are the dimensions of the Digitric 500?
   Its dimensions are 24 x 19 x 5.3 cm.

3. What input voltage does the Digitric 500 support?
   It operates on 24V DC.

4. What is the maximum number of I/O points the controller can handle?
   The controller can manage up to 200 I/O points.

5. What communication protocol does the Digitric 500 use?
   It supports the MODBUS RTU communication protocol.
