Overview

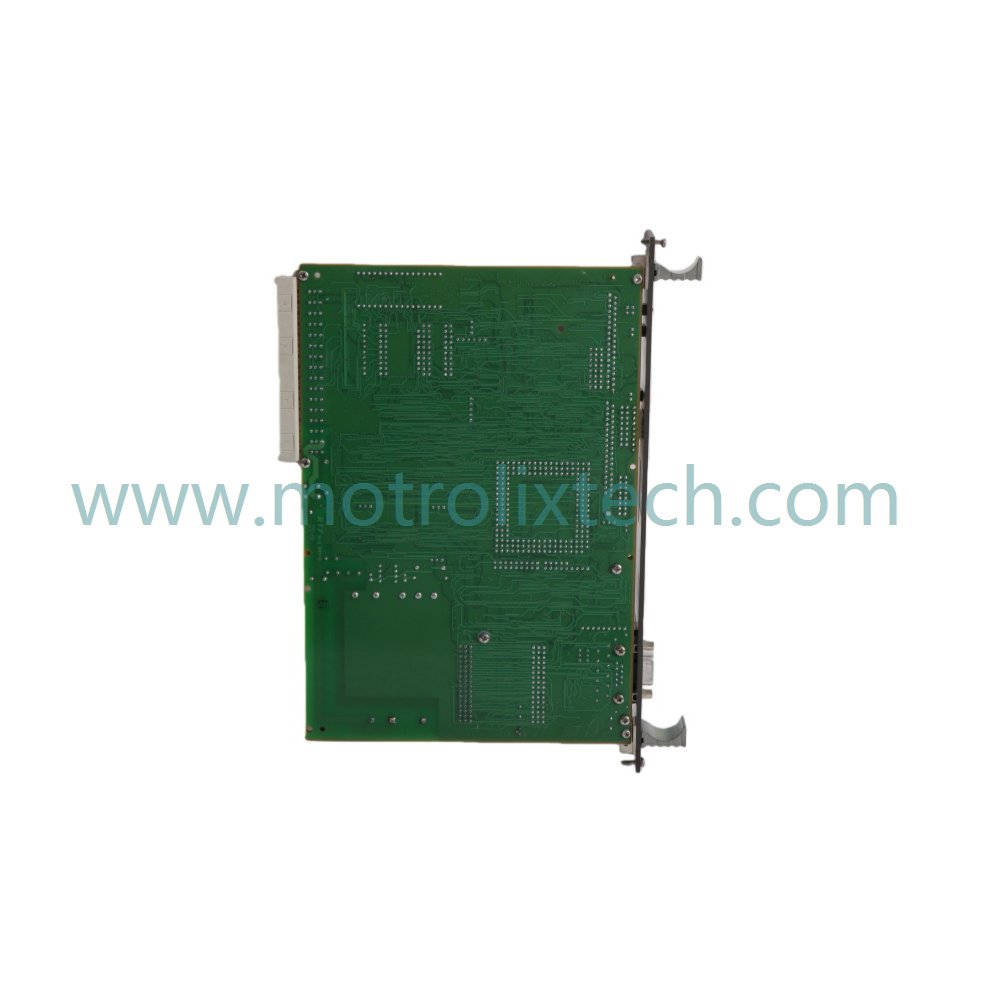

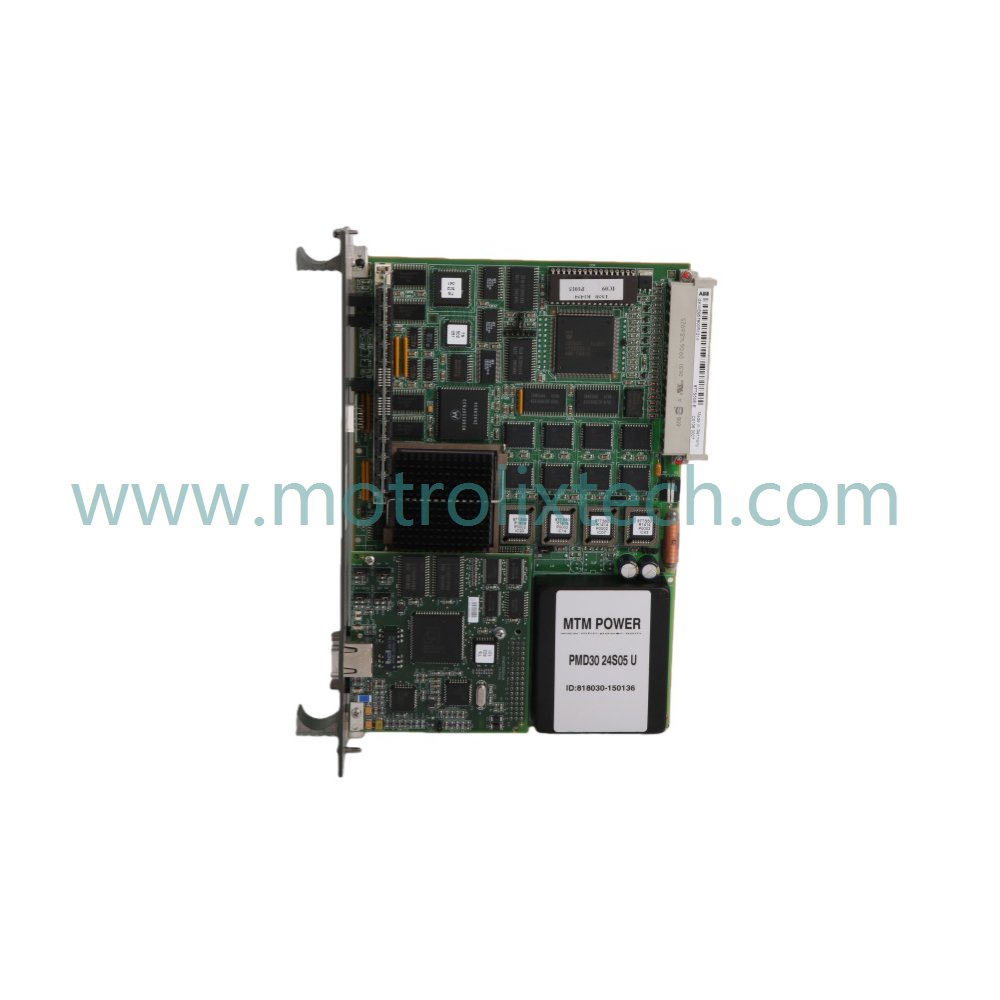

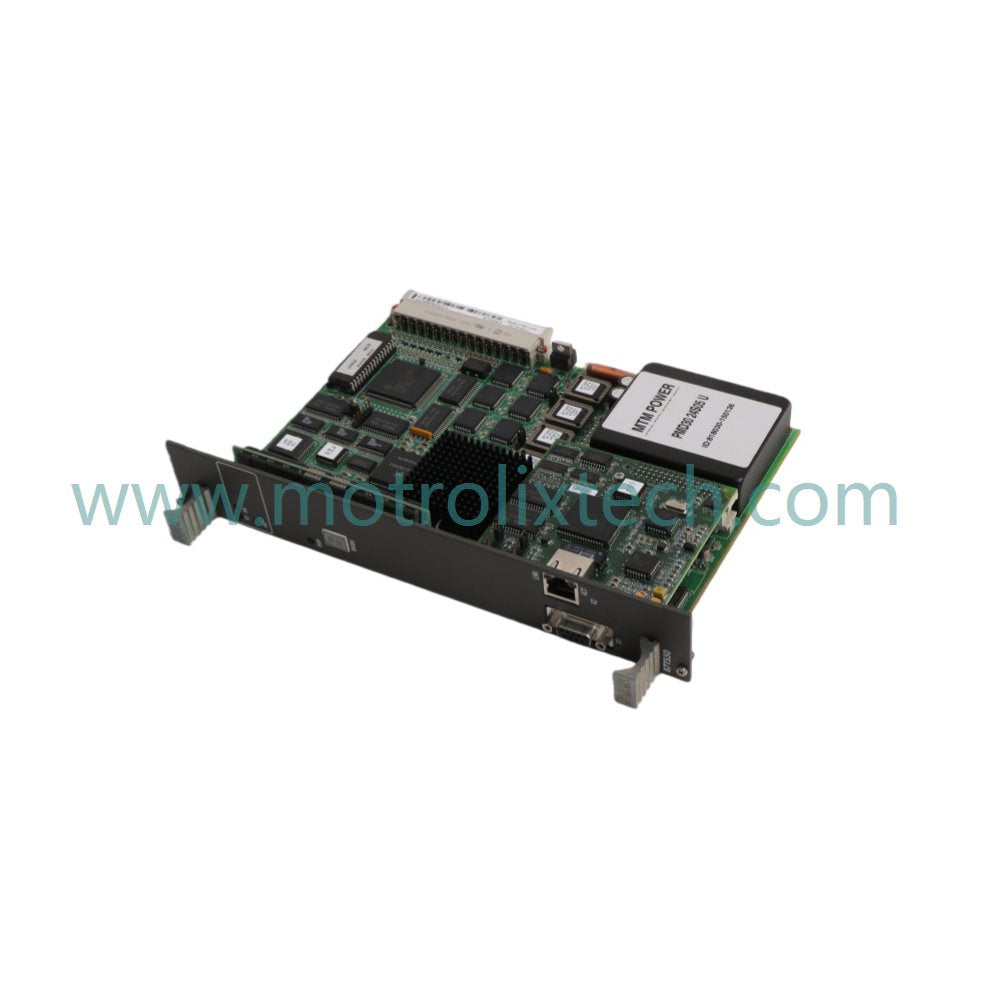

The ABB GKWE857800R1223 87TS50E-E Procontrol System Coupling Module is an advanced component designed for the Procontrol P13 system, which features a comprehensive range of I/O modules for various signal types. This module serves as a crucial coupler, enabling seamless integration and operation within modern industrial automation environments. It effectively replaces legacy analog output modules, while introducing significant technological advancements.

Functional Highlights

A primary advantage of the GKWE857800R1223 87TS50E-E is its sophisticated architecture, centered around a custom local bus UART and a digital signal processing engine. This design empowers the module to interface with multiple independent digital-to-analog front-end circuits, delivering outputs with exceptional precision—achieving 16-bit resolution and monotonicity.

Moreover, the module supports flexible configurations through the P13 Configurator software, allowing technicians to monitor and adjust parameters easily, without requiring manual jumper settings. This user-friendly approach enhances operational efficiency and adaptability to different applications.

In addition, the GKWE857800R1223 87TS50E-E utilizes the entire local bus address range, employing non-consecutive addressing for each channel. Its DSP/FPGA-based design ensures low maintenance requirements and high durability, making it ideal for demanding power generation environments.

Notably, the ability of the module for individual channel simulation and forcing simplifies commissioning processes and post-maintenance verification. This reliable performance positions the GKWE857800R1223 87TS50E-E as an essential component for modernizing control systems, while maintaining backward compatibility with existing Procontrol P13 installations.

Technical Data

• Model Number: GKWE857800R1223 87TS50E-E
• Module Type: Procontrol System Coupling Module
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Compatibility: Procontrol P13
• Communication Service: Ethernet router

Typical Applications

The ABB GKWE857800R1223 87TS50E-E Procontrol System Coupling Module is ideal for:

• Integrating modern automation systems with existing infrastructures.
• Replacing older analog output modules in Procontrol P13 systems.
• Applications that require precise data output and low maintenance.
• Enhancing flexibility and efficiency in power generation facilities.

FAQ

1. What is the weight of the GKWE857800R1223 87TS50E-E module?
   The module weighs 1.22 kg.

2. What are the dimensions of this coupler module?
   Its dimensions are 24 x 19 x 5.3 cm.

3. How does this module integrate with Procontrol systems?
   It seamlessly connects with the Procontrol P13 system and replaces older modules.

4. What type of outputs does the module provide?
   It delivers 16-bit precision outputs with monotonicity.

5. Can the module be configured easily?
   Yes, it supports flexible configurations via the P13 Configurator software.
