Overview

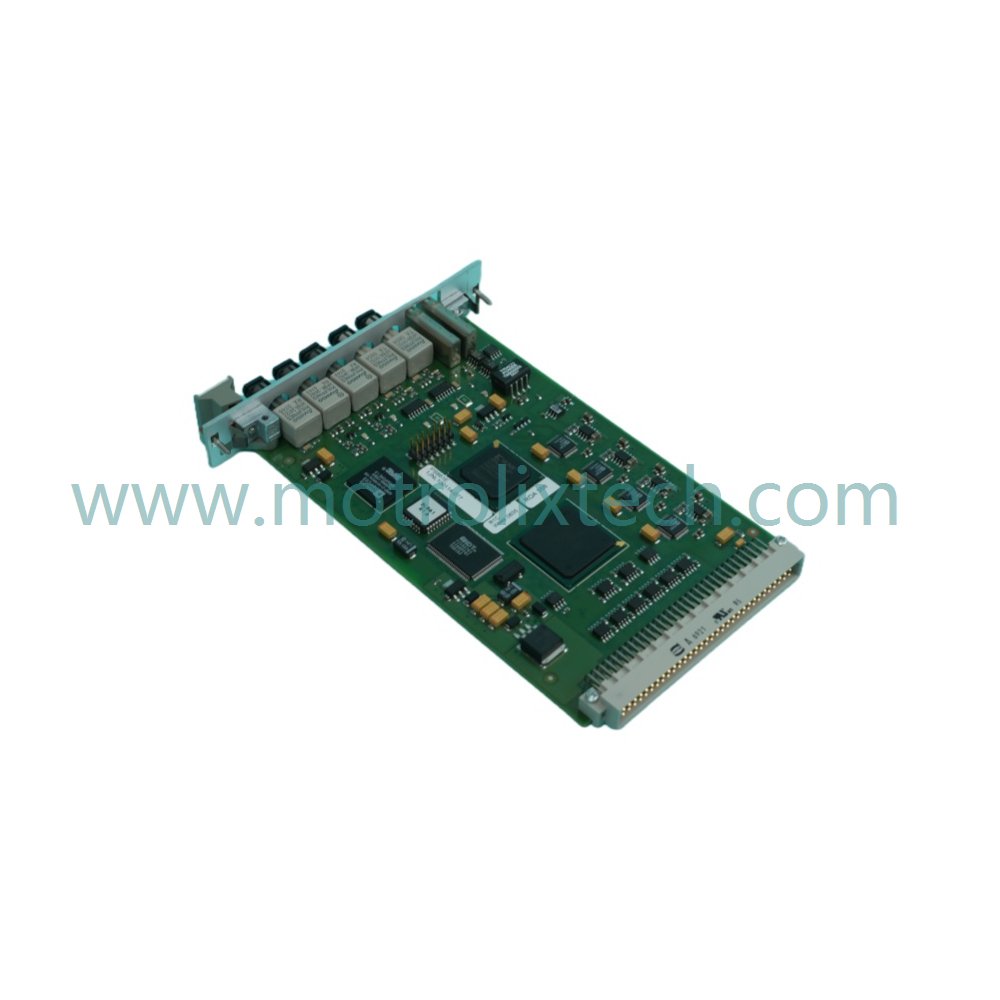

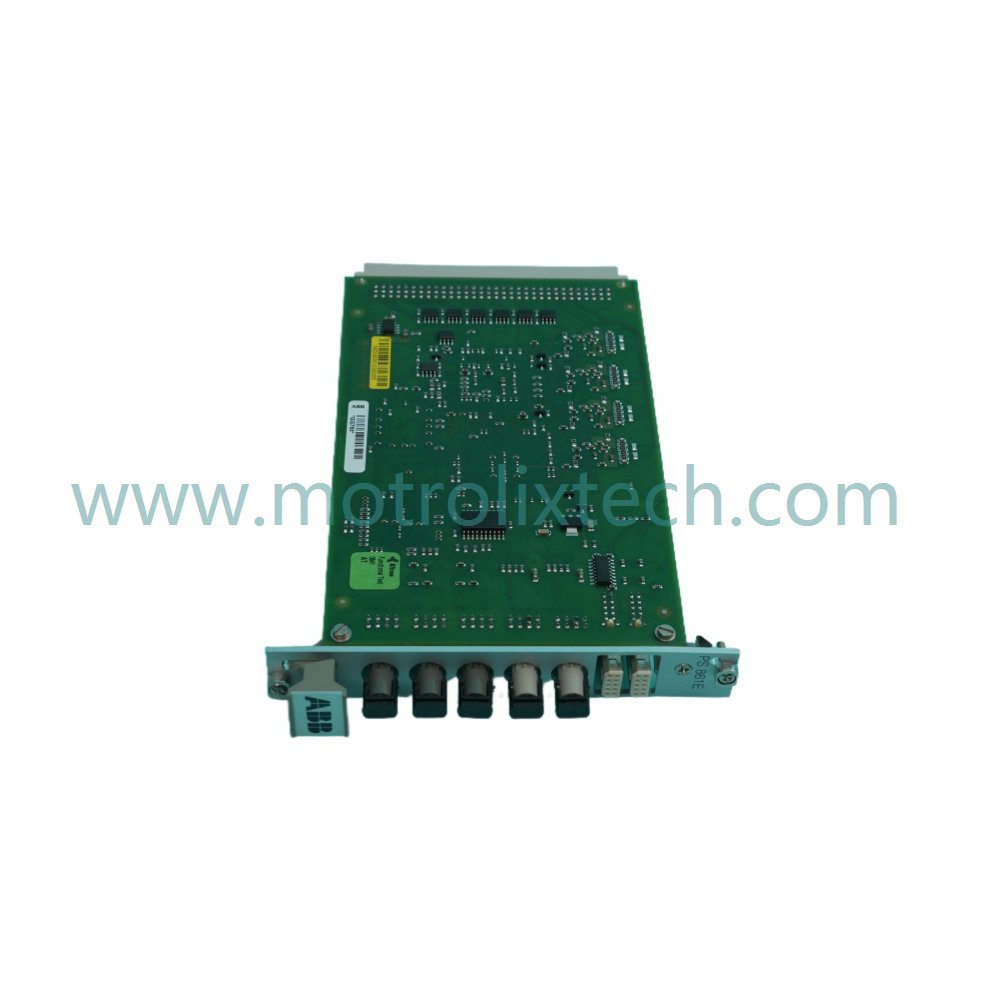

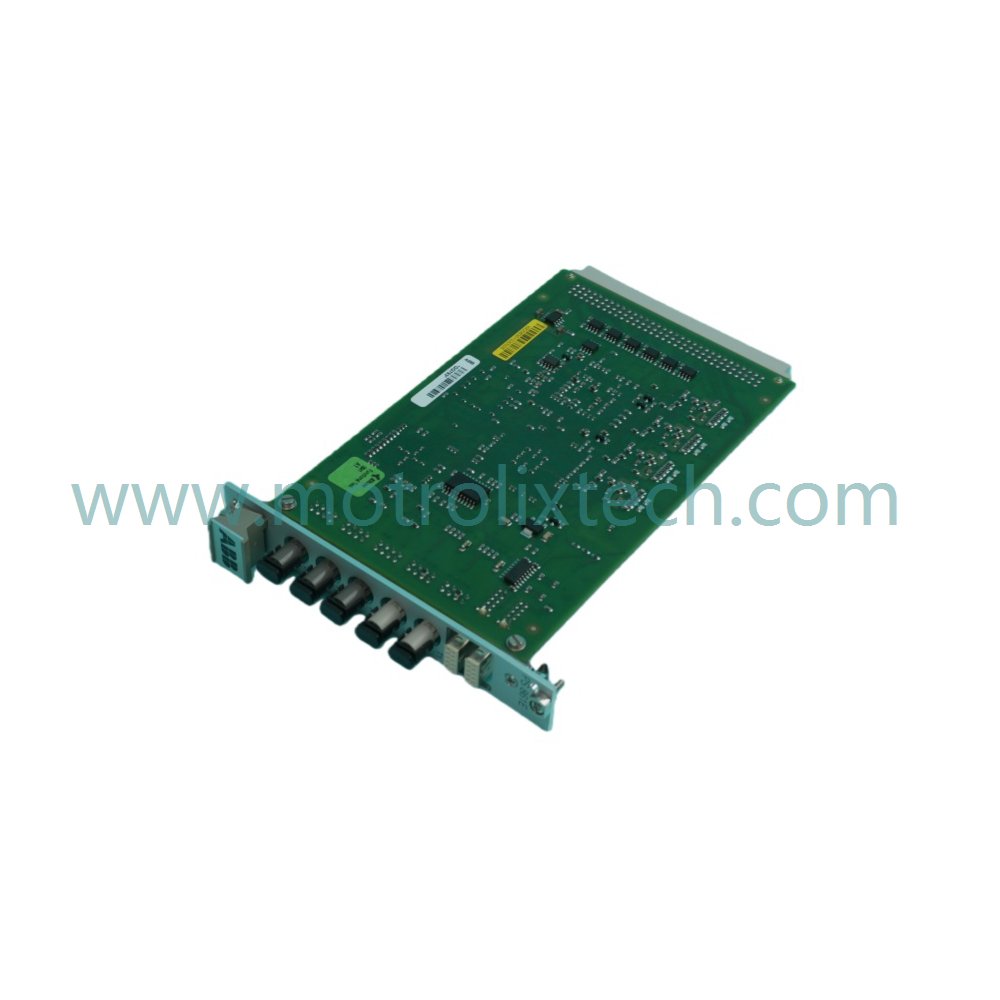

The ABB PS861E Programmable Logic Controller is a cutting-edge solution developed for the Advant OCS/800xA industrial automation framework. This high-performance I/O DSP board represents a sophisticated digital signal processing solution tailored for the AC800M distributed control system. With exceptional processing capabilities, it serves as the computational backbone in ABB's automation ecosystem.

Functional Highlights

Featuring an advanced 32-bit 500MHz processor architecture, the PS861E delivers remarkable processing power within a compact design of just 24 x 19 x 5.3 cm and a lightweight of 1.22 kg. It is equipped with 1GB DDR3 RAM and 512MB Flash storage, enabling rapid data processing at impressive speeds of 100,000 points per second. This capability is particularly beneficial for complex signal manipulation and real-time data filtering tasks in various industrial sectors, including power generation, chemical processing, and metallurgy.

Moreover, the PS861E enhances reliability by supporting advanced network redundancy protocols like Parallel Redundancy Protocol (PRP) and High-Availability Seamless Ring (HSR) technologies. These features ensure 99.999% communication availability, effectively preventing data loss in critical control scenarios. Its seamless integration within the AC800M framework provides native compatibility with ABB's extensive family of I/O modules and the Control Builder M engineering software.

This programmable logic controller establishes itself as a cornerstone component for high-availability control systems that demand deterministic performance. The board is designed to deliver operational reliability and engineering efficiency, maintaining ABB's esteemed standards in industrial automation.

Technical Data

• Model Number: PS861E
• Module Type: Programmable Logic Controller
• Manufacturer: ABB
• Condition: Brand New
• Weight: 1.22 kg
• Dimensions: 24 x 19 x 5.3 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: Advant OCS/800xA
• System Type: DCS

Typical Applications

The ABB PS861E is suitable for:

• Industrial automation systems in power generation and chemical processing.
• Complex signal processing tasks requiring high-speed data handling.
• Applications that require real-time data filtering and advanced modulation techniques.

FAQ

1. What is the weight of the PS861E?
   The PS861E weighs 1.22 kg.

2. What are the dimensions of the PS861E?
   Its dimensions are 24 x 19 x 5.3 cm.

3. What is the processor speed of the PS861E?
   It features a 32-bit 500MHz processor.

4. What protocols does the PS861E support?
   It supports Parallel Redundancy Protocol (PRP) and High-Availability Seamless Ring (HSR).

5. What is the maximum data processing speed of the PS861E?
   It can process data at speeds up to 100,000 points per second.
