Overview

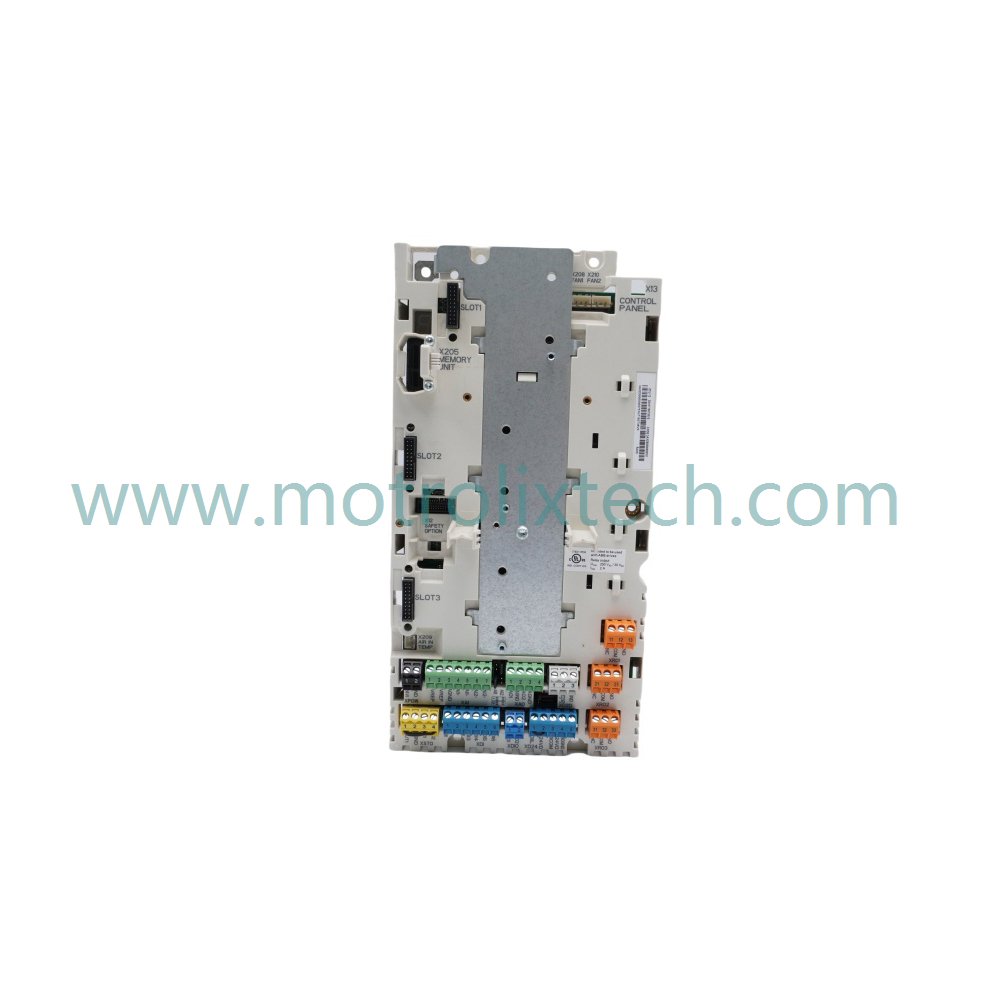

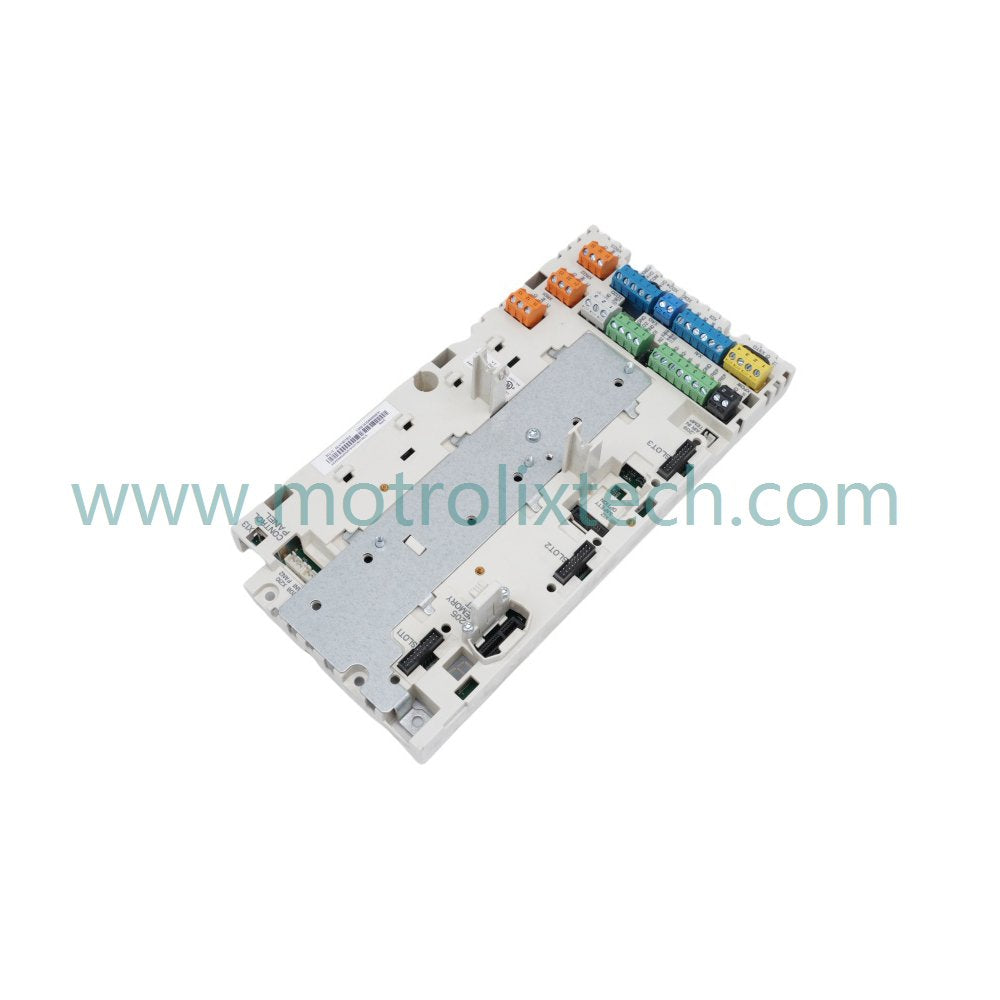

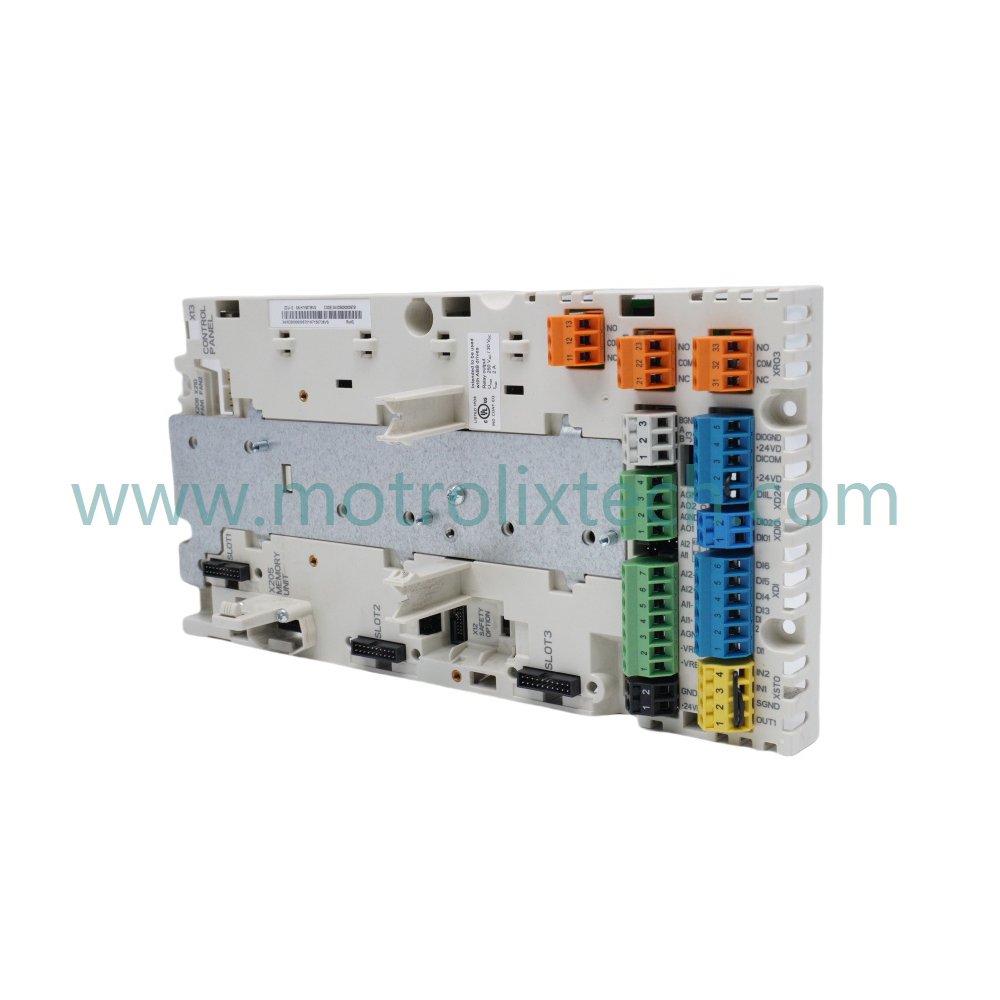

The ABB ZCU-12 3AXD50000005751 Control Unit is an essential component designed for integration with the ACS880 drive systems. This control unit plays a vital role in managing motor control and ensuring optimal performance across various applications. Its flexibility and precise control make it ideal for industries requiring effective motor control, such as manufacturing and automation.

Functional Highlights

The ZCU-12 is engineered to handle different motor types, including asynchronous AC induction motors, permanent magnet motors, and servomotors. This capability allows users to monitor and adjust motor parameters tailored to specific application needs, enhancing overall productivity.

Moreover, the unit provides various interfaces for easy integration into existing control environments. To ensure proper installation, users should utilize the provided mounting template to achieve accurate positioning on the mounting plate or wall. The ZCU-12 is designed for seamless operation with the ACS880 drive system, ensuring efficient energy usage and performance.

Additionally, the robust features of the ZCU-12 enhance the functionality of ACS880 drives, providing a reliable solution for high levels of motor control precision. This makes it a key component in achieving efficient motor control and improving system reliability across a wide range of industrial sectors.

Technical Data

• Model Number: ZCU-12 3AXD50000005751
• Module Type: Control Unit
• Manufacturer: ABB
• Condition: Brand New
• Range of Product: ACS880-11 Drive System
• Weight: 0.58 kg
• Dimensions: 12.2 x 8.5 x 13.9 cm
• HS CODE: 8537101190
• System: DCS
• Status: Discontinued (as of Dec 31, 2018)
• Minimum Order Quantity: 1
• Product Origin: Sweden
• Communication Service: Ethernet router

Typical Applications

The ABB ZCU-12 Control Unit is ideal for various applications, including:

• Integration into ACS880 drive systems for precise motor control
• Automation in manufacturing processes requiring high reliability
• Operations involving various motor types needing effective management
• Applications that benefit from optimized energy usage and performance

FAQ

1. What is the weight of the ZCU-12 Control Unit?
   The control unit weighs 0.58 kg.

2. What are the dimensions of the ZCU-12?
   Its dimensions are 12.2 x 8.5 x 13.9 cm.

3. What types of motors can the ZCU-12 manage?
   It handles asynchronous AC induction motors, permanent magnet motors, and servomotors.

4. Is the ZCU-12 compatible with ACS880 drive systems?
   Yes, it is specifically designed for seamless integration with ACS880 drives.

5. When was the ZCU-12 discontinued?
   The ZCU-12 was discontinued on December 31, 2018.
