Overview

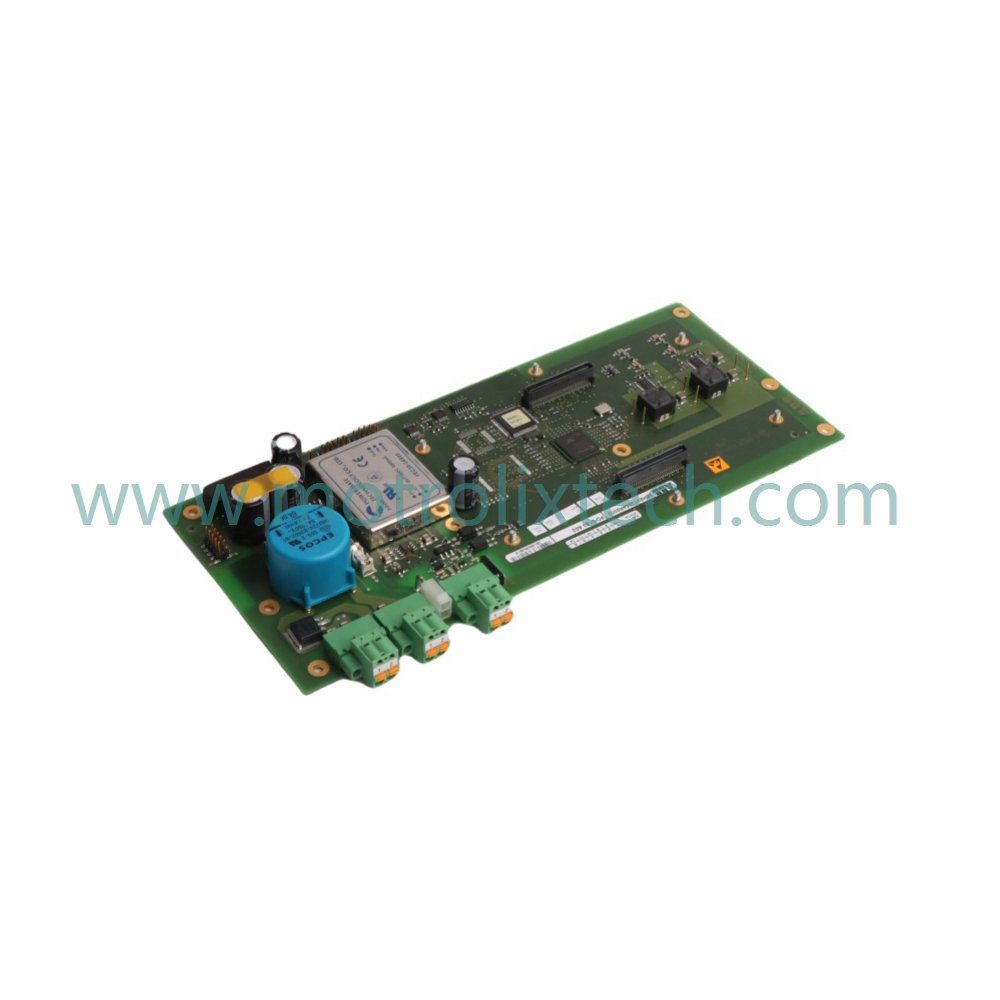

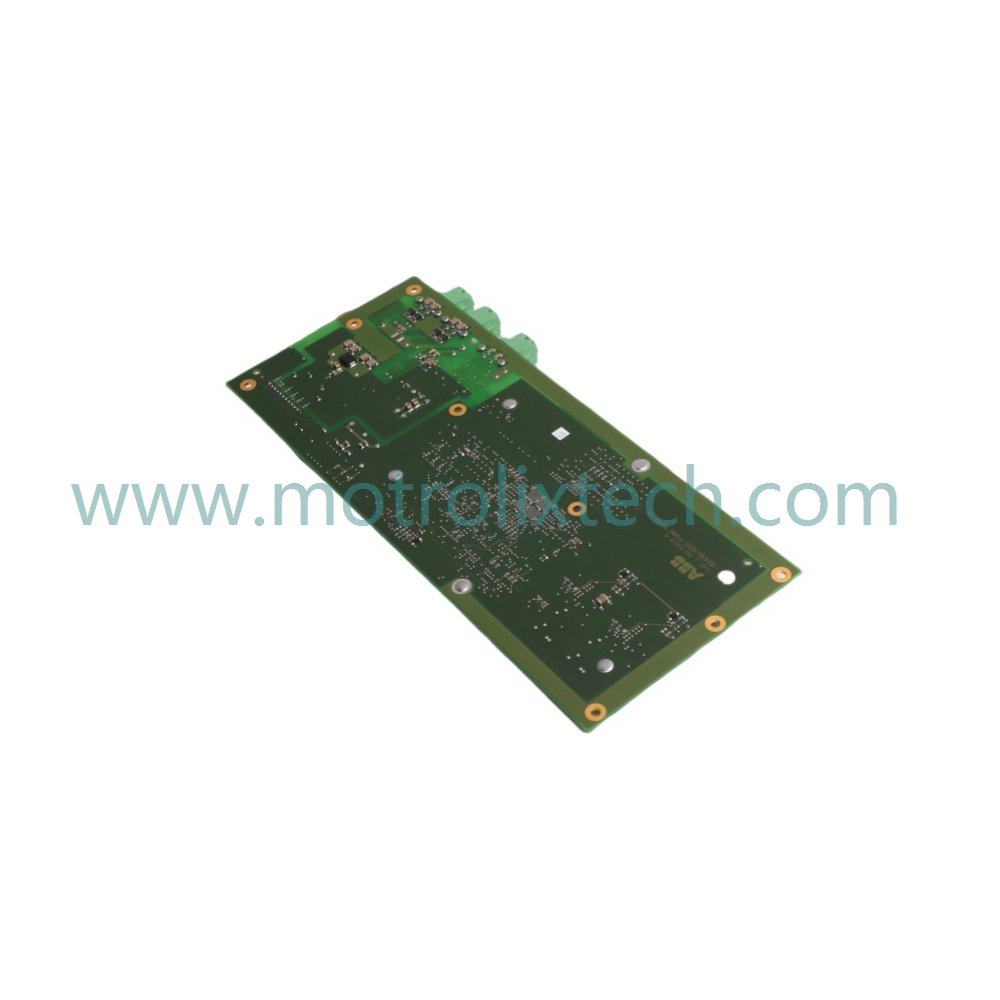

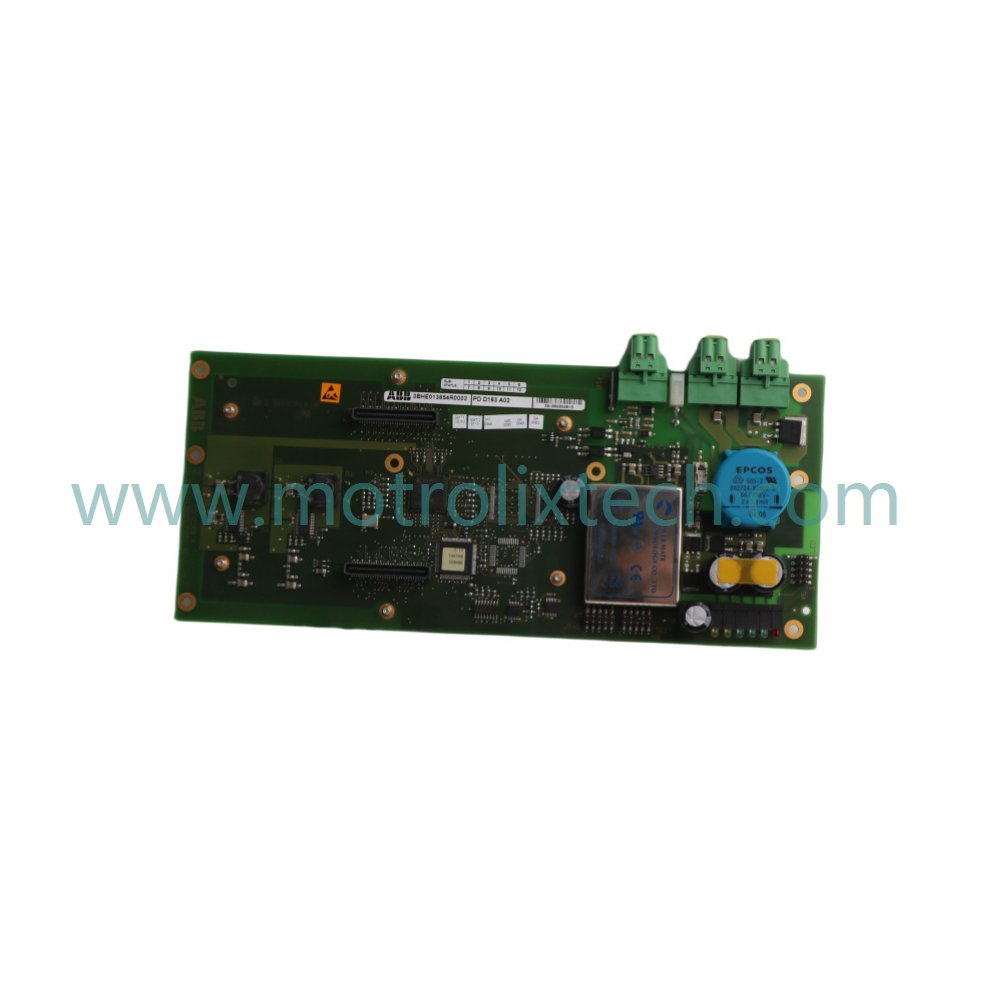

The ABB 3BHE013854R0002 PDD163 A02 Inverter Main Board is engineered for exceptional performance in demanding industrial applications. With its advanced technology and robust design, this inverter main board ensures precise control and reliability across a wide range of operating conditions.

Functional Highlights

Equipped with a powerful 2.5 GHz processor, the PDD163 A02 delivers rapid and efficient data processing, crucial for managing complex industrial systems. Coupled with 4 GB of DDR4 memory, this high-performance inverter board can handle large volumes of data simultaneously, significantly enhancing system responsiveness and efficiency.

Moreover, the board features 64 GB of SSD storage, providing quick access to essential programs and files, which reduces downtime and optimizes workflows. It includes 24 input and 16 output channels to offer extensive connectivity for seamless integration with various sensors and actuators. This capability allows for precise control and real-time monitoring, enabling adjustments that enhance operational performance.

Designed to operate within a wide power supply range of 120V AC to 240V AC, the 3BHE013854R0002 PDD163 A02 is adaptable to various electrical systems found in industrial settings. Furthermore, it functions effectively in temperatures ranging from -20°C to 60°C, making it suitable for different environmental conditions.

This inverter main board meets stringent safety and quality standards, including UL, CE, and ISO 9001 certifications, ensuring it is a trusted choice for industries that demand top-tier performance and compliance.

Technical Data

• Model Number: 3BHE013854R0002 PDD163 A02
• Module Type: Inverter Main Board
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.28 kg
• Dimensions: 27.1 x 2.8 x 12.9 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Minimum Order Quantity: 1
• Communication Service: Ethernet router

Typical Applications

The ABB 3BHE013854R0002 PDD163 A02 Inverter Main Board is suitable for:

• Industrial automation systems requiring high reliability and performance
• Advanced control applications in manufacturing and processing
• Integration into ABB's UNITROL Excitation Systems
• Applications across various sectors, including energy, transportation, and mining

FAQ

1. What is the weight of the 3BHE013854R0002 Inverter Main Board?
   The inverter main board weighs 0.28 kg.

2. What are the dimensions of this board?
   Its dimensions are 27.1 x 2.8 x 12.9 cm.

3. What type of processor does the board use?
   It uses a 2.5 GHz processor for efficient data processing.

4. How much memory does the inverter board have?
   The board includes 4 GB of DDR4 memory for enhanced performance.

5. Is this inverter compliant with any safety standards?
   Yes, it meets UL, CE, and ISO 9001 certification standards.
