Overview

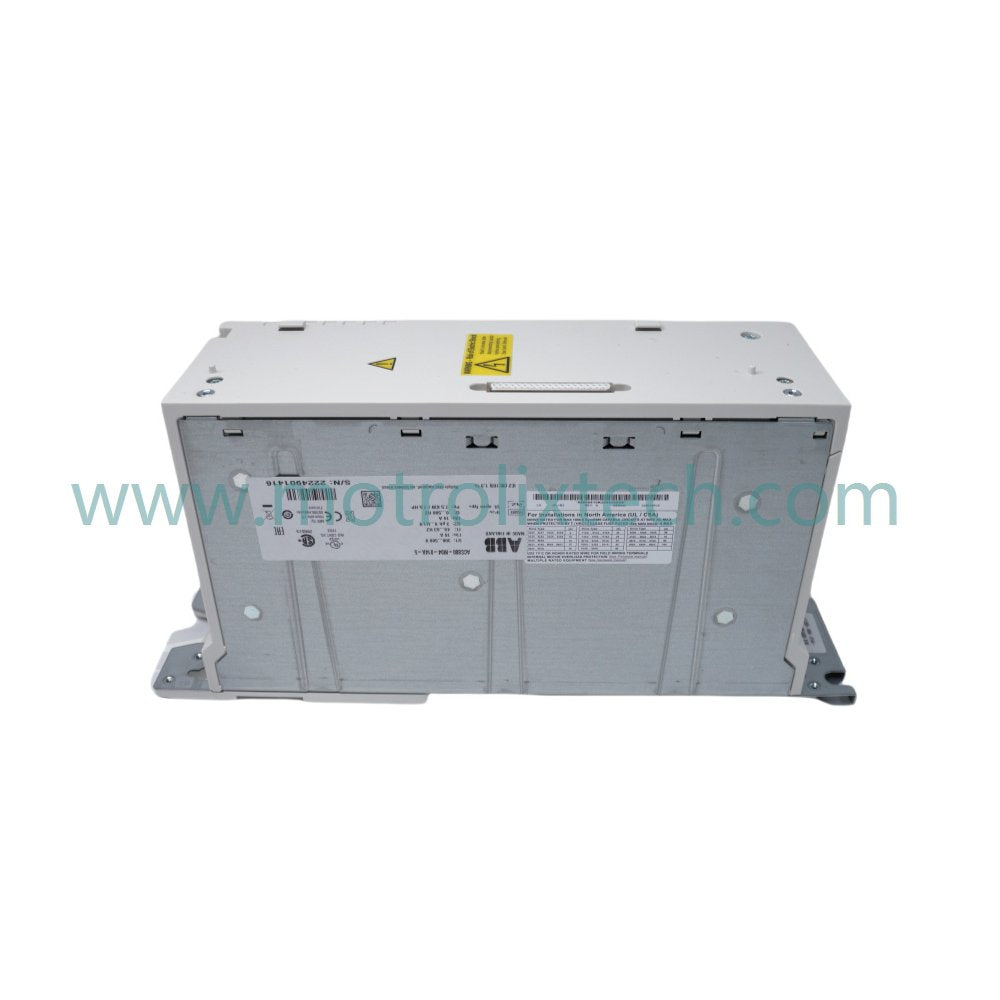

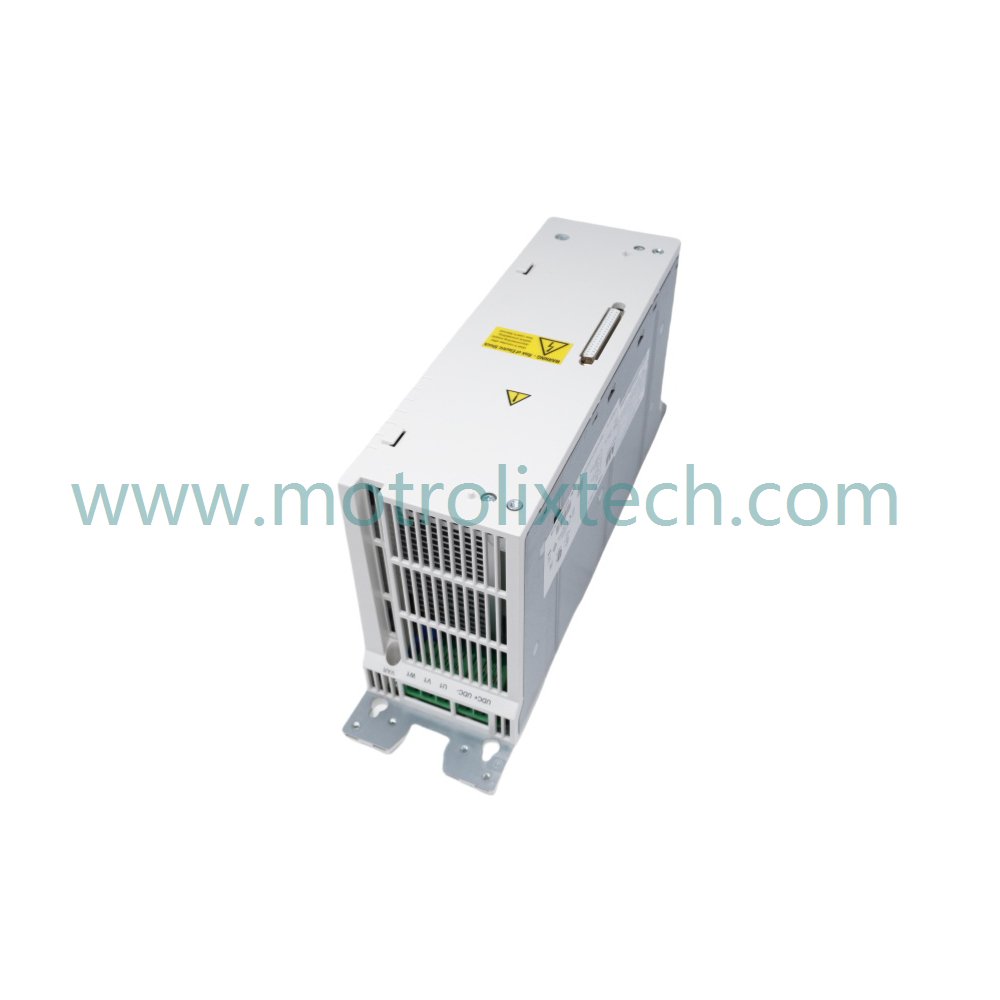

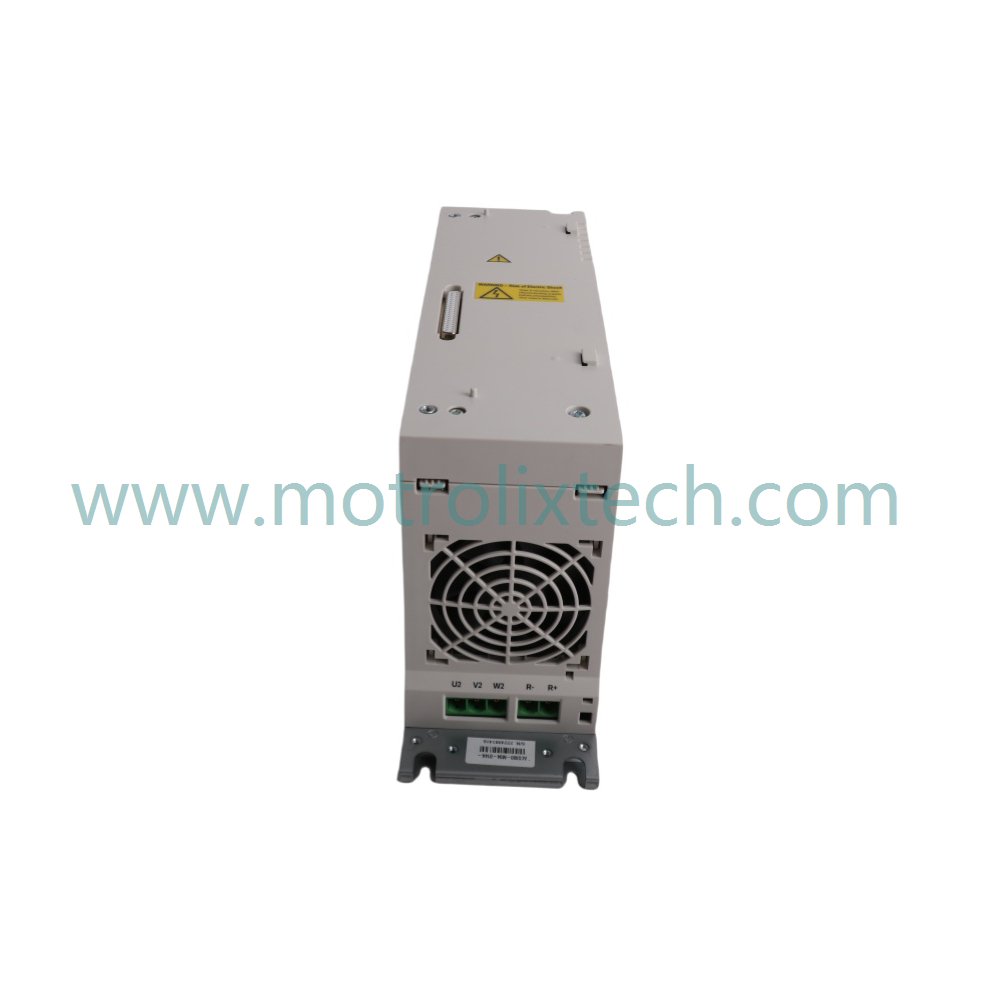

The ABB ACS880-M04-014A-5 Frequency Converter is an advanced low-voltage AC drive module designed for versatile motor control in a wide range of industrial applications. With a rating of 5.5 kW and 14 A for IEC standards (400 V), and 7.5 Hp and 13 A for UL standards (480 V), this drive delivers excellent performance while ensuring compatibility with various machinery. The ACS880 series is known for its reliability and efficiency, making it a preferred choice in many sectors.

Functional Highlights

The ACS880-M04-014A-5 features a bookshelf design that optimizes cabinet assembly and allows for efficient power cable routing with top entry and bottom exit. This design not only saves space but also simplifies installation in constrained environments.

Safety is a priority in the ACS880-M04-014A-5, as it comes with integrated Safe Torque Off (STO) capabilities and a built-in braking chopper, enhancing control and safety. Furthermore, the frequency converter includes extensive I/O connectivity options and the ability to incorporate speed and position feedback, making it adaptable to complex industrial setups.

Moreover, this drive supports various communication protocols, including PROFIsafe over PROFINET, enabling seamless communication with safety PLCs. The unit operates reliably within a standard temperature range of -10°C to +40°C, extendable to -20°C to +50°C, and has a storage temperature range of -40°C to +70°C. It also tolerates humidity levels from 5% to 95%, non-condensing, making it suitable for harsh environmental conditions.

The ACS880-M04-014A-5 offers cost and time-saving features through drive-based functional safety, removable memory units for quick replacements, and customizable programming using IEC 61131-3 standards. This flexibility ensures that it can adapt to demanding machinery applications, providing a robust and efficient solution.

Technical Data

• Model Number: ACS880-M04-014A-5
• Module Type: Frequency Converter
• Manufacturer: ABB
• Condition: Brand New
• Weight: 3.48 kg
• Dimensions: 33.5 x 27.5 x 8 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• System Type: DCS
• Status: Active
• Output Power: 5.5 kW (IEC), 7.5 Hp (UL)
• Current Rating: 14 A (IEC), 13 A (UL)
• Control Features: Safe Torque Off, built-in braking chopper
• Operating Temperature Range: -10°C to +40°C (extendable to -20°C to +50°C)
• Storage Temperature Range: -40°C to +70°C
• Humidity Range: 5% to 95%, non-condensing
• Communication Protocols: PROFIsafe over PROFINET

Typical Applications

The ABB ACS880-M04-014A-5 Frequency Converter is ideal for:

• Robotics and automated processes requiring precise motor control
• Pump and fan systems where variable speed control is essential
• Machinery applications that demand enhanced safety features
• Complex industrial setups needing excellent communication capabilities

FAQ

1. What is the weight of the ACS880-M04-014A-5 Frequency Converter?
   The frequency converter weighs 3.48 kg.

2. What are the dimensions of this frequency converter?
   Its dimensions are 33.5 x 27.5 x 8 cm.

3. What is the output power rating of the ACS880-M04-014A-5?
   It is rated at 5.5 kW for IEC standards and 7.5 Hp for UL standards.

4. Does the drive support various communication protocols?
   Yes, it supports PROFIsafe over PROFINET for safety communication.

5. What temperature ranges can the ACS880-M04-014A-5 operate in?
   It operates reliably from -10°C to +40°C, extendable to -20°C to +50°C.
