Overview

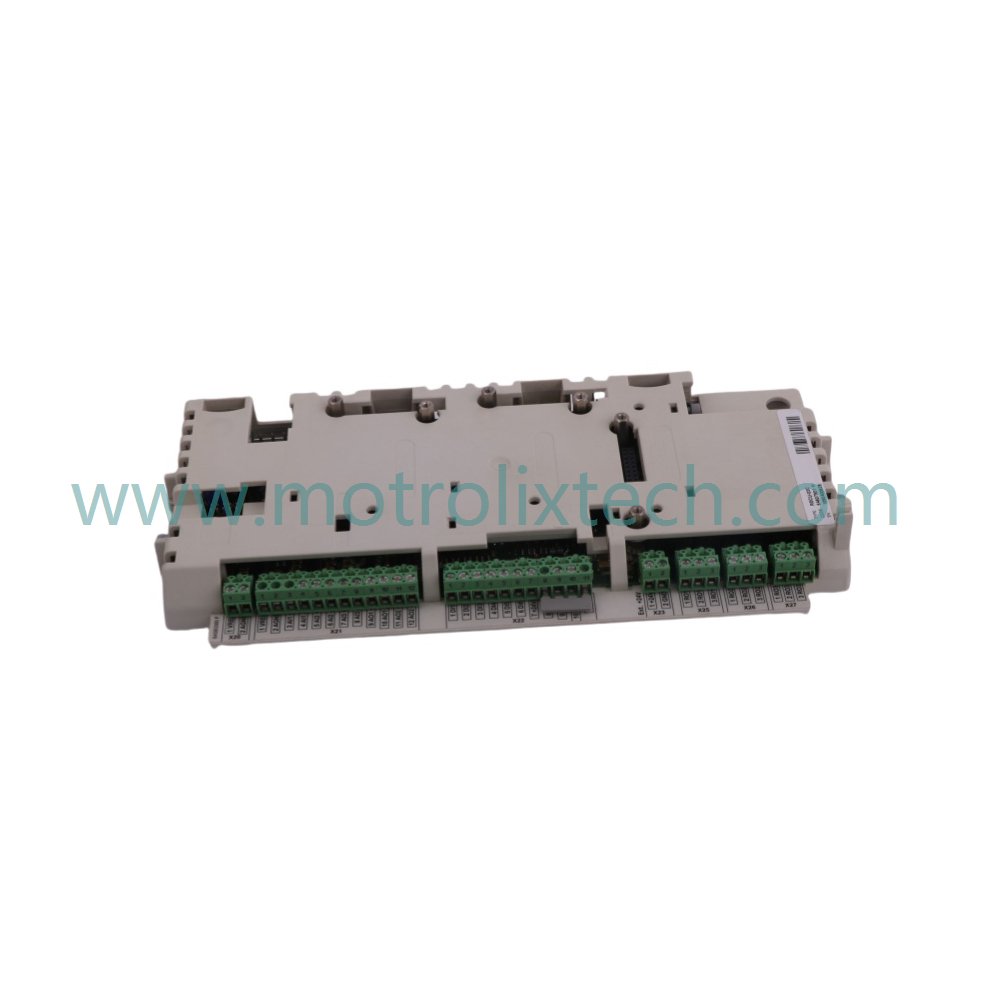

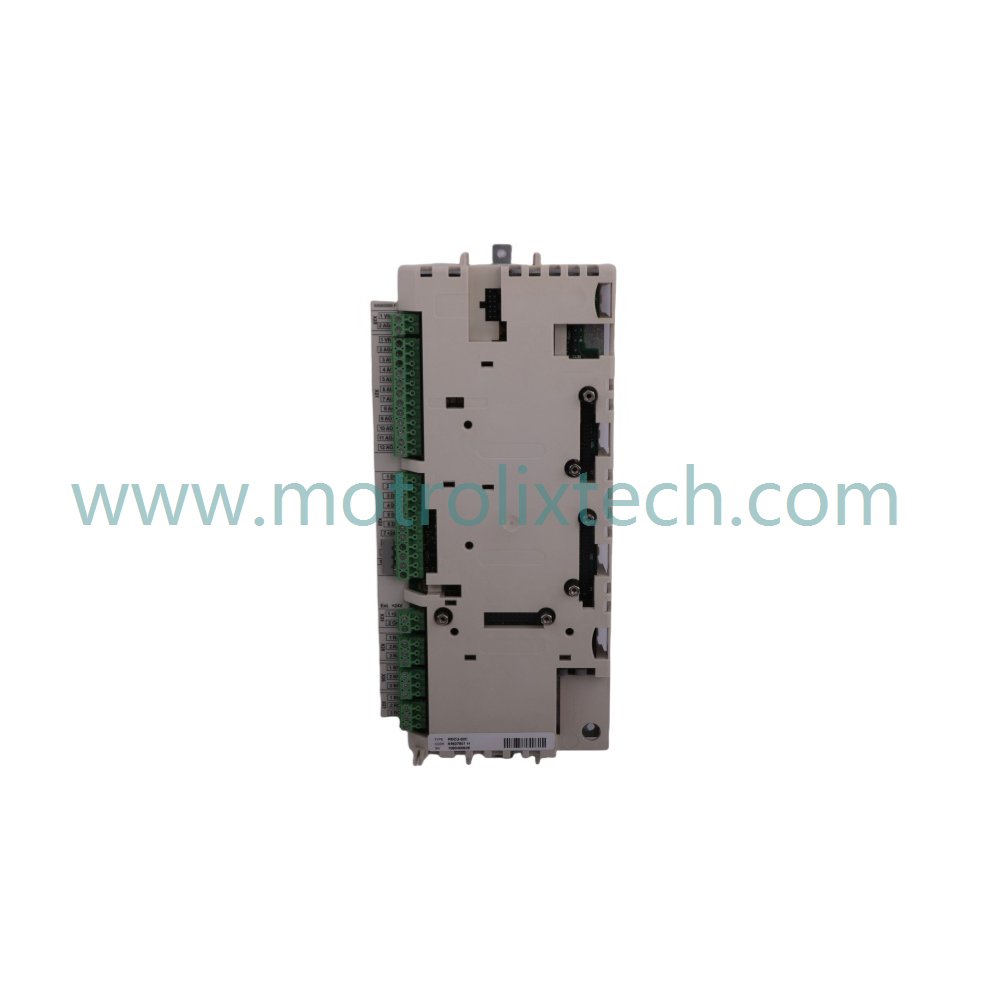

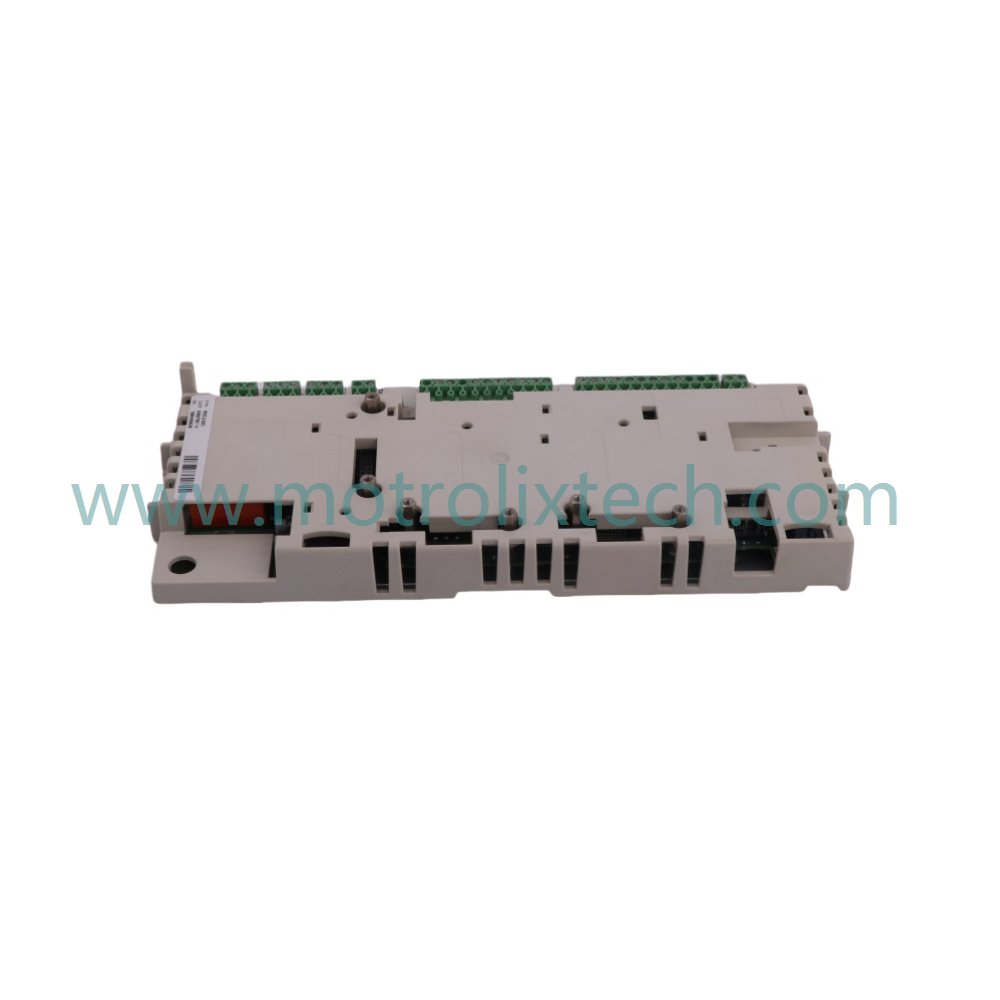

The ABB RDCU-02C RDCU Drive Control Unit is a versatile and robust solution designed for precise motor control in industrial automation systems. This unit is engineered to fit standard 35×7.5mm DIN rails in both vertical and horizontal orientations, making it suitable for a wide range of installation configurations. Its compact design ensures reliable operation under various industrial conditions.

Functional Highlights

A key advantage of the RDCU-02C is its power supply flexibility. It accepts a 24V DC input from either the drive's internal power supply board, which has a 1A current limit, or from an external source. This dual power capability enhances installation versatility and accommodates different system setups. Moreover, the total current draw of the RDCU-02C may vary based on the connected optional modules, allowing for expandability.

Communication is crucial in industrial settings, and the RDCU-02C excels in this area. It utilizes fiber optic links to connect with inverter/IGBT modules through PPCS ports V57 and V68. This optical interface provides noise-resistant data transmission, maintaining signal integrity in environments with high electrical noise, typical in industrial applications.

Certified by both CE and UL, the RDCU-02C operates effectively across a wide temperature range. This makes it ideal for controlling motors in various applications such as pumps, fans, and conveyor systems. Its combination of installation flexibility and strong connectivity makes it perfect for modern industrial automation upgrades.

Technical Data

• Model Number: RDCU-02C
• Module Type: RDCU Drive Control Unit
• Manufacturer: ABB
• Condition: Brand New
• Weight: 0.55 kg
• Dimensions: 12.7 x 3.1 x 28.2 cm
• HS CODE: 8537101190
• Product Origin: Sweden
• Range of Product: ABB
• System Type: DCS

Typical Applications

The ABB RDCU-02C is suitable for:

• Motor control applications in industrial automation.
• Integration with pumps, fans, and conveyor systems.
• Solutions requiring communication in electrically noisy environments.

FAQ

1. What is the weight of the RDCU-02C Drive Control Unit?
   The RDCU-02C weighs 0.55 kg.

2. What are the dimensions of the RDCU-02C?
   Its dimensions are 12.7 x 3.1 x 28.2 cm.

3. What is the input voltage for the RDCU-02C?
   It accepts a 24V DC input from internal or external sources.

4. What type of communication does the RDCU-02C support?
   It utilizes fiber optic links for communication with inverter modules.

5. Is the RDCU-02C certified for safety?
   Yes, it is certified by both CE and UL for safety standards.
