Overview

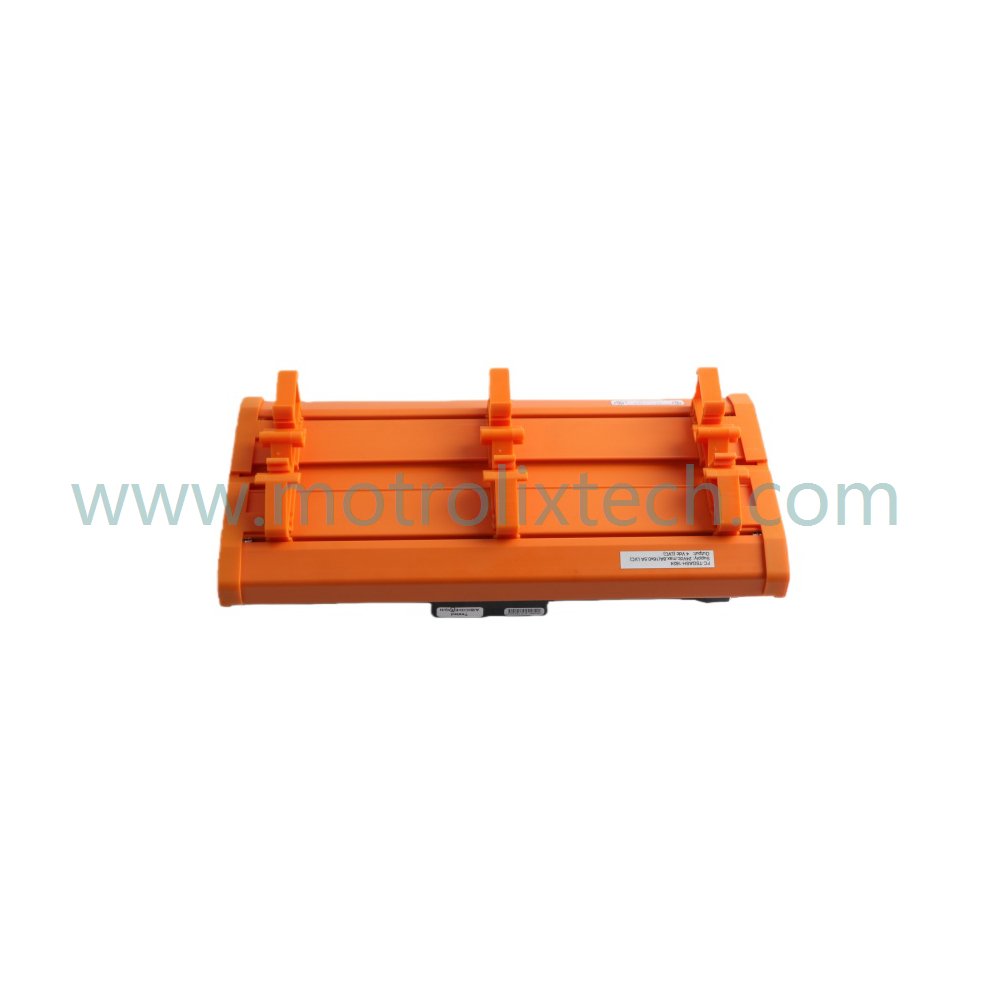

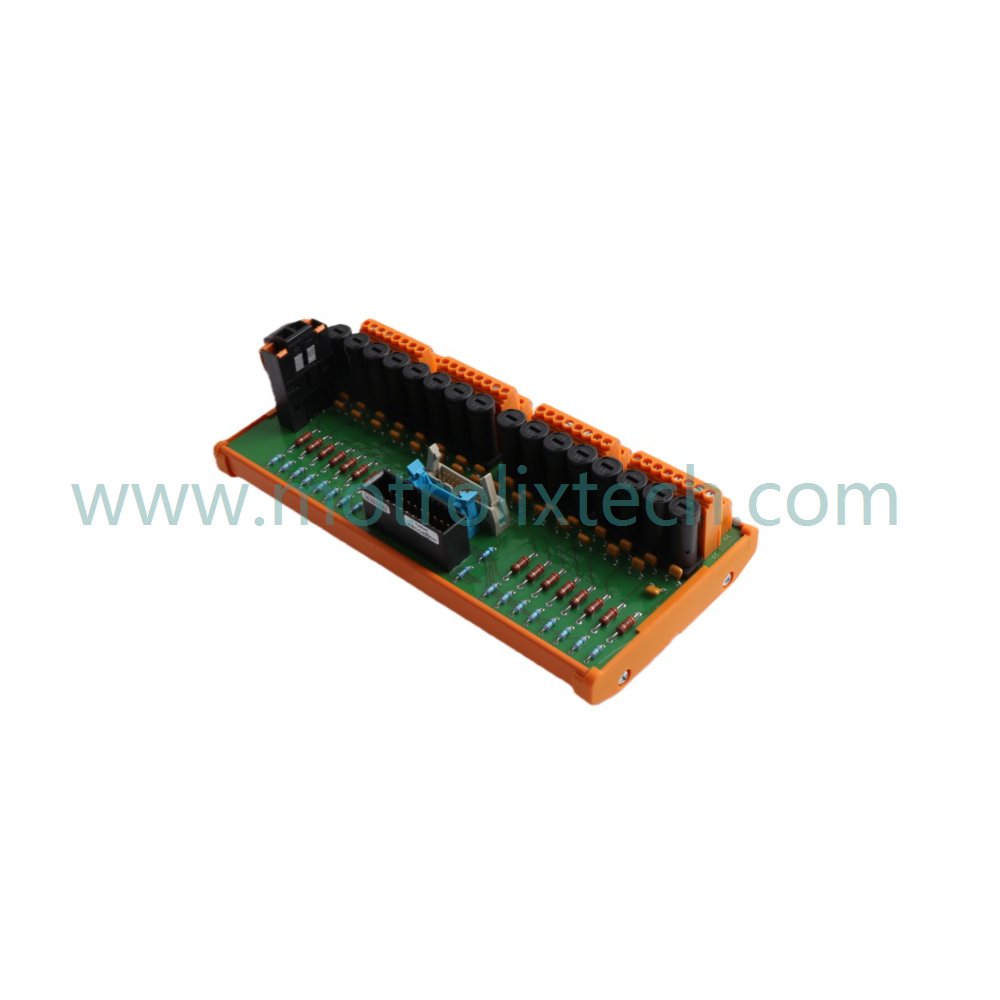

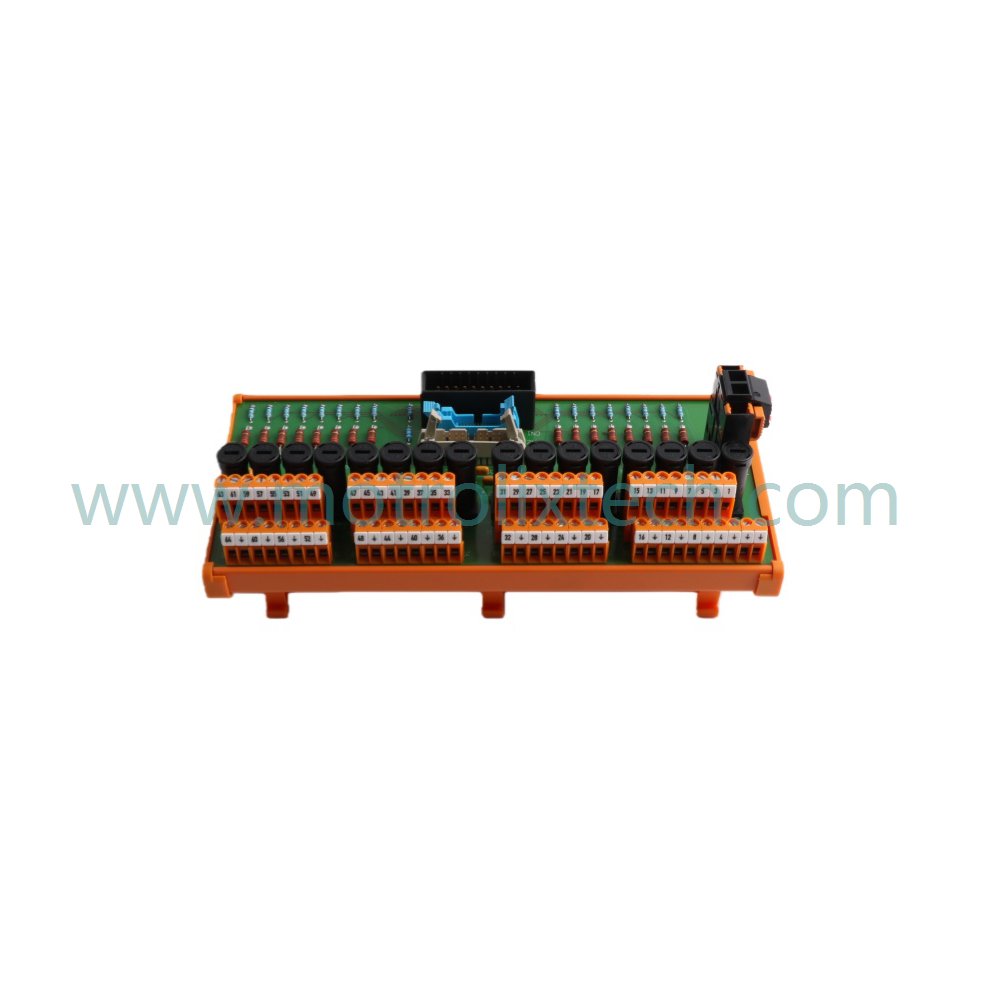

The Honeywell FC-TSGASH-1624P Field Termination Assembly is a specialized solution designed for critical safety and process control systems. This advanced module serves as the essential interface between intelligent gas and flame detectors and the central Safety Manager controller. With sixteen analog input channels configurable for both safety-related and non-safety applications, it offers significant design flexibility, making it an efficient solution for consolidating multiple detector signals in a compact unit.

Functional Highlights

Key features of the Honeywell FC-TSGASH-1624P include:

• High Channel Density: The sixteen analog input channels ensure efficient signal consolidation from multiple detectors.
• HART Communication Capability: Integrated HART communication across all channels enables advanced device configuration, calibration, and diagnostics from the control room.
• Robust Design: The field termination assembly reliably transfers data from detectors to safe analog input modules, essential for effective hazard detection.

Key Benefits

• Ease of Installation: The universal snap-in mount for standard DIN rails simplifies the panel building process, making integration easier.
• Secure Connections: It features screw terminals for secure field wiring and a dedicated connector for a 24V DC power source, ensuring an organized installation.
• Reduced Downtime: By enabling predictive maintenance and reducing the need for physical interventions, this module enhances operational efficiency.

Technical Data

• Model Number: FC-TSGASH-1624P
• Module Type: Field Termination Assembly
• Manufacturer: Honeywell
• Condition: Brand New
• Weight: 0.4 kg
• Dimensions: 7 cm x 14 cm x 14.5 cm
• HS CODE: 8537101190
• Product Origin: USA
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1
• Channels: 16 Analog Input Channels
• Communication Protocols: HART
• Power Supply: 24V DC

Typical Applications

The Honeywell FC-TSGASH-1624P is ideal for:

• Safety systems in industrial facilities requiring reliable gas and flame detection.
• Applications in chemical processing where hazardous materials are present.
• Systems that necessitate secure and intelligent connectivity for safety monitoring.

Support & Maintenance

Honeywell provides comprehensive support for the FC-TSGASH-1624P Field Termination Assembly. Our team is available to assist with installation, configuration, and ongoing maintenance to ensure optimal performance.

FAQ

1. What is the main function of the Honeywell FC-TSGASH-1624P?
   It serves as an interface between gas and flame detectors and the Safety Manager controller.

2. How many channels does it support?
   The module supports sixteen analog input channels.

3. Does it support HART communication?
   Yes, all channels come with integrated HART communication capabilities.

4. What are the installation features of this module?
   It includes a universal snap-in mount for DIN rails and screw terminals for secure wiring.

5. What is the product origin and condition?
   The FC-TSGASH-1624P is manufactured in the USA and is brand new.
