Description

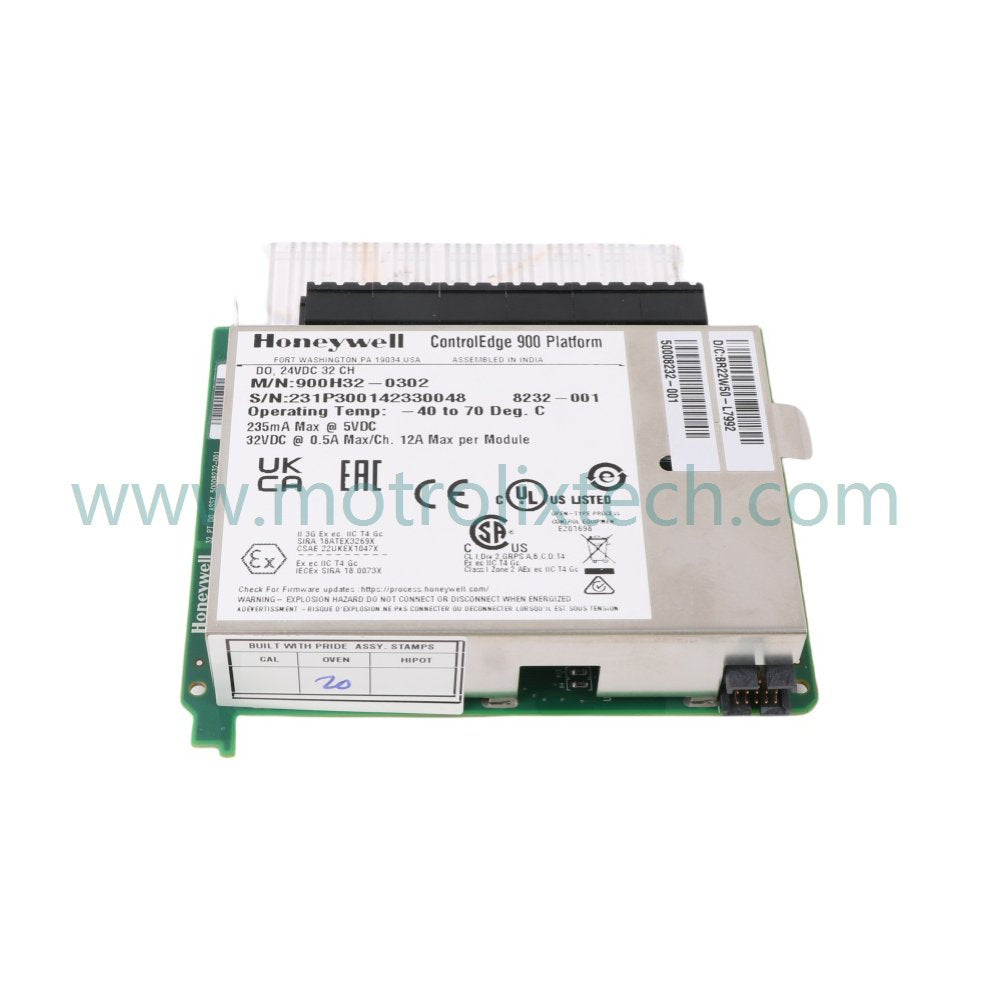

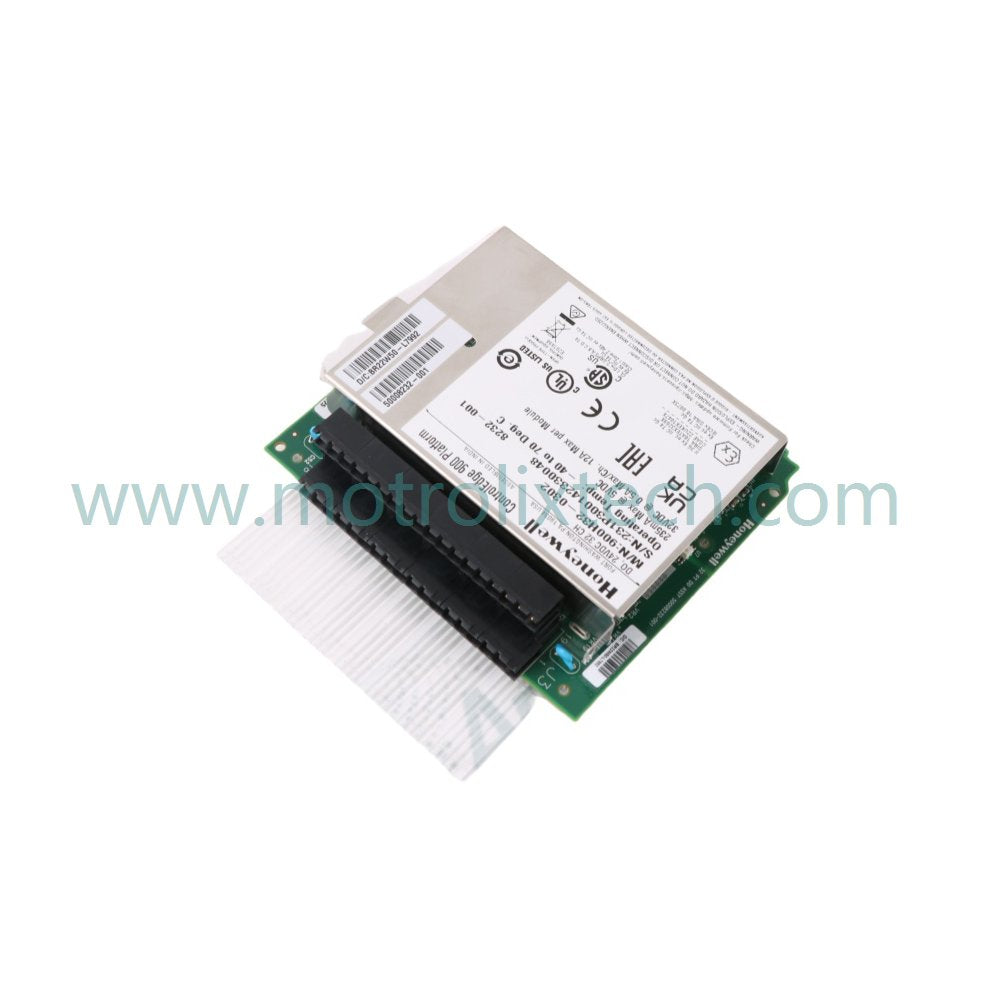

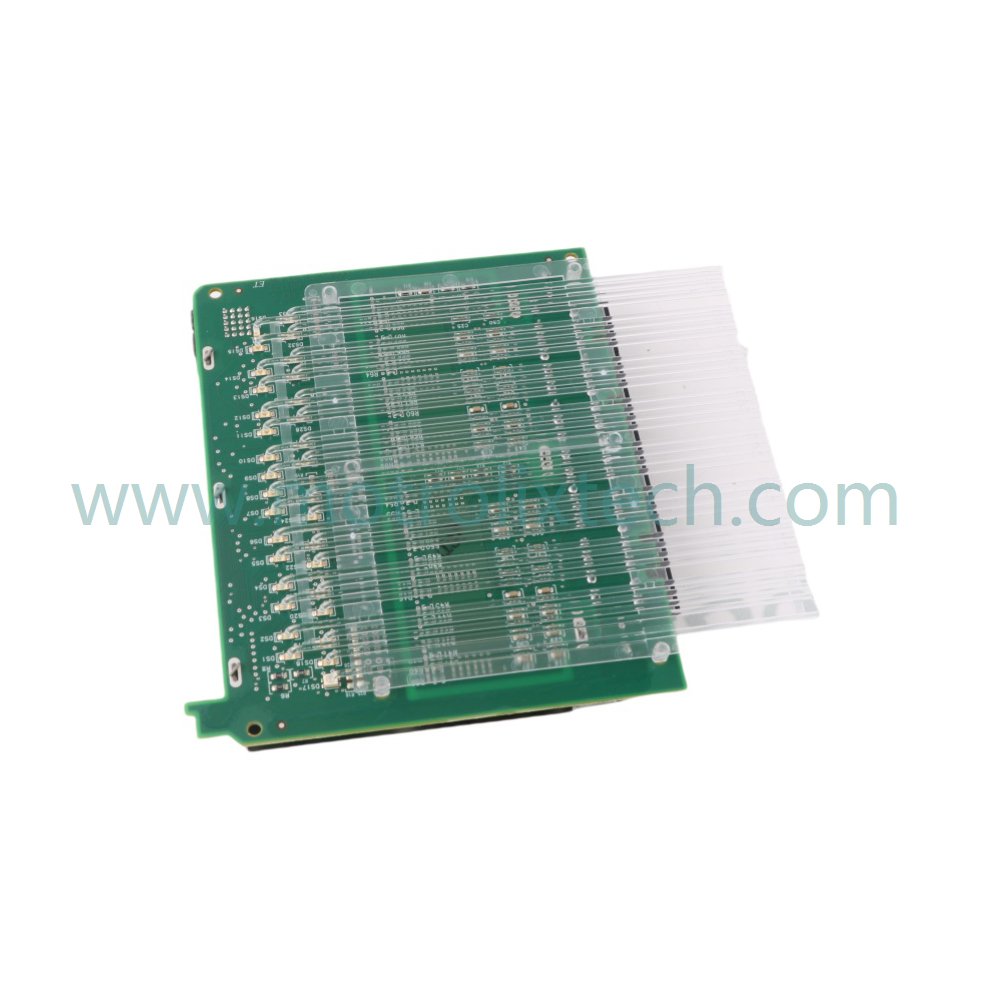

The Honeywell 900H32-0302 32 Point Digital Output Module is an advanced and reliable solution designed for robust industrial automation applications. This compact module features high-density DC digital outputs, accommodating 32 outputs organized into two isolated groups of 16 channels each. Engineered for use with the Honeywell Experion PKS control system, it ensures efficient and secure output management in demanding environments.

Functional Highlights

Key features of the Honeywell 900H32-0302 include:

• High-Side Switching Technology: Utilizes current sourcing to facilitate reliable operation in various control scenarios.
• Enhanced Overcurrent Protection: The module protects outputs in four groups of eight channels each, isolating any disrupted group during fault conditions.
• Quick Recoverability: Designed not to require power cycling to reset after faults, significantly reducing downtime.

Key Benefits

• Operational Visibility: Multi-color LED indicators provide real-time feedback for each channel, enhancing monitoring and maintenance processes.
• Space Optimization: The high-density design allows for the efficient use of control cabinet space while maintaining performance.
• Easy Troubleshooting: Diagnostic alerts and indicators help quickly identify issues, minimizing system downtime.

Technical Data

• Model Number: 900H32-0302
• Module Type: 32 Point Digital Output Module
• Manufacturer: Honeywell
• Condition: Brand New
• Weight: 0.18 kg
• Dimensions: 13.3 cm x 15.1 cm x 3.3 cm
• HS CODE: 8537101190
• Product Origin: USA
• Lead Time: In Stock
• Minimum Order Quantity (MOQ): 1
• Input Voltage: 24 VDC
• Output Groups: Two isolated groups of 16 channels each
• Maximum Input Voltage: 30.0 VDC
• Protection Features: Overcurrent protection with intelligent switch-off

Typical Applications

The Honeywell 900H32-0302 is ideally suited for:

• Manufacturing processes requiring reliable digital output management.
• Process control environments where control signal integrity is paramount.
• Material handling systems needing enhanced operational visibility and diagnostics.

Support & Maintenance

Honeywell offers dedicated support for the 900H32-0302 module. Our experienced team is ready to assist with any installation, troubleshooting, and maintenance needs, ensuring uninterrupted system performance.

FAQ

1. What is the primary function of the Honeywell 900H32-0302?
   The module serves as a high-density digital output device for various industrial automation applications.

2. How many outputs does this module provide?
   It offers 32 outputs, organized into two isolated groups of 16 channels each.

3. What protection features are included?
   It includes overcurrent protection that isolates faulty channels without disrupting others.

4. Is this module part of a larger control system?
   Yes, it is designed for seamless integration with the Honeywell Experion PKS system.

5. What is the significance of the LED indicators?
   They provide real-time operational status and diagnostic alerts to assist in monitoring and troubleshooting.
